A Guide to the Law of Uniform Connectedness in Web Development

The Law of Uniform Connectedness is one of the Gestalt principles of perception. It means that people tend to see visually connected elements as belonging to the same group or unit. If two items are linked by a line, shared color, border, path, frame, or repeated treatment, users will usually assume those items are related.

That sounds obvious, but it matters constantly in web development. Interfaces are full of things that need to feel connected: labels and fields, filters and results, chart legends and series, table rows and detail panels, selected navigation items and the content they control. When those relationships are visually clear, users do not have to decode the screen. When they are unclear, the UI feels scattered even if each component works.

The law is not telling developers to add lines everywhere. That is how you turn an app into a wiring diagram. It is telling developers to make meaningful relationships visible and to avoid accidentally connecting things that do not belong together.

In this blog, we will explore:

• Applying the Law of Uniform Connectedness in UI/UX
• Examples of the Law of Uniform Connectedness in Web Development
• Examples Using Wijmo Components

Ready to get started? Download Wijmo Today!

Applying the Law of Uniform Connectedness in UI/UX

Connect Related Elements Intentionally

Users should be able to tell what belongs together without having to stop and think. A label should feel attached to its input. A helper message should feel attached to the field it explains. A chart legend should clearly map to the series it describes. A filter panel should clearly control the results below it.

Uniform connectedness gives developers a practical way to communicate those relationships. You can connect related elements with:

• Shared color
• Lines or paths
• Borders
• Background treatments
• Matching icons
• Consistent placement
• Repeated component styling

The point is not decoration. The point is association. Bad UI says, “These things are on the same page. Good luck.” Good UI says, “These things work together.”

Keep Connections Consistent

A visual connection only works if users can learn it. If blue means “selected” in one part of the page, “warning” in another, and “editable” somewhere else, the interface is not communicating. It is making users negotiate with it.

Uniform connectedness depends on consistency. When related elements share a treatment, that treatment should mean the same thing throughout the app. If a colored stripe connects a table group, do not use the same stripe somewhere else for an unrelated alert. If an outline connects a filter group, do not use that same outline for a disabled panel unless the context is unmistakable.

Consistency is what turns a visual effect into a usable signal.

Use Connectedness to Clarify Scope

Many web app mistakes are scope mistakes. Users ask:

• Does this button affect this row or the whole table?
• Does this filter apply to this chart or the entire dashboard?
• Does this error message belong to this field or the whole form?
• Does this tab control the panel below it or something else on the page?

The Law of Uniform Connectedness helps answer those questions visually. A button placed inside a row feels row-specific. A filter panel visually connected to one chart feels chart-specific. A selected tab that connects directly to its panel indicates which content has changed.

When scope is unclear, users hesitate. When scope is visible, users move.

Do Not Connect What Is Not Related

Uniform connectedness is powerful enough to create false relationships. That is the risky part.

If unrelated controls sit inside the same bordered area, users may assume they work together. If two different states use the same color, users may assume they mean the same thing. If a line connects two unrelated elements, users may invent a relationship that does not exist.

This is especially dangerous in dashboards and admin tools. A metric card placed too close to the wrong chart, or styled with the wrong series color, can lead users to infer a causal relationship from unrelated data.

Visual connections should be earned. If two things are visually connected, they should be functionally connected.

Examples of the Law of Uniform Connectedness in Web Development

Connecting Labels, Inputs, and Validation

Forms are one of the clearest places to apply the Law of Uniform Connectedness. A form field is not just an input box. It is a small relationship between a label, a value, optional helper text, validation state, and sometimes an error message.

When those pieces are visually connected, the form feels easier to complete.

For example, this field group is easy to understand:

• Label above the input
• Helper text directly below the input
• Error message in the same field area
• Consistent spacing between field groups
• Matching error color and icon when validation fails

That structure helps users understand which message belongs to which field. A disconnected error message at the top of the form might technically be correct, but it forces users to hunt for the problem.

Do not make users play detective with your validation.

Showing Progress in Multi-Step Workflows

Checkout flows, onboarding flows, ticket escalation paths, and approval processes all benefit from connectedness. A stepper or timeline connects each step into a single process. Users can see where they are, what has happened, and what comes next.

For example, an account setup process might include:

• Profile
• Team
• Billing
• Security
• Review

If those steps are shown as five unrelated buttons, users may understand them as separate choices. If a horizontal line connects them with a clear current state, users perceive them as a single ordered path.

That path matters. It reduces uncertainty and gives the user a sense of movement.

Clarifying Dashboard Filters

Dashboards often have scope problems. A filter might affect one chart, several charts, or every widget on the page. If users cannot tell the scope, they may distrust the data.

Uniform connectedness can make filter relationships clearer. A dashboard-wide filter bar can sit at the top of the page and use a consistent background treatment that visually spans the entire data area. A chart-specific filter should sit inside or immediately next to the chart region it controls.

For example, a sales dashboard may have:

• Global date range filter at the top
• Region filter connected to the regional performance chart
• Product filter connected to the product table

The filters may all be technically similar, but their visual placement and treatment should show their reach. If a filter affects only one component, it should not appear to control everything.

Grouping Table Rows and Detail Panels

Data tables are full of relationships. Parent rows connect to child rows. Group headers connect to the rows underneath them. Selected rows connect to actions. Expanded rows connect to detail panels.

When these relationships are not visually clear, the table becomes a pile of cells. Users have to read too much before they understand the structure.

A better table uses connectedness to show relationships:

• Group rows with a subtle shared background
• Keep row-level actions inside the row they affect
• Connect expanded detail panels to the parent row
• Use consistent status styling across the table
• Avoid making unrelated columns look like a single connected group

Tables are already dense. The job of design is to make the density navigable, not to dump everything into a grid and call it done.

Examples Using Wijmo Components

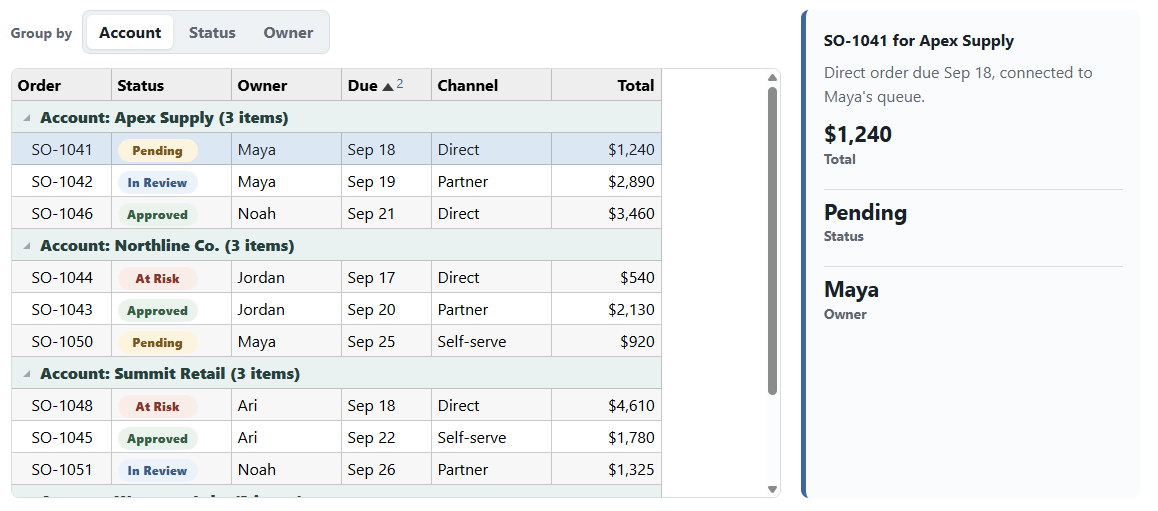

Grouping Related Records with Wijmo FlexGrid

Wijmo’s FlexGrid works well with the Law of Uniform Connectedness because it gives developers control over how data is displayed, grouped, formatted, and scanned. Instead of showing a flat list of unrelated records, you can group records by account, project, status, region, or any other meaningful relationship.

This example groups orders by account and hides the repeated account column. The group header visually connects the records beneath it, helping users understand the table as related sets rather than disconnected rows.

import * as wjCore from '@mescius/wijmo';
import * as wjGrid from '@mescius/wijmo.grid';

const orders = [
  { account: 'Apex Supply', orderId: 1041, status: 'Pending', owner: 'Maya', total: 1240 },
  { account: 'Apex Supply', orderId: 1042, status: 'Pending', owner: 'Maya', total: 890 },
  { account: 'Northline Co.', orderId: 1043, status: 'Approved', owner: 'Jordan', total: 2130 },
  { account: 'Northline Co.', orderId: 1044, status: 'At Risk', owner: 'Jordan', total: 540 },
  { account: 'Summit Retail', orderId: 1045, status: 'Approved', owner: 'Ari', total: 1780 }
];

const orderView = new wjCore.CollectionView(orders, {
  sortDescriptions: ['account', 'status'],
  groupDescriptions: ['account']
});

const grid = new wjGrid.FlexGrid('#ordersGrid', {
  autoGenerateColumns: false,
  columns: [
    { binding: 'account', header: 'Account', visible: false },
    { binding: 'orderId', header: 'Order', width: 90 },
    { binding: 'status', header: 'Status', width: 120 },
    { binding: 'owner', header: 'Owner', width: '*' },
    { binding: 'total', header: 'Total', format: 'c0', width: 110 }
  ],
  itemsSource: orderView
});

The group header creates a clear relationship between account and orders. The status treatment creates a second, lighter connection between rows that share the same state.

This is the law in practice: users can see what belongs together before they read every cell.

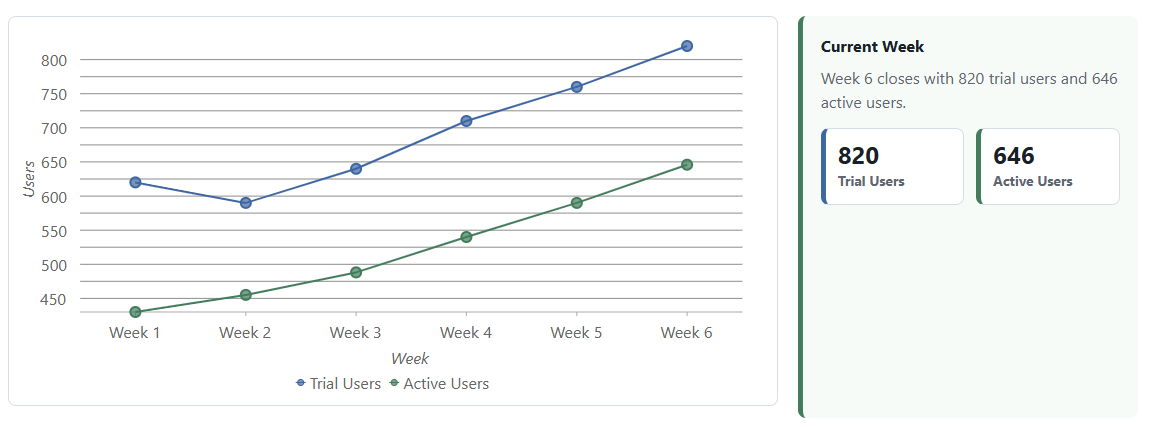

Connecting Data Points with Wijmo FlexChart

Charts are visual relationships. A line chart connects individual data points so users can see them as a single trend. A legend connects a label to a series. A shared color connects a metric outside the chart to the data inside it.

Wijmo’s FlexChart can support uniform connectedness by keeping each series visually stable and avoiding unnecessary visual clutter.

import * as wjChart from '@mescius/wijmo.chart';

const retentionData = [
  { week: 'Week 1', trial: 620, active: 430 },
  { week: 'Week 2', trial: 590, active: 455 },
  { week: 'Week 3', trial: 640, active: 488 },
  { week: 'Week 4', trial: 710, active: 540 },
  { week: 'Week 5', trial: 760, active: 590 }
];

const chart = new wjChart.FlexChart('#retentionChart', {
  itemsSource: retentionData,
  bindingX: 'week',
  chartType: 'LineSymbols',
  palette: ['#2f6fb2', '#2f8a5f'],
  series: [
    { name: 'Trial Users', binding: 'trial' },
    { name: 'Active Users', binding: 'active' }
  ],
  axisY: {
    title: 'Users',
    format: 'n0'
  },
  axisX: {
    title: 'Week'
  },
  legend: {
    position: 'Bottom'
  }
});

chart.legendToggle = true;

In this example, each line connects the data points in a series. The legend connects the series label to the matching color. The chart also allows users to toggle series visibility from the legend, keeping the interaction connected to what it controls.

The mistake would be adding five more series, extra colors, noisy gridlines, and labels on every point just because the chart can support it. A connected chart should help users see the relationship, not make them decode it.

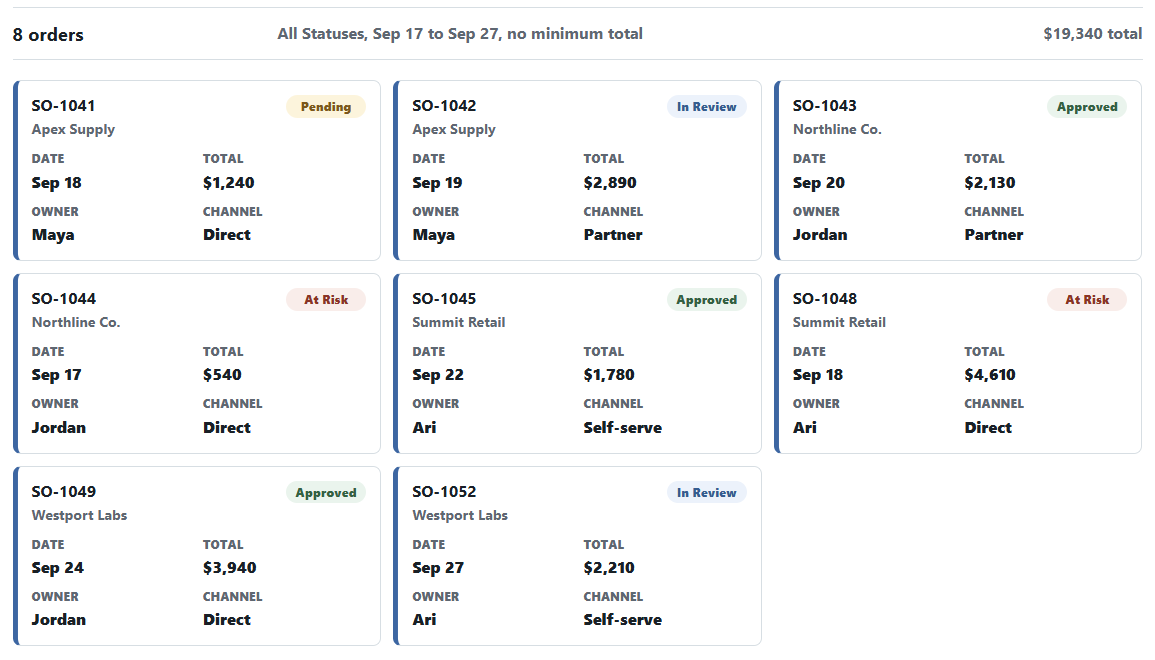

Connecting Filters with Wijmo Input Controls

Filters should look connected to the result set they control. They should also appear connected when they form a single filtering system.

Wijmo Input controls can help you create a structured filter area with consistent component behavior. A ComboBox, InputDateRange, and InputNumber can work together as a small, clearly connected control group.

<form class="order-filters" aria-label="Order filters">
  <fieldset class="filter-group">
    <legend>Order Filters</legend>

    <div class="filter-fields">
      <div class="filter-field">
        <label for="statusFilter">Status</label>
        <input id="statusFilter" />
      </div>

      <div class="filter-field">
        <label for="dateRangeFilter">Order Date</label>
        <input id="dateRangeFilter" />
      </div>

      <div class="filter-field">
        <label for="minTotalFilter">Minimum Total</label>
        <input id="minTotalFilter" />
      </div>
    </div>
  </fieldset>
</form>

import { ComboBox, InputDateRange, InputNumber } from '@mescius/wijmo.input';

const statuses = [
  { id: 'all', name: 'All Statuses' },
  { id: 'pending', name: 'Pending' },
  { id: 'approved', name: 'Approved' },
  { id: 'at-risk', name: 'At Risk' }
];

new ComboBox('#statusFilter', {
  itemsSource: statuses,
  displayMemberPath: 'name',
  selectedValuePath: 'id',
  selectedValue: 'all'
});

new InputDateRange('#dateRangeFilter', {
  monthCount: 2,
  closeOnSelection: true
});

new InputNumber('#minTotalFilter', {
  format: 'c0',
  min: 0,
  step: 100,
  placeholder: 'Minimum total'
});

The fieldset connects the filters semantically and visually. The consistent labels and control spacing help users understand that status, order date, and minimum total are part of the same filtering operation.

That is much better than scattering filters across the page and hoping users figure out what each one controls.

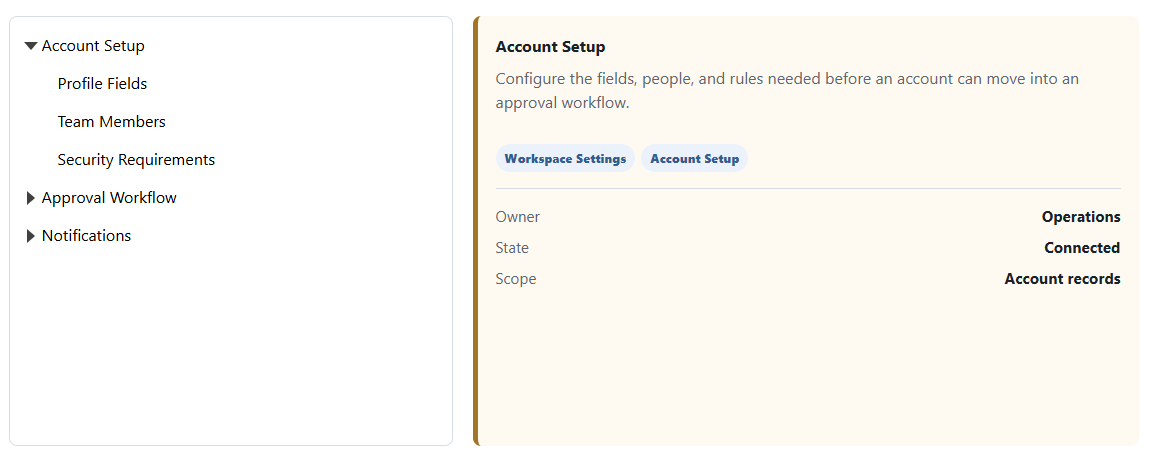

Organizing Related Settings with Wijmo TreeView

Tree structures are a natural example of uniform connectedness. Parent and child nodes are visually connected through hierarchy, indentation, expand icons, and repeated node styling. Users can scan the top-level categories first, then expand into the details they need.

Wijmo’s TreeView can be used for settings, navigation, document outlines, product categories, permissions, or any interface where users need to understand nested relationships.

import * as wjNav from '@mescius/wijmo.nav';

const settings = [
  {
    header: 'Account Setup',
    items: [
      { header: 'Profile Fields' },
      { header: 'Team Members' },
      { header: 'Security Requirements' }
    ]
  },
  {
    header: 'Approval Workflow',
    items: [
      { header: 'Review Steps' },
      { header: 'Approvers' },
      { header: 'Escalation Rules' }
    ]
  },
  {
    header: 'Notifications',
    items: [
      { header: 'Email Templates' },
      { header: 'Reminder Timing' },
      { header: 'Delivery Channels' }
    ]
  }
];

new wjNav.TreeView('#settingsTree', {
  itemsSource: settings,
  displayMemberPath: 'header',
  childItemsPath: 'items',
  autoCollapse: true
});

This gives users a clean first impression: Account Setup, Approval Workflow, and Notifications. The details are still available, but they are visually connected to their parent category.

A flat settings page can feel like a junk drawer. A connected tree gives the user a structure they can remember.

Ready to try it out? Download Wijmo Today!

Conclusion

The Law of Uniform Connectedness is simple: when elements are visually connected, users read them as related. That makes it one of the most useful Gestalt principles for web developers, especially when building forms, dashboards, tables, workflows, and settings screens.

The key is to be intentional. Connect labels to fields. Connect filters to results. Connect chart legends to data series. Connect table groups to the records they contain. Connect navigation choices to the content they control. And just as importantly, avoid creating visual relationships where no functional relationship exists.

With Wijmo’s JavaScript UI components, you can apply the Law of Uniform Connectedness directly in real applications: group related records with FlexGrid, create connected data stories with FlexChart, build clean filter groups with Wijmo Input controls, and organize nested settings with TreeView. The result is not just a better-looking interface. It is an interface where relationships are easier to see, faster to understand, and harder to misread.
