A Guide to the Law of Prägnanz in Web Development

The Law of Prägnanz, also known as the Law of Simplicity or the Law of Good Figure, is one of the Gestalt principles of perception. It means that people tend to interpret complex or ambiguous visuals in the simplest possible way because that requires the least mental effort. In UX terms, users do not want to solve your interface. They want the interface to make sense immediately.

This matters because web apps often grow into visual junk drawers: more filters, more columns, more icons, more status labels, more panels, more edge cases. Without intentional simplification, the UI becomes technically complete but mentally exhausting. That is not “advanced.” That is just messy.

In this blog, we will explore:

• Applying the Law of Prägnanz in UI/UX
• Examples of the Law of Prägnanz in Web Development
• Examples Using Wijmo Components

Ready to try it out? Download Wijmo Today!

Applying the Law of Prägnanz in UI/UX

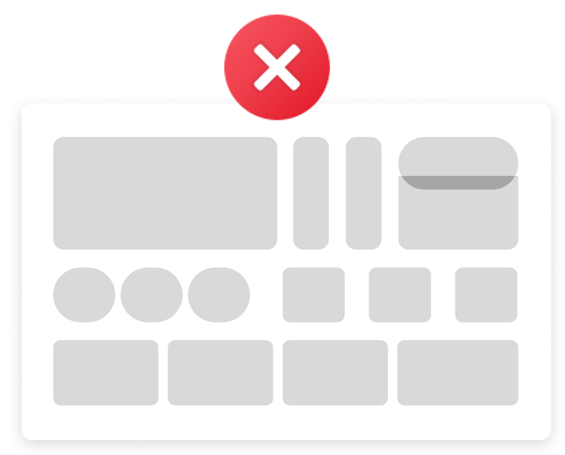

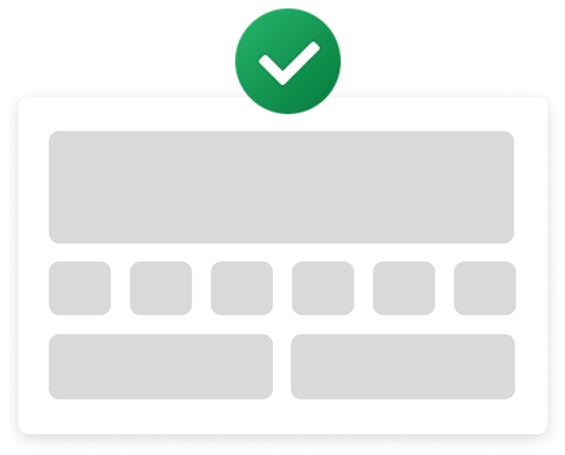

Reduce Visual Noise

The Law of Prägnanz does not tell designers to remove everything. That is lazy minimalism. It is telling designers to remove what does not help users understand the page.

Every border, shadow, label, icon, color, animation, and column should earn its place. If the interface has five competing visual treatments, users will waste attention deciding what matters. A clean interface gives users fewer things to interpret, which makes the important parts stand out faster.

Bad UI says, “Here is everything.”
Good UI says, “Here is what matters first.”

Use Familiar Shapes and Patterns

Users understand common interface patterns quickly because they have seen them before. Cards, tabs, accordions, tables, search bars, filter panels, and summary charts all create recognizable structures. That recognition lowers cognitive effort.

Do not get clever for no reason. A strange custom control may look creative in a design review, but if users need to stop and figure out what it does, the design has already failed. Prägnanz rewards obviousness.

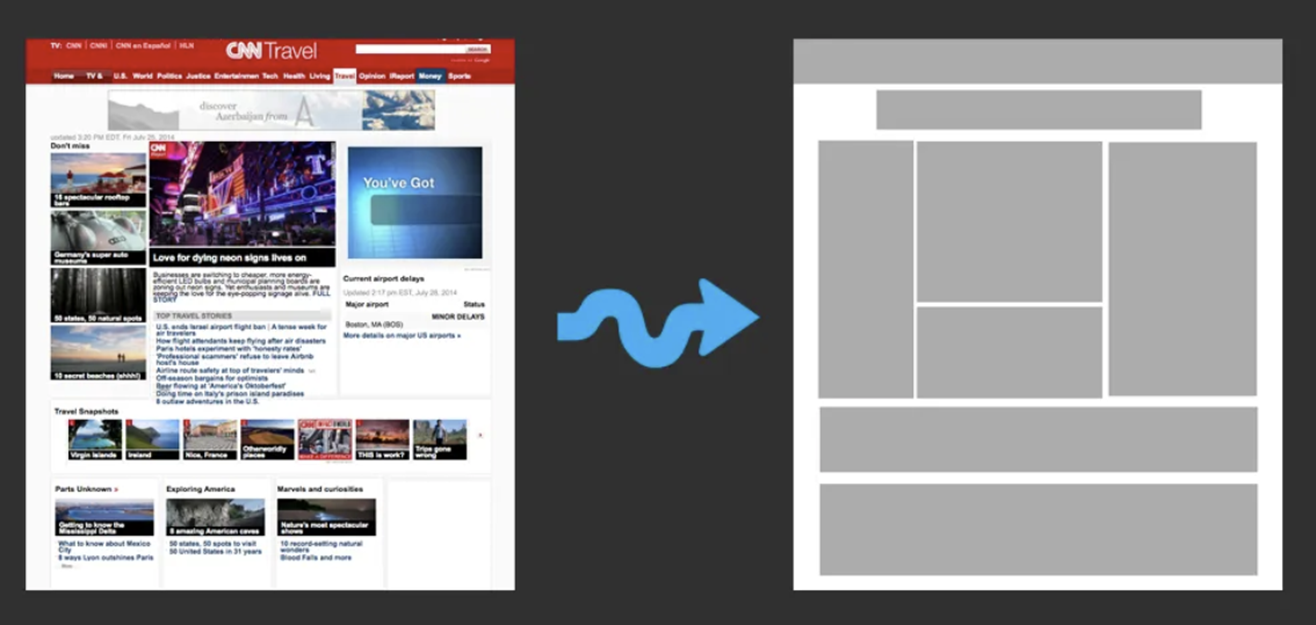

Make Hierarchy Obvious

A page should not make users guess what is primary, secondary, or optional. Headings should look like headings. Actions should look like actions. Supporting text should not compete with the main task for attention.

This is where many enterprise web apps fall apart. They treat every field, button, metric, and table column as equally important. That is trash hierarchy. Users need visual priority, not a flat wall of “important” things.

Simplify Before You Style

Styling cannot save a confusing structure. If a page has too many competing sections, unclear relationships, or redundant options, adding nicer colors will not fix it. It only makes the mess prettier.

Before polishing the UI, ask:

• Can this page be reduced?
• Can related options be combined?
• Can advanced controls be hidden until needed?
• Can the default view answer the user’s most common question?

If the answer is yes and you ignore it, the design problem is not visual. It is structural.

Examples of the Law of Prägnanz in Web Development

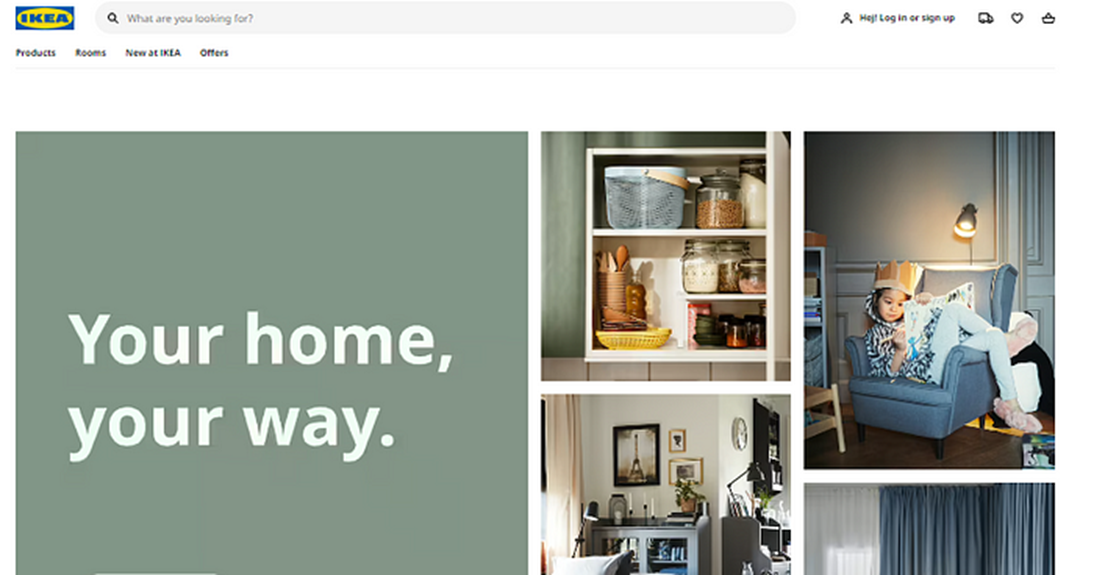

Simplifying Navigation

Navigation is one of the clearest areas in which to apply the Law of Prägnanz. Users should be able to understand where they are, where they can go, and what section matters most.

A bloated navigation menu with too many equal-weight links creates decision fatigue. A simpler structure with grouped categories, clear labels, and progressive disclosure lets users form a clean mental model.

For example, instead of showing every admin setting in one massive sidebar, group them into simple categories:

• Account
• Billing
• Users
• Security
• Integrations

That structure is easier to understand than twenty unrelated links. The user sees the simpler shape first, then drills into details when needed.

Cleaning Up Dashboards

Dashboards often fail because teams confuse “more data” with “more value.” A dashboard with 12 charts, 5 filter bars, 4 KPI rows, and 10 colors is not powerful. It is a cognitive tax.

A Prägnanz-driven dashboard should simplify the user’s first impression. Start with the most important summary metrics, use consistent card layouts, and avoid decorative chart junk. Charts should communicate patterns, not show off.

For example, a sales dashboard may only need:

• Revenue
• Orders
• Average order value
• Conversion rate
• A trend chart
• A top-products table

Everything else can be moved into secondary tabs, drill-down panels, or optional filters. If users need all thirty metrics, fine. But they do not need all thirty screaming at them on page load.

Making Forms Easier to Complete

Forms are another place where complexity gets out of control. Long forms feel worse when they are visually dense, inconsistently spaced, or full of optional fields that look required.

A better form uses simple sections, clear labels, sensible defaults, and only exposes advanced fields when necessary. The goal is not just fewer fields. The goal is a simpler mental path.

For example, a shipping form can be simplified by separating it into:

• Contact Information
• Shipping Address
• Delivery Options
• Payment

That structure helps users understand the form as four manageable chunks instead of one giant task.

Clarifying Data Tables

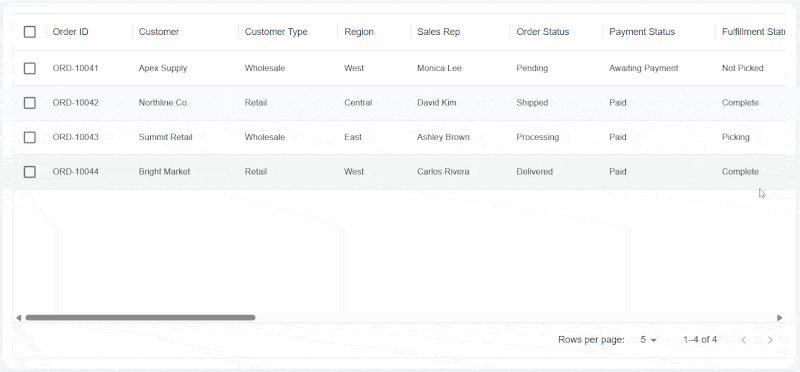

Data tables are dangerous because developers love dumping everything into them: more columns, more actions, more badges, more icons. Eventually, the table technically contains all the data but visually communicates nothing.

The Law of Prägnanz pushes developers to simplify the table’s shape. Show the most important columns by default. Use formatting consistently. Group related data. Move secondary details into expandable rows, detail panels, or separate views.

A good table does not require users to inspect every cell. It lets them quickly scan and understand patterns.

Examples Using Wijmo Components

Simplifying Dense Tables with Wijmo FlexGrid

Wijmo’s FlexGrid is a strong fit for the Law of Prägnanz because it lets developers control exactly how much information appears in a data-heavy view. Instead of dumping every field into the grid, you can define only the columns users need first, format values consistently, and hide secondary details until they are useful.

import * as wjGrid from '@mescius/wijmo.grid';

const orders = [
  { orderId: 1041, customer: 'Apex Supply', status: 'Pending', total: 1240, priority: 'High' },
  { orderId: 1042, customer: 'Northline Co.', status: 'Shipped', total: 890, priority: 'Normal' },
  { orderId: 1043, customer: 'Summit Retail', status: 'Processing', total: 2130, priority: 'High' },
  { orderId: 1044, customer: 'Bright Market', status: 'Delivered', total: 540, priority: 'Low' }
];

const grid = new wjGrid.FlexGrid('#ordersGrid', {
  autoGenerateColumns: false,
  columns: [
    { binding: 'orderId', header: 'Order', width: 90 },
    { binding: 'customer', header: 'Customer', width: '*' },
    { binding: 'status', header: 'Status', width: 120 },
    { binding: 'total', header: 'Total', format: 'c0', width: 110 },
    { binding: 'priority', header: 'Priority', width: 100 }
  ],
  itemsSource: orders
});

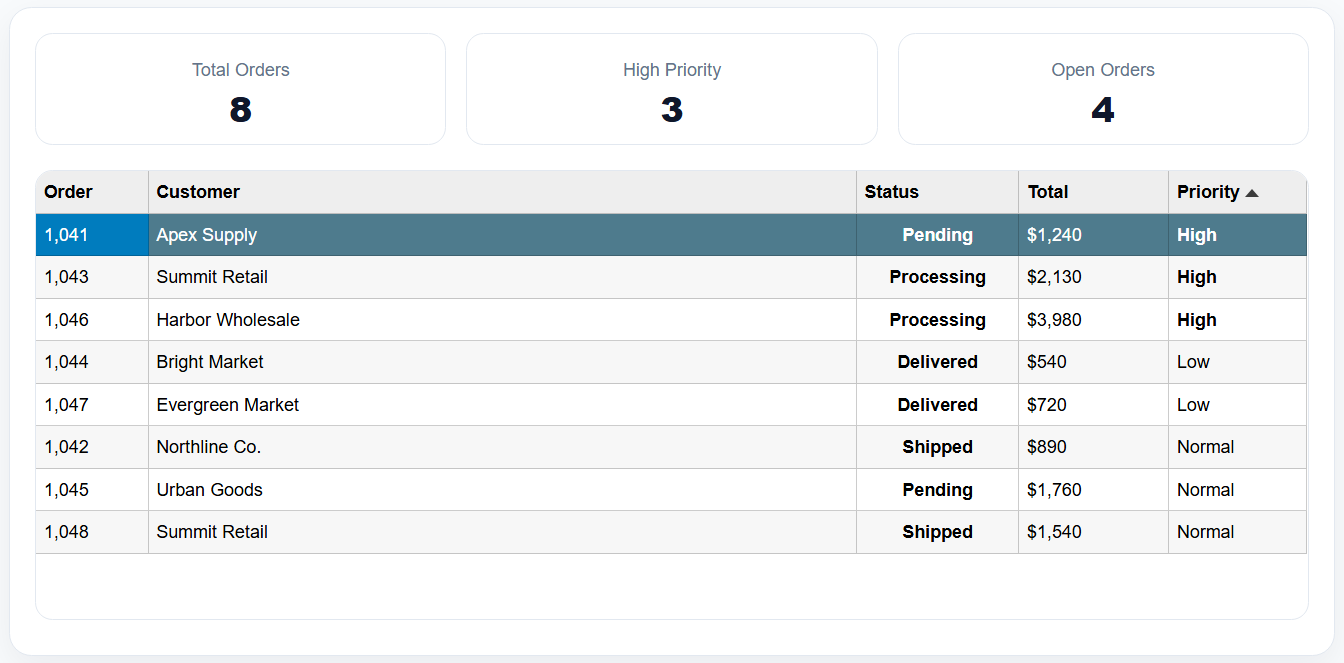

This is a better default than showing every available order field. Users see a clean, stable structure: order, customer, status, total, and priority. The grid is easier to scan because the interface does not require users to process unnecessary detail.

You can also use cell formatting to make important states easier to recognize without turning the table into a rainbow mess.

grid.formatItem.addHandler((s, e) => {
  if (e.panel === s.cells) {
    const col = s.columns[e.col];
    const item = s.rows[e.row].dataItem;

    if (col.binding === 'priority' && item.priority === 'High') {
      e.cell.classList.add('priority-high');
    }

    if (col.binding === 'status') {
      e.cell.classList.add(`status-${item.status.toLowerCase()}`);
    }
  }
});
.priority-high {
  font-weight: 600;
}

.status-pending,
.status-processing,
.status-shipped,
.status-delivered {
  border-radius: 12px;
  padding: 2px 8px;
}

The point is not decoration. The point is recognition. Users should be able to identify status and priority without having to read every row like a spreadsheet prison sentence.

Creating Clear Data Stories with Wijmo FlexChart

Charts are supposed to simplify data, but bad charts often make data harder to understand. Too many series, unnecessary 3D effects, overloaded labels, and inconsistent colors destroy clarity.

Wijmo’s FlexChart can support Prägnanz by presenting a clean visual summary of the most important trend.

import * as wjChart from '@mescius/wijmo.chart';

const revenueData = [
  { month: 'Jan', revenue: 42000 },
  { month: 'Feb', revenue: 46000 },
  { month: 'Mar', revenue: 51000 },
  { month: 'Apr', revenue: 48000 },
  { month: 'May', revenue: 57000 },
  { month: 'Jun', revenue: 63000 }
];

new wjChart.FlexChart('#revenueChart', {
  itemsSource: revenueData,
  bindingX: 'month',
  chartType: 'Line',
  series: [
    {
      name: 'Revenue',
      binding: 'revenue'
    }
  ],
  axisY: {
    format: 'c0',
    title: 'Revenue'
  },
  axisX: {
    title: 'Month'
  },
  legend: {
    position: 'None'
  }
});

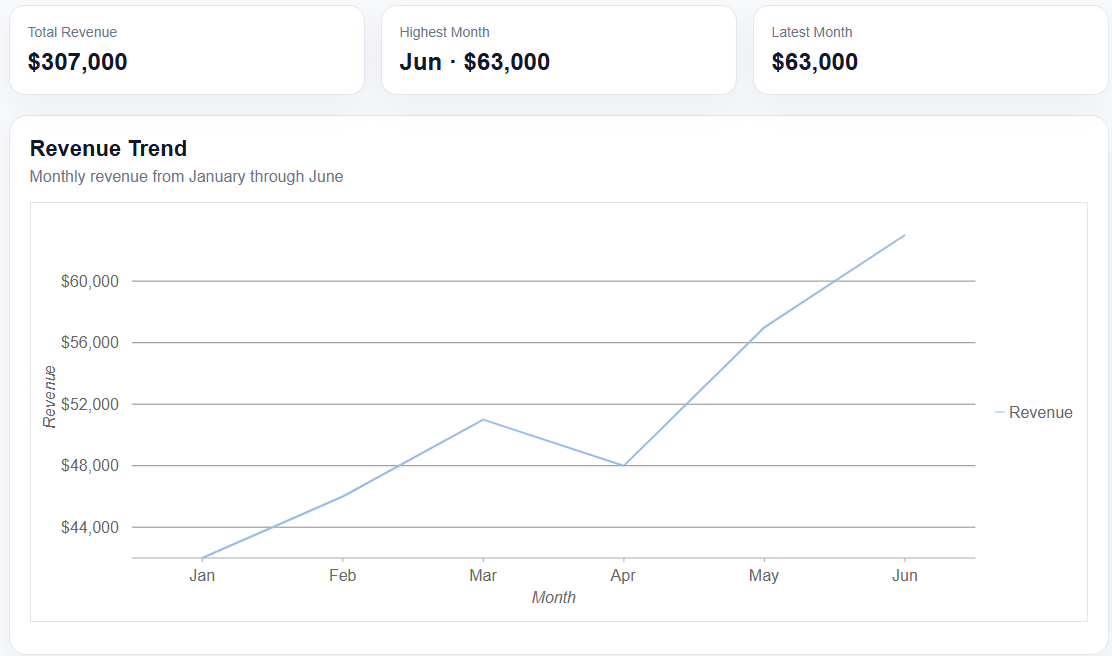

This chart does one job. It shows the revenue trend. No pointless second axis. No overloaded legend. No decorative clutter.

That is Prägnanz in practice: reduce the visual form until the user can quickly interpret the pattern.

Simplifying Filter Interfaces with Wijmo Input Controls

Filters can become ugly fast. A dense filter panel with 10 dropdowns, date pickers, numeric fields, and checkboxes makes the page feel more complex before the user even touches the data.

Wijmo Input controls can help create a simpler filter experience by exposing the most common filters first and keeping the layout clean.

<div class="filter-panel">
  <div class="filter-field">
    <label for="statusFilter">Status</label>
    <input id="statusFilter" />
  </div>

  <div class="filter-field">
    <label for="dateRangeFilter">Date Range</label>
    <input id="dateRangeFilter" />
  </div>

  <div class="filter-field">
    <label for="minTotalFilter">Minimum Total</label>
    <input id="minTotalFilter" />
  </div>
</div>
import { ComboBox, InputDateRange, InputNumber } from '@mescius/wijmo.input';

const statuses = [
  { id: 'all', name: 'All Statuses' },
  { id: 'pending', name: 'Pending' },
  { id: 'processing', name: 'Processing' },
  { id: 'shipped', name: 'Shipped' },
  { id: 'delivered', name: 'Delivered' }
];

new ComboBox('#statusFilter', {
  itemsSource: statuses,
  displayMemberPath: 'name',
  selectedValuePath: 'id',
  selectedValue: 'all'
});

new InputDateRange('#dateRangeFilter', {
  monthCount: 2,
  closeOnSelection: true
});

new InputNumber('#minTotalFilter', {
  format: 'c0',
  min: 0,
  step: 100,
  placeholder: 'Minimum total'
});
.filter-panel {
  display: grid;
  grid-template-columns: repeat(3, minmax(180px, 1fr));
  gap: 16px;
  margin-bottom: 20px;
}

.filter-field label {
  display: block;
  margin-bottom: 6px;
  font-weight: 600;
}

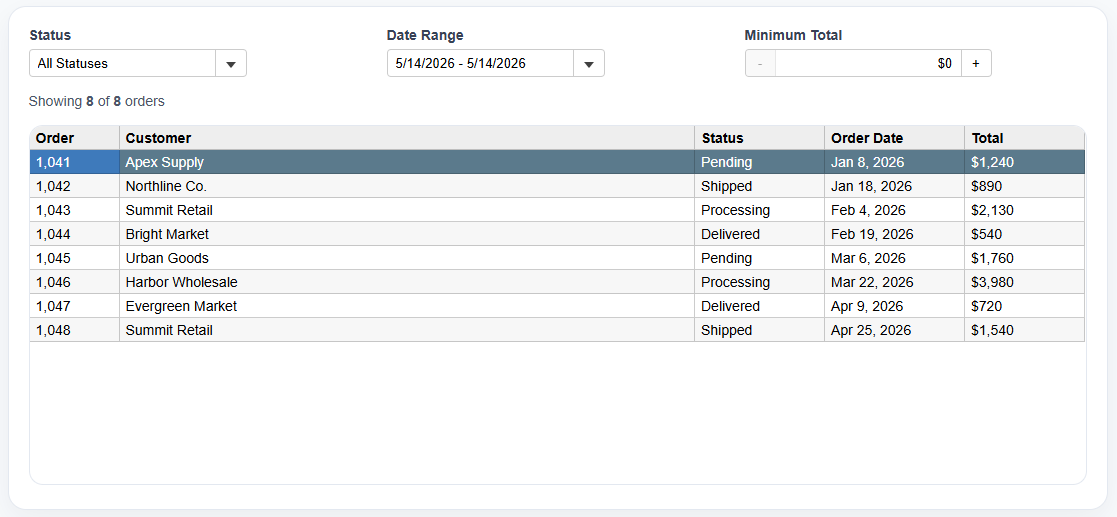

This gives users a simple filtering shape: status, date range, and minimum total. If advanced filters are needed, put them behind an “Advanced Filters” section. Do not punish every user with every possible option up front.

Organizing Advanced Options with Wijmo TreeView

Wijmo’s TreeView can be used to create a clean, advanced-settings panel. This works well with the Law of Prägnanz because it lets users see a simple top-level structure first, then expand into detail only when needed.

import * as wjNav from '@mescius/wijmo.nav';

const settings = [
  {
    header: 'Display Settings',
    items: [
      { header: 'Visible Columns' },
      { header: 'Row Density' },
      { header: 'Theme' }
    ]
  },
  {
    header: 'Data Settings',
    items: [
      { header: 'Default Sort' },
      { header: 'Saved Filters' },
      { header: 'Refresh Interval' }
    ]
  },
  {
    header: 'Export Settings',
    items: [
      { header: 'File Format' },
      { header: 'Included Fields' },
      { header: 'Schedule Export' }
    ]
  }
];

new wjNav.TreeView('#settingsTree', {
  itemsSource: settings,
  displayMemberPath: 'header',
  childItemsPath: 'items',
  autoCollapse: true
});

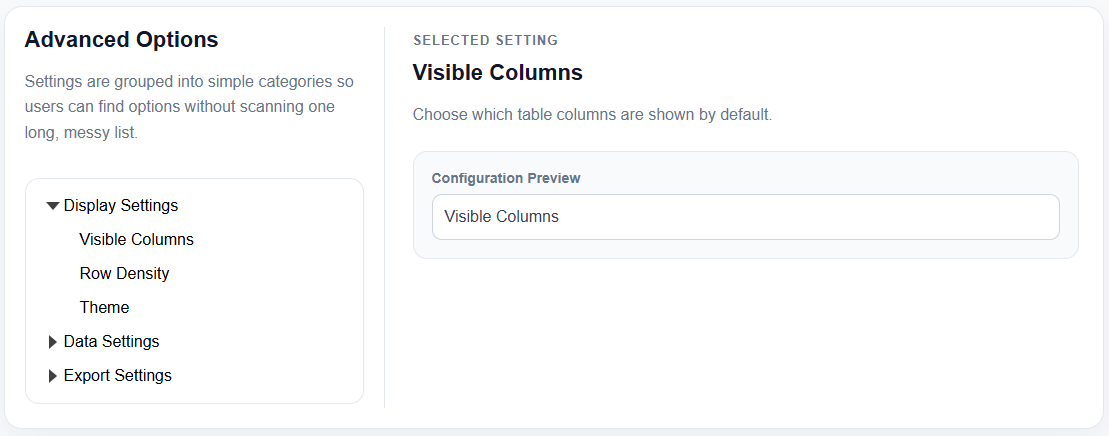

A flat list of 9 settings is not terrible, but in a real admin UI, that list can quickly grow to 30 or 50. TreeView creates a simpler first impression by showing users the main categories before the details.

Again, the goal is not to hide functionality. The goal is to prevent complexity from attacking the user all at once.

Conclusion

The Law of Prägnanz is simple, yet developers constantly ignore it. Users prefer interfaces that are clear, stable, and easy to interpret. They do not want visual puzzles. They do not want every feature dumped onto the screen. They do not want a dashboard that looks like someone lost a fight with a spreadsheet.

For web developers, this means simplicity is not just an aesthetic choice. It is a usability requirement. Reduce visual noise, use familiar patterns, create obvious hierarchy, and simplify the default view before adding advanced controls.

With Wijmo’s JavaScript UI components, you can apply the Law of Prägnanz directly in real applications: simplify dense tables with FlexGrid, create focused data stories with FlexChart, build cleaner filter panels with Wijmo Input controls, and organize advanced options with TreeView. The result is not just a nicer-looking app. It is an app that users can understand faster.
