A Guide to the Law of Proximity in Web Development

The Law of Proximity, or the Proximity Principle, is one of the Gerstalt principles of perception. In simple terms, it means that elements placed close together are likely to be seen as part of the same group, while elements placed farther apart appear unrelated. In UI design, this means that spacing directly affects how users interpret meaning, hierarchy, and workflow.

This matters because users do not analyze every interface in a slow, logical manner. They scan. They infer. They make fast judgments about what belongs together and what does not. If your spacing is sloppy, users will form the wrong mental model before they read a single label. That is bad design, full stop.

In this blog, we will discuss:

• Applying the Law of Proximity in UI/UX
• Examples of the Law of Proximity in Web Development
• Examples Using Wijmo Components

Ready to get started? Download Wijmo Today!

Applying the Law of Proximity in UI/UX

Place Related Elements Close Together

If fields, buttons, labels, or metrics belong to the same task, keep them visually tight. Proximity is one of the strongest grouping cues in interface design and can even outweigh similarities in color or shape. Whitespace is not decoration here. It is the signal that tells users what belongs together.

Separate Unrelated Elements

If two sections serve different purposes, give them their own space. Extra spacing helps users distinguish navigation from utility actions, one form section from another, or summary content from detail content. When everything is packed together, it all feels equally related, which creates confusion.

Be Careful with Destructive Actions

Proximity is not always your friend. Confirmatory and destructive actions should not sit side by side like twins. That is how users click the wrong thing on autopilot. Dangerous options need both more separation and stronger visual distinction.

Check Responsive Layouts

A layout that groups content correctly on desktop can fall apart on mobile. When columns stack, related elements may drift apart, and unrelated items may collapse into a single visual block. If you do not review proximity at each breakpoint, your design logic is probably trash on at least one screen size.

Examples of the Law of Proximity in Web Development

Grouping Related Fields in Forms

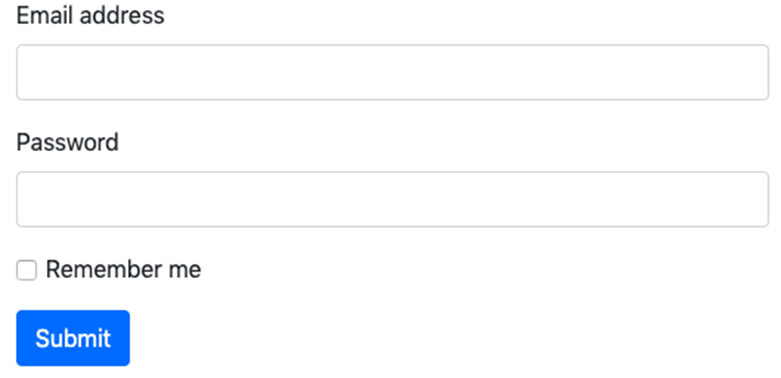

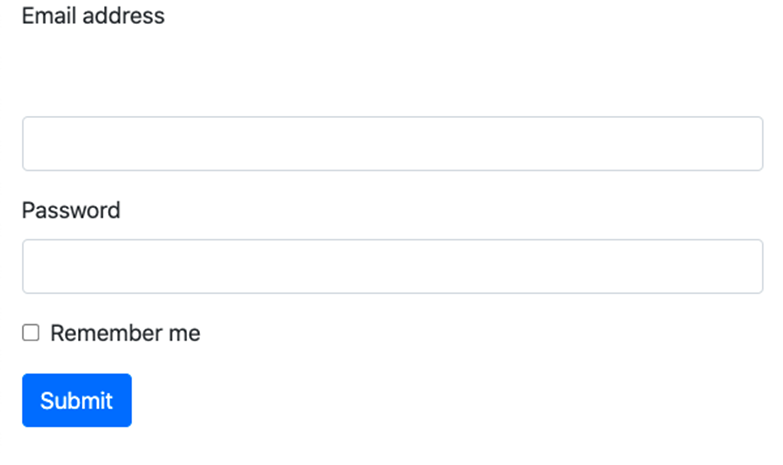

One of the most common uses of proximity is in forms. Billing information, shipping information, and payment details should appear as clearly separated groups. Users perceive grouped fields as smaller, more manageable chunks, which makes a long form feel easier to complete. Labels should sit close to their fields, while larger spacing should separate one field pair from the next section.

A checkout flow is a perfect example. If “Card Number,” “Expiration Date,” and “CVV” are tightly grouped, users instantly understand that these fields belong to a single payment task. If those inputs are scattered across the page with inconsistent spacing, the experience feels harder than it needs to be.

Structuring Dashboards and Cards

Dashboards live or die by scanability. A KPI label should sit close to its number. A chart should sit close to the filter or legend that controls it. A card title, value, and supporting trend should feel like one unit. When cards are evenly spaced, users can quickly understand that each card represents a separate data block.

This is especially important in analytics interfaces where users rapidly compare sections. Good proximity reduces hunting. Bad proximity forces interpretation work that the layout should have done for free.

Separating Table Actions

In admin panels and data tables, the placement of actions matters. “View” and “Edit” can live near each other because they are both routine actions. “Delete” should not be shoved into the same tiny cluster as if it were just another harmless option. If a destructive command is close to safe commands and styled similarly, you are inviting user error.

The fix is simple: group routine actions together, isolate dangerous actions, and use spacing plus color or icon changes to signal the difference.

Examples Using Wijmo Components

Organizing Filter Regions with Wijmo TreeView as an Accordion

Wijmo’s TreeView can be used to implement an accordion pattern, which is useful when you want related filters or settings to stay visually grouped while keeping the page from becoming noisy. The accordion approach works well with the Law of Proximity because each section header sits directly next to the controls it reveals, while collapsed sections stay visually separate from the active one. When implemented correctly, the accordion pattern reduces page scrolling and keeps content from appearing more complicated than it needs to.

import * as wjNav from '@mescius/wijmo.nav';

const filterSections = [
  {
    header: 'Date Filters',
    items: [
      { header: 'Today' },
      { header: 'Last 7 Days' },
      { header: 'This Month' }
    ]
  },
  {
    header: 'Status Filters',
    items: [
      { header: 'Open' },
      { header: 'Pending' },
      { header: 'Closed' }
    ]
  },
  {
    header: 'Region Filters',
    items: [
      { header: 'North America' },
      { header: 'Europe' },
      { header: 'Asia Pacific' }
    ]
  }
];

new wjNav.TreeView('#filterAccordion', {
  itemsSource: filterSections,
  displayMemberPath: 'header',
  childItemsPath: 'items',
  autoCollapse: true
});

In this layout, each filter family is visually clustered. Users do not have to decide whether a date option belongs with status or regional options, because proximity already answers the question.

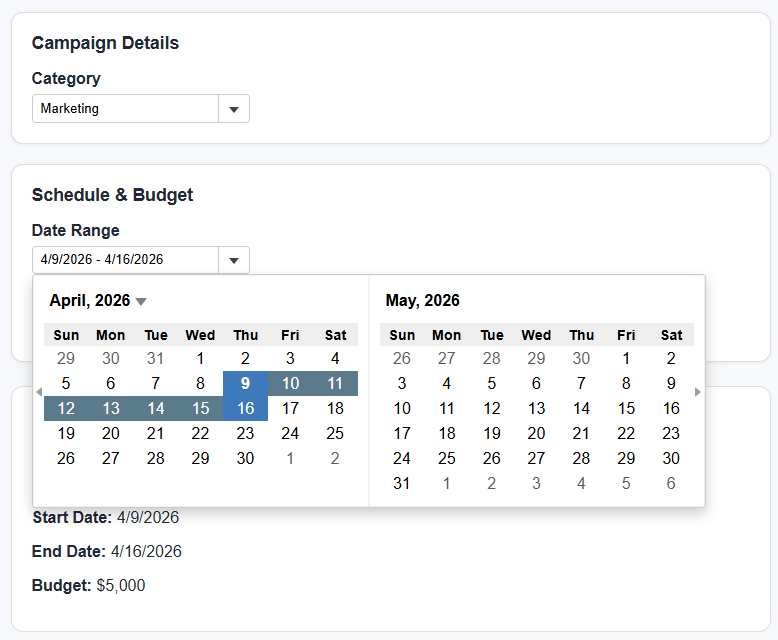

Grouping Related Form Inputs with Wijmo Input Controls

Proximity is brutally important in forms, and Wijmo’s input controls make it easy to build sections that feel structured instead of chaotic. ComboBox is designed for selecting or editing values from a dropdown list, InputDateRange is built for date-range selection, and InputNumber gives you constrained numeric input with formatting and min/max support. These are ideal building blocks for grouped booking, reporting, or checkout forms.

<div class="form-section">
  <h3>Campaign Details</h3>
  <label for="category">Category</label>
  <input id="category" />
</div>

<div class="form-section">
  <h3>Schedule & Budget</h3>
  <label for="dateRange">Date Range</label>
  <input id="dateRange" />
  <label for="budget">Budget</label>
  <input id="budget" />
</div>

import { ComboBox, InputDateRange, InputNumber } from '@mescius/wijmo.input';

const categories = [
  { id: 1, name: 'Marketing' },
  { id: 2, name: 'Sales' },
  { id: 3, name: 'Support' }
];

new ComboBox('#category', {
  itemsSource: categories,
  displayMemberPath: 'name',
  selectedValuePath: 'id',
  placeholder: 'Select category...'
});

new InputDateRange('#dateRange', {
  monthCount: 2,
  closeOnSelection: true
});

new InputNumber('#budget', {
  format: 'c0',
  min: 0,
  step: 500,
  placeholder: 'Budget'
});

.form-section {
  margin-bottom: 24px;
  padding: 16px;
  border: 1px solid #ddd;
  border-radius: 8px;
}

.form-section label {
  display: block;
  margin: 12px 0 6px;
}

The controls matter, but the spacing does the heavy lifting. Keeping labels close to inputs and related inputs inside the same section makes the form easier to scan and easier to trust.

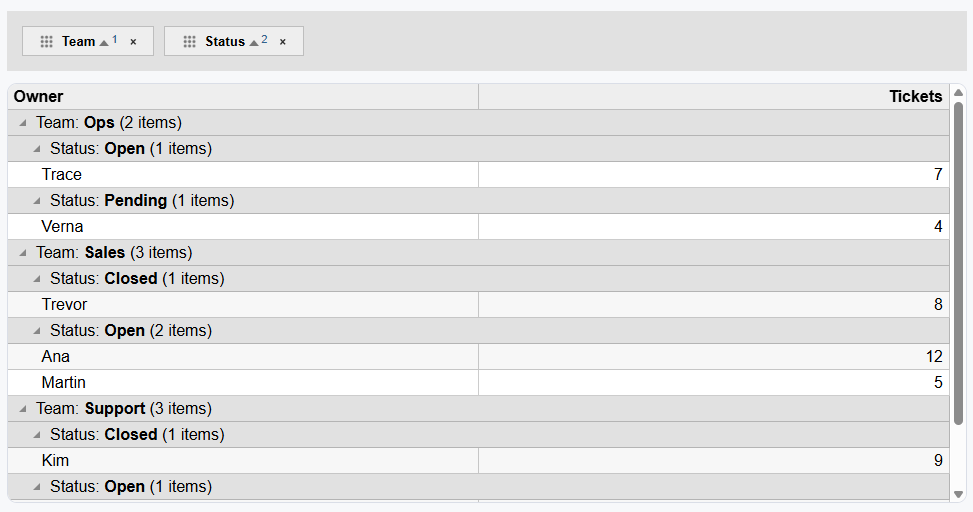

Structuring Data with Wijmo FlexGrid and GroupPanel

Data-heavy screens get messy fast. Wijmo’s FlexGrid supports grouping through the underlying CollectionView, and GroupPanel adds a drag-and-drop grouping interface above the grid. That makes it a strong fit for the Law of Proximity because it lets users see rows grouped into meaningful clusters rather than parsing a flat wall of data.

import * as wjCore from '@mescius/wijmo';
import * as wjGrid from '@mescius/wijmo.grid';
import * as wjGridGroupPanel from '@mescius/wijmo.grid.grouppanel';

const data = [
  { team: 'Sales', status: 'Open', owner: 'Ana', tickets: 12 },
  { team: 'Sales', status: 'Closed', owner: 'Trevor', tickets: 8 },
  { team: 'Support', status: 'Open', owner: 'Martin', tickets: 17 },
  { team: 'Support', status: 'Pending', owner: 'Tyler', tickets: 6 }
];

const view = new wjCore.CollectionView(data, {
  groupDescriptions: ['team', 'status']
});

const grid = new wjGrid.FlexGrid('#theGrid', {
  autoGenerateColumns: false,
  columns: [
    { binding: 'team', header: 'Team', visible: false },
    { binding: 'status', header: 'Status', visible: false },
    { binding: 'owner', header: 'Owner' },
    { binding: 'tickets', header: 'Tickets' }
  ],
  itemsSource: view
});

new wjGridGroupPanel.GroupPanel('#theGroupPanel', {
  grid,
  placeholder: 'Drag columns here to create groups'
});

This turns a flat table into nested visual chunks. Users can process the grid by team, then by status, rather than treating every row as unrelated noise.

Ready to check it out? Download Wijmo Today!

Conclusion

The Law of Proximity is not complicated, yet many interfaces still get it wrong. Related things should look related. Unrelated things should be separated. Dangerous actions should not be hidden within safe action groups. And every responsive breakpoint should preserve those relationships, not destroy them.

For web developers, this means layout is part of usability, not just styling. And with Wijmo’s JavaScript UI components, you can turn that principle into real, working interfaces by grouping filters, structuring forms, and organizing large datasets in ways users understand immediately.
