How to use Wijmo MCP Server with AI Coding Assistants

Recently, MESCIUS USA, Inc. released several MCP servers that developers can integrate into their development pipelines to make working with our products even easier. In this article, we'll look at the Wijmo MCP server, how to obtain an MCP token, how to verify the connection, and how to use the MCP to access Wijmo-specific development guidance and assistance.

Ready to check it out? Download Wijmo Today!

AI coding assistants can be useful when building an application, but their answers are only as useful as the context they have. When working with a specialized JavaScript UI component library such as Wijmo, an AI assistant may not always have the latest information about package setup, APIs, controls, framework integration, data binding, or recommended implementation patterns.

The MESCIUS MCP Server addresses this by connecting compatible AI assistants directly to trusted MESCIUS product knowledge. For Wijmo, this includes product documentation, APIs, implementation guidance, code examples, setup information, and other product resources.

MCP, or Model Context Protocol, provides a standard way for AI clients to connect to external tools and information sources. Instead of relying entirely on what the model already knows, the AI client can retrieve relevant Wijmo information as it processes the request.

In this article, we'll show you how to:

• Get a Wijmo MCP token
• Connect the server to your coding assistant of choice
• Verify the MCP connection
• Use the server while working on Wijmo applications

Prerequisits

Before configuring an AI client, you'll need an MCP-compatible client and a valid Wijmo MCP token.

The token and endpoint are both product-specific. An MCP token issued for another MESCIUS product cannot be used with the Wijmo MCP endpoint.

For Wijmo, we'll use the following connection information throughout this article:

These values are the same regardless of which compatible AI client you use. What changes is how each client stores and manages its MCP configuration.

Getting a Wijmo MCP Token

Before we can connect an AI assistant to the Wijmo MCP Server, we need a token that authorizes access.

MESCIUS provides two ways to obtain an MCP token, depending on whether you're evaluating the product or already have an eligible MESCIUS license.

Request a Trial MCP Token

If you're evaluating Wijmo or do not currently have an eligible active license or maintenance plan, you can request a 30-day MCP access token.

On the MESCIUS MCP token request page, select Wijmo as the product and provide your company email address. MESCIUS will send you a temporary, product-specific MCP token to configure your AI assistant.

Because MCP tokens are product-specific, make sure you select Wijmo when requesting the token.

Open the MESCIUS MCP trial-token request page and complete the form:

Request a Wijmo MCP Trial Token

The token provides access to product information, including documentation search, setup guidance, implementation information, and Wijmo best practices.

Keep the token available while configuring your AI client. We'll substitute it anywhere the examples use <YOUR_MCP_TOKEN>.

Generate an MCP Token as an Existing Customer

If you already have an eligible MESCIUS license, you do not need to request a trial token.

Customers with an active subscription license or a perpetual license covered by active maintenance can generate the MCP token in the MESCIUS My Account area.

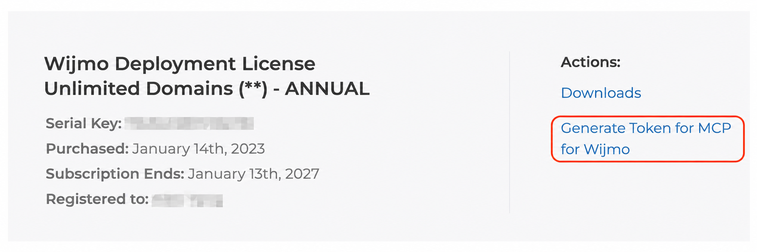

After signing in:

1. Open My Account > My Licenses.
2. Locate your Wijmo license.
3. Look in the Actions section beside the license.
4. Click Generate Token for MCP.
5. Copy the generated MCP token from the license details.

If the license is eligible for MCP access, the token is generated immediately.

Connecting the MCP to Coding Agents

The Wijmo MCP supports connections to all of the popular coding agents; in this section, we'll review some of the more common agents and how you can give them access to the MCP server.

Configuring the MCP Server in Claude Code CLI

Claude Code provides a command-line option for registering an HTTP MCP server.

Open a terminal and run the following command, replacing <YOUR_MCP_TOKEN> with your Wijmo MCP token:

claude mcp add --scope user --transport http wijmo-mcp https://developer.mescius.com/mcp/wijmo --header "Authorization: Bearer <YOUR_MCP_TOKEN>"

The MESCIUS Claude Code configuration uses HTTP transport and supports configuring the MCP server at either the user or local scope. Using --scope user makes the MCP server available across your Claude Code projects.

If you only want the Wijmo MCP Server available for the current project, you can use --scope local instead.

Once the server has been added, verify the configuration:

claude mcp list
claude mcp get wijmo-mcp

claude mcp list lets us confirm that the server was registered, while claude mcp get wijmo-mcp displays the configuration for the Wijmo MCP server.

After the connection succeeds, you should see wijmo-mcp listed as an available MCP server.

Configuring the MCP Server in Claude Desktop

Claude Desktop uses a JSON configuration file to define MCP servers.

This setup uses npx and mcp-remote, so make sure Node.js is installed and available before continuing.

Open Claude Desktop and navigate to:

Settings > Developer > Edit Config

This opens the claude_desktop_config.json configuration file.

Add the Wijmo MCP configuration:

{
  "mcpServers": {
    "wijmo-mcp": {
      "command": "npx",
      "args": [
        "-y",
        "mcp-remote@latest",
        "https://developer.mescius.com/mcp/wijmo",
        "--transport",
        "http-only",
        "--header",
        "Authorization:${MCP_TOKEN}"
      ],
      "env": {
        "MCP_TOKEN": "Bearer <YOUR_MCP_TOKEN>"
      }
    }
  }
}

Replace <YOUR_MCP_TOKEN> with your Wijmo MCP token.

The configuration launches mcp-remote through npx, points it at the Wijmo MCP endpoint, and provides the token using the Authorization header.

Save the file and restart Claude Desktop.

On Windows, make sure you completely quit Claude Desktop from the system tray before reopening it. Closing only the application window may leave the existing process running.

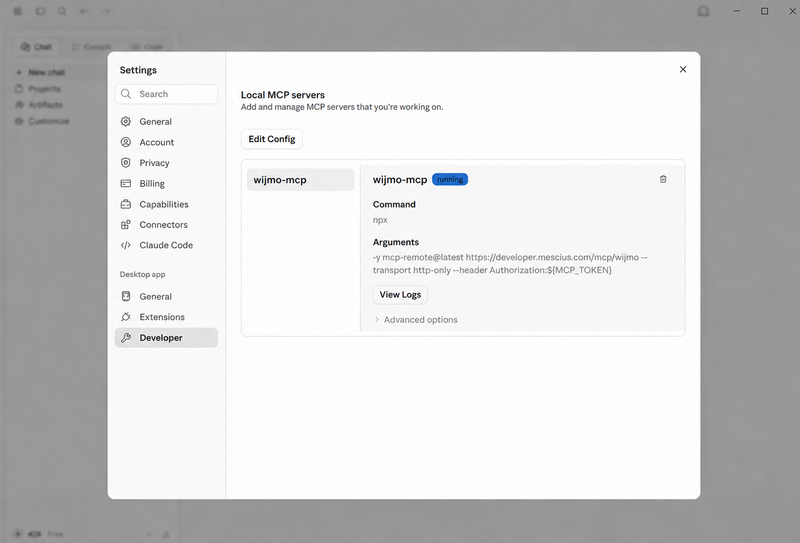

After restarting Claude Desktop, confirm that wijmo-mcp appears as an available MCP server.

Configuring the MCP Server in OpenAI Codex CLI

OpenAI Codex stores its MCP server configuration in config.toml. The Codex CLI and Codex IDE extension share this configuration, so configuring the server once makes it available in both environments.

Open:

~/.codex/config.toml

Add the following configuration:

[mcp_servers.wijmo-mcp]
enabled = true
url = "https://developer.mescius.com/mcp/wijmo"
http_headers = { Authorization = "Bearer <YOUR_MCP_TOKEN>" }

Replace <YOUR_MCP_TOKEN> with your Wijmo MCP token.

Once the configuration is saved, restart the Codex CLI. If the Codex terminal interface is already running, exit it and open it again so the new MCP configuration can be loaded.

Inside Codex, run:

/mcp

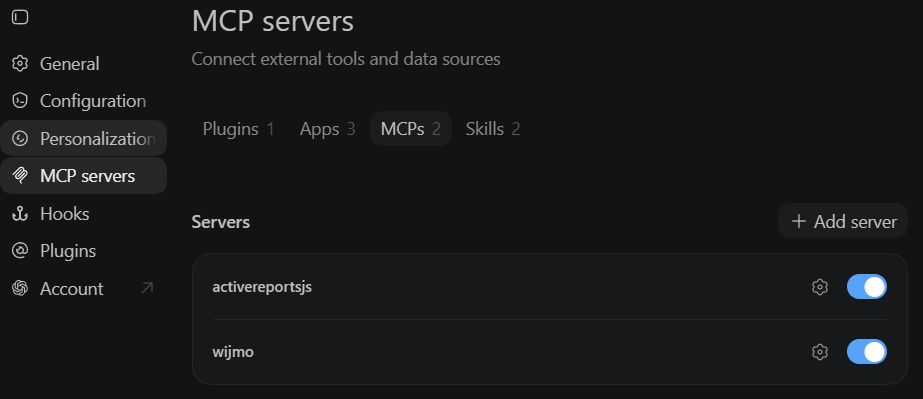

You should see wijmo-mcp among the available MCP servers. Because the Codex CLI and Codex VS Code extension share the same MCP configuration, the Wijmo server will also be available from the extension after it has been added to config.toml.

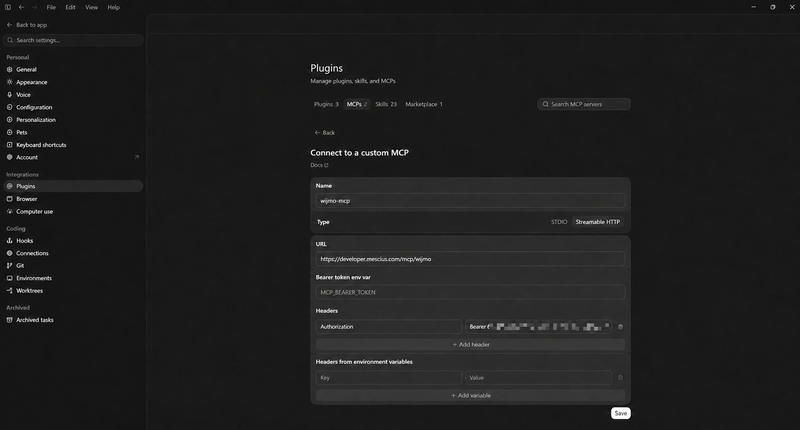

Configuring the MCP Server in ChatGPT Desktop

ChatGPT Desktop provides a UI for adding an MCP server, so this configuration does not require editing a JSON or TOML file.

Open ChatGPT Desktop and navigate to:

Settings > Plugins > MCPs

Click Add server.

Enter the following values:

Replace <YOUR_MCP_TOKEN> with your Wijmo MCP token.

Click Save.

The new wijmo-mcp connection should now appear in the MCP servers list.

With that connection available, ChatGPT can use the MCP Server to retrieve Wijmo product information while helping you build or troubleshoot an application.

Configuring the MCP Server for GitHub Copilot in VS Code

If GitHub Copilot is already part of your development workflow, you can configure Wijmo MCP directly in Visual Studio Code.

Open the VS Code Command Palette using:

• Ctrl+Shift+P on Windows or Linux
• Cmd+Shift+P on macOS

Run:

MCP: Open User Configuration

This opens the mcp.json user configuration file.

Add the Wijmo server:

{
  "servers": {
    "wijmo-mcp": {
      "type": "http",
      "url": "https://developer.mescius.com/mcp/wijmo",
      "headers": {
        "Authorization": "Bearer <YOUR_MCP_TOKEN>"
      }
    }
  }
}

Replace <YOUR_MCP_TOKEN> with your Wijmo MCP token.

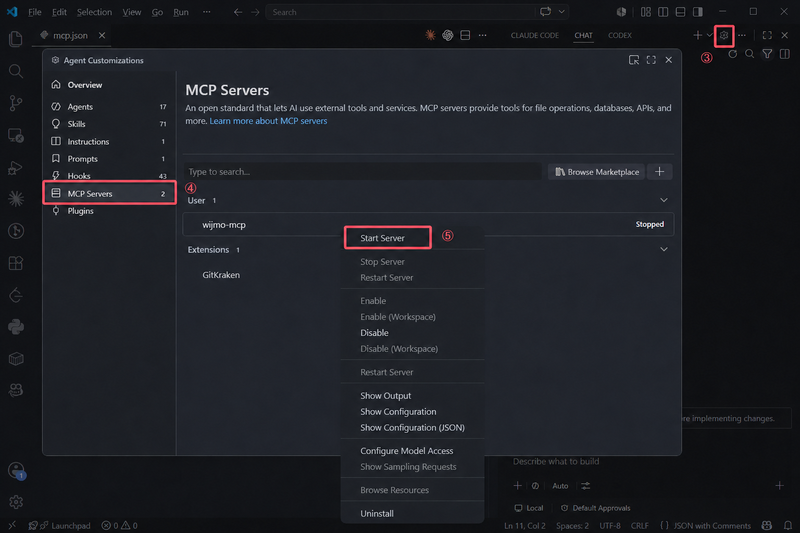

Next, open Copilot Chat and click the settings button in the upper-right corner. Select the MCP Servers section, locate wijmo-mcp, right-click it, and select Start Server.

With the server running, GitHub Copilot can use Wijmo product context while you're working directly inside the application source code.

Verify the Wijmo MCP Connection

Regardless of which client you're using, it's a good idea to verify the connection before relying on MCP for development work.

First, confirm that:

• wijmo-mcp appears in the client's MCP server list
• The server is enabled or running
• MCP tools are available to the AI client
• Agent mode is enabled if your particular client requires it

MESCIUS also recommends using a product-specific prompt to make sure the assistant actually invokes the configured MCP server.

For Wijmo, a simple test might be:

Use wijmo-mcp to determine the appropirate way to integrate FlexGrid in a React application.

Explicitly mentioning wijmo-mcp is useful during testing because it tells the AI assistant which connected MCP source you want it to use.

The assistant should use the MESCIUS MCP Server to retrieve Wijmo information before constructing its response.

If the assistant responds without using MCP, verify that the MCP server is enabled and try explicitly mentioning wijmo-mcp again.

Using the MCP When Building a Wijmo Application

Once the connection is working, you don't need to restrict MCP to simple documentation questions.

The MESCIUS MCP Server provides coding guidelines and semantic search across MESCIUS documentation and code examples. That gives the AI assistant more product-specific context before it generates implementation guidance or code.

For Wijmo development, that can be useful for tasks involving the implementation of any of Wijmo's components,

For example, you could ask:

Use wijmo-mcp to add a FlexGrid control to the container on this page and connect it to the data variable.

Or provide more information about the implementation you're building:

Use wijmo-mcp to find the recommended Wijmo setup for an Angular application. Include the packages and imports I need.

You can also ask the assistant to research a specific reporting workflow before modifying your application:

Use wijmo-mcp to determine how Wijmo exports a FlexGrid to PDF, then show me how to add that workflow to my application.

When a framework, runtime, or Wijmo version matters, include it in the prompt. MESCIUS specifically recommends supplying that information when it is relevant to the answer.

For example:

Use wijmo-mcp to show me the recommended way to integrate the Wijmo FlexGrid into my React application. Explain the required packages first, then provide the implementation.

This is where MCP becomes particularly useful compared with simply pasting a large amount of documentation into a chat.

The AI client can retrieve relevant Wijmo information during the development conversation and use that context to construct its response.

Tips for Getting Better Wijmo MCP Results

Connecting the server gives the AI assistant access to Wijmo product information, but the quality of the request still matters.

Try to make prompts specific to the feature you're implementing. If you're working with a particular framework or product version, mention it. If your client has multiple MCP servers configured and does not automatically select the Wijmo connection, explicitly include wijmo-mcp in the prompt.

It's also useful to separate research from implementation for larger changes. For example, you might first ask:

Use wijmo-mcp to find the recommended Wijmo FlexGrid setup for React. Explain the required packages, CSS, and initialization steps.

After reviewing the response, follow up with:

Now apply that approach to the React component in this project.

This makes it easier to see which Wijmo requirements the AI identified before it starts modifying code.

As with any AI-generated implementation, review the generated code before using it in production. MESCIUS also recommends starting a new conversation when the earlier context begins to cause unrelated or outdated responses.

Troubleshooting the MCP Connection

If wijmo-mcp does not appear or the AI client cannot connect, start with the common configuration values.

Verify that the endpoint is exactly:

https://developer.mescius.com/mcp/wijmo

Then confirm that the authorization value includes Bearer followed by your Wijmo MCP token:

Authorization: Bearer <YOUR_MCP_TOKEN>

Remember that the token is product-specific. A token generated for SpreadJS or ActiveReportsJS cannot be used with the Wijmo endpoint.

Also, make sure your AI client, CLI, IDE extension, or desktop application is up to date. MESCIUS recommends using an up-to-date client when connecting to the MCP service.

For client-specific issues, return to the relevant MESCIUS setup documentation and confirm that the server is both configured and enabled.

Ready to try it out? Download Wijmo Today!

Conclusion

The Wijmo MCP Server gives MCP-compatible AI development tools a way to retrieve trusted Wijmo product information while they're helping you build an application.

The basic connection is the same across clients: obtain a Wijmo MCP token, connect wijmo-mcp to the Wijmo endpoint, provide the token through the Authorization header, and verify that the server is available.

From there, you can use the MCP connection from Claude Code, OpenAI Codex, Claude Desktop, ChatGPT Desktop, GitHub Copilot, and other MCP-compatible development tools to ask product-specific questions and get implementation guidance grounded in MESCIUS resources.

If you're evaluating Wijmo, request a 30-day MCP token to get started. Existing customers with an eligible active license can generate their MCP token directly from My Account > My Licenses.

MCP Server | MCP Setup Documentation

Happy coding!
