Migrate from 2010v1 to 2025v1. Submit ENTER key in C1GridView. Filtering

Migrate from 2010v1 to 2025v1. Submit ENTER key in C1GridView. Filtering

Posted by: enrique.pv-ext on 16 December 2025, 5:53 am EST

•

  enrique.pv-ext

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 16 December 2025, 5:53 am EST - Updated 16 December 2025, 5:58 am EST

  Hi,

  Migrate from 2010v1 to 2025v1 in ASP.NET WebForms NET Framework 4.8.1.

  Using C1GridView from C1.Web.Wijmo.Controls.48.dll

  using C1.Web.Wijmo.Controls.C1GridView;

  In aspx:

                  <cc1:C1GridView ID="BlackOutsGrid" runat="server"
                      AllowPaging="true"
                      AllowSorting="True"
                      ShowFilter="True"
                      AutoGenerateColumns="False"
                      VisualStylePath="~/VisualStyles"  VisualStyle="Vista" UseEmbeddedVisualStyles="False"
                      width="100%"
                      PageSize="15"
                      EmptyDataText= "No hay ninguna laguna de datos a partir de la fecha seleccionada."
                      OnRowCommand="BlackOutsGrid_RowCommand"
                      OnGroupAggregate="BlackOutsGrid_GroupAggregate"
                      OnFiltering="BlackOutsGrid_Filtering"
                      OnPageIndexChanging="BlackOutsGrid_PageIndexChanging"
                      OnRowDataBound="BlackOutsGrid_RowDataBound"
                      OnSorting="BlackOutsGrid_Sorting"
                      OnSorted="BlackOutsGrid_Sorted"

  					SelectedIndex="0" ClientSelectionMode="None"
  					OnDataBound="C1GridView1_DataBound"
  					CallbackSettings-Action="All"
                      >
                      <Columns>

                          <cc1:C1TemplateField Visible="false">
                              <ItemTemplate>
                               <asp:ImageButton ID="ImageButtonShowVideo" runat="server" CommandName="VerTransito" ImageUrl="~/App_Themes/Content/Imagenes/ico_TV.png" AlternateText="Video" ToolTip="Video">
                                  </asp:ImageButton>
                              </ItemTemplate>
                              <ItemStyle Width="30px" />
                          </cc1:C1TemplateField>
                          <%--HtmlEncodeFormatString = "true"--%>
                          <cc1:C1BoundField HeaderText="Fecha / Hora" DataField="BeginDateTime"  FilterOperator="GreaterOrEqual"
                                   HtmlEncode = "true"
                                  SortExpression="BeginDateTime">
                              <ItemStyle CssClass="GridDate" Width="150px" />
                          </cc1:C1BoundField>
                          <cc1:C1BoundField HeaderText="Turno" DataField="LaneNumber"    SortDirection="Ascending" FilterOperator="Equals"  SortExpression="LaneNumber" >
                              <ItemStyle CssClass="GridNumericValue"   Width="80px" />
                          </cc1:C1BoundField>
                          <cc1:C1BoundField HeaderText="Lugar" DataField="LaneDesc" SortExpression="LaneDesc">
                              <ItemStyle CssClass="GridText" Width="80px" />
                          </cc1:C1BoundField>
                          <cc1:C1BoundField HeaderText="Operador" DataField="OperatorName" SortExpression="OperatorName">
                              <ItemStyle CssClass="GridText" Width="150px" />
                          </cc1:C1BoundField>
                          <cc1:C1BoundField HeaderText="Modo de trabajo" DataField="WorkModeDesc" SortExpression="WorkModeDesc">
                              <ItemStyle CssClass="GridText" Width="80px" />
                          </cc1:C1BoundField>
                          <cc1:C1BoundField HeaderText="Evento" DataField="EventDesc" SortExpression="EventDesc" Visible="false">
                              <ItemStyle CssClass="GridText" Width="60px" />
                          </cc1:C1BoundField>


  						<cc1:C1CommandField ShowFilterButton="True" />

                      </Columns>

                  </cc1:C1GridView>

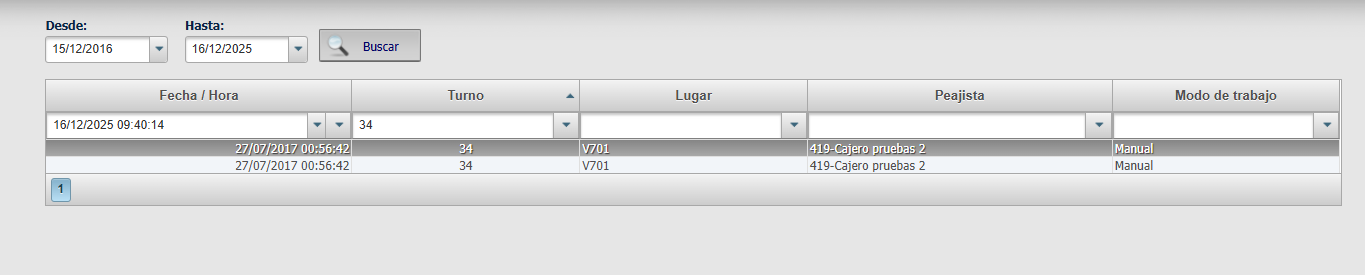

  When I put value in Filter input, by example, 34 value in Turno column, and I press ENTER (#13 key), the page do not Postback (IsPostback = false), calls the same page (redirect) because in MasterPage there are a ImageButton for reload.

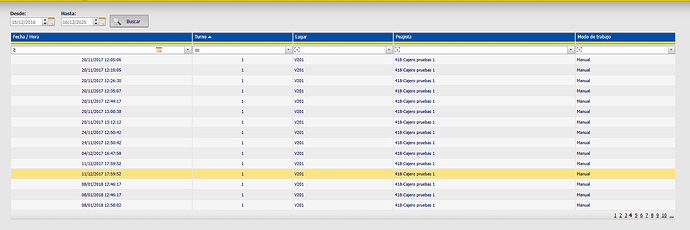

  1365×275 19 KB

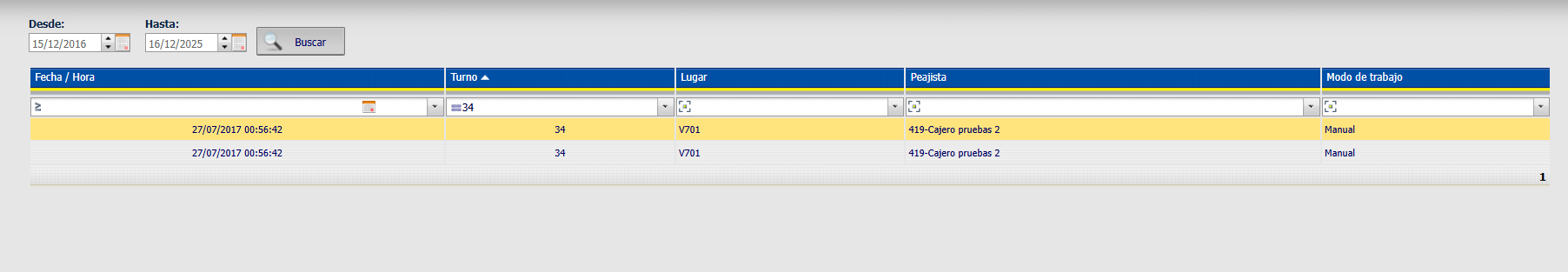

  Using 2012v2 controls GridView all is OK, do Postback.

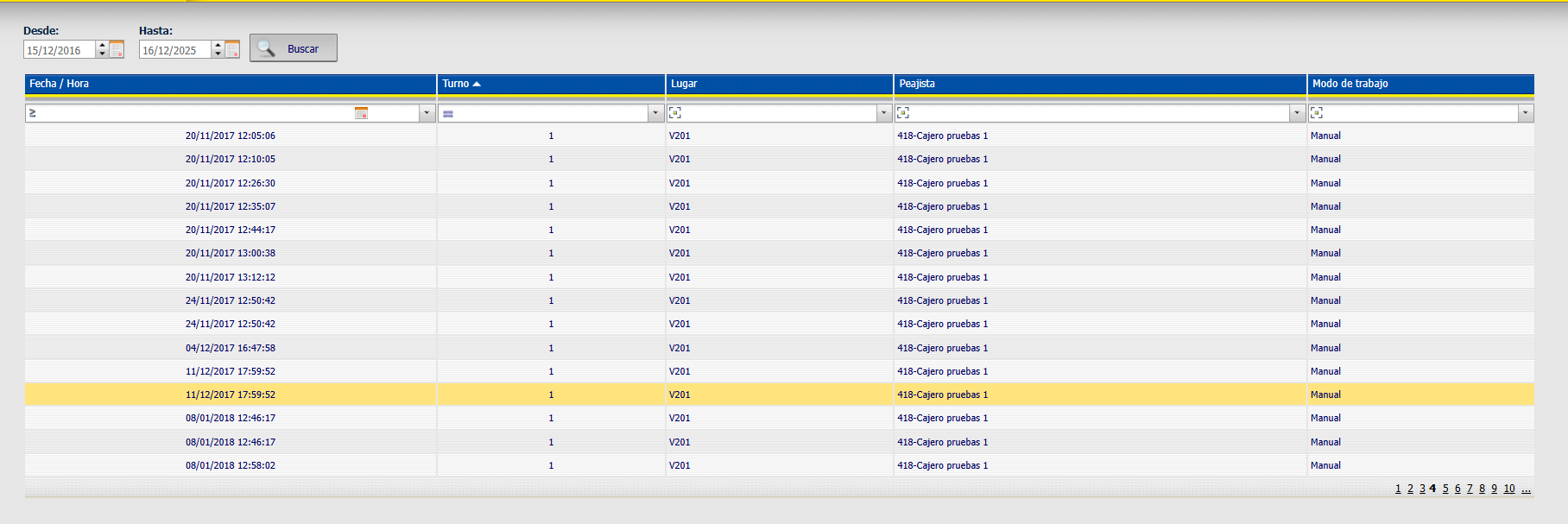

  1804×313 16 KB



  1816×607 47.5 KB

  any suggestion ?

•

  aastha.gupta



  • Post Options:
  • Link
    Copy

  Posted 17 December 2025, 10:00 pm EST

  Hi,

  Thank you for sharing the details and for explaining the behavior you are seeing after upgrading to 2025v1.

  To help us better understand the scenario and investigate this accurately on our side, could you please help us with a few additional details?

  1. The exact ComponentOne WebForms version and build number you are currently using.

  2. The target .NET Framework version of your WebForms application.

  3. We noticed that you have implemented the BlackOutsGrid_Filtering event. Could you please share how this event is being used, and whether any custom logic is applied inside this handler?

  4. Does the issue occur for all column types, such as BoundField and TemplateField, or only for specific columns?

  5. Is there any control on the page or in the MasterPage that acts as a default submit button, such as a Button or ImageButton? If possible, could you share the complete code snippet of the MasterPage, or a minimal sample that reproduces the issue? This would help us validate the behavior in an isolated setup.

  These details will help us determine whether the behavior is related to grid configuration, custom filtering logic, or page-level submit handling in the newer version.

  Thank you for your time and cooperation.

  Kind Regards,

  Aastha

•

  aastha.gupta



  • Post Options:
  • Link
    Copy

  Posted 18 December 2025, 3:05 am EST - Updated 18 December 2025, 3:11 am EST

  Hi,

  We apologize that we missed attaching the sample application in our previous response.

  You can download the sample application from the link below: https://www.dropbox.com/scl/fi/g18o4awqi91nql3ivszar/GridViewDemo.zip?rlkey=mbdutnoc2jimx342h5me634dh&st=tw0iyx8t&dl=0

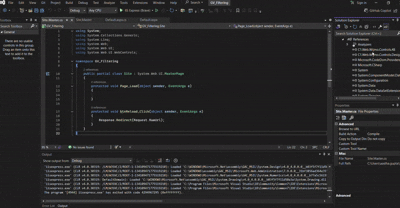

  We have also attached a GIF that shows the behavior we are seeing:



  Please review the sample application and let us know if your implementation is different from what we understand. If needed, you may update the sample application and share it with us so we can reproduce the issue on our side.

  Thanks & regards,

  Aastha

•

  enrique.pv-ext

  • Post Options:
  • Link
    Copy

  Posted 19 December 2025, 8:11 am EST

  The exact ComponentOne WebForms version: 2025v2 399

  The target .NET Framework version: 4.8.1

  the issue occur for all column types

  in the MasterPage , has btnReload button, I added UseSubmitBehavior=“false” CausesValidation=“false”

      <asp:ImageButton ID="btnReload" runat="server" AlternateText="Recargar" OnClientClick="console.log('RELOAD click'); showclock(); return true;"
          ImageUrl="~/App_Themes/Content/Imagenes/refresh2.png"
          OnClick="btnReload_Click" CssClass="ReloadPageButton"
          UseSubmitBehavior="false" CausesValidation="false"  />

  Finally I add default button dummy, donot anything. Now, all is OK for Filtering ENTER key.

  <asp:Panel ID="DivContentPlaceHolder1" runat="server" class="contenido"

          DefaultButton="btnGridFilterProxy">

     <asp:Button ID="btnGridFilterProxy" runat="server" Style="display:none"
     OnClientClick="return false;" UseSubmitBehavior="false" />

              <asp:ContentPlaceHolder ID="ContentPlaceHolder1" runat="server">
              </asp:ContentPlaceHolder>
          </asp:Panel>

  BlackOutsGrid_Filtering event has custom logic

  protected void BlackOutsGrid_Filtering(object sender, C1GridViewFilterEventArgs e)
    {
        // TODO : NEW version
        BlackOutsGrid.DataSource =  HelperUtil.GetGridFilterByFieldType(BlackOutsGrid.Columns, shiftsblackouts, GetConfigurationParameter(ConfigurationParamType.DefaultDatetimeFormatString), null);
     HelperUtil.reStartGridFieldsAndBind(BlackOutsGrid);


  Thanks, I’ll try test your sample.

  In latest version, C1GridView1_RowDataBound, the commandName changes:

  Delete, now is delete

  Update, now is update

  Edit, now is edit

  Cancel, now is cancel

  Change my code to

  if (btn.CommandName.Equals("Delete", StringComparison.OrdinalIgnoreCase))

  Full C1GridView1_RowDataBound event

  protected void C1GridView1_RowDataBound(object sender, C1GridViewRowEventArgs e)
  {
  	try
  	{
  		if (e.Row.RowType != C1GridViewRowType.DataRow) return;

  		string ID = (((DataRowView)e.Row.DataItem)["ID"]).ToString();

  		ControlCollection controls = e.Row.Cells[(int)ColumnsGrid.DELETE].Controls;
  		foreach (Control ctrl in controls)
  		{
  			IButtonControl btn = ctrl as IButtonControl;
  			if (btn == null) continue;

  			//if (btn.CommandName == "Delete")
  			if (btn.CommandName.Equals("Delete", StringComparison.OrdinalIgnoreCase))
  			{
  				//Set javascript
  				((WebControl)ctrl).Attributes.Add("onClick", "javascript:ShowConfirmDelete(" + ID + ");javascript:return false;");
  				((WebControl)ctrl).Attributes.Add("alt", (string)_textsShown[35]);
  				((WebControl)ctrl).ToolTip = (string)_textsShown[35];
  			}

  		}
  		controls = e.Row.Cells[(int)ColumnsGrid.EDIT].Controls;
  		foreach (Control ctrl in controls)
  		{
  			IButtonControl btn = ctrl as IButtonControl;
  			if (btn == null) continue;

  			//if (btn.CommandName == "Update")
  			if (btn.CommandName.Equals("Update", StringComparison.OrdinalIgnoreCase))
  			{
  				((WebControl)ctrl).Attributes.Add("alt", (string)_textsShown[37]);
  				((WebControl)ctrl).ToolTip = (string)_textsShown[37];
  				((WebControl)ctrl).Attributes.Add("onclick", "showConfirm('" + ConfirmWindow.JavascriptClientID + "','EDITING');return false;");
  			}
  			else if (btn.CommandName.Equals("Cancel", StringComparison.OrdinalIgnoreCase)) //if (btn.CommandName == "Cancel")
  			{
  				((WebControl)ctrl).Attributes.Add("alt", (string)_textsShown[38]);
  				((WebControl)ctrl).ToolTip = (string)_textsShown[38];
  			}
  			else if (btn.CommandName.Equals("Edit", StringComparison.OrdinalIgnoreCase)) //if (btn.CommandName == "Edit")
  			{
  				((WebControl)ctrl).Attributes.Add("alt", (string)_textsShown[36]);
  				((WebControl)ctrl).ToolTip = (string)_textsShown[36];
  				((WebControl)ctrl).Attributes.Add("onclick", "if(checkIfIsNothingDoing()==false) {return false;}");
  			}

  		}
  		if (C1GridView1.EditIndex == e.Row.RowIndex)
  		{
  			// TODO: NEW
  			//((C1NumericInput)e.Row.Controls[(int)ColumnsGrid.VALUE].Controls[1]).Culture = CultureInfo.CurrentCulture;
  			((C1InputNumeric)e.Row.Controls[(int)ColumnsGrid.VALUE].Controls[1]).Culture = CultureInfo.CurrentCulture;
  		}
  		// }


•

  aastha.gupta



  • Post Options:
  • Link
    Copy

  Posted 22 December 2025, 1:46 pm EST

  Hi,

  We are currently looking into this issue. We will update you soon on this.

  Thanks & regards,

  Aastha

•

  aastha.gupta



  • Post Options:
  • Link
    Copy

  Posted 23 December 2025, 5:10 am EST - Updated 23 December 2025, 5:16 am EST

  Hi,

  We updated our sample application using the code snippet you shared. Please see the attached GV_Filtering.zip

  When we tested it, we noticed that the page reloads during filtering, but the IsPostBack value remains true. You can see this behavior in the attached GIF.



  We are currently discussing this behavior with our development team (Internal Tracking ID: C1WEB-30274) and will update you as soon as we have more information.

  Thanks & regards,

  Aastha
