Dialog Error Height is 0 - C1Dialog 2025v2 399

Dialog Error Height is 0 - C1Dialog 2025v2 399

Posted by: enrique.pv-ext on 16 June 2026, 4:44 am EST

•

  enrique.pv-ext

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 16 June 2026, 4:44 am EST - Updated 16 June 2026, 4:52 am EST

  Hi,

  Migrate from 2010v1 to 2025v2 399 in ASP.NET WebForms NET Framework 4.8.1.

  Migrate C1Window to C1Dialog.

  Using C1Dialog from C1.Web.Wijmo.Controls.48.dll

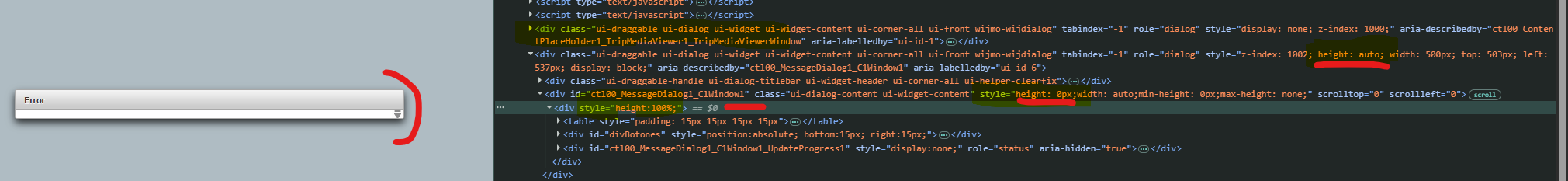

  2021×233 39.8 KB

   string script = string.Format(@"window.{0}.Show({{ title:'{1}',message:'{2}',icon:{3},buttons:{4}, width:'{5}', height:'{6}' }});", ClientID, Title, System.Web.HttpUtility.JavaScriptStringEncode(Message), (int)Icon, (int)DialogButtons, Width.ToString(), Height.ToString());
   clientScripts.Add(script);

  call to Show:

  window.ctl00_MessageDialog1.Show({ title:‘Error’,message:‘Error buscando tránsitos’,icon:2,buttons:1, width:‘500px’, height:‘250px’ });

  height:‘250px’ for c1dialog ? ‘250px’ with unit px or only 250 ?

  Show javascript fragment:

          w.c1dialog({
              title: title,
              modal: true
          });

          if (width) {
              w.c1dialog("option", "width", width);
          }
          if (height) {
              w.c1dialog("option", "height", height);
          }
          w.c1dialog({ position: 'center' });
          w.c1dialog("open");
          controls.btnAccept.focus();

  ascx

  <cc2:C1Dialog ID="C1Window1" runat="server" Height="250px" Width="500px"
      Title="Notification Dialog"
      Resizable="False"
      ShowOnLoad="False"
      >

  <CaptionButtons>
       <Close Visible="false" />
       <Pin Visible="false" />
       <Refresh Visible="false" />
       <Toggle Visible="false" />
  	    <Minimize Visible="false" />
    <Maximize Visible="false" />
   </CaptionButtons>

      <Content>
          <div style="height:100%;">
              <table style="padding: 15px 15px 15px 15px">
                  <tr>
                      <td>
                          <div style="float:left; width:60px;">
                              <asp:Image ID="imgIcon" runat="server" ImageUrl="" AlternateText="&nbsp;" Style="display:none;" />
                          </div>
                      </td>
                      <td>
                          <asp:Panel ID="PanelMessage" runat="server" Height="36px" style="float:left; vertical-align:middle; padding-bottom:12px; padding-left:5px;">
                              <asp:Label ID="lblMessage" runat="server" CssClass="minititle"></asp:Label>
                          </asp:Panel>
                      </td>
                  </tr>
              </table>
              <div id="divBotones" style="position:absolute; bottom:15px; right:15px;">
                  <asp:UpdatePanel ID="UpdatePanelButtons" runat="server">
                      <ContentTemplate>
                          <asp:Panel ID="PanelButtons" runat="server" CssClass="botones">
                              <asp:LinkButton ID="btnAccept" runat="server" Width="100" CausesValidation="false" style="display:none;">
                                  <asp:Label ID="lblAcceptButton" CssClass="ok" runat="server" Text="Aceptar"></asp:Label>
                              </asp:LinkButton>
                                  <asp:LinkButton ID="btnCancel" runat="server" Width="105" CausesValidation="false" style="display:none;">
                                  <asp:Label ID="lblCancelButton" CssClass="cancel" runat="server" Text="Cancelar"></asp:Label>
                              </asp:LinkButton>
                          </asp:Panel>
                      </ContentTemplate>
                  </asp:UpdatePanel>
              </div>

          </div>
      </Content>
  </cc2:C1Dialog>

  any suggestions, please ??

•

  uttkarsh.matiyal



  • Post Options:
  • Link
    Copy

  Posted 16 June 2026, 7:01 am EST

  Hello Enrique,

  The issue has already been reported by you in the following forum thread:

  https://developer.mescius.com/forums/webforms-edition/type-value-for-width-height-javascript-methods-c1window-to-c1dialog-2025v2-39

  According to the development team, this is a bug and has been fixed internally. The fix will be included in the 2026 v1 Hotfix 1 release.

  As a workaround, please specify the height value without units such as “px”.

  We will keep you updated on the progress through the same forum thread once the fix becomes available.

  Regards,

  Uttkarsh

•

  enrique.pv-ext

  • Post Options:
  • Link
    Copy

  Posted 6 July 2026, 10:57 am EST

  Now, I use

  C1.Web.Wijmo.Controls.48.dll

  ComponentOne Studio for ASP.NET Wijmo (4.8.20252.399) Drop Date: 11/05/2025

  Which is the latest version ?

  and will be new versions for 2026 v1 Hotfix 1 release and 2026 v1 Hotfix 2 release ?

•

  uttkarsh.matiyal



  • Post Options:
  • Link
    Copy

  Posted 6 July 2026, 11:28 pm EST

  Hello Enrique,

  The 2026v1 Hotfix 1 build has been released; however, it will be available through ComponentOne ControlPanel in a few days. Once it becomes available, we’ll let you know and share the steps to upgrade.

  Regards,

  Uttkarsh.
