  Hello,

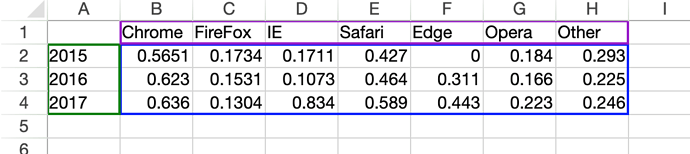

  Can I outline the cells in the table with the custom border using code? See screenshots from the table.



  1178×264 20.9 KB



  1164×370 51.8 KB

•

  jeff

  • Post Options:
  • Link
    Copy

  Posted 14 March 2020, 4:20 pm EST

  The above screenshots are from the table example. https://www.grapecity.com/spreadjs/demos/features/chart/line-chart/purejs

•

  sharad.tomer



  • Post Options:
  • Link
    Copy

  Posted 16 March 2020, 4:51 am EST

  Hi Jeff,

  You can use the setBorder method for changing the border style of a cell or range of cells. Please refer to the following code snippet and the sample demonstrating the same:

  spread
    .getActiveSheet()
    .getRange(1, 1, 4, 4)
    .setBorder(
      new GC.Spread.Sheets.LineBorder("red", GC.Spread.Sheets.LineStyle.thick),
      { top: true, bottom: true, right: true, left: true }
    );


  https://codesandbox.io/s/fervent-morning-eg5kn

  You may read more about borders here: https://www.grapecity.com/spreadjs/demos/features/worksheet/borders-gridlines/purejs

  Regards

•

  jeff

  • Post Options:
  • Link
    Copy

  Posted 16 March 2020, 3:50 pm EST

  Sharad,

  This is close but I need these borders to be temporary and based of a range selection.

  When the users clicks away from a selection I need the borders to disappear and return to their original state. How would I accomplish this?

•

  jeff

  • Post Options:
  • Link
    Copy

  Posted 16 March 2020, 4:32 pm EST - Updated 3 October 2022, 10:28 am EST

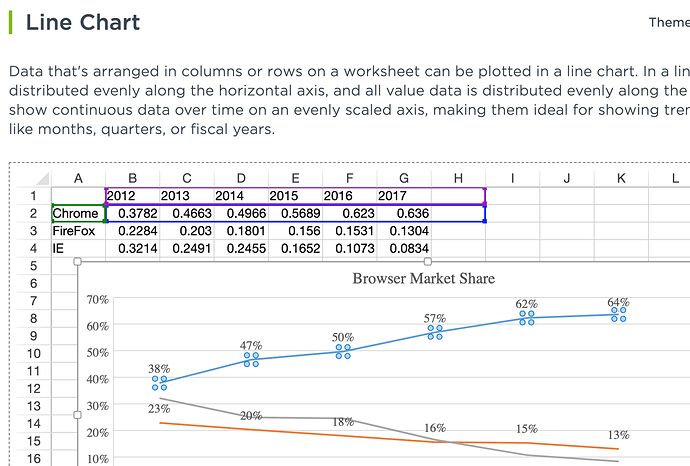

  I’m looking for similar functionality to reverse border when you click in a chart in SpreadJS. I want to call the users attention to a range or series of ranges.



  1576×1066 147 KB

•

  sharad.tomer



  • Post Options:
  • Link
    Copy

  Posted 17 March 2020, 8:12 am EST

  If I understand correctly, you want to highlight the border of a particular range when the user enters any cell or range, we could achieve the required functionality by listening to the SelectionChange event and use the setBorder method for the particular selected cell or particular range.

  Please refer to the following code snippet and the sample demonstrating the same:

  spread
        .getActiveSheet()
        .getRange(
          row,
          col,
          rowCount,
          colCount
        )
        .setBorder(new GC.Spread.Sheets.LineBorder("red",
  GC.Spread.Sheets.LineStyle.thick), {
          top: true,
          bottom: true,
          right: true,
          left: true
        });
    });


  https://codesandbox.io/s/jolly-dubinsky-9kwuq
