Double click on a shape

Double click on a shape

Posted by: Fabrice.Mainguene on 11 June 2026, 9:27 am EST

•

  Fabrice.Mainguene

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 11 June 2026, 9:27 am EST

  hi,

  How can I detect a double click on a shape by programming?

•

  chirag.gupta



  • Post Options:
  • Link
    Copy

  Posted 12 June 2026, 6:44 am EST - Updated 12 June 2026, 7:22 am EST

  Hi Fabrice,

  SpreadJS does not provide a built-in ShapeDoubleClick event. As a workaround, you can detect a shape double-click by handling the host element’s click event, using the hitTest() API to determine whether the clicked object is a shape, and then tracking consecutive clicks within a predefined time interval.

  The sample below demonstrates this approach. When the same shape is clicked twice within the configured delay (DOUBLE_CLICK_DELAY), it is treated as a double-click, and the corresponding logic can be executed.

  function attachShapeDoubleClickEvent(spread) {
      var clickCount = 0;
      var clickTimer = null;
      var DOUBLE_CLICK_DELAY = 300;

      spread.getHost().addEventListener('click', function (e) {
          var rect = this.getBoundingClientRect();
          var x = e.clientX - rect.left;
          var y = e.clientY - rect.top;

          var result = spread.hitTest(x, y);
          if (!result || !result.worksheetHitInfo) {
              clickCount = 0;
              clearTimeout(clickTimer);
              return;
          }

          var shapeHitInfo = result.worksheetHitInfo.shapeHitInfo;
          if (!shapeHitInfo || !shapeHitInfo.shape) {
              clickCount = 0;
              clearTimeout(clickTimer);
              return;
          }

          var shape = shapeHitInfo.shape;

          clickCount++;
          clearTimeout(clickTimer);

          if (clickCount === 2) {
              clickCount = 0;
              // Custom logic to be performed on double-clicking the shape
          } else {
              clickTimer = setTimeout(function () {
                  clickCount = 0;
              }, DOUBLE_CLICK_DELAY);
          }
      });
  }

  Please note that this is a custom implementation, and the double-click sensitivity can be adjusted by modifying the DOUBLE_CLICK_DELAY value.

  You can further refer to the attached sample - ShapeDoubleClickDetection that demonstrates the usage of the above code snippet.

  Please let us know if you require any further assistance.

  Kind Regards,



  Chirag

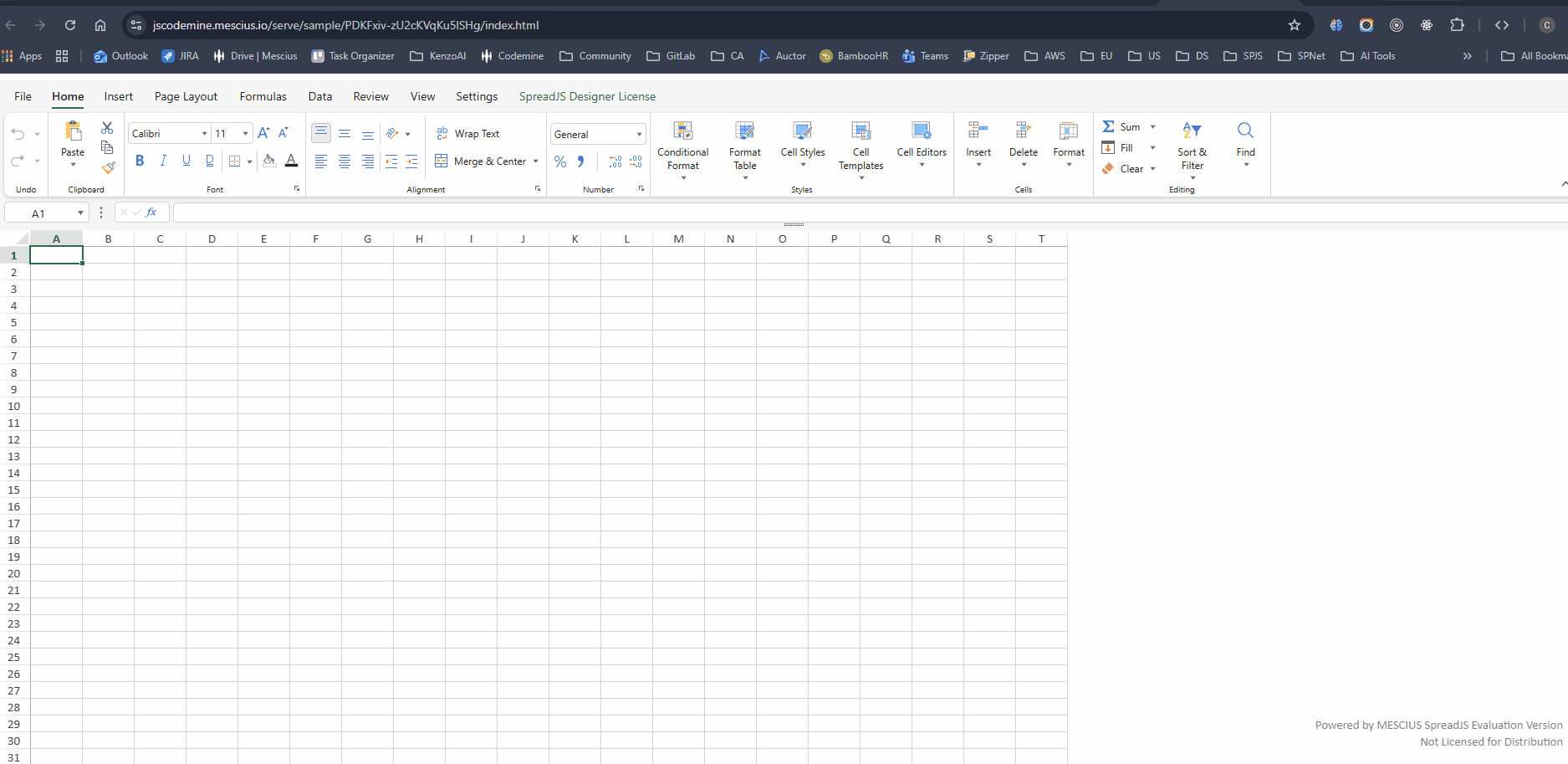

  Working:



•

  Fabrice.Mainguene

  • Post Options:
  • Link
    Copy

  Posted 12 June 2026, 7:20 am EST - Updated 12 June 2026, 7:31 am EST

  I think the reply was posted at the same time as my follow-up. Sorry about that!
