Problem with page break

Problem with page break

Posted by: sistemas on 18 June 2026, 3:08 am EST

•

  sistemas

  • Post Options:
  • Link
    Copy

  Posted 18 June 2026, 3:08 am EST - Updated 18 June 2026, 3:13 am EST

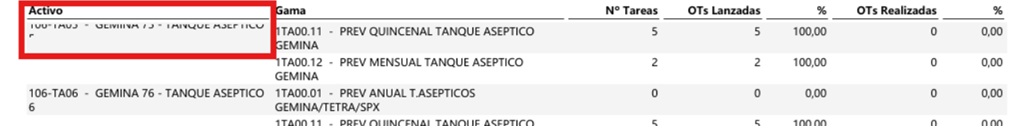

  When a field takes up more than one line, if it is marked as not to be repeated (with ‘RC’ in the tag) and a line break occurs, the field appears cut off on the new page. Is there a solution to this problem?



  1015×137 29.4 KB

•

  anand.sinha



  • Post Options:
  • Link
    Copy

  Posted 18 June 2026, 6:48 am EST

  Hi Sisteplant,

  A similar issue was reported in an older version of ActiveReports with RichTextBox, which was a bug and had been fixed in ActiveReports 17.3. You can try upgrading to the latest version of ActiveReports by downloading it using Download ActiveReports and see if your issue persists.

  However, if you’d not like upgrading at this stage, you can also try using the ‘KeepTogether’ property of the section, which will keep the content on one page. If the content is splitting at the edges, the whole TextBox will move to the consecutive page to render as one.

  If the issue persists, please try sharing a minimal, replicable sample so we can reproduce the issue on our end and further investigate the cause of the same.

  Regards,

  Anand

•

  sistemas

  • Post Options:
  • Link
    Copy

  Posted 19 June 2026, 2:58 am EST - Updated 19 June 2026, 3:04 am EST

  Hi,

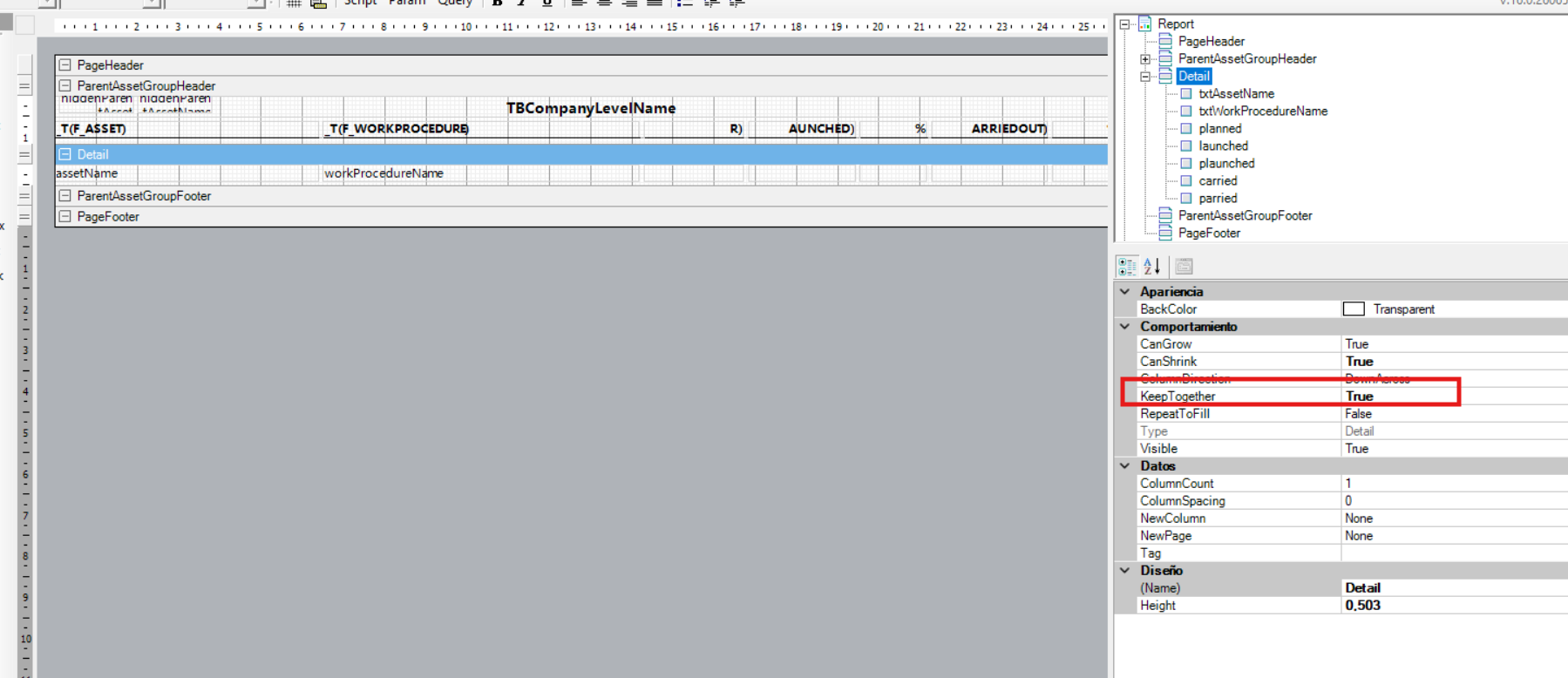

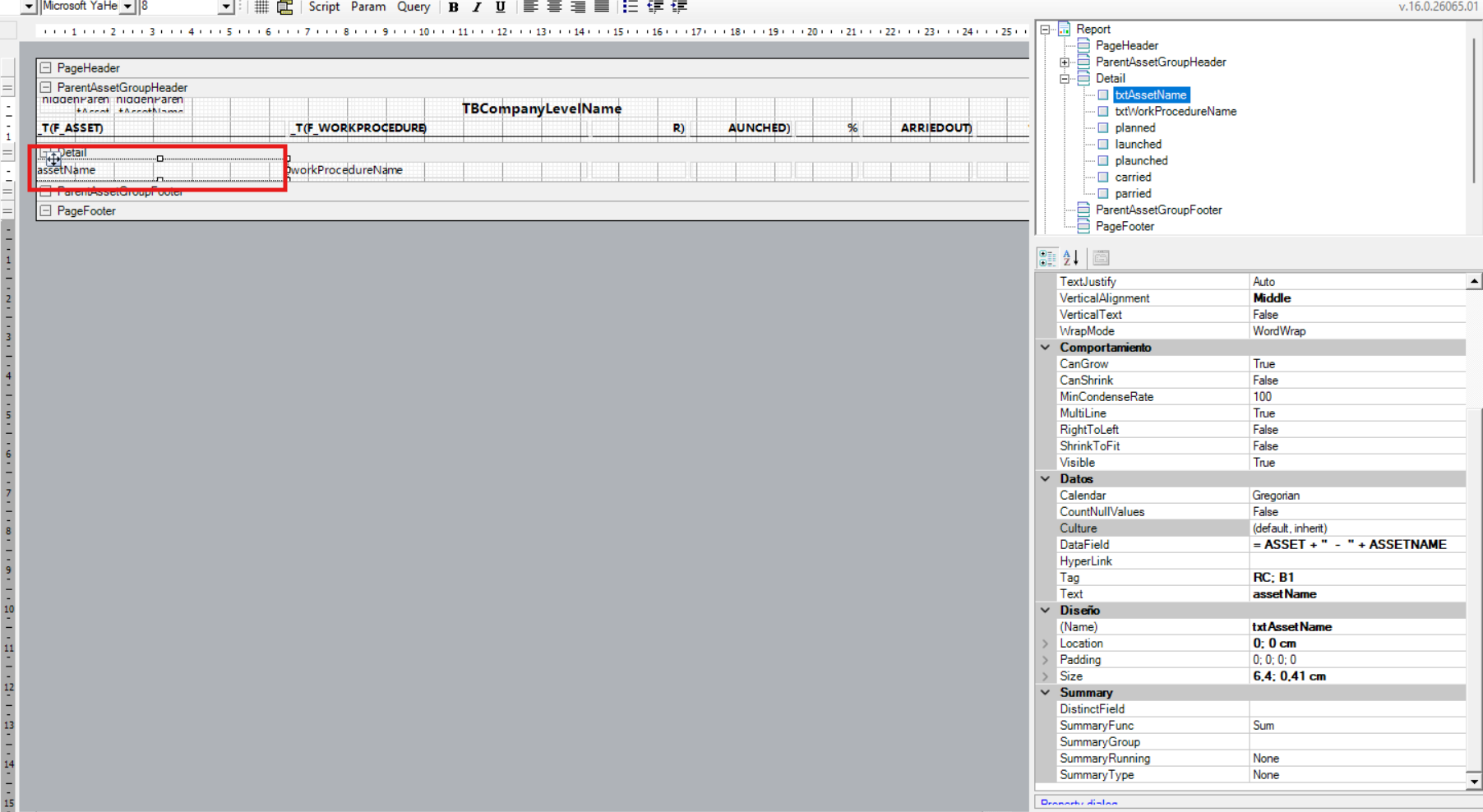

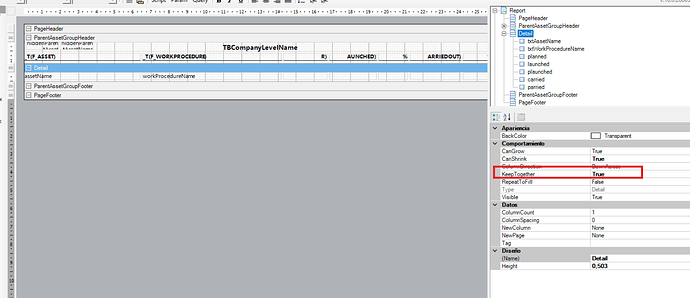

  I’m having a problem with a TextBox. I’ve already set ‘keepTogether’ in the section.

  I’m using version 16.2.1.

  Regards,

  Ana



  1804×988 201 KB



  1799×778 150 KB

•

  anand.sinha



  • Post Options:
  • Link
    Copy

  Posted 19 June 2026, 7:43 am EST

  Hi Sisteplant,

  Could you please share a minimal, runnable version of your project so we can replicate the issue on our end and investigate the cause further?

  In case of a bug, we’ll test whether the issue persists in the latest versions of ActiveReports. If it does, we’ll escalate the case with our development team.

  Thanks,

  Anand

•

  sistemas

  • Post Options:
  • Link
    Copy

  Posted 22 June 2026, 2:57 am EST - Updated 22 June 2026, 3:02 am EST

  Hi,

  I can’t share the project, but it’s easy to reproduce.

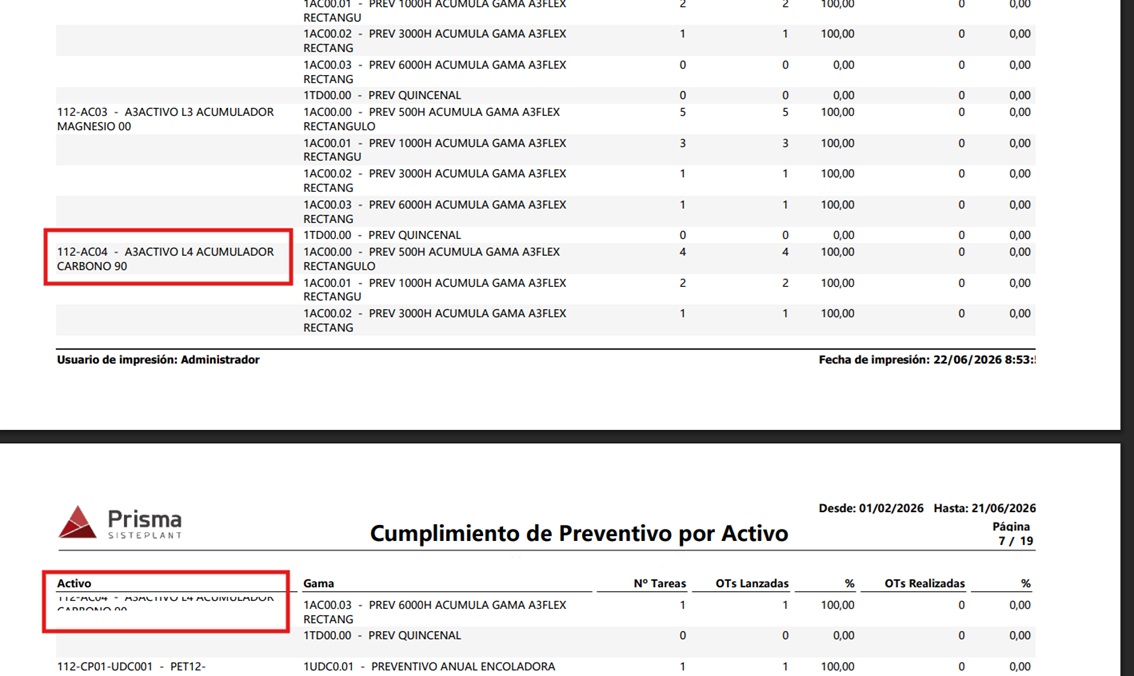

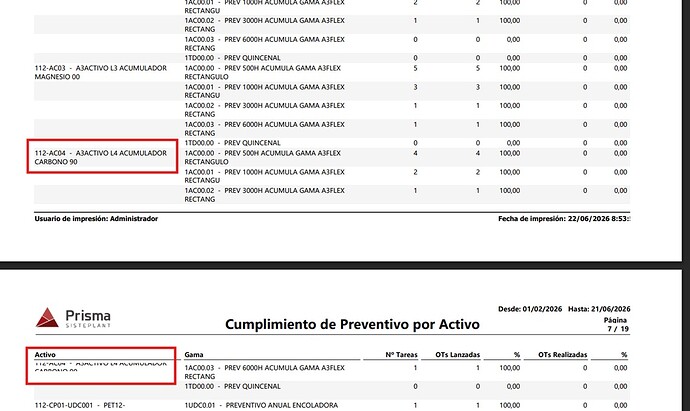

  If you have a TextBox that doesn’t fit on a single line and takes up more space, and its tag is set to RC (do not repeat), when a page break occurs, as the field is re-entered (so as not to leave it blank because it’s set to ‘do not repeat’), the text is cut off. I’ve attached an example.

  Regards

  Ana



  1134×676 144 KB

•

  anand.sinha



  • Post Options:
  • Link
    Copy

  Posted 22 June 2026, 7:13 am EST

  Hi Ana,

  We tried replicating this issue with the latest version of ActiveReports 16, i.e. v16.4.1, but the issue does not seem to replicate with this version of ActiveReports. We tried varying the height of the Textbox and detail section as well, but the issue does not seem to reproduce.

  So the issue may have been fixed in the last released version of ActiveReports 16, or we are unable to replicate it with our sample.

  Could you please try upgrading your project to the latest version of ActiveReports 16 by downloading it from here Download Version History.

  However, if the issue persists please try modifying our attached sample on your end such that it replicates the issue and share the same with us so we can further investigate the issue.

  Thanks,

  Anand

  SampleReportTextSplit.zip
