Using FlexGrid.SaveExcel and hosted controls

Using FlexGrid.SaveExcel and hosted controls

Posted by: tom.galczynski on 14 January 2026, 10:39 am EST

•

  tom.galczynski

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 14 January 2026, 10:39 am EST - Updated 14 January 2026, 10:45 am EST

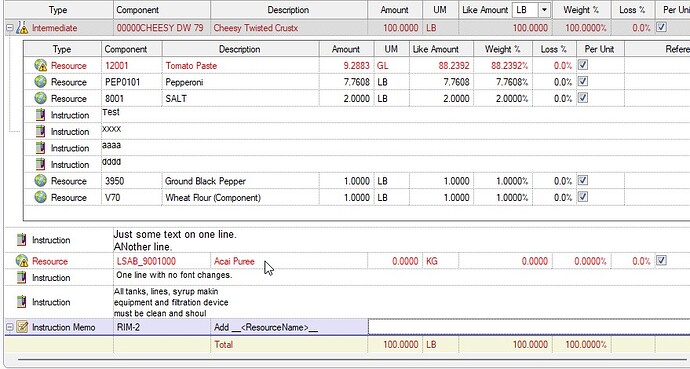

  Hello! We are using a winforms C1 FlexGrid which contains some rows that have a hostedcontrol, essentially another flexgrid. (I have included an image of such a grid with the row’s hostedcontrol expanded.) When we use SaveExcel, for the row with the hosted control all we get in the spreadsheet is the grid row. We would like to be able to also get the hostedcontrol rows as shown in the image. Is that possible?

  We are using Visual Basic.Net, C1Win.C1Flexgrid 4.8.20241.664

  Thanks for your help!



  879×471 124 KB

•

  wknauf

  • Post Options:
  • Link
    Copy

  Posted 15 January 2026, 4:51 am EST

  Hi,

  this is only possible if you first save the grid to excel, then open the excel file with e.g. C1Excel (I think for your older version it should be https://www.nuget.org/packages/C1.C1Excel, but for recent C1 versions you should probably use https://www.nuget.org/packages/C1.Excel/ for newer versions). Using C1Excel, you could add the content of the hosted controls.

  As you use another C1FlexGrid for the detail data, you might save this grid to another excel file, then merge them with C1Excel.

  Starter code:

  C1XLBook excelBook = new C1XLBook();
  excelBook.Load ("sample.xlsx");

  ...Modify sheet....

  excelBook.Save ("result.xslx");

  Hope this gives a hint on how to start…

  Best regards

  Wolfgang

•

  uttkarsh.matiyal



  • Post Options:
  • Link
    Copy

  Posted 15 January 2026, 9:24 am EST

  Hello Tom,

  The content of hosted controls is not exported to Excel because FlexGrid has no knowledge of the embedded controls. Additionally, Excel itself does not support embedding arbitrary UI controls within a row, so only the parent grid row is exported when using SaveExcel.

  In scenarios like this, the recommended approach is to flatten the data structure before or during export, which aligns with what Wolfgang suggested. A possible workflow would be:

  1. Export the main FlexGrid to Excel.
  2. Load the generated file into a C1XLBook object

     (https://developer.mescius.com/componentone/docs/win/online-excel/overview).
  3. For each hosted (child) FlexGrid:

     a. Export the child grid to Excel.

     b. Load the exported child grid’s excel content into a C1XLBook object.

     c. Copy the child rows into the main worksheet at the appropriate location

     (https://developer.mescius.com/componentone/docs/win/online-excel/copysheets).

  This approach effectively converts the parent–child UI hierarchy into a structure that Excel can represent.

  Please let us know if this helps. If your requirement is different, or if our understanding is not fully accurate, it would be helpful to know how these hosted controls are implemented (for example, whether you are using RowDetails) and if there are any additional requirements.

  If possible, sharing a small sample project would allow us to provide a more precise solution.

  P.S. Thank you, Wolfgang, for your inputs.

  Regards,

  Utkarsh

•

  tom.galczynski

  • Post Options:
  • Link
    Copy

  Posted 15 January 2026, 10:49 am EST

  Yes, Wolfgang and Utkarsh, this helps a lot. Wanted to confirm that there was no “magic” FileFlag enum we were missing. Also thanks for the suggestions as to how to implement.

  Cheers,

  Tom
