C1ComboxBox: Creating a MultiColumn ComboBox from DataBaseData with HTMLPattern

C1ComboxBox: Creating a MultiColumn ComboBox from DataBaseData with HTMLPattern

Posted by: andreas.kren on 8 October 2019, 3:06 pm EST

•

  andreas.kren

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 8 October 2019, 3:06 pm EST - Updated 4 October 2022, 12:42 am EST

  Hi,

  I finally found the C# C1ComboBox Sample for creating a MultiColumn ComboBox

  In the sample the HTML Pattern uses a class to which it references the names of the used field. Since I got an error when diretcly using a Datatable (for ItemsDataSource) I chanfed my code to also using a class. I however still get the same error. (attached jpg)

  I uses this code for setting the ComboBox

  Private Sub ErstelleBindingSourceFürWarengruppe()
      Dim WGrpen As New List(Of WGrp)

      Cmd.CommandText = "Select WGr, Stc, Bez From [Warengruppe] Order by WGr, Stc"
      DbRd = Cmd.ExecuteReader()
      Try
          Do While DbRd.Read()
              Dim x As New WGrp
              x.WGrpId = DbRd("WGr")
              x.Stc = DbRd("Stc")
              x.Bez = DbRd("Bez")
              WGrpen.Add(x)
          Loop
      Catch ex As Exception

      End Try

      Call DbRd.Close()

      Me.ccmbSWGrp.ItemsDataSource = WGrpen
      Me.ccmbSWGrp.ItemMode = C1.Win.C1Input.ComboItemMode.HtmlPattern
      Me.ccmbSWGrp.HtmlPattern = "<table><tr><td width=80 align=right>{WgrpId}</td><td width=100>{Bez}</td></tr><table>"
      Me.ccmbSWGrp.ItemsValueMember = "WGrpId"
      Me.ccmbSWGrp.ItemsDisplayMember = "WGrpId"
  End Sub


  And use this class defined within the form.

  Private Class WGrp
      Public WGrpId As Integer
      Public Stc As Integer
      Public Bez As String
  End Class




  829×420 90.6 KB

•

  andreas.kren

  • Post Options:
  • Link
    Copy

  Posted 8 October 2019, 3:07 pm EST

  I get the attached error when clicking the dropdown button of the combobox

•

  andreas.kren

  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 3:32 am EST

  push. ? Anyhelp?

•

  jitender.yadav



  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 4:07 am EST

  Hi,

  C1ComboBox looks for the data source object’s “properties” (in case of List data source) to populate the list items.

  Your ‘WGrp’ class only has “fields”. You would need to declare these fields as properties:

  Private Class WGrp
      Public Property WGrpId As Integer
      Public Property Stc As Integer
      Public Property Bez As String
  End Class


  Regards,

  Jitender

•

  andreas.kren

  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 7:44 am EST

  Thank you, but had it with “property” before … doesnt change, same error.

  maybe I should translate the error message.

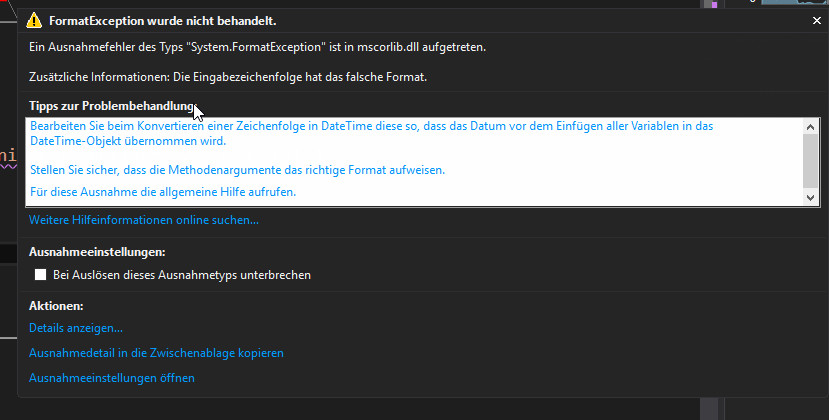

  It says sth like: " the input format is wrong." It wants to convert sth in the DateTime Format and is not able to do this …

  Not sure what the original error message would be in an English version.

  Maybe you could send me a small working sample?!

•

  jitender.yadav



  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 8:29 am EST

  With your original code, this was the exception I was getting: “System.FormatException: ‘Input string was not in a correct format.’”

  Attached is a working sample. Please see if this works for you.

  Combo_HtmlPattern_VB.zip

•

  andreas.kren

  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 12:35 pm EST

  Thank you! I ll have a look at it

•

  andreas.kren

  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 12:52 pm EST

  Worked with a new combox + the ‘public property’ change. Hm… thought I had tried that before, but

  THANK YOU!

•

  andreas.kren

  • Post Options:
  • Link
    Copy

  Posted 10 October 2019, 1:20 pm EST - Updated 4 October 2022, 12:42 am EST

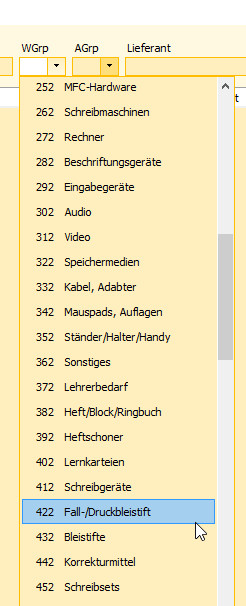

  Nervy follow question. Easy way of Autocomplete possible? I open the box per click, type “422” and it jumps to the list entry? Please see my jpg.



  246×606 54.2 KB

•

  jitender.yadav



  • Post Options:
  • Link
    Copy

  Posted 11 October 2019, 1:17 am EST

  Hi,

  Currently this is not possible since C1ComboBox does not receive any keyboard events while it is dropped down.

  However, we’ve asked the developers to consider this as an enhancement request for a future release [Internal Tracking ID: 401571]

  You can also look at C1Combo control which supports this behavior (however, you can’t use HtmlPattern with C1Combo).

  Regards,

  Jitender
