Manually call a FlexSheet column filter

Manually call a FlexSheet column filter

Posted by: chris.jones on 11 January 2019, 9:02 am EST

•

  chris.jones

  • Post Options:
  • Link
    Copy
  • Jump To Answer

  Posted 11 January 2019, 9:02 am EST - Updated 3 October 2022, 8:14 pm EST

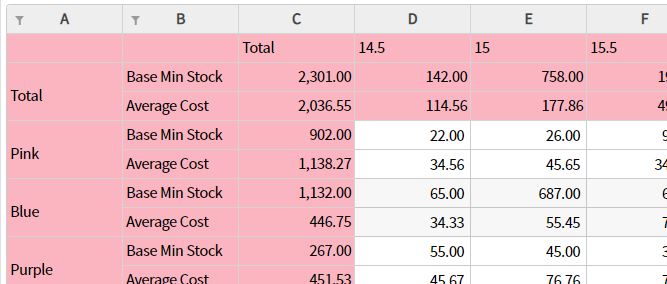

  I have a FlexSheet with a non-scrolling area to the top and left (in pink on image). I wish to hide the column header row (A, B, C etc) but I still wish to access the filter icons and place them in the first no-scrolling row. Alternatively I would like to add my own filter icon in the relevant cell and call the filter pop-up manually. I can’t find any way of achieving either approach. Can I access the filter pop-up manually?

•

  sharad.tomer



  • Post Options:
  • Link
    Copy

  Posted 14 January 2019, 1:04 am EST

  Hi,

  You may achieve the required functionality in the following steps:

  • Hide the column header by setting ‘headersVisibility’ property to ‘wijmo.grid.HeadersVisibility.Row’

  • Use formatItem event to add filter icons in the required row.

  // format filter icons in 1st row
  flexSheet.formatItem.addHandler((s,e)=>{
    let html = `<button class="wj-btn wj-btn-glyph wj-right wj-elem-filter" type="button" tabindex="-1">
        <span class="wj-glyph-filter"></span>
      </button>`;
    if(e.panel.cellType != wijmo.grid.CellType.Cell || e.row != 0){
      return;
    }
    e.cell.innerHTML = '';
    e.cell.innerText = e.panel.columns[e.col].header;
    //  left align
    wijmo.addClass(e.cell, 'left-align-text');
    wijmo.createElement(html, e.cell);

    // is filter applied
    let sheetFilter = flexSheet.filter;
    let colFilter = sheetFilter.getColumnFilter(e.panel.columns[e.col]);
    if(colFilter.isActive){
      wijmo.addClass(e.cell, 'wj-filter-on');
    }
  });


  • Add click handler to detect if our filter icon were clicked and call flexSheet.filter.editColumnFilter() method to display the filter editor.

  // handle click and open filter dialog
  flexSheet.hostElement.addEventListener('click', (e)=>{
    if(!wijmo.hasClass(e.target, 'wj-elem-filter') && !wijmo.hasClass(e.target.parentElement, 'wj-elem-filter')){
      // filter button not clicked
      return;
    }

    let htInfo = flexSheet.hitTest(e);
    let sheetFilter = flexSheet.filter;
    // show filter editor for column
    sheetFilter.editColumnFilter(htInfo.panel.columns[htInfo.col], htInfo);
  });


  You may also refer to the following sample demonstrating the same: https://stackblitz.com/edit/js-cmaffm?file=index.js

  ~Sharad

•

  chris.jones

  • Post Options:
  • Link
    Copy

  Posted 14 January 2019, 6:01 am EST

  This works great. Thanks for the quick response.

  Chris
