Flexsheet: Cell as Date type with Calendar date picker

Posted by: sasmita.swain2014 on 25 September 2018, 9:18 am EST

Please login to follow topic

sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 25 September 2018, 9:18 am EST

Hi,

We are using Angular2 with flexsheet.

Please provide any solution to make a Date field with Calendar date picker dynamically inside Flexsheet Cell.

Thanks,

Sasmita
sharad.tomer
- Post Options:
- Link
  Copy
Posted 26 September 2018, 12:28 am EST
Hi,

For an angular application, you may use wjFlexGridCellTemplate to customize cells.

Please refer to the following code snippet:

<wj-flex-grid #grid [itemsSource]="data" (initialized)="init(grid)"> ...other columns <wj-flex-grid-column [binding]="'date'" [header]="'Date'" [width]="150"> <ng-template wjFlexGridCellTemplate [cellType]="'CellEdit'" let-cell="cell"> <wj-input-date [(value)]="cell.value"></wj-input-date> </ng-template> </wj-flex-grid-column> </wj-flex-grid>

You may also refer to the following sample for the full implementation: https://stackblitz.com/edit/angular-cozgb7?file=app%2Fapp.component.html

Please refer to the following doc for more info on wjFlexGridCellTemplate:

https://demos.wijmo.com/5/Angular/WijmoHelp/WijmoHelp/topic/wijmo-wijmo.angular2.grid.WjFlexGridCellTemplate.Class.html

~Sharad
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 26 September 2018, 6:09 am EST

Actually i have asked for Flexsheet and that too dynamically in component file not in HTML file.

Thanks,

Sasmita
sharad.tomer
- Post Options:
- Link
  Copy
Posted 27 September 2018, 1:20 am EST

Hi Sasmita,

We apologize for the mistake in the previous answer.

For FlexSheet you may handle the prepareCellForEdit event and attach the custom editor as required.

Please refer to the following sample: https://stackblitz.com/edit/angular-7lo9lf?file=app%2Fapp.component.ts

Best regards

Sharad
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 30 October 2018, 2:39 am EST
hi Sharad,

I have applied the above code and the date field is coming but there are 2 issues:

until unless i click on the cell, it is not showing the icon for the calendar.

2.once the calendar is opened, if i click outside it is not closing.

Thanks,

Sasmita
manish.gupta
- Post Options:
- Link
  Copy
Posted 30 October 2018, 5:09 am EST
Hello Sasmita,

The InputDate is placed as CustomEditor which required the double-click to enter in edit mode.

To close calendar, handle lostFocus event for InputDate and close the dropDown. Please refer to the demos sample:

https://stackblitz.com/edit/angular-dbxeys?file=app/app.component.ts

Hope it clears!

~Manish
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 30 October 2018, 6:31 am EST

Hi,

Thanks for getting back. if we select a date, the format is coming as 10/10/2018 but in itemsource value is coming as date object

Wed Oct 10 2018 00:00:00 GMT+0530 (India Standard Time).

i have tried to change it using flexsheet.setCelldata(). but it is not working.

Thanks,

Sasmita
manish.gupta
- Post Options:
- Link
  Copy
Posted 31 October 2018, 12:28 am EST

Hi Sasmita,

In the provided sample before:

The itemsSource contains the date object while the Data is bind to the FlexGrid, the date field format is set to “m/d/yyyy”.

Also, the InputDate editor required the Date object as value.

Hope it clears!

~Manish
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 31 October 2018, 5:09 am EST - Updated 3 October 2022, 8:17 pm EST
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 31 October 2018, 5:47 am EST
Hi Manish,

so in this way can’t we change the format?

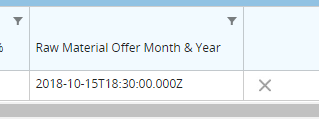

Because it is saving as Date object and next time when it is loading, the saved date is showing as Date object. Please find the image showing the same.

we have to manually double click on the cell to make it a formatted date().

some other issues are:

Once the date is set to the cell, not able to clear the date.

if cell is empty and we are double clicking the cell, then it is taking the today’s date by default.

Thanks,

Sasmita
sharad.tomer
- Post Options:
- Link
  Copy
Posted 1 November 2018, 12:36 am EST
so in this way can’t we change the format?

<<<<<<<<<<<<<<

We can change the format by setting format property of the column.

Please refer to the following code snippet:

flexSheet.columns[1].format = 'yyyy-MM-dd';

Once the date is set to the cell, not able to clear the date.

if cell is empty and we are double clicking the cell, then it is taking the today’s date by default.

<<<<<<<<<<<<<<

You need to set the isRequired property to false to allow null values.

let dateEditor = new wjcInput.InputDate(document.createElement('div'), { isRequired: false });

Because it is saving as Date object and next time when it is loading, the saved date is showing as Date object. Please find the image showing the same.

<<<<<<<<<<<<<<

We are unable to replicate the issue at our end, please have a look at the following and let us know if are missing something to replicate issue at our end:

https://stackblitz.com/edit/angular-7mkwzy?file=app%2Fapp.component.ts

Also from the snapshot you provided, it looks like somewhere in your code date is parsed as the string instead of the actual date object. Please make sure that dates are instances of Date object and not just string representation.

~Sharad
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 2 November 2018, 6:43 am EST - Updated 3 October 2022, 8:17 pm EST

Hi Sharad,

Thanks for the updates. But there is another issue i got.

When the flexsheet loads for the first time you click on the Date cell containing a Date value, then it automatically takes the today’s date.

This is happening once after loading the screen. I am able to recreate the scenario in the above demo and attached the screenshot for the same.

Thanks,

Sasmita
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 2 November 2018, 7:23 am EST - Updated 3 October 2022, 8:17 pm EST

Hi,

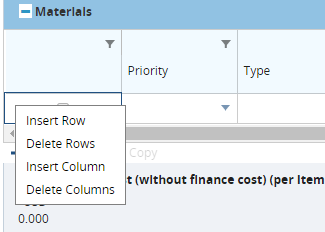

There is another doubt i have. After upgrading to latest wijmo. In flexsheet if i right click on the row then 4 option comes to add/delete etc. Can you please tell me how to remove that?

I have attached the screenshot for the same.

Thanks,

Sasmita
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 5 November 2018, 7:37 am EST

Hi,

Any update on the above issues.

thanks,

Sasmita
sharad.tomer
- Post Options:
- Link
  Copy
Posted 6 November 2018, 12:15 am EST
Hi Sasmita,

We apologize for the late response.

When the flexsheet loads for the first time you click on the Date cell containing a Date value, then it automatically takes the today’s date.

<<<<<<<<<<<<<<

I have updated the sample accordingly, please refer to the following modified sample:

https://stackblitz.com/edit/angular-re2sjd?file=styles.css

After upgrading to latest wijmo. In flexsheet if i right click on the row then 4 option comes to add/delete etc. Can you please tell me how to remove that?

<<<<<<<<<<<

You may use CSS to remove some of the options from the contextMenu.

.wj-flexsheet-context-menu [wj-part="insert-rows"]{ display: none; }

If you want to completely remove the contextMenu then you may handle the contextmenu event and call preventDefault() in the handler.

You may also refer to the above sample.

Regards

Sharad
sasmita.swain2014
- Post Options:
- Link
  Copy
Posted 27 November 2018, 7:13 am EST

Hi,

How to add a small calendar icon with float left in the calender cell?

Thanks,

Sasmita

sharad.tomer

Post Options:
Link
Copy

Posted 28 November 2018, 5:08 am EST

You may use formatItem event add icons in the FlexSheet cell.

Please refer to the following code snippet and sample:

flexSheet.formatItem.addHandler((s,e)=>{
      if(flexSheet.selectedSheetIndex != sheetIndex || e.panel.cellType != wjcGrid.CellType.Cell){
        return;
      }

      // return if column is not desired col
      if(e.panel.columns[e.col].binding != colBind || e.row == 0){
        return;
      }

      // do not attach icon if cell is in edit mode
      if(flexSheet.editRange && flexSheet.editRange.row == e.row && flexSheet.editRange.col == e.col){
        return;
      }

      let cIcon = wjcCore.createElement('<span class="wj-glyph-calendar" style="margin-right: 4px"></span>');
      e.cell.insertBefore(cIcon, e.cell.firstChild);
    });

https://stackblitz.com/edit/angular-vsec3q?file=app%2Fapp.component.ts

~Sharad
