How to Add a Blazor Excel XLSX Viewer to Your Web Application

Excel workbooks are widely used to store and present financial data, reports, and other business information. In a web application, however, requiring users to download an XLSX file and open it in a separate desktop application can interrupt the workflow. By combining Blazor with SpreadJS, a JavaScript spreadsheet, you can display Excel workbooks directly in the browser and provide users with a familiar spreadsheet viewing experience.

In this tutorial, you’ll build a read-only Blazor Excel XLSX viewer using .NET 8, a JavaScript spreadsheet component, JavaScript interop, and Vite. Users will be able to select an XLSX file, import it into a SpreadJS workbook, navigate between worksheets, and view the workbook contents directly in the browser without modifying the original file.

Download the latest release of the industry-leading JS spreadsheet component, SpreadJS

Steps to Add a Blazor Excel XLSX Viewer to Web Apps

• Step 1: Create a Blazor Project
• Step 2: Initialize the JavaScript Excel Viewer
• Step 3: Import an XLSX File
• Step 4: Add the Blazor File Picker
• Step 5: Run the Viewer
• Conclusion

 Download a finished sample application to follow along

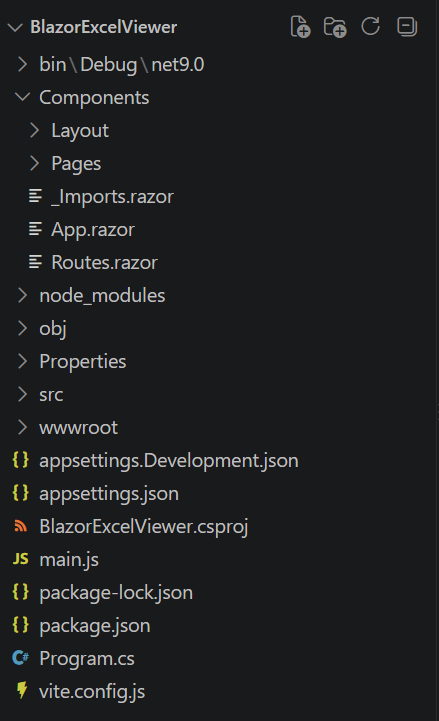

Step 1: Create a Blazor Project

Create a new Blazor Web App:

dotnet new blazor -n BlazorExcelViewer
cd BlazorExcelViewer

Install the JS spreadsheet packages, in this example we are using SpreadJS.

npm install @mescius/spread-sheets @mescius/spread-sheets-io
npm install vite --save-dev

Create vite.config.js:

import { defineConfig } from "vite";

export default defineConfig({
    build: {
        lib: {
            entry: "main.js",
            formats: ["iife"],
            name: "SpreadJSViewer",
            fileName: () => "spread.bundle.js"
        },
        outDir: "wwwroot/js",
        emptyOutDir: false
    }
});

Add the Vite build command to package.json:

"scripts": {
  "build": "vite build"
}

Step 2: Initialize the JavaScript Excel Viewer

Create main.js and import SpreadJS.

import * as GC from "@mescius/spread-sheets";
import "@mescius/spread-sheets-io";
import "@mescius/spread-sheets/styles/gc.spread.sheets.excel2013white.css";

Then using the worbook constructor, initialize a JS spreadsheet instance.

let spread = null;

window.initializeExcelViewer = function (elementId) {
    const element = document.getElementById(elementId);
    if (!element) {
        return;
    }
    spread = new GC.Spread.Sheets.Workbook(element);
};

This creates a SpreadJS workbook inside the HTML element supplied by the Blazor component.

Step 3: Import an XLSX File

Add openExcelFile() to main.js:

window.openExcelFile = function (bytes) {
    const uint8Array = new Uint8Array(bytes);
    const blob = new Blob([uint8Array], {
        type: "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet"
    });
    const file = new File([blob], "document.xlsx");
    spread.import(
        file,
        function () {
            setWorkbookReadOnly();
        },
        function (error) {
            console.error("Error importing Excel file:", error);
        },
        {
            fileType: GC.Spread.Sheets.FileType.excel
        }
    );
};

The byte array received from Blazor is converted into a browser File and passed to the SpreadJS import() API to load the Excel workbook into the viewer.

To make the imported workbook read-only, add:

function setWorkbookReadOnly() {
    const sheetCount = spread.getSheetCount();
    for (let i = 0; i < sheetCount; i++) {
        const sheet = spread.getSheet(i);
        sheet.options.isProtected = true;
    }
}

This enables worksheet protection for every imported sheet, preventing users from editing locked cells while still allowing them to navigate the workbook.

Step 4: Add the Blazor File Picker

In Home.razor, create the viewer UI:

@page "/"
@rendermode InteractiveServer
@using Microsoft.AspNetCore.Components.Forms
@using Microsoft.JSInterop
@inject IJSRuntime JS

<PageTitle>Excel XLSX Viewer</PageTitle>
<div class="viewer-page">
    <div class="viewer-header">
        <h1>Excel XLSX Viewer</h1>
        <p>Open and view Excel workbooks directly in your browser.</p>
    </div>
    <div class="viewer-toolbar">
        <label class="file-label">
            Choose XLSX File

            <InputFile
                OnChange="OpenExcelFile"
                accept=".xlsx"
                class="file-input" />
        </label>
        @if (!string.IsNullOrEmpty(fileName))
        {
            <span class="file-name">@fileName</span>
        }
    </div>
    <div id="excelViewer" class="excel-viewer"></div>
</div>

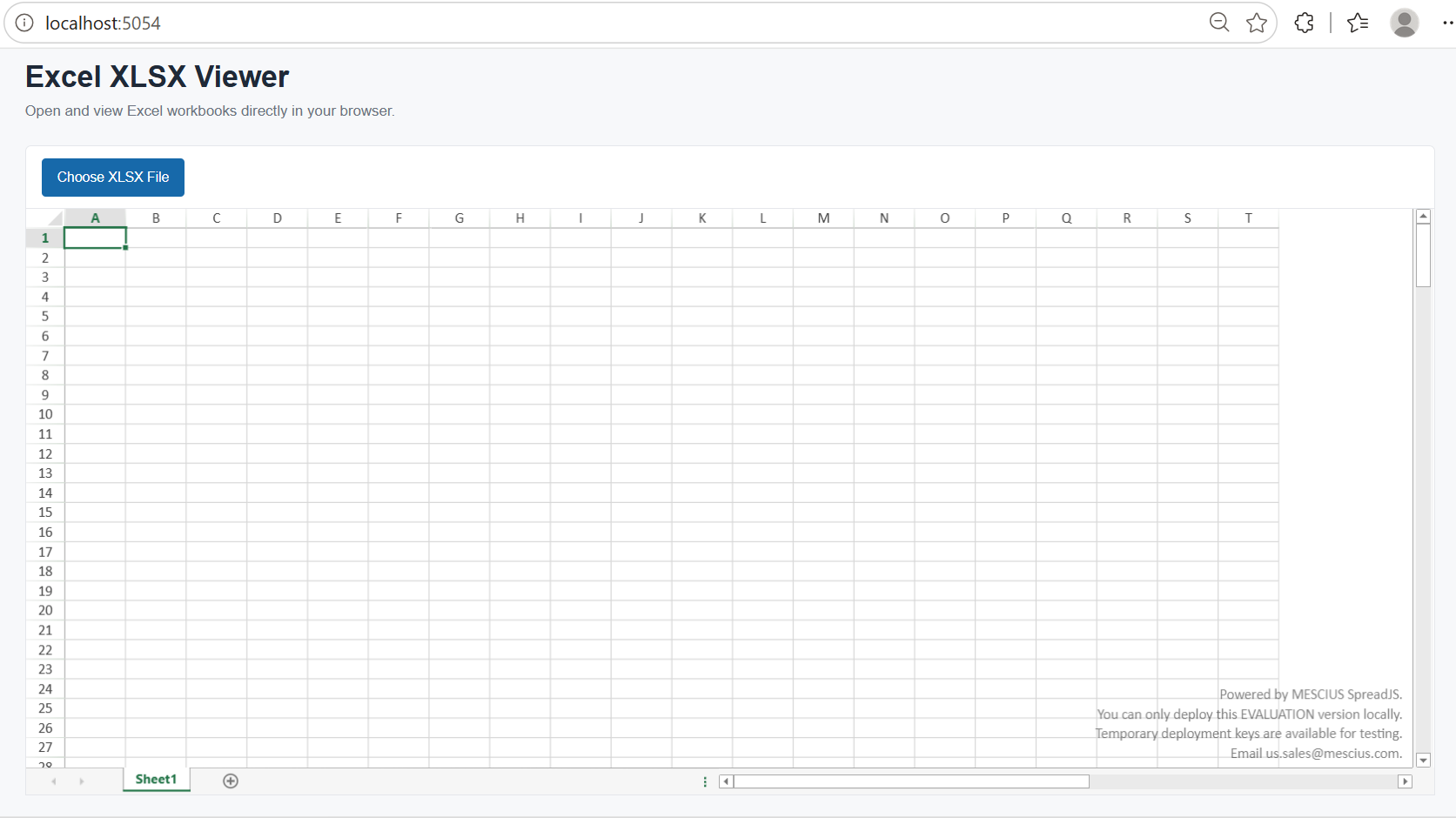

Initialize the JS spreadsheet workbook instance after the component renders:

private bool initialized;
private string? fileName;

protected override async Task OnAfterRenderAsync(bool firstRender)
{
    if (firstRender)
    {
        await JS.InvokeVoidAsync("initializeExcelViewer","excelViewer");
        initialized = true;
    }
}

Then read the selected XLSX file and send it to JavaScript:

private async Task OpenExcelFile(InputFileChangeEventArgs e)
{
    if (!initialized)
        return;
    var file = e.File;
    fileName = file.Name;
    const long maxFileSize = 50 * 1024 * 1024;
    await using var stream = file.OpenReadStream(maxFileSize);
    using var memoryStream = new MemoryStream();
    await stream.CopyToAsync(memoryStream);
    await JS.InvokeVoidAsync(
        "openExcelFile",
        memoryStream.ToArray());
}

Step 5: Run the Viewer

Build the JavaScript bundle:

npm run build

Then run the Blazor application:

dotnet run

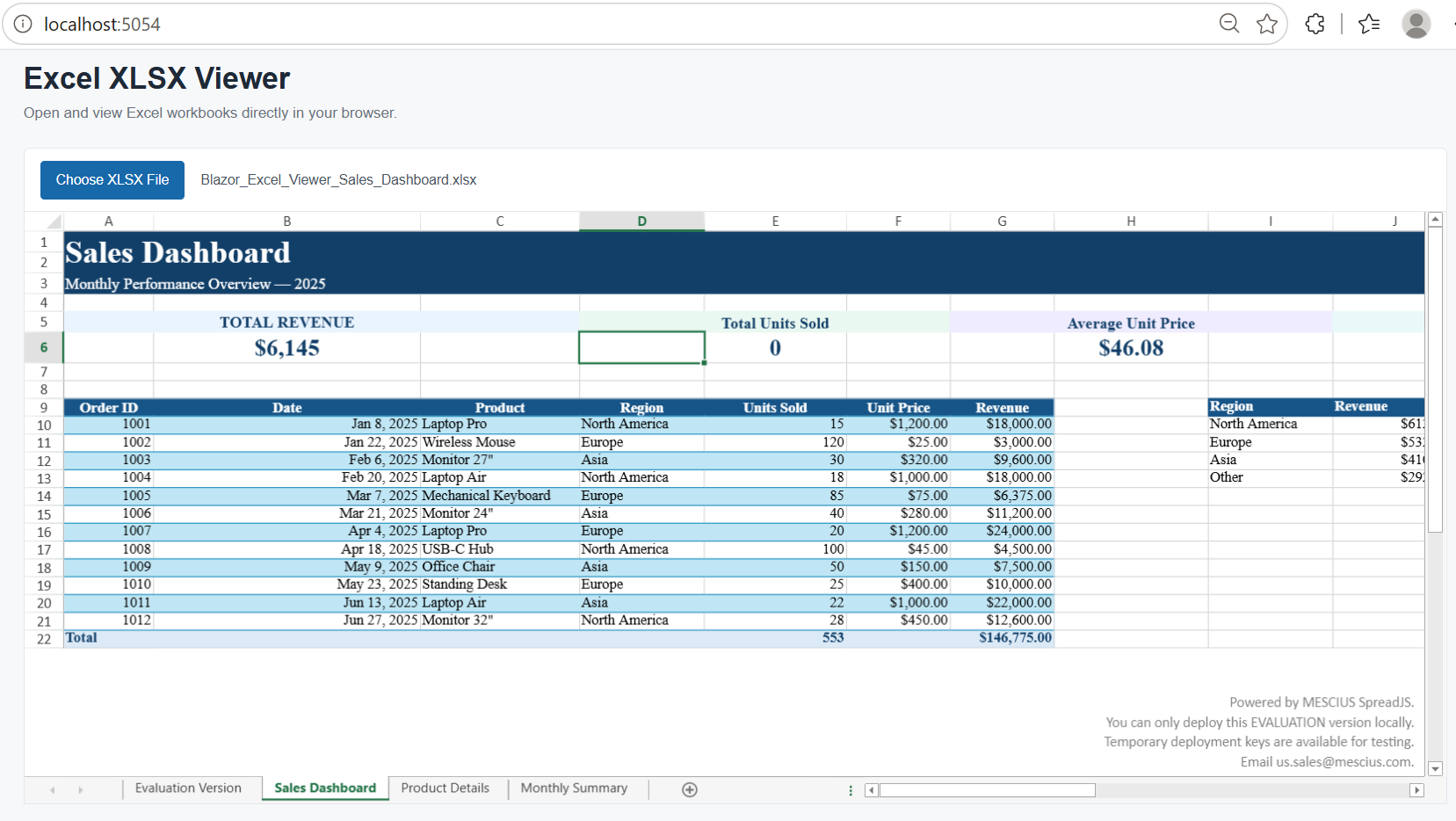

Click Choose XLSX File and select an Excel workbook. SpreadJS imports and displays the XLSX workbook directly in the web browser.

 Download the finished sample application to see for yourself.

Conclusion

In this tutorial, you built a Blazor-based Excel XLSX viewer that loads workbooks directly in the browser using SpreadJS. You created a Vite bundle for the SpreadJS dependencies, initialized the workbook from Blazor through JavaScript interop, converted the selected XLSX file into a browser-compatible format, and imported it into the viewer.

You also configured the worksheets as read-only, added a Blazor file picker, and styled the viewer to provide a dedicated workspace for displaying Excel data. This approach provides a foundation for integrating Excel document viewing into Blazor applications while keeping the workbook accessible through a familiar spreadsheet interface.
