Exclude Pinned Rows While Sorting in Vue

Background:

By default, the standard sort functionality of Wijmo FlexGrid when clicking on a column header sorts the entire grid. Sometimes users want particular rows to remain pinned or frozen at the top and not be affected by sorting. With a bit of custom code in Vue, you can accomplish this by providing a custom sort converter that excludes pinned rows from the sort logic.

Steps to Complete:

1. Provide a custom sortConverter function on the grid’s CollectionView.
2. Ensure that a unique identifier is present on the data items for the pinned rows.

Getting Started:

Provide a custom sortConverter function on the grid’s CollectionView

Assigning a custom sortConverter overrides the default sort behavior and allows you to determine how values are compared for sorting. In this case, the converter checks whether a row is pinned and forces it to remain at the top (or bottom), effectively excluding it from the normal sort operation.

<template>
  <wj-flex-grid
    ref="flex"
    :itemsSource="items"
    @initialized="onGridInitialized"
  />
</template>

<script>
import * as wjcGrid from '@mescius/wijmo.grid';
import { WjFlexGrid } from '@mescius/wijmo.vue2.grid';

export default {
  components: { WjFlexGrid },
  data() {
    return {
      items: getData(),
      pinnedRowCount: 3
    };
  },
  methods: {
    onGridInitialized(grid) {
      // Assign a custom sort converter
      grid.collectionView.sortConverter = (sd, item, value) => {
        // If this item is pinned, force its sort position
        if (item.id < this.pinnedRowCount) {
          return sd.ascending ? -Infinity : Infinity;
        }

        // Otherwise, use the default value
        return value;
      };
    }
  }
};
</script>

• In this example, rows with id < 3 are treated as pinned.
• The sort converter checks this condition and assigns a forced sort value to keep these rows fixed.

Ensure that a unique identifier is present on the data items for the pinned rows

The sort converter needs a reliable way to identify which rows are pinned. Adding a unique identifier (such as an id property) to each data item allows the converter to determine whether a row should be excluded from sorting.

function getData() {
  return [
    { id: 0, country: 'PinnedRow1', value: 100 },
    { id: 1, country: 'PinnedRow2', value: 200 },
    { id: 2, country: 'PinnedRow3', value: 300 },
    { id: 3, country: 'Canada', value: 50 },
    { id: 4, country: 'Germany', value: 150 },
    { id: 5, country: 'Japan', value: 120 }
  ];
}

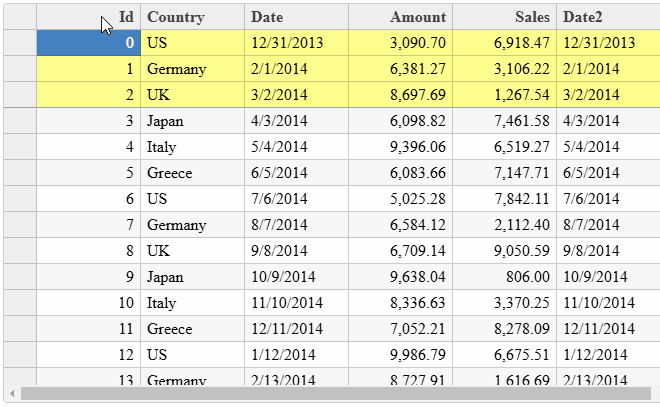

With this Vue setup, rows designated as pinned using a unique data property remain unaffected when users sort the FlexGrid by clicking column headers. Only non-pinned rows participate in sorting, while pinned rows stay fixed at the top (or bottom, depending on sort direction).

Happy coding!
