PageBreak is not working after we save the spread to Excel file

PageBreak is not working after we save the spread to Excel file

Posted by: johina.olla on 5 September 2022, 4:15 am EST

•

  johina.olla

  • Post Options:
  • Link
    Copy

  Posted 5 September 2022, 4:15 am EST

  We are using the spreadjs v15 in angular applictaion and we are setting the page break using method

  activeSheet.setColumnPageBreak(2, true);

  activeSheet.setRowPageBreak(3, true);

  but when we export the spread as excel the in excel file the pagebreak is not visible through pagebreak preview and not working when printing.

  Please suggest how can we resolve it?

•

  avinash.pathak



  • Post Options:
  • Link
    Copy

  Posted 6 September 2022, 7:57 am EST - Updated 3 October 2022, 9:02 am EST

  Hi,

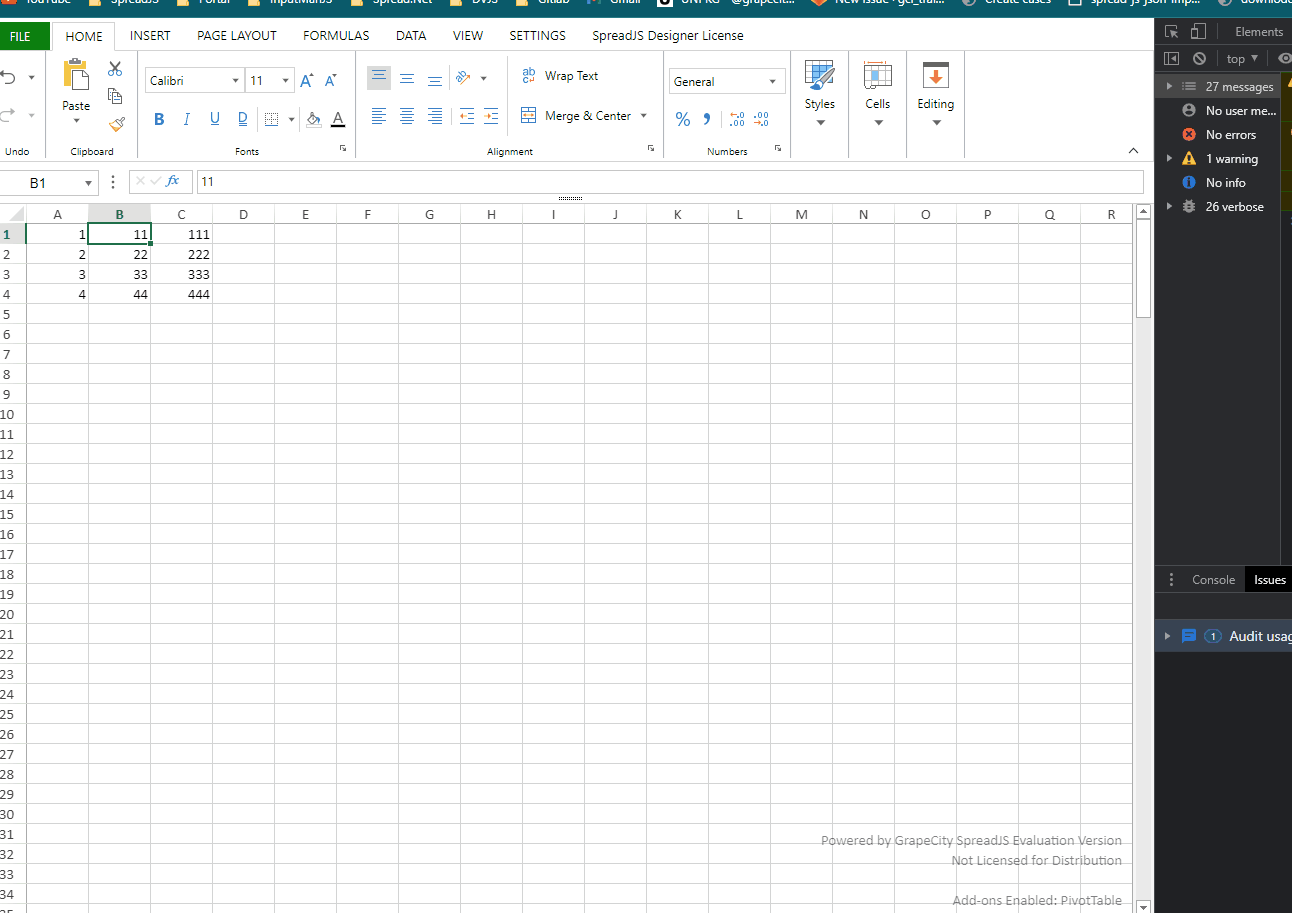

  We are sorry but we are unable to replicate the issue on our end. Could you please refer to the following gif of our observation and let me know if we missed any steps?

  Regards,

  Avinash

•

  johina.olla

  • Post Options:
  • Link
    Copy

  Posted 6 September 2022, 8:17 am EST

  Actually we are setting the pagebreak through code in spreadJS in angular application using the code below.

  spread.getactiveSheet().setColumnPageBreak(2, true);

  spread.getactiveSheet().setRowPageBreak(3, true);

  and then export the spread through method exportFile() using the below piece of code

  [b] private exportFile(spread: GC.Spread.Sheets.Workbook): void {

  //var json = JSON.stringify(spread.toJSON());

  var cache = ;

  var json = JSON.stringify(spread.toJSON({ includeBindingSource: true }), function (key, value) {

  if (typeof value === ‘object’ && value !== null) {

  if (cache.indexOf(value) !== -1) {

  // Circular reference found, discard key

  return;

  }

  // Store value in our collection

  cache.push(value);

  }

  return value;

  });

  cache = null; //

  var excelIO = new GC.Spread.Excel.IO();
  excelIO.save(json, function (blob) {
    saveAs(blob, 'export.xlsx');
  }, function (e) {
    alert(e);
  });


  }[/b]

  when we open the exported excel file, row/column pagebreak is not working.

  Please use the above code to reproduce the issue.

•

  avinash.pathak



  • Post Options:
  • Link
    Copy

  Posted 7 September 2022, 1:14 am EST

  Hi,

  We have created a sample using the provided code snippet but we are still unable to replicate the issue at our end. Could you refer to the following sample and edit it to replicate the issue?

  sample: https://jscodemine.grapecity.com/share/x8Bk_WMqkUmUt2EAnhT3eg/

  Regards,

  Avinash
