The Top 5 Diagrams for C# .NET Enterprise Applications

Diagrams remain one of the most effective communication tools we have in modern enterprise software. Whether you’re helping business users understand workflows or giving developers insight into complex systems, the clarity that diagrams provide is measurably more valuable than plain text representations. Fortunately, building diagrams in .NET applications has never been easier, thanks to new visualization frameworks and developer-friendly tools like FlexDiagram.

In this article, we’ll explore the top five diagrams every enterprise-grade C# .NET application should consider, complete with use cases and coding tips for integrating them into your WinForms apps:

1. Organization Charts
2. Workflow & Process Flow Diagrams
3. Dependency & Relationship Graphs
4. Tree Diagrams & Hierarchical Structures
5. State Machines & Decision Trees

Ready to check them out? Download ComponentOne Today!

1. Organization Charts

Every enterprise app that touches HR, workforce planning, or leadership dashboards benefits from a clear organizational chart. An org chart helps users understand relationships between employees, departments, or business units at a glance.

Why Org Charts Matter

• Quickly communicate reporting lines
• Useful for onboarding, restructuring, and resource planning
• Ideal for role-based dashboards and people intelligence tools

How .NET Developers Create Org Charts

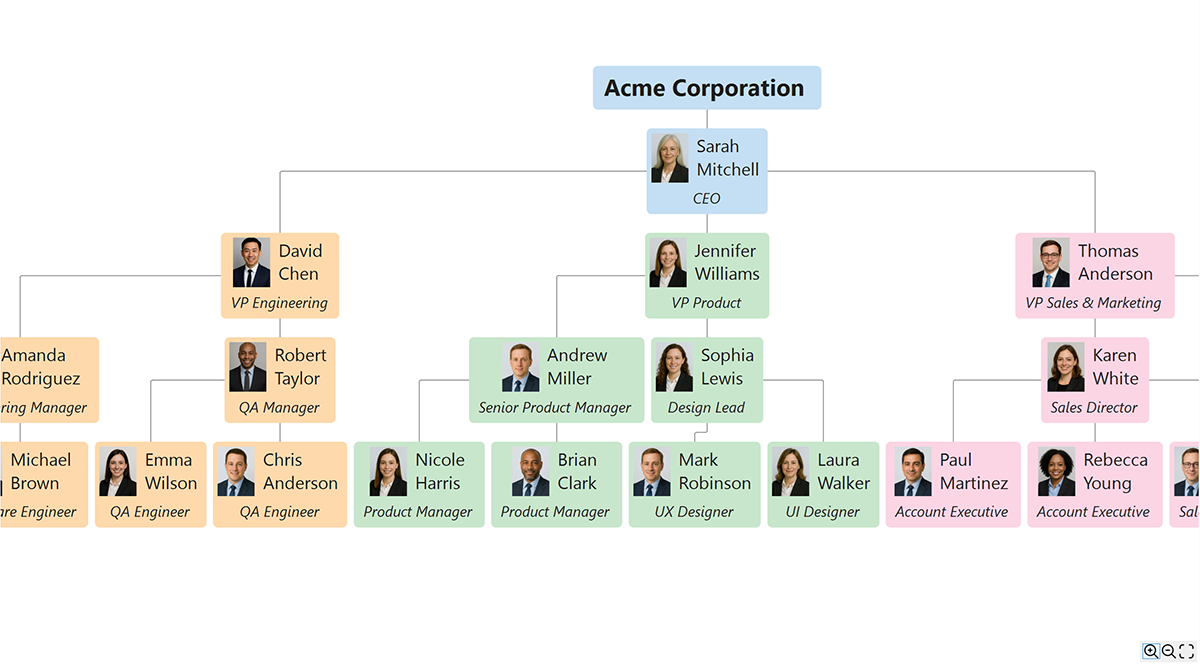

While FlexDiagram can be data-bound (more on that later), you can manually create each node to give you complete control over the relationships and styles. The following C# example creates a simpler version of the org chart above (you can easily expand upon it).

using C1.Win.Diagram;

// create nodes and edges
Node companyNode = new Node();
companyNode.Text = "ACME Corporation";
Node ceoNode = new Node();
ceoNode.Title = "Sarah Mitchell";
ceoNode.Content = "CEO";
ceoNode.ContentImage = Image.FromStream(stream);
Edge edge1 = new Edge();
edge1.Source = companyNode;
edge1.Target = ceoNode;

// add nodes and edges to FlexDiagram
flexDiagram1.Nodes.Add(companyNode);
flexDiagram1.Nodes.Add(ceoNode);
flexDiagram1.Edges.Add(edge1);

2. Workflow & Process Flow Diagrams

Enterprises run on processes. Approval workflows, onboarding pipelines, document routing, and automation sequences are often complicated and challenging to explain in text. A workflow or flowchart diagram helps teams see the entire process from start to finish.

Why .NET Flowcharts Matter

.NET diagram components, like FlexDiagram, enable the creation of visual dashboards in WinForms apps rather than depending on PowerPoint or Excel. Real .NET scenarios include:

• BPM (Business Process Management) tools
• Workflow editors where users drag and drop steps
• Process monitoring tools that highlight runtime states

How to Quickly Load a Flowchart from a Text File

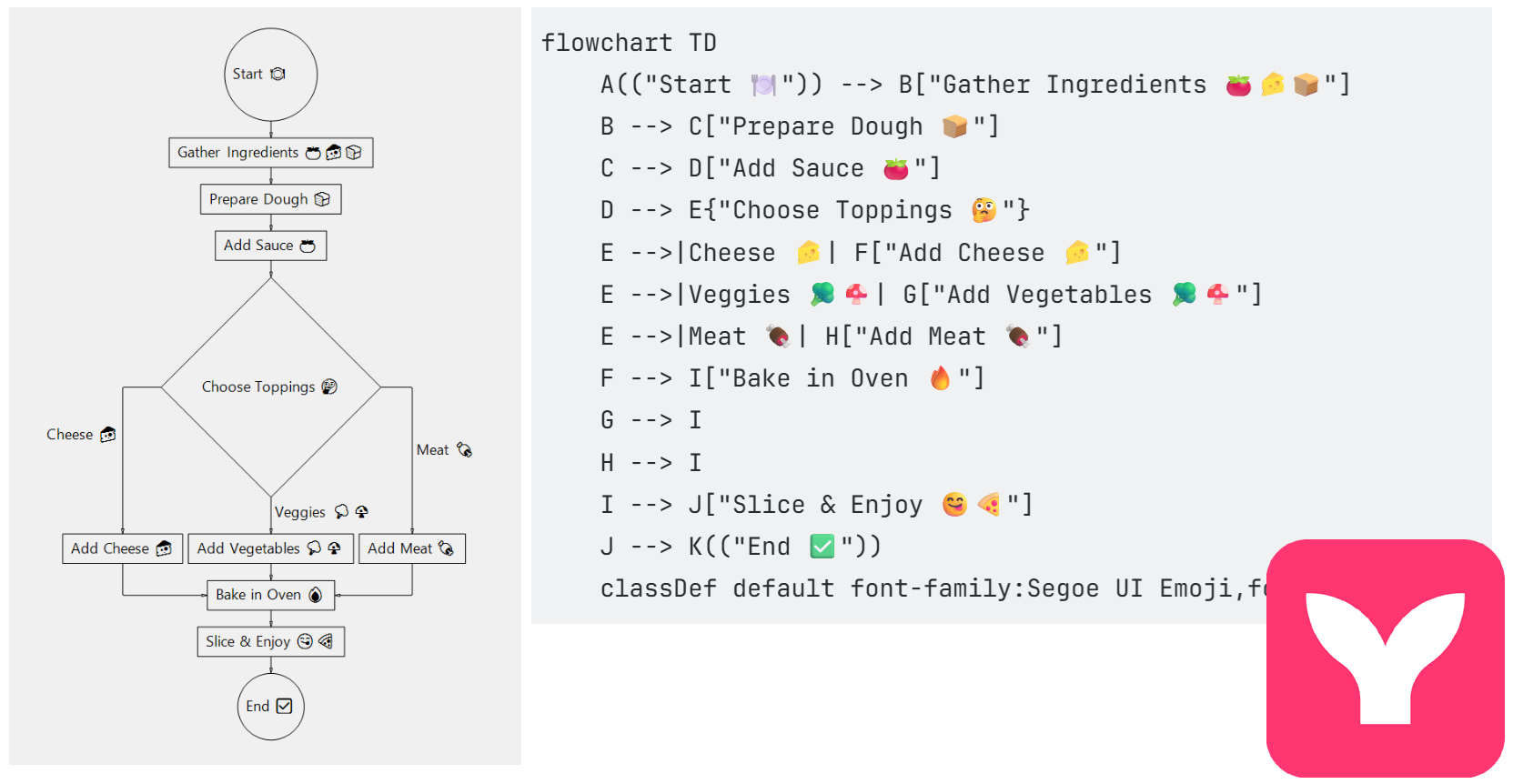

If manually creating the diagram in C# code is not appealing, FlexDiagram offers several approaches for loading diagrams from datasets and files. FlexDiagram can even parse MermaidJS files and strings, allowing you to quickly create diagrams from markup text like:

Just call the LoadMermaidGraph method passing in the string. Below is a truncated example of the diagram shown above. FlexDiagram can even render Unicode characters if your text file supports them.

string s = "flowchart TD \n A((Start)) --> B[Gather Ingredients]";
flexDiagram1.LoadMermaidGraph(s);

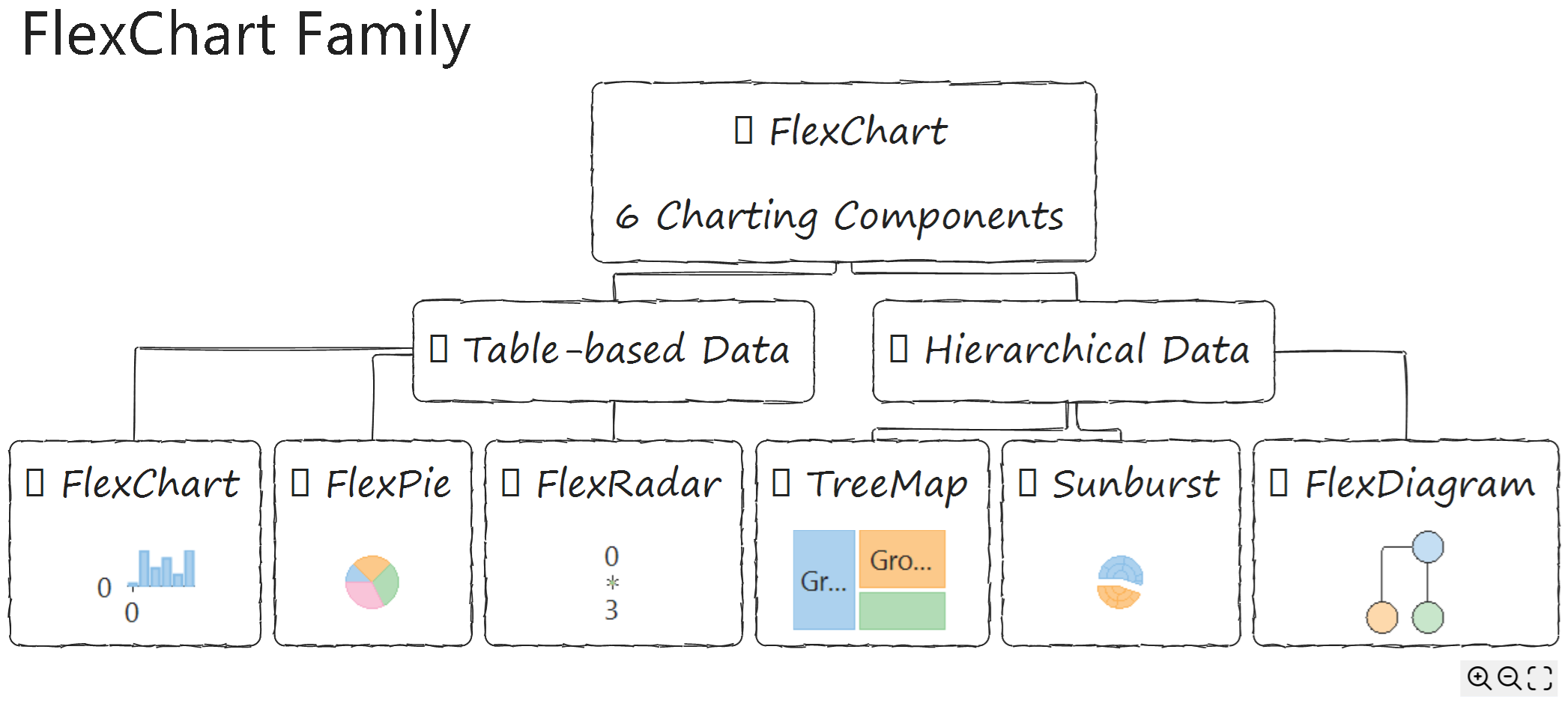

3. Dependency & Relationship Graphs

Dependencies are critical for software developers to understand. Between APIs, microservices, and database tables, they can sometimes be notoriously hard to navigate. Graph-based diagrams provide users with a visual map of how things relate.

Dependency Graph Examples

• DevOps tools showing microservice dependencies
• Data lineage and ETL flow visualization
• Architecture governance dashboards
• Asset management and CMDB systems

How Interactive Diagrams Enable Drill-Down

An essential feature for interactive diagrams is drill-down, where the user can click a node and then navigate, or “drill down” to perform additional actions based upon the selected node.

With FlexDiagram, there is a built-in SelectionMode feature, which operates similarly to any .NET UI component with selection capabilities. You can:

• Enable selection by setting the SelectionMode property to “Node”
• Listen to the SelectionChanged event for when the user clicks on any node
• Use the SelectedIndex properties to obtain the selected item in your code

flexDiagram.SelectionMode = = DiagramSelectionMode.Node;
flexDiagram.SelectionChanged += Diagram_SelectionChanged;

private static void Diagram_SelectionChanged(object? sender, EventArgs e)
{
    FlexDiagram diagram = (FlexDiagram)sender;
    if(diagram != null)
    {
        Node n = diagram.Nodes[diagram.SelectedIndex];
        // get text from selected node
        var text = n.Text;
        // do something...
    }
}

4. Tree Diagrams & Hierarchical Structures

Trees translate nested data into something the human brain processes instantly through expanding branches. Tree structures appear in nearly every enterprise data model, for example:

• Product categories
• Document structures
• File systems
• Permission hierarchies

The FlexDiagram Advantage for Creating Tree Diagrams

With FlexDiagram for .NET, a tree can be generated entirely from a recursive data model without requiring custom rendering. Just use the ChildItemsPath property to specify the child member of your business object.

var data = new List<Language>();
flexDiagram.DataSource = data;
flexDiagram.Binding = "Name";
flexDiagram.ChildItemsPath = "Derivatives";

public class Language
{
    public string Name { get; set; }
    public string Year { get; set; }
    public List<Language> Derivatives { get; set; }
}

5. State Machines & Decision Trees

State machines and decision tree diagrams make complex logic transparent and user-friendly.

Why Decision Trees Matter

Similar to a workflow or process chart, decision trees and state machines are invaluable for:

• AI/ML model explanations
• Rules engines
• IoT workflows
• Diagnostics and troubleshooting tools
• Customer journey automation

They reveal the “why” behind automated decisions, which is hugely important in regulated industries such as finance, insurance, and healthcare.

How to Generate Conditional Trees in C#

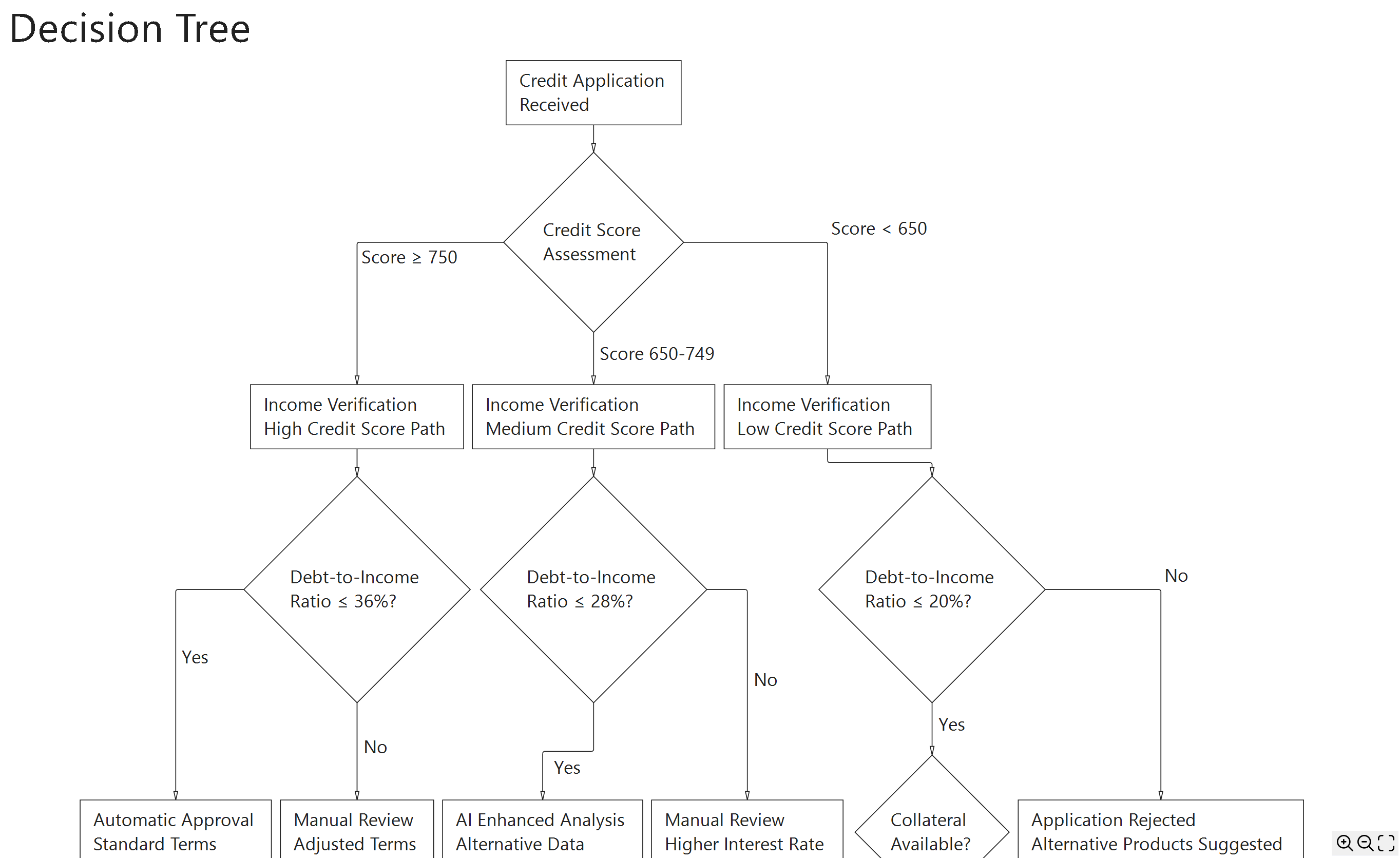

One of the most significant benefits of a C# diagramming library is that you can generate the diagram conditionally in code. The diagram may not be coming from a static file or data table, and you may need to generate or style nodes on demand. The following code snippet demonstrates how to conditionally format node shapes and colors based on their data values.

Use the NodeCreated or NodeRendering events to get and set the Node style and data at runtime.

flexDiagram1.NodeRendering += FlexDiagram1_NodeRendering;

private void FlexDiagram1_NodeRendering(object? sender, NodeRenderingEventArgs e)
{
    var node = e.Node as C1.Win.Diagram.Node;
    if(node.Text.Equals("Credit Score Assessment"))
    {
        node.Style.FillColor = Color.Orange;
    }
}

Conclusion

From org charts to state machines, diagrams are no longer just “nice to have” in enterprise applications; they’re becoming essential for clarity, communication, and decision-making. With the right tools, .NET developers can add meaningful visualizations that help users understand data more quickly, explore relationships, and make more informed decisions.

If you’re looking to integrate diagramming into your WinForms or .NET desktop applications, tools like FlexDiagram provide an accessible, flexible, and modern path forward.

Ready to try it out? Download ComponentOne Today!
