Appearance and Style Settings

SpreadJS enables you to apply different styles on Data Charts to make them easier to understand and visually appealing. Applying styles also helps users to highlight important details and keep everything clear and consistent.

Using the Inspector tab in the Data Chart Panel, you can set various appearance and style settings for the Data Charts.


Inspector section_DataChart Panel


There are a number of configuration settings for Data Chart styles, some of the common settings are listed below.

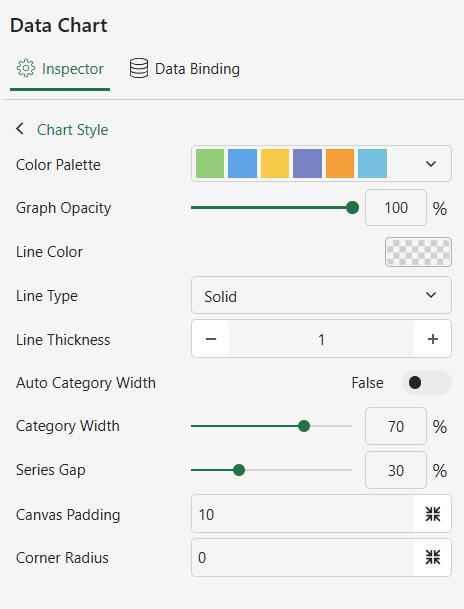

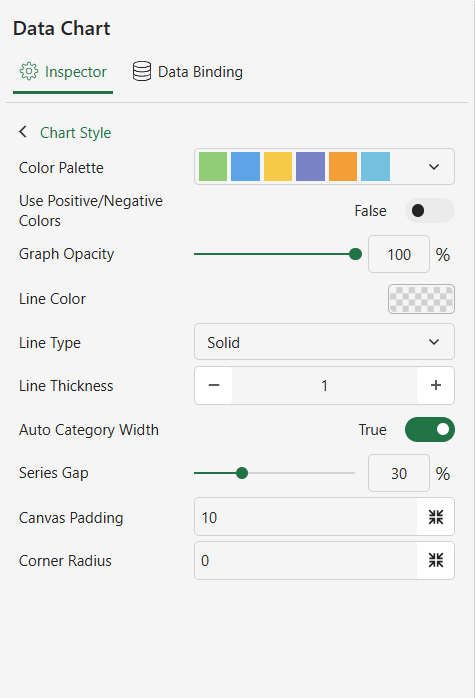

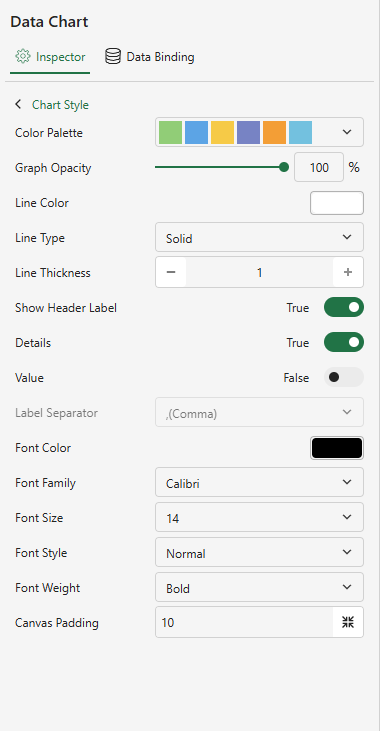

Chart Style

The properties of this setting help you to set the overall look and feel of your Data Chart.

Property

Description

Color Palette

Choose a set of colors for the Data Chart to differentiate between different legends.

Available options are:

  • Theme

  • Standard

  • Custom

Graph Opacity

Adjust the transparency of the Data Chart data points.

Line Color

Set the color of the Data Points border.

Line Type

Set the line type of the Data Points border as solid or dashed.

Line Thickness

Set the width of the lines in the Data Points border.

Auto-Category Width

Set width and gap for data points.

This property determines whether the ‘Category Width’ and ‘Series Gap’ properties are used.

Category Width

Set width of category items.

Series Gap

Set gaps for data points within category items.

Canvas Padding

Customize the padding of the Data chart drawing area.

Corner Radius

Set radius of rounded corners for data points.

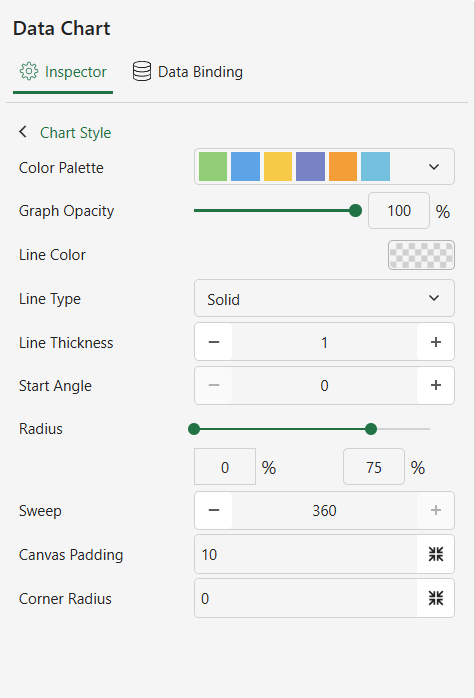

Start Angle

Set the starting angle of the data point.

Radius

Set the inner and outer radius of the pie charts.

Sweep

Set the radians occupied by the pie charts.

Line Style

Set the type of connection cable.

The available options are:

  • Default

  • Spline

  • Step

Show Symbol

Set to display a symbol for the link points.

Symbol Shape

Set the graphical layout of the link point symbol.

Symbol Size

Set the graphic size of the link point symbol.

Appearance

The properties of this setting are useful for adjusting visual details of the Data Chart, such as background colors, border type, and color to enhance readability.

Property

Description

Background Color

Set the background color of the Data Chart.

Border Type

Set the Data Chart's border type as solid or dashed.

Border Color

Set the Data Chart's border color.

Border Width

Set the border line width of a Data Chart.

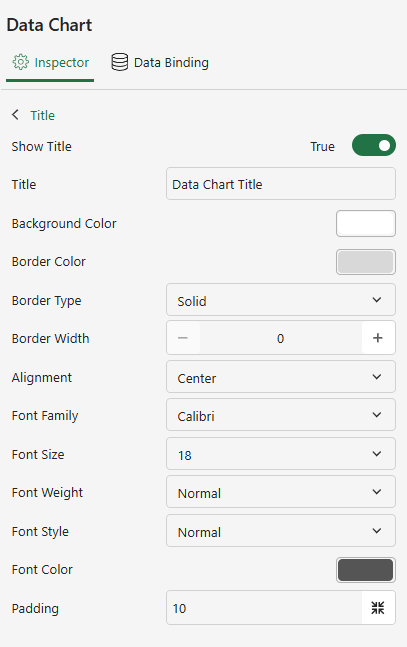

Title

The properties of this setting can be used to customize the styles of the chart titles. The title refers to the text fields that appear on a Data Chart that provides a descriptive heading for the chart data.

Property

Description

Show Title

Set whether the Data Chart displays the title.

Title

Enter the text content of the Data Chart title.

Background Color

Set the background color of the Data Chart title area.

Border Color

Set the border color for the header area of the Data Chart.

Border Type

Set the line shape of the border for the header area of the Data Chart as Solid or Dashed.

Border Width

Set the line width of the border for the header area of the Data Chart.

Alignment

Set the alignment of the text content of the Data Chart title text.

Font Family

Set the Data Chart title text font.

Font Size

Set the size of the Data Chart title text font.

Font Weight

Set the weight of the Data Chart header text font.

Font Style

Set the Data Chart header text font style as Normal or Italic.

Font Color

Set the color of the Data Chart header text font.

Padding

Adjust the padding of the Data Chart header area.

Data Labels

The properties of this setting let you configure the data labels to display values directly on the chart for a clear and easy-to-understand data interpretation.

Setting

Description

Show Data Label

Enable to display of Data Labels on the Data Chart, which needs to be used in conjunction with the Value, Series, and Category properties.

Label Separator

Set the separator between the values of the Value, Series, and Category attributes in the Data Label, such as comma, semicolon, period, etc.

Value

Set whether the value of the Value field is displayed in the Data Label.

Format

Set the Format of the value of the Value field in the Data Label.

Series

Set whether the value of the Series is displayed in the Data Label.

Category

Set whether the value of Category is displayed in the Data Label.

Location

Set the position of the Data Label as Around or On Slice.

Hide Overlap

Enable to hide some label when there is overlapping.

Background Color

Sets the background color of the Data Label.

Connect Line Visible

Set whether to show a connection line between Data Label and Data Points.

Line Color

Set the color of the line connecting the Data Label to the Data Points.

Line Width

Set the width of the line connecting the Data Label to the Data Points.

Max Line Length

Set the maximum length of the line between the Data Label and the Data Points. In the Cartesian coordinate system, the line is a straight line, so only the maximum length can be set.

First Line Length

Set the length of the first segment of the line connecting the Data Label and Data Points. In the polar coordinate system, the line is a line consisting of two segments, so the length of the first segment is set here.

Second Line Length

Set the length of the second segment of the line connecting the Data Label to the Data Points. In the polar coordinate system, the line consists of two segments, so the length of the second segment can be set here.

Font Family

Set the font for the text of the Data Label.

Font Size

Set the text size of a Data Label.

Font Weight

Set the text weight of the Data Label.

Font Style

Set the text style of the Data Label as Normal or Italic.

Font Color

Set the text color of a Data Label.

Tool Tip

The properties of this setting enable and style the tooltips to provide interactive data details when users hover over a particular chart area.

Setting

Description

Show Tool Tip

Show/hide the tip content in the data binding panel. By default, the data chart will show the value as a tooltip.

Style Settings

Customize the following tooltip styles:

  • Background Color

  • Border Color

  • Border Width

  • Font Color

  • Font Family

  • Font Size

  • Font Weight

  • Line Through

  • Overline

  • Underline

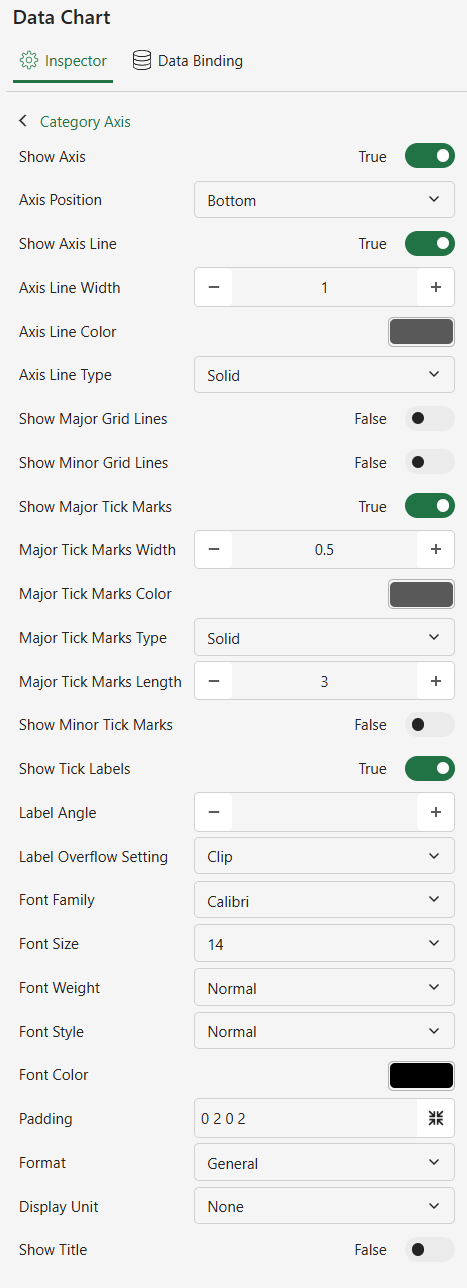

Axis

The properties of this setting are helpful while customizing the Category (X-axis) and Value (Y-axis) to define scale, intervals, and formatting that align your dataset.

Setting

Description

Show Axis

Set whether the Data Chart displays the Category and Value axes.

Axis Position

Set the position of the Data Chart's axes.

Show Axis Line

Enable to show axis lines of Data Chart axes.

Axis Line Width

Set the line width of the Data Chart axes.

Axis Line Color

Set the line color of the Data Chart axes.

Axis Line Type

Set the axis line type of the Data Chart axes.

Show Grid Lines

Enable to display gridlines in the direction of the Data Chart axes.

Grid Line Width

Set the width of the grid lines.

Grid Line Color

Setting the color of the grid lines.

Grid Line Type

Setting the line type of the grid lines.

Show Tick Marks

Enable to display the tick marks of the axes.

Show Tick Labels

Enable to display the label for the scale of the axes.

Label Direction

Set the display direction of the ticker label for the axes.

Label Overflow Setting

Set the display when the scale label of the axis overflows as Clip, Ellipsis, or Wrap.

Show Title

Enable to display the name of the axes.

Font Family

Set the text font in the axes.

Font Size

Set the text size in the axes.

Font Weight

Set the text weight in the axes as Lighter, Normal, or Bold.

Font Style

Set the text style of the axes as Normal or Italic.

Font Color

Set the text color in the axes.

Max Value

Set the maximum scale of the Value axis.

Min Value

Set the minimum scale of the Value axis.

Interval

Set the Value axis scale step.

Reversed

Enable to display of the reversed Value axis.

Axis Position

Set the display position of the Value axis.

Format

Set the format of the Label data for the Value axis.

Display Unit

Set the magnitude of the Label data on the Value axis.

**Note that the below settings are only available for Data Charts of type ‘Bubble’ and ‘Scatter’.

Scale

Set the scale type of the axes, e.g. you can set it to ‘Date’.

Date Mode

Set the interval unit of the date, e.g. year, month, day, etc.

Major Interval

Set the interval of the major scale, used with ‘Date Mode’.

Minor Interval

Setting the interval of the minor scale, used with ‘Date Mode’.

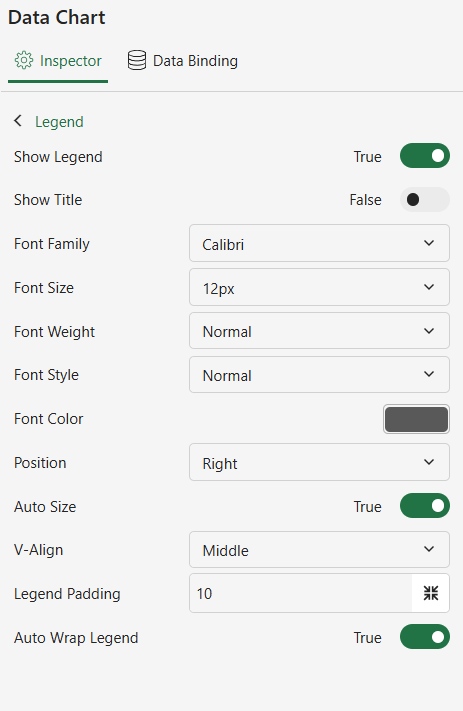

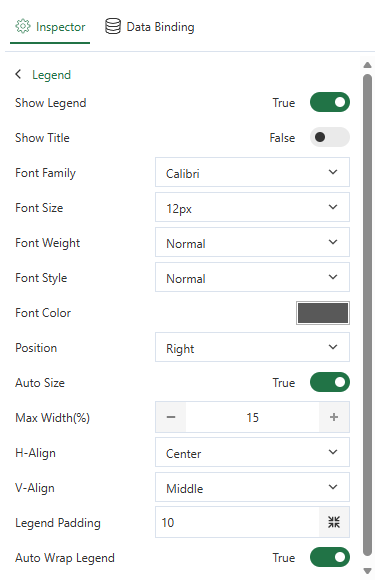

Legend

Using the properties of this setting, you can manage the legend styles to present the data effectively.

Setting

Description

Show Legend

Enable to display of legends on the Data Chart.

Title

Enable to display the title of the Data Chart's legend.

Font Family

Set the text font of the legend.

Font Size

Set the text size of the legend.

Font Weight

Set the text weight of the legend as lighter, normal, or bold.

Font Style

Set the text style of the legend as normal or italicized.

Font Color

Set the text color of the legend.

Position

Set the display position of the legend as top, bottom, right, or left.

Auto Size

Enable automatic adjustments of the legend area.

H-Align

Set the horizontal alignment of the legend in the Data Chart.

V-Align

Set the vertical alignment of the legend in the Data Chart.

Auto Wrap Legend

Enable automatic line breaks when there are many items in the legend.

Layout

The properties of this setting are necessary for organizing the chart layout to improve visual clarity.

Setting

Description

X Position

Set information about the current x-position of the Data Chart.

Y Position

Set information about the current y-position of the Data Chart.

Width

Set the width of the Data Chart.

Height

Set the height of the Data Chart.

Animation

The properties of this setting help you to add smooth effects to animate the data representation to enhance user engagement.

Setting

Description

Show Hover Animation

Enable an animation when the mouse hovers over the data point.

Show Update Animation

Enable an animation when the Data Chart setting changes.
