ReportSheet Designer

SpreadJS Designer Component provides the option to insert a ReportSheet in a workbook.

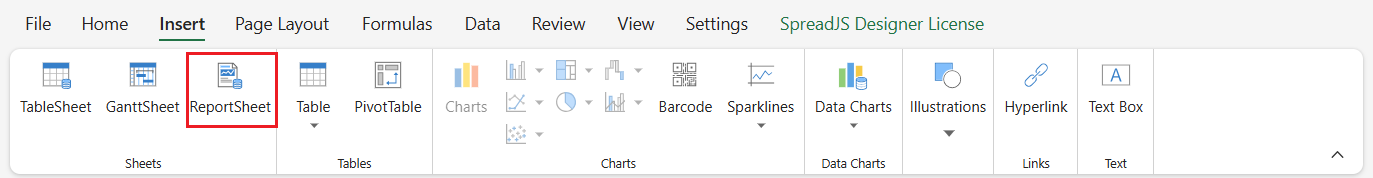

The ReportSheet ribbon button is available in the INSERT > Sheets tab group. Clicking on the ribbon button adds a Report1 tab to the open workbook tabstrip and opens the REPORT SHEET DESIGN tab.


reportsheet

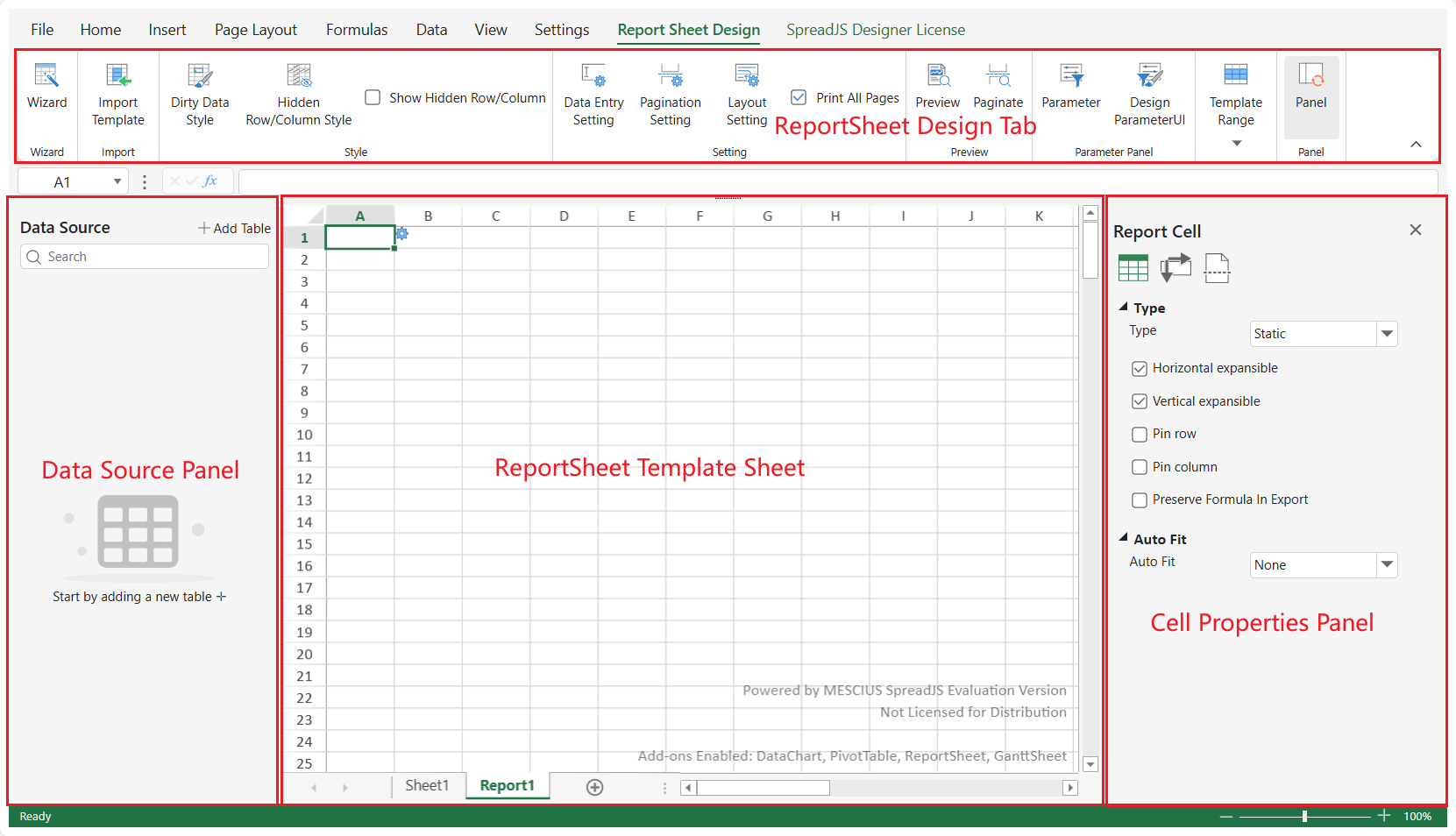

The below image depicts the elements of a report sheet design page.


reportsheet-elements


Follow the steps below to create a new ReportSheet.

1. Import the template.

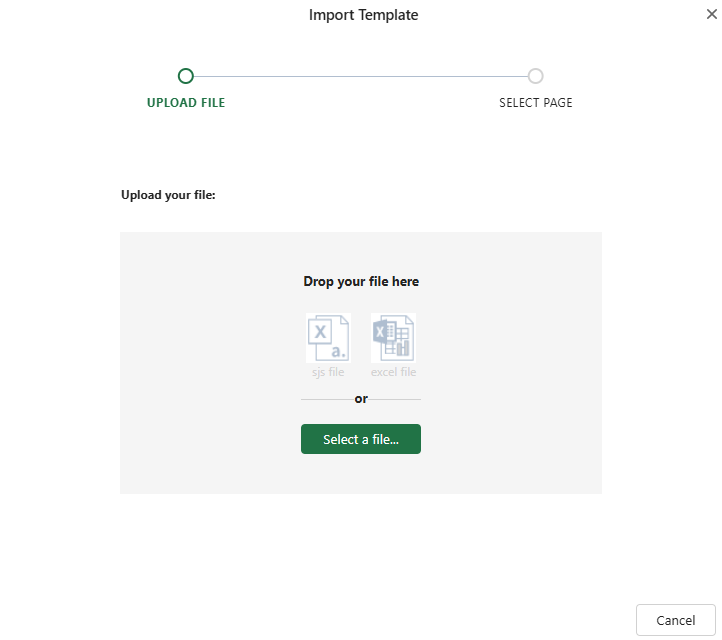

You can import an existing Excel or SJS file as a template to create a report using REPORT SHEET DESIGN > Import Template.

Load an existing file and select OK to show the imported file in the worksheet. If there are no worksheets in the imported file, a “No Valid Worksheets” message appears.


reportsheet-importtemplate1

Note: The imported template retains its values and styles when loaded into worksheets.

2. Add DataSource to the ReportSheet.

You can create a data source by clicking the DataSource ribbon button in the DATA > DATA Binding tab group. The DataSource (TableList) panel also appears on the left side of the panel when you add a ReportSheet.

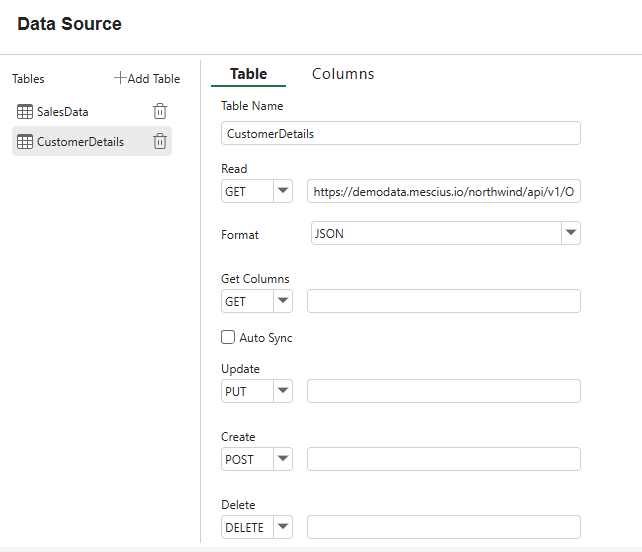

The DataSource tab appears, where you can add a table and set the remote URL for CRUD (create, read, update, and delete) capabilities in the Table tab.

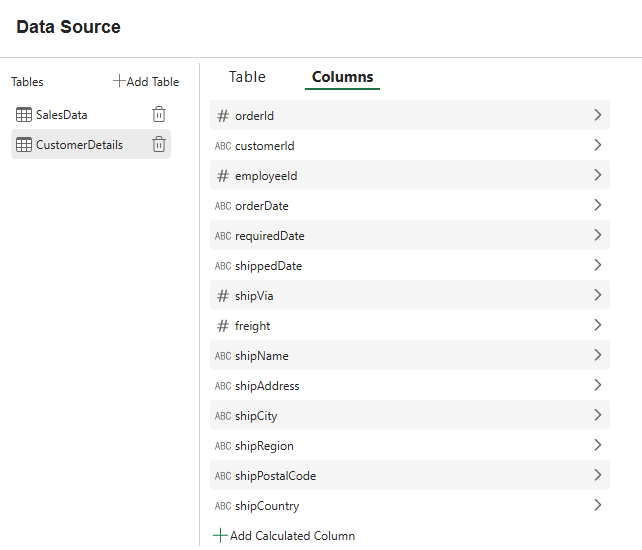

You can also fetch the table data through the Columns tab as well.


rs-tablesheet-datasource


rs-tablesheet-column

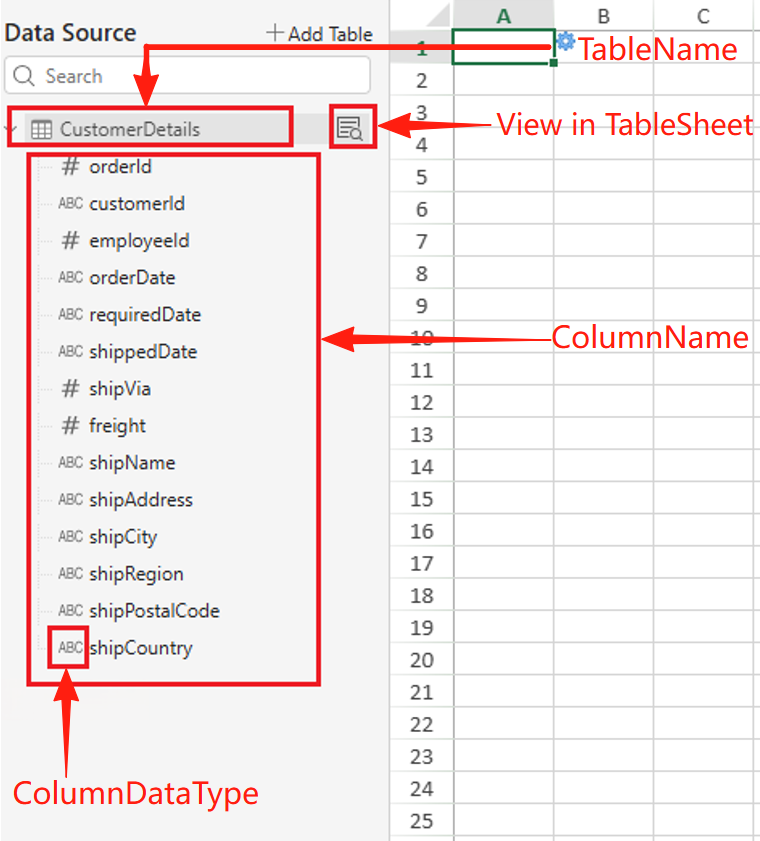

Go to the Report tab. You can double-click the table tree node or choose the expand button to view the column names. You can also search the table using the Search box.


DataSource

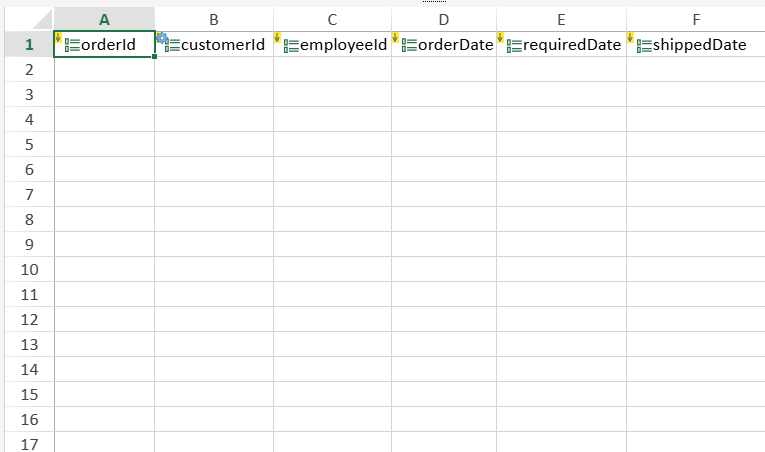

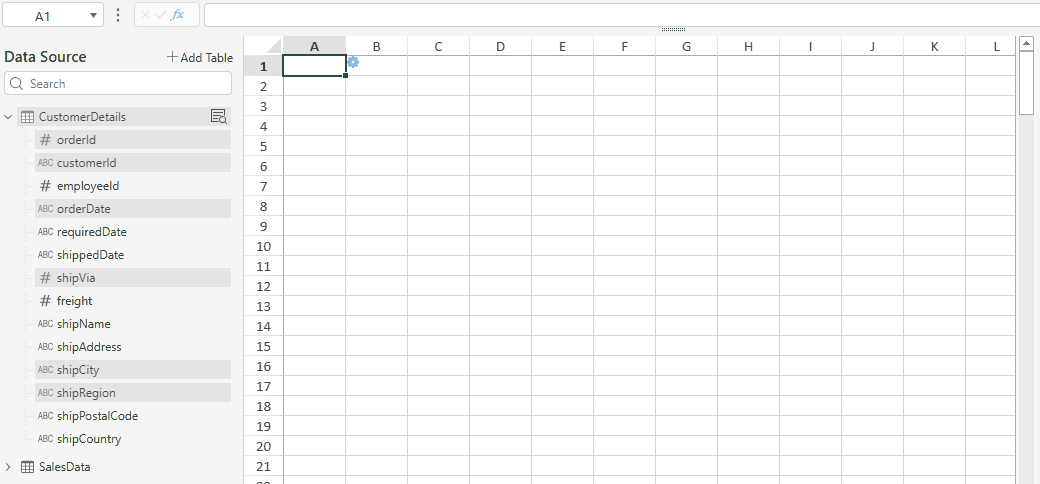

To add the columns in the ReportSheet, select the column names one by one or select multiple columns using the Ctrl key. However, if you want to select continuous column nodes, use the Shift key. Then, drag the selected column nodes and drop them into one report template cell to set all the selected nodes in the tableList according to the fill direction.


rs-dragselected

Notes:

  • If the table column count is out of the sheet’s range, an error “Invalid Range” appears and cancels the drop.

  • The default cell type for the template cell is Group Cell.

3. Set data binding and template cell properties.

ReportSheet provides a Report Cell panel on the right side where you can select the cell in the ReportSheet to configure the required report-related settings for the report template.


rs-databinding


DataBinding: To manage the template cell type in the template sheet, you must configure the type and binding option in the template cell.

Feature

Designer

Remarks

Type

rs-type

When a data setting is applied to a template cell, it only affects the current cell's data.

For example, if the template cell is ListCell, only the current cell's data is shown in list mode.

Data Column

rs-datacolumn

If the table name is changed, the column names are also changed.

Filter

rs-filter

You can set filter conditions in the template cell to filter data as you join multiple tables.

You can configure the data filtering condition in the template sheet using the below-mentioned settings.

• Filter by Condition

• Filter by Formula

Sort

rs-sorts

The template cell can be used to create sort rules for sorting records.

You can reorder or remove the sort rules by clicking up/down/remove.

Default Value

rs-formula

A defaultValue option is a formula that lets you configure how to generate the default value for a newly added record in the report sheet.

Expansion: To set spill direction, collapse specific cells, and add context cells, you must configure the below expansion options.

Feature

Designer

Description

Spill Direction

rs-tab-spill

The Spill direction controls how the data spills in the ReportSheet.

The default value is Vertical.

Collapse Button

rs-tab-collapse

The showCollapseButton option controls whether to show the button that collapses the children of the cell in the report.

The default value is false.

Context Cells

rs-tab-context

The context cells option filters the data for all the child cells by default and also affects the report layout.

The default value for context is Default. However, if you switch to Custom, a range selection dialog appears.

Pagination: To configure the pagination settings in the template sheet, you can select one of the below options in the template cell.

rs-pagination

As the report is paginated, the pagination setting of the template cell and the paper size are combined on the ReportSheet.

4. Configure template sheet cell styles.

A cell in a ReportSheet can be styled according to the corresponding template cell. The style set in the template sheet is expanded with the current cell expansion.

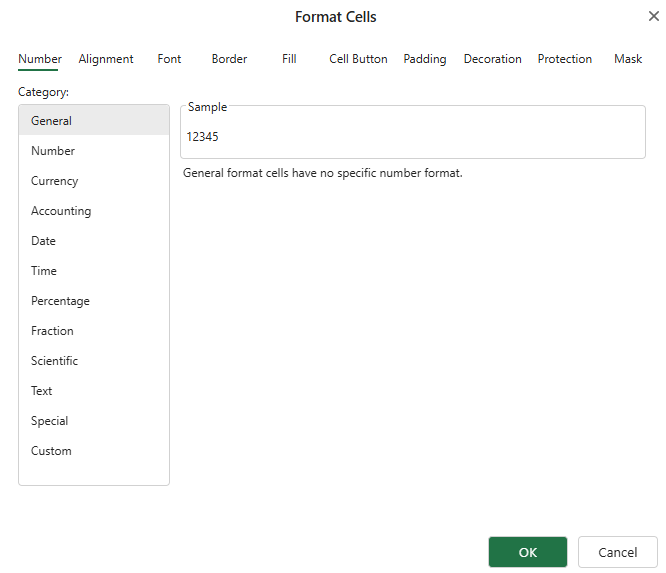

You can configure the styles by clicking the REPORT SHEET DESIGN > Dirty Data Style button. It opens the Format Cells dialog with various cell formatting options.


format cell dialog


ReportSheet also supports customizing dirty cells, where new data or formulas are added, and the sheet marks those cells as recalculation is required and calls them dirty cells. By default, dirty cells are marked by a red corner fold on the right.

Note: If the template sheet is protected, you can still edit ReportSheet in Design mode. A protected ReportSheet only works in Preview mode.

5. Set data entry, pagination, and layout settings.

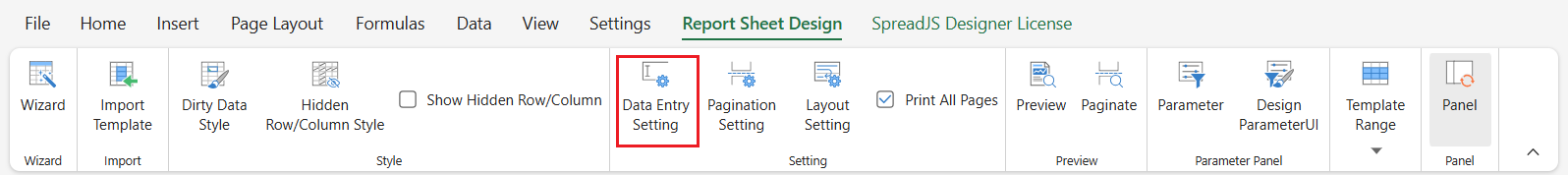

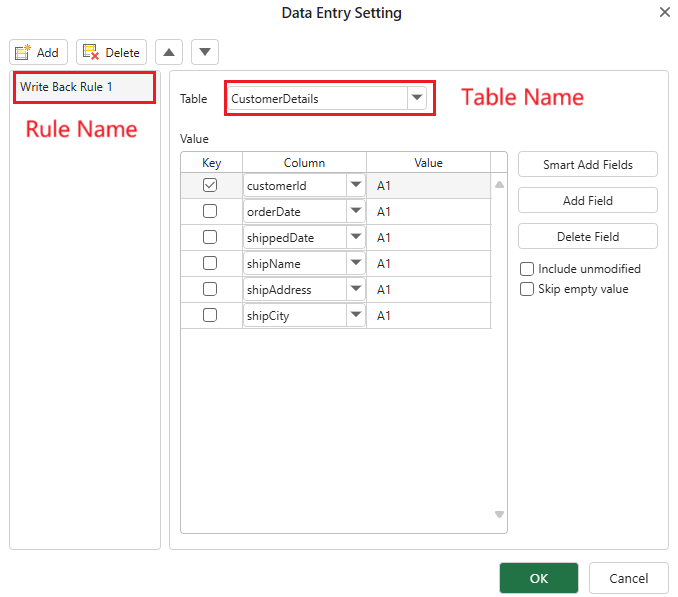

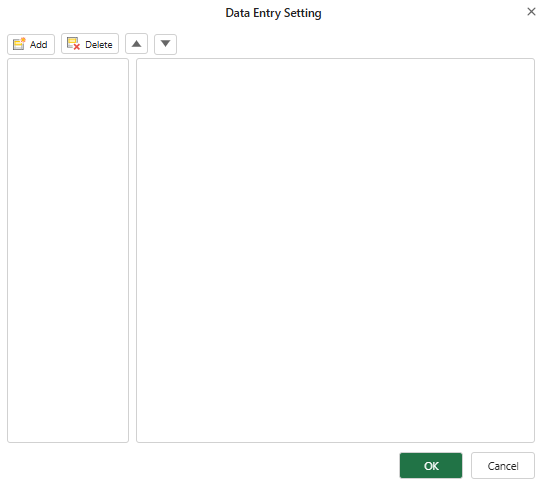

ReportSheet supports data entry through DataManager. Using the Data Entry Setting button, you can configure which cell is written back to which column.

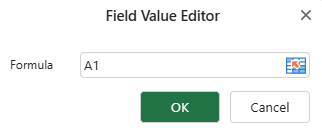

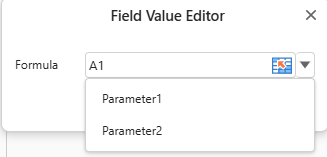

The report sheet also supports formulas and static value fields.


rs-dataentry

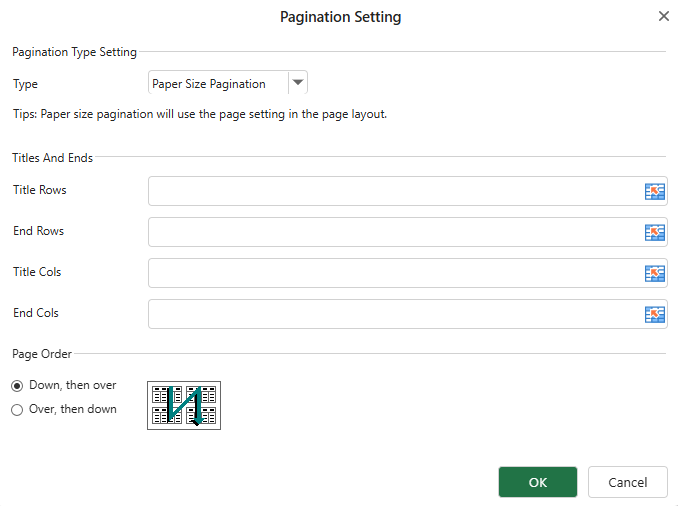

Additionally, you can click on the Pagination Setting button to paginate your report using the ReportSheet Designer ribbon.

However, you must adjust the pagination settings in the template sheet.


rs-paginationsetting


You can also set desired parameters for configuring layout of a report using the Layout Setting button.


report layout setting dialog

6. Check the preview.

You can click the Preview or Paginate button to change the render mode. The default render mode of a ReportSheet is Design.

  • Design: Shows the template in the design mode.


    rs-designmode


  • Preview: Shows the preview and also supports data entry. You can also enter data using different editors.


    rs-previewmode

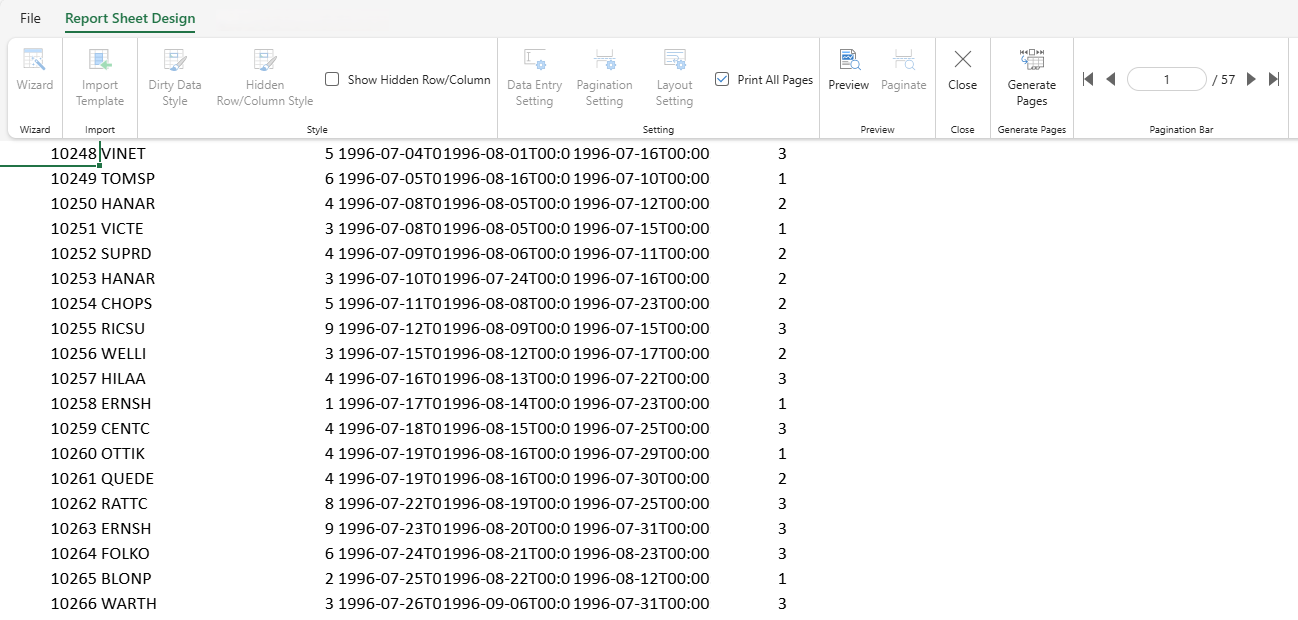

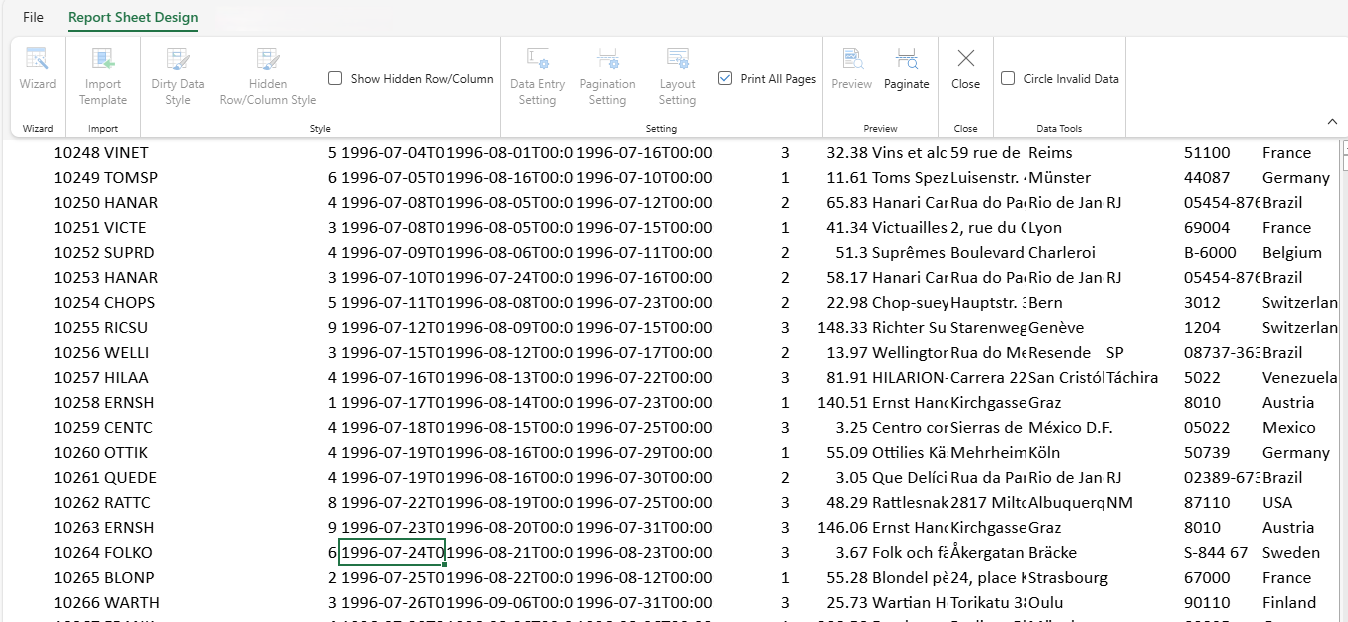

  • Paginated: Shows the paginated preview, but this mode is read-only so the special appearance of the cell type is removed.


    rs-paginatedpreview
