Data Chart Designer
SpreadJS Designer Component provides the option to insert a Data Chart in your worksheets or report sheets.
To add a Data Chart, follow the steps below:

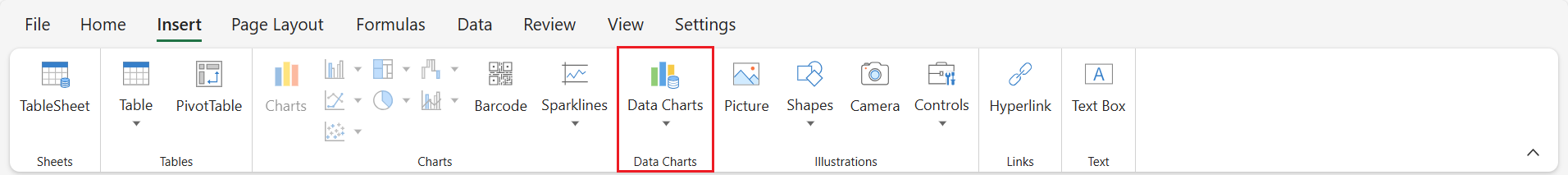

Go to the INSERT tab and click the Data Charts button in the ribbon UI.

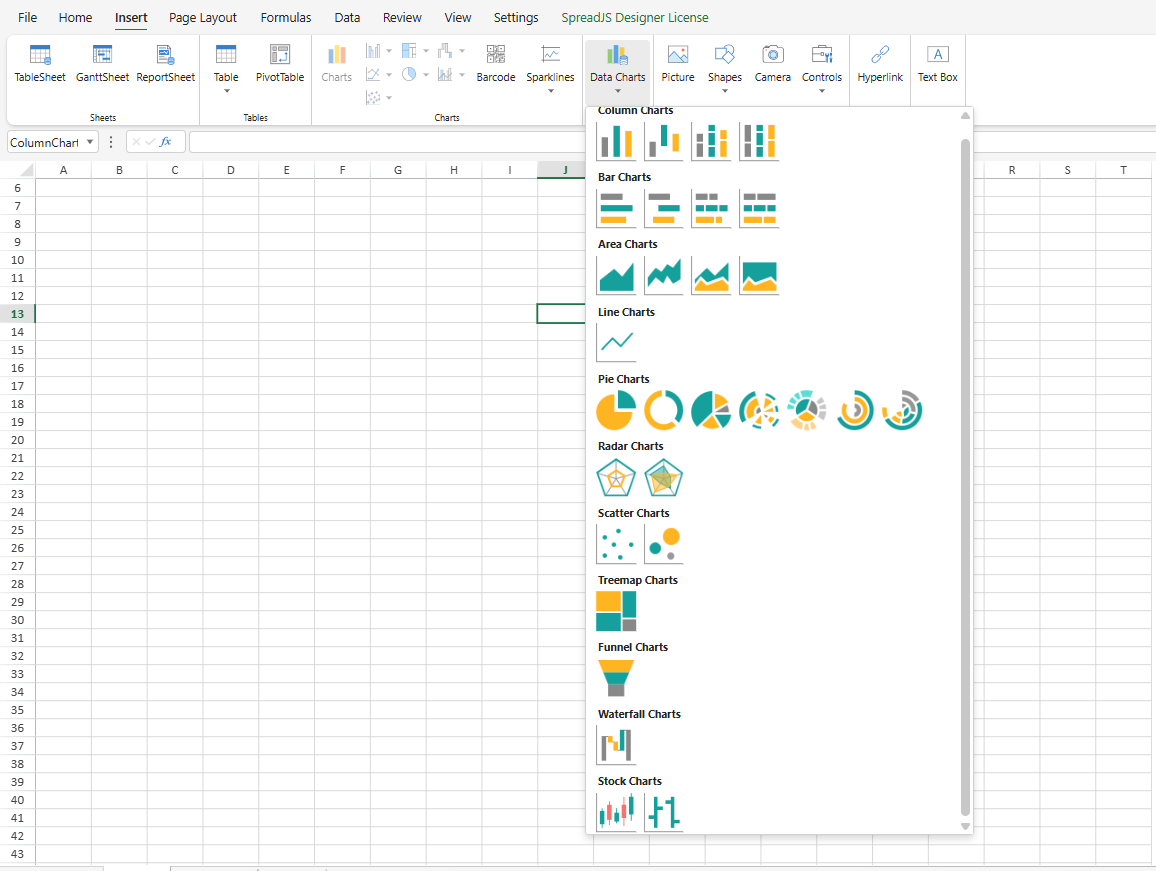

Select the desired chart type from the dropdown.

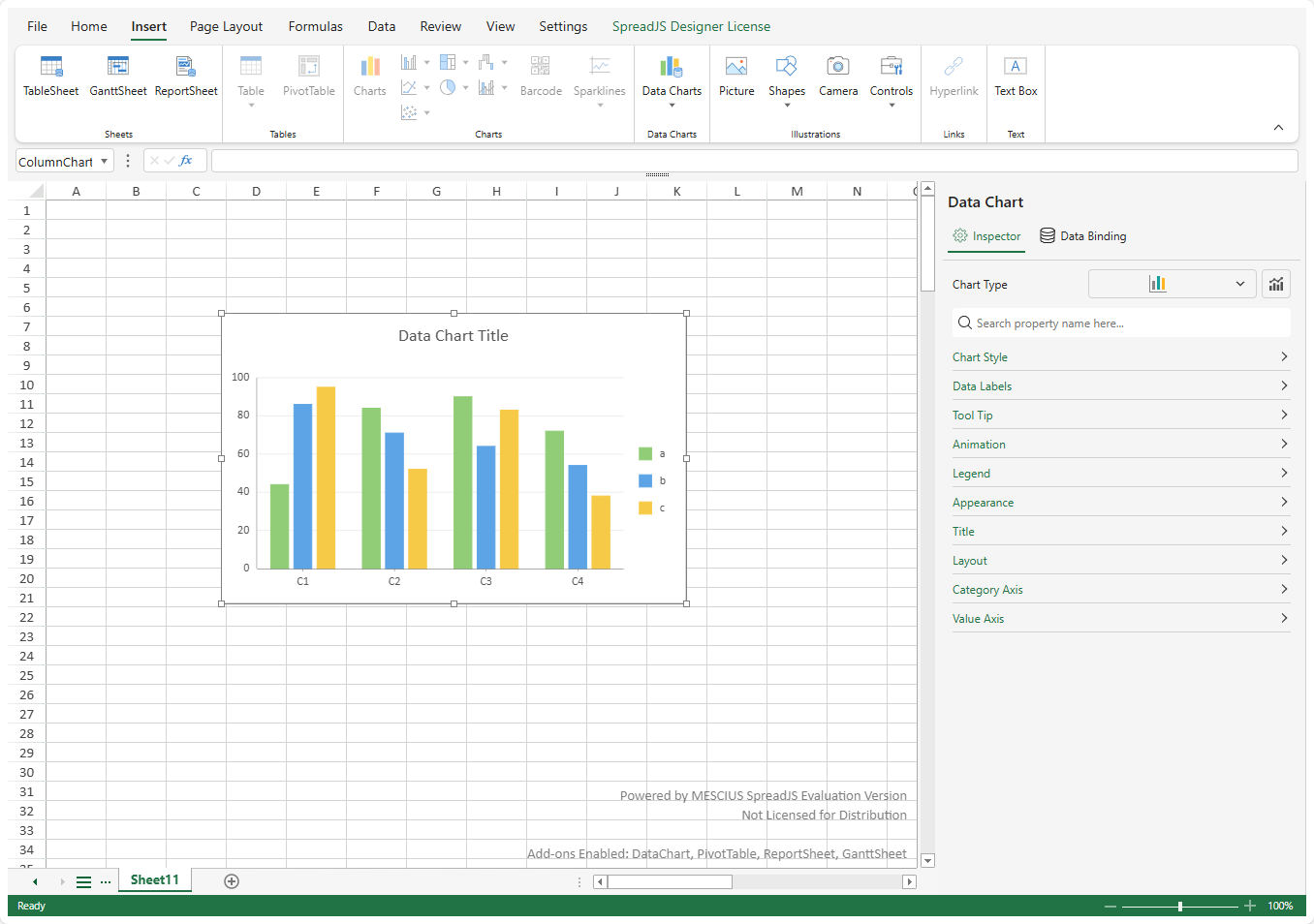

Once selected, the Data Chart will be added to your sheet and the Data Chart Panel will open on the right.
Modify the Data Chart's configuration information using the Data Chart Panel.
It has two main sections:
Inspector: This section allows you to customize the chart’s appearance and make it more readable and visually appealing.
Data Binding: This section helps you bind your chart to data from the DataManager or specific cells in a ReportSheet. The data displayed in the Data Chart is setup through this part.
