Quick Start
The following quick start section will help you to use the SpreadJS Designer Component in your project with a new and an existing spreadsheet. You can download the latest script and CSS files for the Designer Component here. For more information on adding references, see the Getting Started topic.
Note: The Designer Component can only be used with the sheets component. To know how to work with the sheets component, see the Quick Start topic.
Use Designer Component with a New Spreadsheet
HTML Page
Follow the below steps to create an HTML page that will display the SpreadJS Designer Component along with a new spreadsheet.
Open ‘Notepad’ or your preferred code editor.
Add the following HTML syntax code to the file.
<!DOCTYPE html> <html> <head> <meta charset="utf-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <script type="text/javascript" src="https://code.jquery.com/jquery-2.1.1.min.js"></script> <script> </script> </head> <body> </body> </html>Add the following SpreadJS CSS and JS files inside the HEAD element tag.
<!--CSS files--> <link rel="styleSheet" href="css/gc.spread.sheets.x.x.x.css" /> <!--Script files--> <script src="scripts/gc.spread.sheets.all.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.shapes.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.charts.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.print.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.pdf.x.x.x.min.js" type="text/javascript"></script>Depending on your needs, you can include JS files here for different add-on features such as barcodes, pivot tables, tablesheets, ganttsheets, import/export, and so on.
Add the following Designer Component's CSS and JS files inside the HEAD element tag.
<!--CSS files--> <link rel="styleSheet" href="css/gc.spread.sheets.designer.x.x.x.min.css" /> <!--Script files--> <script src="scripts/gc.spread.sheets.designer.resource.en.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.designer.all.x.x.x.min.js" type="text/javascript"></script>Note: Spreadsheet references should be added above the Designer Component references. Moreover, the Designer Component resource file (gc.spread.sheets.designer.resource.en.x.x.x.min.js, in this case) must always be referenced before gc.spread.sheets.designer.all.x.x.x.min.js.
Include a DOM element as the container in the BODY element.
<body> <div id="designerHost" style="width:100%; height:1000px; border: 1px solid gray;"></div> </body>Initialize the Designer Component inside the script element tag in the HEAD section. Also, set the license key for Designer Component and SpreadJS before initialization.
<script> //Set License Key //GC.Spread.Sheets.Designer.LicenseKey = "XXX"; //GC.Spread.Sheets.LicenseKey = "XXXX"; var designer = new GC.Spread.Sheets.Designer.Designer(document.getElementById("designerHost")); </script>The complete code in the HTML file will look like the below:
<!DOCTYPE html> <html> <head> <meta charset="utf-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <script src="https://code.jquery.com/jquery-2.1.1.min.js" type="text/javascript"></script> <!--CSS files--> <!--Spreadsheet CSS file--> <link rel="styleSheet" href="css/gc.spread.sheets.x.x.x.css" /> <!--Designer Component CSS file--> <link rel="styleSheet" href="css/gc.spread.sheets.designer.x.x.x.min.css" /> <!--Script files--> <!--Spreadsheet JS files--> <script src="scripts/gc.spread.sheets.all.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.shapes.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.charts.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.print.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.pdf.x.x.x.min.js" type="text/javascript"></script> <!--Designer Component JS files--> <script src="scripts/gc.spread.sheets.designer.resource.en.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.designer.all.x.x.x.min.js" type="text/javascript"></script> <script> window.onload = function () { //Set License Key //GC.Spread.Sheets.Designer.LicenseKey = "XXX"; //GC.Spread.Sheets.LicenseKey = "XXXX"; var designer = new GC.Spread.Sheets.Designer.Designer(document.getElementById("designerHost")); } </script> </head> <body> <!--DOM element--> <div id="designerHost" style="width:100%; height:1000px;border: 1px solid gray;"></div> </body> </html>Save it as an HTML file. For example, ‘index.html’
Create a new folder at the same location where you have saved the HTML file. Add the script and CSS files mentioned in steps 3 and 4 to that folder.

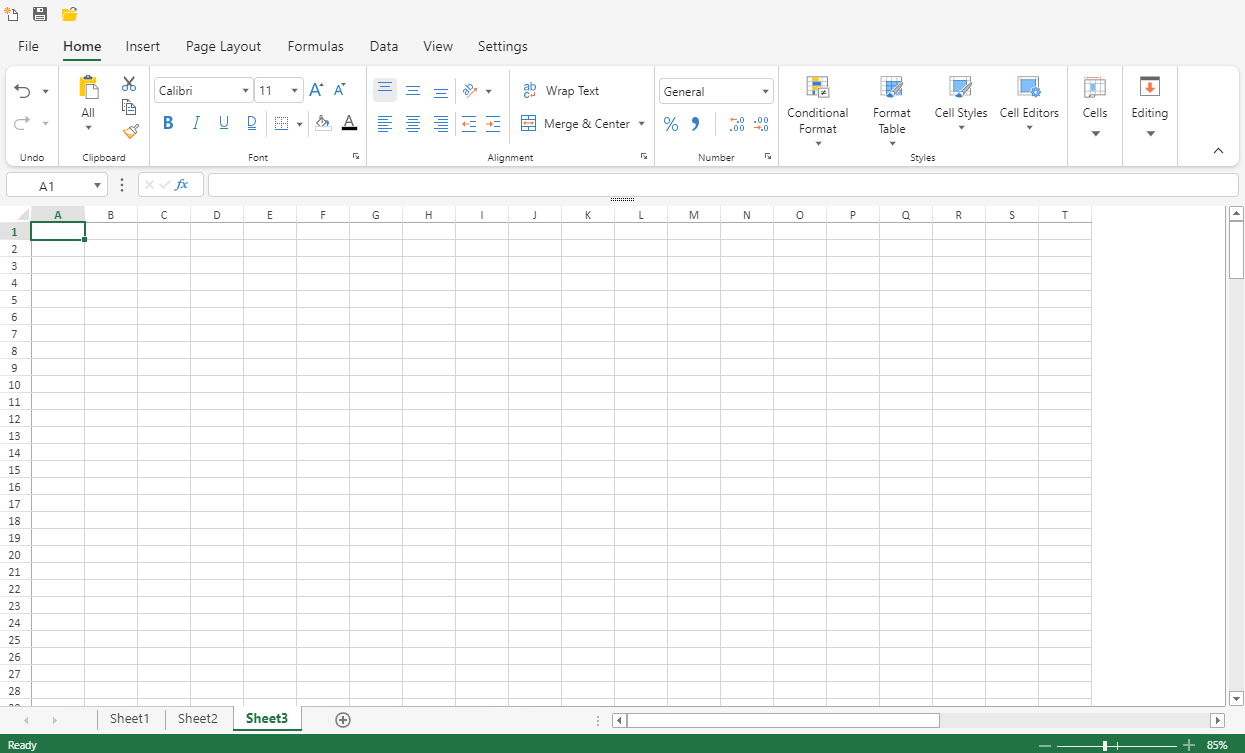

View the HTML file in the browser to observe the Designer Component with a new spreadsheet.
ASP.NET Web Application
Follow the below steps to create an ASP.NET Web application that will display SpreadJS Designer Component along with a new spreadsheet.
Create an Empty ASP.Net Web Application in Visual Studio.
Create the 'scripts' folder in your project's root location and include the following script files:
// SpreadJS script files gc.spread.sheets.all.x.x.x.min.js gc.spread.sheets.shapes.x.x.x.min.js gc.spread.sheets.charts.x.x.x.min.js gc.spread.sheets.print.x.x.x.min.js gc.spread.sheets.pdf.x.x.x.min.js // SpreadJS Designer Component script files gc.spread.sheets.designer.resource.en.x.x.x.min.js gc.spread.sheets.designer.all.x.x.x.min.jsSpreadsheet references should be added above the Designer Component references. Moreover, the Designer Component resource file (gc.spread.sheets.designer.resource.en.x.x.x.min.js, in this case) must always be referenced before gc.spread.sheets.designer.all.x.x.x.min.js.
To use the Pivot Table feature, add the following additional script file.
<script src="scripts/gc.spread.pivot.pivottables.x.x.x.min.js" type="text/javascript"></script>To add export functionality, add the following additional script file:
<script src="scripts/gc.spread.excelio.x.x.x.min.js" type="text/javascript"></script>Create a 'css' folder in your project's root location and include the following CSS:
SpreadJS CSS file -
gc.spread.sheets.x.x.x.cssSpreadJS Designer Component CSS file -
gc.spread.sheets.designer.x.x.x.min.css
Add an HTML Page to the Visual Studio project.
Modify the content of the added HTML Page to the following code:
Initialize the Designer Component
Create the Designer Component target DOM element
<!DOCTYPE html> <html> <head> <meta charset="utf-8" /> <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <script src="https://code.jquery.com/jquery-2.1.1.min.js" type="text/javascript"></script> <!--CSS files--> <!--Spreadsheet CSS file--> <link rel="styleSheet" href="css/gc.spread.sheets.x.x.x.css" /> <!--Designer Component CSS file--> <link rel="styleSheet" href="css/gc.spread.sheets.designer.x.x.x.min.css" /> <!--Script files--> <!--Spreadsheet JS files--> <script src="scripts/gc.spread.sheets.all.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.shapes.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.charts.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.print.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.pdf.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.pivot.pivottables.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.excelio.x.x.x.min.js" type="text/javascript"></script> <!--Designer Component JS files--> <script src="scripts/gc.spread.sheets.designer.resource.en.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.designer.all.x.x.x.min.js" type="text/javascript"></script> <script> window.onload = function () { //Set License Key //GC.Spread.Sheets.Designer.LicenseKey = "XXX"; //GC.Spread.Sheets.LicenseKey = "XXXX"; var designer = new GC.Spread.Sheets.Designer.Designer(document.getElementById("designerHost")); } </script> </head> <body> <!--DOM element--> <div id="designerHost" style="width:100%; height:1000px; border: 1px solid gray;"></div> </body> </html>View the HTML file in the browser to observe the Designer Component with a new spreadsheet.
Use Designer Component with an Existing Spreadsheet

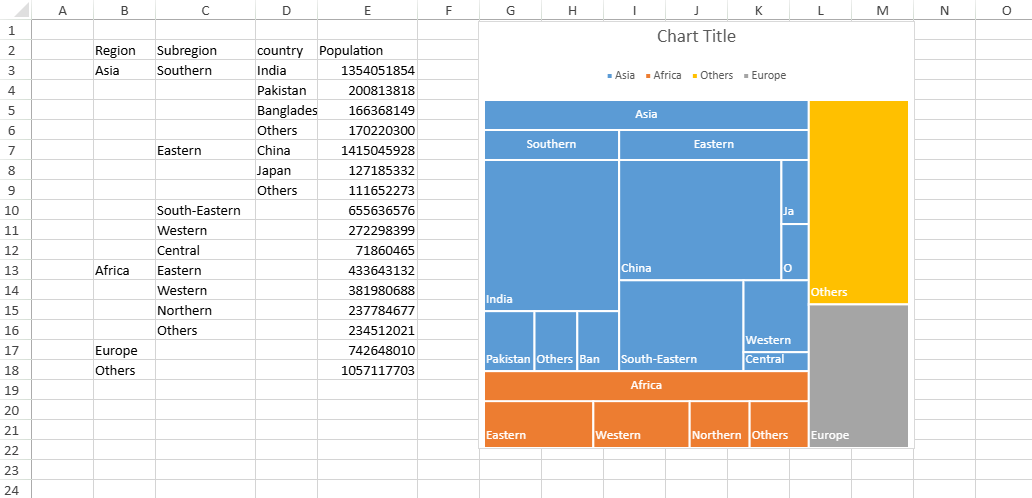

You can also use the Designer Component with any existing spreadsheet. For example, the below image shows a spreadsheet with a treemap chart and its data.
To use the Designer Component with the above spreadsheet, implement the below steps in your existing HTML file:
Include the Designer Component script and CSS file references.
<!--Designer Component CSS file--> <link rel="styleSheet" href="css/gc.spread.sheets.designer.x.x.x.min.css" /> <!--Designer Component script files--> <script src="scripts/gc.spread.sheets.designer.resource.en.x.x.x.min.js" type="text/javascript"></script> <script src="scripts/gc.spread.sheets.designer.all.x.x.x.min.js" type="text/javascript"></script>Note: Spreadsheet references should be added above the Designer Component references as explained in above steps.
Pass the spreadsheet's variable as a parameter while initializing the Designer Component.
var designer = new GC.Spread.Sheets.Designer.Designer(document.getElementById("designerHost"), '', spread);Include the Designer Component's DOM element along with the sheet DOM element.
<div id="designerHost" style="width:100%; height:1000px; border: 1px solid gray;"></div>
The complete code in the HTML file will look like the one below where the existing spreadsheet adds data and creates a treemap chart. This spreadsheet is further used with the designer component to perform any UI operation.
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<script src="https://code.jquery.com/jquery-2.1.1.min.js" type="text/javascript"></script>
<!--CSS files-->
<link rel="styleSheet" href="css/gc.spread.sheets.x.x.x.css" />
<!--Designer Component CSS file-->
<link rel="styleSheet" href="css/gc.spread.sheets.designer.x.x.x.min.css" />
<!--Script files-->
<script src="scripts/gc.spread.sheets.all.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.charts.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.shapes.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.print.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.barcode.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.pdf.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.tablesheet.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.excelio.x.x.x.min.js" type="text/javascript"></script>
<!--Designer Component JS files-->
<script src="scripts/gc.spread.sheets.designer.resource.en.x.x.x.min.js" type="text/javascript"></script>
<script src="scripts/gc.spread.sheets.designer.all.x.x.x.min.js" type="text/javascript"></script>
<script>
$(document).ready(function () {
// initialize Spread
var spread = new GC.Spread.Sheets.Workbook(document.getElementById("ss"));
// Get the activesheet
var sheet = spread.getSheet(0);
// Set Column Width
sheet.setColumnWidth(2, 100);
sheet.setColumnWidth(4, 100);
// Create Data Array
var dataArray =
[
['Region', 'Subregion', 'country', 'Population'],
['Asia', 'Southern', 'India', 1354051854],
[, , 'Pakistan', 200813818],
[, , 'Bangladesh', 166368149],
[, , 'Others', 170220300],
[, 'Eastern', 'China', 1415045928],
[, , 'Japan', 127185332],
[, , 'Others', 111652273],
[, 'South-Eastern', , 655636576],
[, 'Western', , 272298399],
[, 'Central', , 71860465],
['Africa', 'Eastern', , 433643132],
[, 'Western', , 381980688],
[, 'Northern', , 237784677],
[, 'Others', , 234512021],
['Europe', , , 742648010],
['Others', , , 1057117703]
];
// Set Array
sheet.setArray(1, 1, dataArray);
var treemapChart = sheet.charts.add('chart1',
GC.Spread.Sheets.Charts.ChartType.treemap, 450, 0, 500, 500, "B2:E18");
// Initialize designer components and use above created spread component
var designer = new GC.Spread.Sheets.Designer.Designer(document.getElementById("designerHost"), '', spread);
});
</script>
</head>
<body>
<div id="ss"></div>
<!--DOM element for designer components-->
<div id="designerHost" style="width:100%; height:1000px; border: 1px solid gray;"></div>
</body>

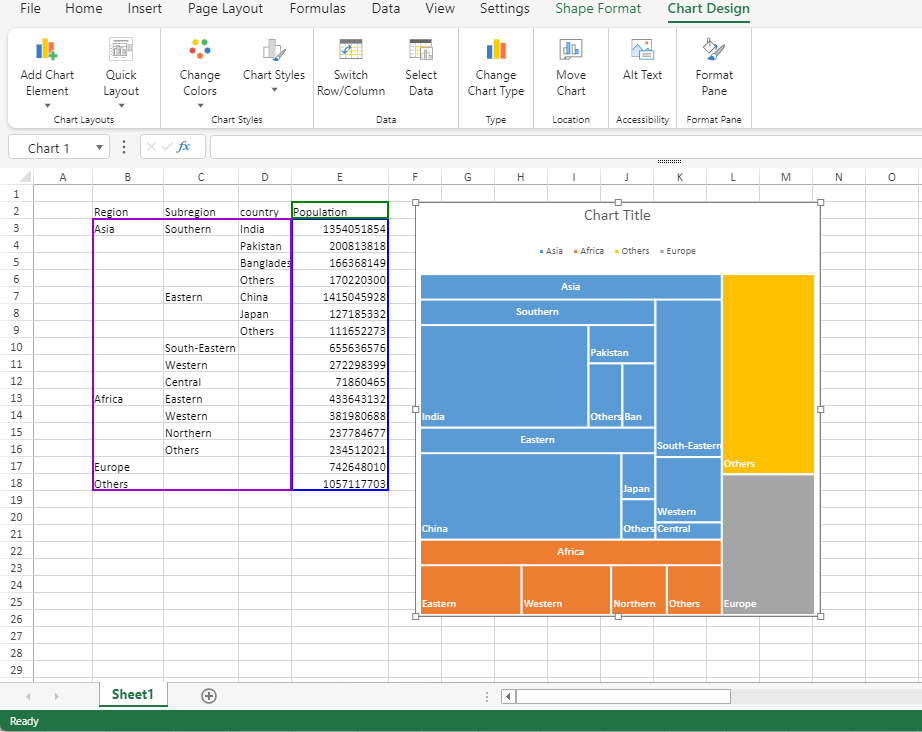

</html>The above code will generate the below output:
