Treemap Chart

Treemap charts are used to display hierarchical data as a set of nested rectangles. This type of charts is used to represent hierarchical data in a tree-like structure. Use this chart when data is organized hierarchically and has fewer categories.

Sample Image	Description

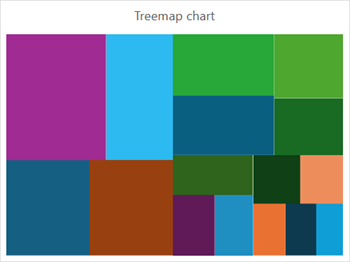

	ChartType.Treemap Represents a treemap chart. It is used to display large amount of hierarchical data without any space constraints.

Sample Image

Description

ChartType.Treemap

Represents a treemap chart.

It is used to display large amount of hierarchical data without any space constraints.

Using Code

Refer to the following example code to add a treemap chart.

// Treemap chart.
object[,] dataArray = {
             { "Region", "Subregion", "Country", "Population"},
 { "Asia", "Southern", "India", 9541854},
 {"","" , "Pakistan", 2003818},
 {"",""  , "Thailand", 4668149},
 {"","" , "Others", 1700300},
 {"", "Eastern", "China", 15045928},
 {"","" , "Japan", 5271852},
 {"","" , "Others", 1912273},
 {"", "South-Eastern","" , 9536576},
 {"", "Western", "", 2722989},
 {"", "Central","" , 7186065},
 { "Africa", "Eastern","" , 3043132},
 {"", "Western","" , 3819688},
 {"", "Northern","" , 2784677},
 {"", "Others","" , 2512021},
 { "Europe","" ,"" , 7448010},
 { "Others","" ,"" , 10117703}
         };

for (int i = 0; i < dataArray.GetLength(0); i++)
{
     for (int j = 0; j < dataArray.GetLength(1); j++)
     {
         spreadSheet1.Workbook.ActiveSheet.Cells[i, j].Value = dataArray[i, j];
     }
}
spreadSheet1.Workbook.ActiveSheet.Cells["A1:D17"].Select();
spreadSheet1.Workbook.ActiveSheet.Shapes.AddChart(GrapeCity.Spreadsheet.Charts.ChartType.Treemap, 100, 150, 400, 300, false);
spreadSheet1.Workbook.ActiveSheet.ChartObjects[0].Chart.ChartTitle.Text = "Treemap chart";

' Treemap chart.
 Dim dataArray = {
                  {"Region", "Subregion", "Country", "Population"},
      {"Asia", "Southern", "India", 9541854},
      {"", "", "Pakistan", 2003818},
      {"", "", "Thailand", 4668149},
      {"", "", "Others", 1700300},
      {"", "Eastern", "China", 15045928},
      {"", "", "Japan", 5271852},
      {"", "", "Others", 1912273},
      {"", "South-Eastern", "", 9536576},
      {"", "Western", "", 2722989},
      {"", "Central", "", 7186065},
      {"Africa", "Eastern", "", 3043132},
      {"", "Western", "", 3819688},
      {"", "Northern", "", 2784677},
      {"", "Others", "", 2512021},
      {"Europe", "", "", 7448010},
               {"Others", "", "", 10117703}}

 For i = 0 To dataArray.GetLength(0) - 1
         For j = 0 To dataArray.GetLength(1) - 1
             spreadSheet1.Workbook.ActiveSheet.Cells(i, j).Value = dataArray(i, j)
        Next
 Next
spreadSheet1.Workbook.ActiveSheet.Cells("A1:D17").[Select](gcdocsite__documentlink?toc-item-id=013f1b3f-c070-40d5-b4b4-e3e7bf016abe)
spreadSheet1.Workbook.ActiveSheet.Shapes.AddChart(GrapeCity.Spreadsheet.Charts.ChartType.Treemap, 100, 150, 400, 300, False)
spreadSheet1.Workbook.ActiveSheet.ChartObjects(0).Chart.ChartTitle.Text = "Treemap chart"
