Surface Chart

Surface charts are used to plot data on a three-dimensional surface. It is especially useful for finding the optimal combinations between two data sets. Like a topographic map, the colors and patterns on a surface chart indicate the areas that are in the same range of values.

Types of Surface Charts

Spread for WPF supports the following types of Surface charts.

Sample Image	Description

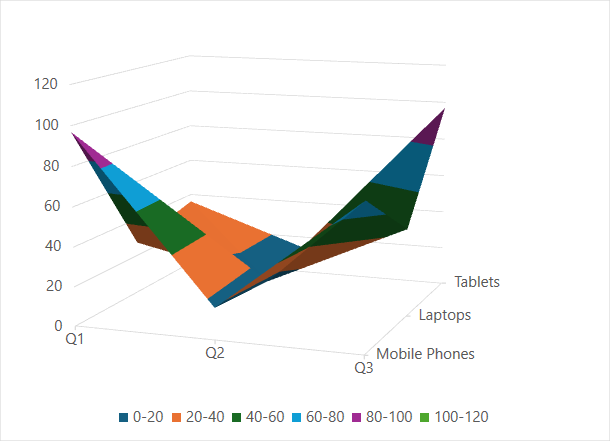

	ChartType.Surface Represents a surface chart with a 3-D effect.

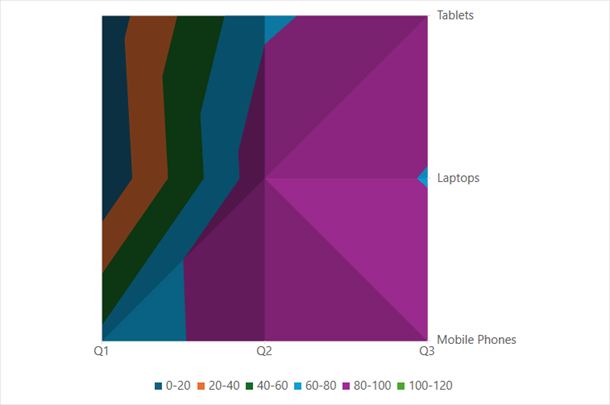

	ChartType.SurfaceTopView Represents a top-view surface chart.

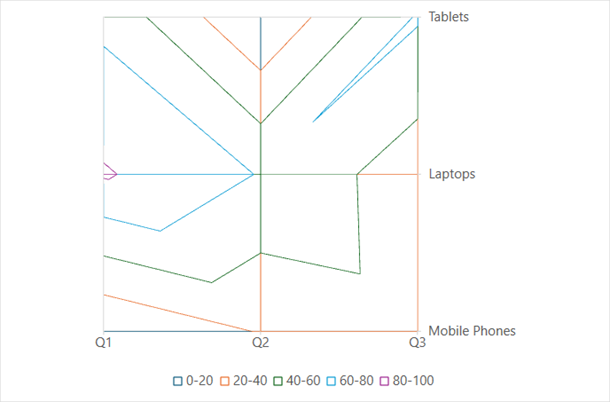

	ChartType.SurfaceTopViewWireframe Represents a top-view surface chart without fill color.

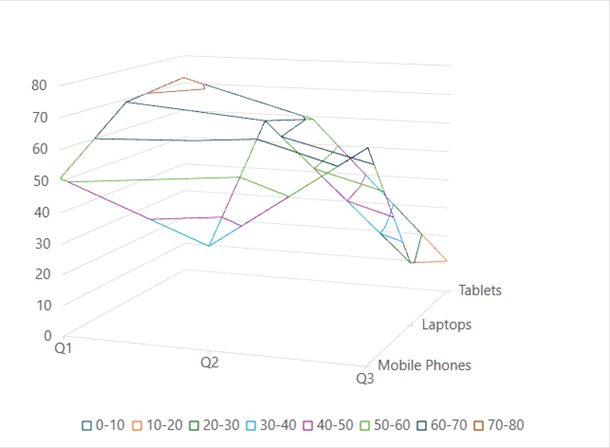

	ChartType.SurfaceWireframe Represents a surface chart with a 3D visual effect and no fill color.

Using Code

Refer to the following example code to add a surface chart.

// Add data.
spreadSheet1.Workbook.ActiveSheet.Cells[0, 1].Value = "Q1";
spreadSheet1.Workbook.ActiveSheet.Cells[0, 2].Value = "Q2";
spreadSheet1.Workbook.ActiveSheet.Cells[0, 3].Value = "Q3";
spreadSheet1.Workbook.ActiveSheet.Cells[1, 0].Value = "Mobile Phones";
spreadSheet1.Workbook.ActiveSheet.Cells[2, 0].Value = "Laptops";
spreadSheet1.Workbook.ActiveSheet.Cells[3, 0].Value = "Tablets";
for (var r = 1; r <= 3; r++)
{
    for (var c = 1; c <= 3; c++)
    {
        Random random = new Random();
        spreadSheet1.Workbook.ActiveSheet.Cells[r, c].Value = random.Next(0, 100);
    }
}
spreadSheet1.Workbook.ActiveSheet.Cells["A1:D4"].Select();
// Surface chart.
spreadSheet1.Workbook.ActiveSheet.Shapes.AddChart(GrapeCity.Spreadsheet.Charts.ChartType.Surface, 100, 150, 400, 300, false);

' Add data.
spreadSheet1.Workbook.ActiveSheet.Cells(0, 1).Value = "Q1"
spreadSheet1.Workbook.ActiveSheet.Cells(0, 2).Value = "Q2"
spreadSheet1.Workbook.ActiveSheet.Cells(0, 3).Value = "Q3"
spreadSheet1.Workbook.ActiveSheet.Cells(1, 0).Value = "Mobile Phones"
spreadSheet1.Workbook.ActiveSheet.Cells(2, 0).Value = "Laptops"
spreadSheet1.Workbook.ActiveSheet.Cells(3, 0).Value = "Tablets"

For r = 1 To 3
    For c = 1 To 3
        Dim random As Random = New Random()
        spreadSheet1.Workbook.ActiveSheet.Cells(r, c).Value = random.Next(0, 100)
    Next
Next

spreadSheet1.Workbook.ActiveSheet.Cells("A1:D4").[Select]()
' Surface chart.
spreadSheet1.Workbook.ActiveSheet.Shapes.AddChart(GrapeCity.Spreadsheet.Charts.ChartType.Surface, 100, 150, 400, 300, False)
