Sunburst Chart

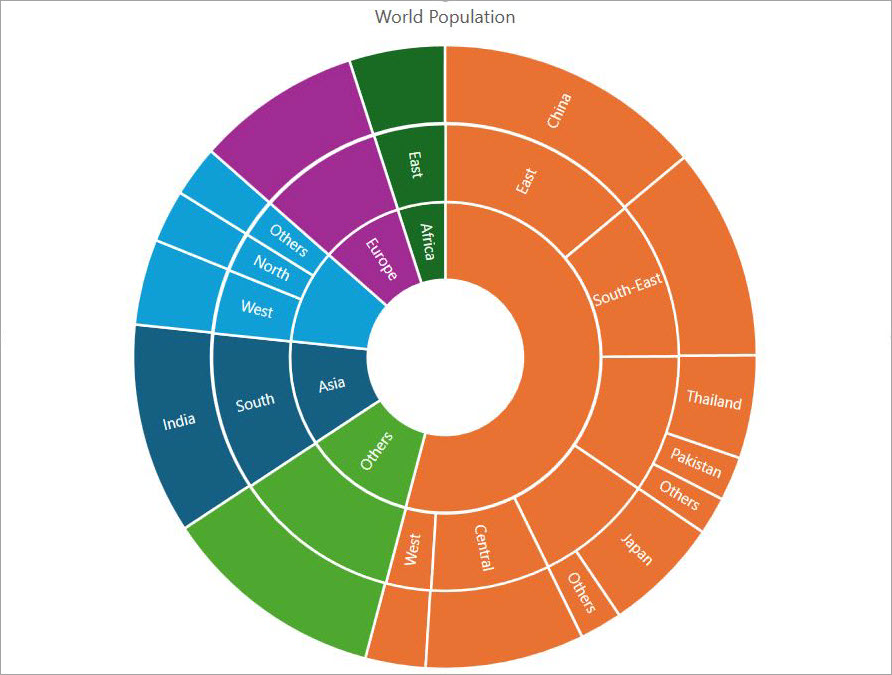

Sunburst charts are used to display hierarchical data as concentric rings. Each ring in the chart represents a level in the hierarchy where the innermost ring is at the top of the hierarchy. The segments in each ring divide the data into sub-categories. The sizes of the segments indicate the proportion of data as per their parent category.

You can use this type of chart when data is organized hierarchically and has multiple categories.

Sample Image	Description
	ChartType.Sunburst Represents a sunburst chart. It is used to compare values across hierarchy levels.

Sample Image

Description

sunburst_chart

ChartType.Sunburst

Represents a sunburst chart.

It is used to compare values across hierarchy levels.

Using Code

Refer to the following example code to add a sunburst chart.

// Sunburst chart
object[,] dataArraySubBurst = {
   {"Region", "Subregion", "Country", "Population"},
   {"Asia", "South", "India", 9540554},
   {"","" , "Pakistan", 2003818},
   {"","" , "Thailand", 4668149},
   {"","" , "Others", 1702200},
   {"", "East", "China", 12155928},
   {"","" , "Japan", 5271332},
   {"","" , "Others", 1916573},
   {"", "South-East","" , 9556576},
   {"", "West","" , 2728399},
   {"", "Central", "", 7186065},
   {"Africa", "East","" , 4333132},
   {"", "West","" , 3880688},
   {"", "North","" , 2374677},
   {"", "Others","" , 2312021},
   {"Europe","" ,"" , 7448010},
   {"Others","" ,"" , 10117703}
};
for (int i = 0; i < dataArraySubBurst.GetLength(0); i++)
{
     for (int j = 0; j < dataArraySubBurst.GetLength(1); j++)
     {
         spreadSheet1.Workbook.ActiveSheet.Cells[i, j].Value = dataArraySubBurst[i, j];
     }
}
spreadSheet1.Workbook.ActiveSheet.Cells["A1:D17"].Select();
spreadSheet1.Workbook.ActiveSheet.Shapes.AddChart(GrapeCity.Spreadsheet.Charts.ChartType.Sunburst, 200, 350, 500, 400, false);
spreadSheet1.Workbook.ActiveSheet.ChartObjects[0].Chart.ChartTitle.Text = "World Population";
spreadSheet1.Workbook.ActiveSheet.ChartObjects[0].Chart.ApplyDataLabels(DataLabelVisibilities.CategoryName);

' Sunburst chart
Dim dataArraySubBurst = {
       {"Region", "Subregion", "Country", "Population"},
       {"Asia", "South", "India", 9540554},
       {"", "", "Pakistan", 2003818},
       {"", "", "Thailand", 4668149},
       {"", "", "Others", 1702200},
       {"", "East", "China", 12155928},
       {"", "", "Japan", 5271332},
       {"", "", "Others", 1916573},
       {"", "South-East", "", 9556576},
       {"", "West", "", 2728399},
       {"", "Central", "", 7186065},
       {"Africa", "East", "", 4333132},
       {"", "West", "", 3880688},
       {"", "North", "", 2374677},
       {"", "Others", "", 2312021},
       {"Europe", "", "", 7448010},
       {"Others", "", "", 10117703}}
For i = 0 To dataArraySubBurst.GetLength(0) - 1
    For j = 0 To dataArraySubBurst.GetLength(1) - 1
        spreadSheet1.Workbook.ActiveSheet.Cells(i, j).Value = dataArraySubBurst(i, j)
    Next
Next
spreadSheet1.Workbook.ActiveSheet.Cells("A1:D17").[Select]()
spreadSheet1.Workbook.ActiveSheet.Shapes.AddChart(GrapeCity.Spreadsheet.Charts.ChartType.Sunburst, 200, 350, 500, 400, False)
spreadSheet1.Workbook.ActiveSheet.ChartObjects(0).Chart.ChartTitle.Text = "World Population"
spreadSheet1.Workbook.ActiveSheet.ChartObjects(0).Chart.ApplyDataLabels(DataLabelVisibilities.CategoryName)
