Filter Operations
In This Topic

Data filtering in a grid can be performed in two ways:

Header-based Filter

In header-based filtering, an icon is displayed in the header cell of column which gives you options to specify the filter in a drop-down and also indicates if the filter is applied on a particular column. In FlexGrid, this behavior can be achieved by simply using AllowFiltering property of the grid. In this case, filter does not require any extra real estate on the screen. This approach also gives you flexibility to customize and create better filter editors. More details about same is given in the sections below.

Filter Row

Filter row is a row dedicated for displaying the filtering criteria and appears just below the column header. So, in this case, user can always see the filtered columns and their current filtering criteria. But, this added advantage comes at the cost of extra screen real estate that a filter row needs. In FlexGrid, you can easily achieve filter row using the custom implementation. For implementation, see the product sample named Filter Row.

Note: The Filter Row sample is located at \Documents\ComponentOne Samples\WinForms\v4.5.2\C1FlexGrid\CS on your system, if you have installed the samples while installing WinForms Edition using ComponentOneControlPanel.exe.

Allow Filtering

In FlexGrid, filtering can be enabled by setting the C1FlexGrid.AllowFiltering property to true. This enables the default ColumnFilter on all columns of the grid. The ColumnFilter lets the users choose from ValueFilter and ConditionFilter at runtime.

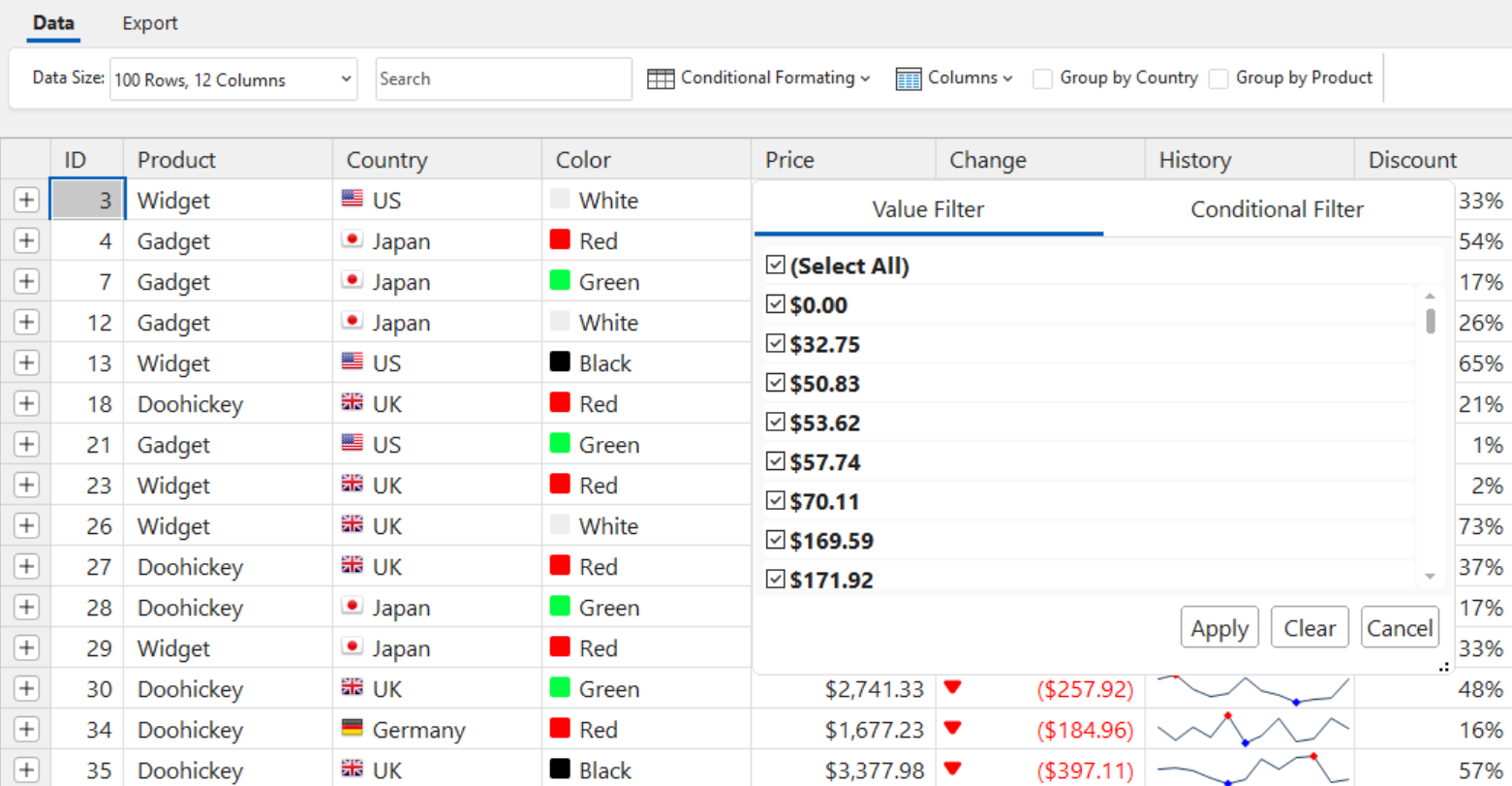

Allow filtering

You can also specify the filter types for each column by setting the AllowFiltering property of each Column object. AllowFiltering property of column lets you choose from any of the following values:

Value Description
Default Enables the ColumnFilter which is a combination of ValueFilter and ConditionFilter and gives user a runtime option to choose either of them.
ByValue Enables ValueFilter which contains a checkbox list of values present in that column. User can check off the values that should not be displayed in the filtered output.
ByCondition Enables ConditionFilter which lets you specify combination of two conditions such as "equals", "greater than", "contains" etc. You can combine the specified conditions using "And" and "Or" operator.
Custom Lets you instantiate a custom filter and explicitly assign it to Filter property of the column.
None Disables filtering for that column.

Use the following code snippet to enable a condition filter on first column of the WinForms FlexGrid.

// Allow filtering in the grid
c1FlexGrid1.AllowFiltering = true;

// Specify filter for column 1
c1FlexGrid1.Cols[1].AllowFiltering = C1.Win.C1FlexGrid.AllowFiltering.ByCondition;

For more details regarding abovementioned filter types, see Types of Filters.

Filtering through Code

Although, AllowFiltering property of grid enables grid filtering and can be used in most common scenarios, there may be cases where you need to further fine tune the filter options. This can be achieved by modifying AllowFiltering and Filter properties of individual columns. For example, the code below enables filtering in the WinForms FlexGrid, but restricts the filtering to columns of type string.

// Restrict filtering to columns of type 'string'
 foreach (Column c in c1FlexGrid1.Cols)
     {
          c.AllowFiltering = c.DataType == typeof(string)
               ? AllowFiltering.Default
               : AllowFiltering.None;
     }

You can also customize the filtering process further by creating filters and assigning them to columns, or by retrieving existing filters and modifying their properties. For example, the code below creates a ConditionFilter in the WinForms FlexGrid, configures it to select all items that are equal to "Germany", and then assigns the new filter to the "ShipCountry" column:

 // Enable filtering in the grid
 c1FlexGrid1.AllowFiltering = true;

 // Create a new ConditionFilter
 C1.Win.C1FlexGrid.ConditionFilter Filter;
 Filter = new C1.Win.C1FlexGrid.ConditionFilter();

 // Create a filter to narrow down items that have Germany
 Filter.Condition1.Operator = C1.Win.C1FlexGrid.ConditionOperator.Equals;
 Filter.Condition1.Parameter = "Germany";

 // Assign the new filter to "ShipCountry" column
 c1FlexGrid1.Cols["ShipCountry"].Filter = Filter;

 // Apply the filter
 c1FlexGrid1.ApplyFilters();

Custom Filtering

When filtering is applied to FlexGrid, it hides the rows that do not qualify the filtering criteria by setting their Visible property to false. However, in some cases, you may want to customize this behavior. For such scenarios, you can use the BeforeFilter and AfterFilter events fired by FlexGrid. The below example customizes the filtering behavior of WinForms FlexGrid by applying a different style to non-qualifying rows instead of hiding them.

Custom filtering

private void c1FlexGrid1_BeforeFilter(object sender, CancelEventArgs e)
{
    c1FlexGrid1.BeginUpdate();
}

private void c1FlexGrid1_AfterFilter(object sender, EventArgs e)
{
    // get style used to show filtered out rows
    var cs = c1FlexGrid1.Styles["filteredOut"];

    // apply style to all rows
    for (int r = c1FlexGrid1.Rows.Fixed; r < c1FlexGrid1.Rows.Count; r++)
    {
        var row = c1FlexGrid1.Rows[r];
        if (row.Visible)
        {
            // normal row, reset style
            row.Style = null;
        }
        else
        {
            // filtered row, make visible and apply style
            row.Visible = true;
            row.Style = cs;
        }
    }

    // resume updates
    c1FlexGrid1.EndUpdate();
}

The above code uses a custom style named "filteredout" which can be defined as shown in the code below.

// create style for rows excluded by the filter
var cs = c1FlexGrid1.Styles.Add("filteredOut");
cs.BackColor = Color.LightGray;
cs.ForeColor = Color.DarkGray;

Remove Filtering

User can remove column filtering at runtime by using Clear option given in the filter UI of each column. You can also remove filtering of the whole grid programmatically by passing the empty string in FilterDefinition property of FlexGrid.

Below code demonstrates how to clear all the filters from the WinForms FlexGrid.

// Remove filtering by setting the filter definition to empty string
c1FlexGrid1.FilterDefinition = string.Empty;
