Pivot Table Style Options

A PivotTable style is composed of multiple table style elements, with each element defining the formatting for a specific part of the PivotTable. The supported element types are listed in the TableStyleElementType enumeration. The PivotTable object provides properties to configure style options according to the selected style.

Spread WPF supports four key style options: Row Headers, Column Headers, Banded Rows, and Banded Columns. These settings control whether headers are displayed and whether alternating rows or columns are formatted with banded styles, based on the applied PivotTable style.

Apply Row Header Formatting

Spread WPF provides the IPivotTable.ShowTableStyleRowHeaders property to apply the pivot table style to row headers. Enabling this option ensures that row headers are clearly highlighted according to the applied style.

Row Header Formatting Enabled

Row Header Formatting Disabled

Spread for WPF ShowTableStyleRowHeaders enabled applies the selected blue style to row header labels in the pivot table.

Spread for WPF ShowTableStyleRowHeaders disabled leaves row header labels unstyled while preserving the pivot table values and hierarchy.

The following example demonstrates how to show row header formatting in the pivot table.

pvTable.ShowTableStyleRowHeaders = true;
pvTable.ShowTableStyleRowHeaders = True

Apply Column Header Formatting

You can use the IPivotTable.ShowTableStyleColumnHeaders property to apply the selected pivot table style to column headers. This enhances the visibility of column groupings and provides a more organized structure for the presented data.

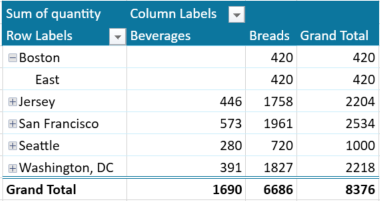

Column Header Formatting Enabled

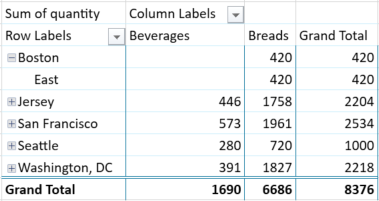

Column Header Formatting Disabled

Spread for WPF ShowTableStyleColumnHeaders enabled applies the selected blue style to column header labels in the pivot table.

Spread for WPF ShowTableStyleColumnHeaders disabled leaves column header labels unstyled while preserving the pivot table values and structure.

The following example demonstrates how to show column header formatting in the pivot table.

pvTable.ShowTableStyleColumnHeaders = true;
pvTable.ShowTableStyleColumnHeaders = True

Apply Banded Row Formatting

Banded rows use alternating background colors or styles to distinguish between adjacent rows. You can enable this option using the IPivotTable.ShowTableStyleRowStripes property.

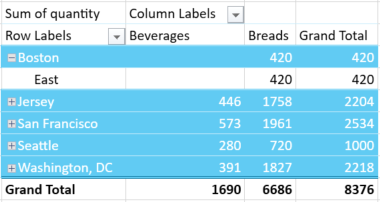

Banded Row Formatting Enabled

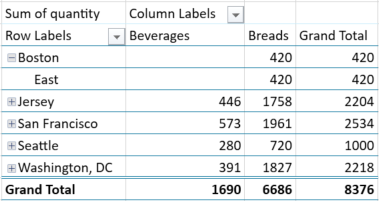

Banded Row Formatting Disabled

Spread for WPF ShowTableStyleRowStripes enabled applies alternating blue row formatting across the pivot table for easier horizontal reading.

Spread for WPF ShowTableStyleRowStripes disabled removes alternating row formatting while retaining the pivot table hierarchy and totals.

The following example demonstrates how to show banded row formatting in the pivot table.

pvTable.ShowTableStyleRowStripes = true;
pvTable.ShowTableStyleRowStripes = True

Apply Banded Column Formatting

Banded columns work similarly to banded rows, but apply alternating formatting to columns instead. Use the IPivotTable.ShowTableStyleColumnStripes property to enable this feature.

Banded Column Formatting Enabled

Banded Column Formatting Disabled

Spread for WPF ShowTableStyleColumnStripes enabled applies alternating blue column formatting across the pivot table for easier vertical reading.

Spread for WPF ShowTableStyleColumnStripes disabled removes alternating column formatting while retaining the pivot table hierarchy and totals.

The following example demonstrates how to show banded column formatting in the pivot table.

pvTable.ShowTableStyleColumnStripes = true;
pvTable.ShowTableStyleColumnStripes = True
