Spread Windows Forms 18 Product Documentation

Conditional Formatting Dialog

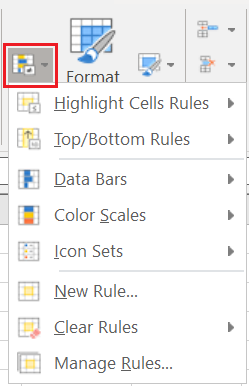

You can create conditional formatting with the Conditional Formatting dialog. This dialog is located under the Home menu and appears as follows:

Conditional Formatting dialog displaying different types of rules

This dialog has the following items:

Item	Description
Highlight Cells Rules	Rules used to apply formatting options to values that meet specific conditions
Top Bottom Rules	Rules used to apply formatting options to top or bottom values
Data Bars	Rules used to apply color bars to values
Color Scales	Rules used to apply color or color gradients to values
Icon Sets	Rules used to apply icons to values
New Rules	Additional rule options
Clear Rules	Clear all rules or rules for selected cells
Manage Rules	Rules manager used to create, edit, or delete rules

Rules Manager Dialog

When you click the "Manage Rules" option from the Conditional Formatting dropdown, it opens the Conditional Formatting Rules Manager dialog.

This dialog helps to create, edit, delete, and view all the conditional formatting rules in the workbook. It also gives the option to create duplicates from the existing rules. You can also resize the dialog as per requirement.

For more information about conditional formatting, refer to Using Conditional Formatting of Cells.

Conditional Formatting Dialog

Rules Manager Dialog

See Also
