Sort

The PivotTable sorting feature in SpreadJS enables developers to control the order of data items within PivotTables for clearer and more efficient data analysis.

Sorting can be configured programmatically through the PivotTable.sort() API and sortInfo object, or interactively within the Designer.

Developers can specify sort orders by field name, value, or custom logic, and optionally use advanced features such as Custom Callback Function sorting, Custom List sorting(“First key sort order” List) and manual drag‑and‑drop reordering.

These options provide a flexible way to define and maintain consistent sort behavior across PivotTables in a worksheet.

Sorting Modes

Supports 4 main sorting modes:

Related API

Usage Examples

Foundation Code

All examples in this section are based on the foundational setup below, which creates a sample workbook and pivot table for demonstration purposes.

// Initialize a workbook with sample data and create a base pivot table.
// The following setup is shared by all examples below.

var spread = new GC.Spread.Sheets.Workbook(document.getElementById("ss"),{sheetCount:3});
var sourceSheet = spread.getSheet(0);
var sheet = spread.getSheet(1);

var sourceData = [["Date","Buyer","Type","Amount"],
                  ["01-Jan","Mom","Fuel",74],
                  ["15-Jan","Mom","Food",235],
                  ["17-Jan","Dad","Sports",20],
                  ["21-Jan","Kelly","Books",125]];
sourceSheet.setArray(0, 0, sourceData );
sourceSheet.tables.add('sourceData', 0, 0, 5, 4);

var layout = GC.Spread.Pivot.PivotTableLayoutType.compact;
var theme = GC.Spread.Pivot.PivotTableThemes.medium2;
var options = {showRowHeader: true, showColumnHeader: true};

var pivotTable = sheet.pivotTables.add("pivotTable_1",'sourceData',1,1,layout,theme,options);

pivotTable.add("Buyer","Buyer",GC.Spread.Pivot.PivotTableFieldType.rowField);
pivotTable.add("Type","Type",GC.Spread.Pivot.PivotTableFieldType.columnField);
pivotTable.add("Amount","Amount",GC.Spread.Pivot.PivotTableFieldType.valueField);

pivotTable.autoFitColumn();

Setting the Sorting Mode

Set the sorting mode using the sortType property of sortInfo.

// Ascending
pivotTable.sort("Buyer", { sortType: GC.Pivot.SortType.asc });

// Descending
pivotTable.sort("Buyer", { sortType: GC.Pivot.SortType.desc });

// Custom Order
pivotTable.sort("Buyer", {sortType: GC.Pivot.SortType.custom });

Sorting by Field Item Name

To sort data in a pivot table by a specific field, call the pivotTable.sort(fieldName, sortInfo) method and set the sortType property in sortInfo to define the sorting order (ascending, descending, or custom).

pivotTable.sort("Buyer", { sortType: GC.Pivot.SortType.desc });
// Result: [“Mom”, “Kelly”, “Dad”]

Sorting by Value Field

You can sort pivot fields based on the aggregated values of another field.

To do this, configure the following properties in the sortInfo object when calling pivotTable.sort():

• sortType – defines the sort direction (ascending or descending).

• sortValueFieldName – specifies which value field to use as the basis for comparison.

• sortByPivotReferences – defines the pivot area (such as a specific column) whose aggregated value is used for sorting.

pivotTable.sort("Buyer", {
  sortType: GC.Pivot.SortType.asc,
  sortValueFieldName: "Amount",
  sortByPivotReferences: [
        {
            fieldName: "Type",
            items: [
                "Books"
            ]
        }
  ]
});
// Result: [“Dad”, “Mom”, “Kelly”]

Sorting by Custom Callback Function

You can define a custom sorting logic for a field by setting the sortType to GC.Pivot.SortType.custom and providing a customSortCallback function.

The callback receives an array (list) containing all items of the target field and should return the reordered array. This allows you to implement any custom rule, such as sorting by string length, alphabetical pattern, or an external ranking.

pivotTable.sort("Buyer", {
  sortType: GC.Pivot.SortType.custom,
  customSortCallback: function (list) {
    return list.sort((a, b) => a.length - b.length);
  }
});
// Result: [“Mom”, “Dad”, “Kelly”]

Sorting by Custom Sort List

You can specify a fixed sorting order for a field by setting the field’s sortType to GC.Pivot.SortType.custom and specifying a customSortList.

The items in customSortList define the exact order in which field items appear.

pivotTable.sort("Type", {
  sortType: GC.Pivot.SortType.custom,
  customSortList: ["FOOD", "sports", "Books", "fUel" ]// Case-insensitive
});
// Result: [“Food”, “Sports”, “Books”, “Fuel”]

pivotTable.sort("Buyer", {
  sortType: GC.Pivot.SortType.custom,
  customSortList: ["Food", "Sports"]// Other items keep default order
});
// Result: [“Food”, “Sports”, “Books”, “Fuel”]

Both examples produce the same order.

The first demonstrates case‑insensitive matching, while the second shows that unlisted items retain their default order.

Combining Custom List with AutoSort State

You can combine a custom list with a pivot table's sort behavior.

To make the list order take effect, disable AutoSort first and then apply a PivotManager.customList:

pivotTable.autoSortState("Type", false);
sheet.pivotTables.customList(["Food", "Sports"]);

// Ascending behavior
pivotTable.sort("Type", { sortType: GC.Pivot.SortType.asc });
// Result: [“Food”, “Sports”, “Books”, “Fuel”]

// Descending behavior
pivotTable.sort("Type", { sortType: GC.Pivot.SortType.desc });
// Result: [“Fuel”, “Books”, “Sports”, “Food”]

Manual Reordering (Drag-and-Drop)

Users can manually reorder Pivot field items by dragging them after a global sort.

The change takes effect immediately and is saved as a custom sort state.

See Drag-and-Drop for more details.

Getting and Clearing Sort Info

You can get or clear the sort information of a field using the pivotTable.sort() method.

// Get current sort info
let info = pivotTable.sort("Buyer");

// Clear sort
pivotTable.sort("Buyer", null);

Using the Designer

In the Designer, you can sort PivotTable data directly through the context menu.

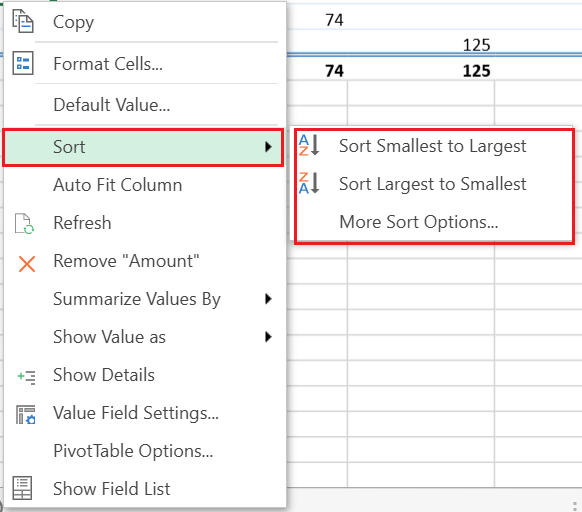

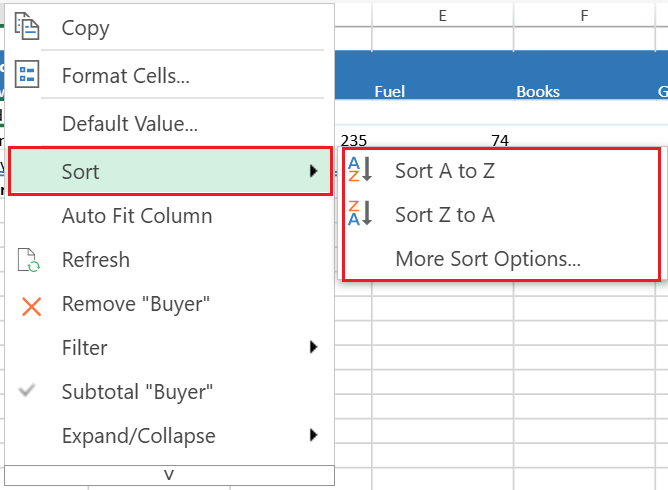

When you right‑click an item in the pivot table (whether it belongs to a row, column, or value area), the context menu displays a Sort option.

The Sort option provides the following three sub‑options:

• Sort Ascending (A → Z / Smallest → Largest)

• Sort Descending (Z → A / Largest → Smallest)

• More Sort Options…

The first two sub‑options perform quick ascending or descending sorts based on the data type of the selected field.

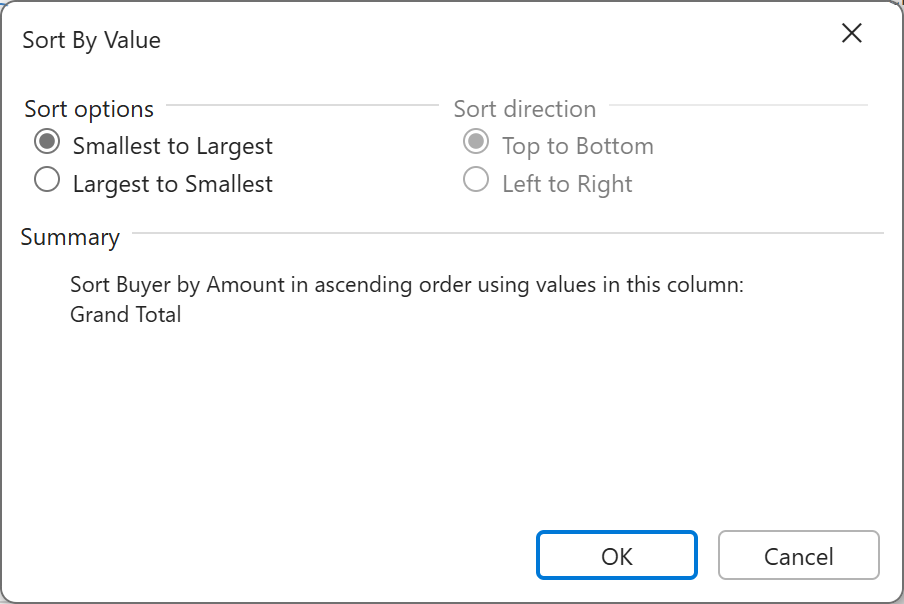

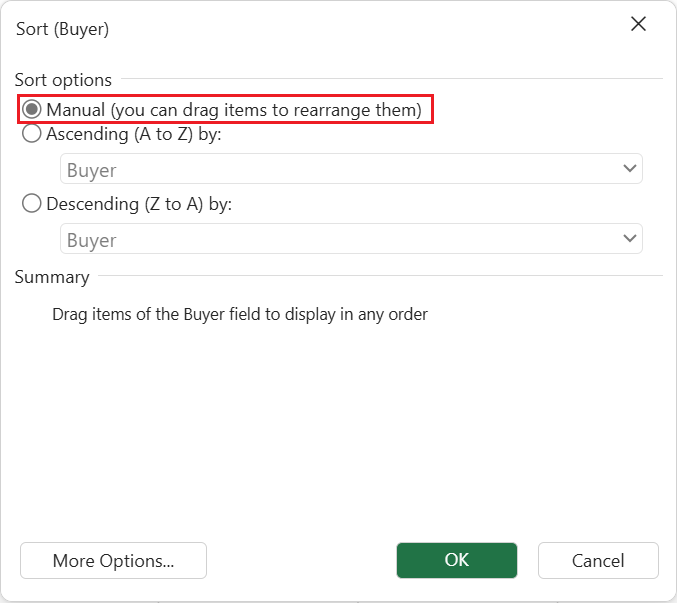

Selecting More Sort Options… opens a corresponding dialog box that provides additional sorting controls.

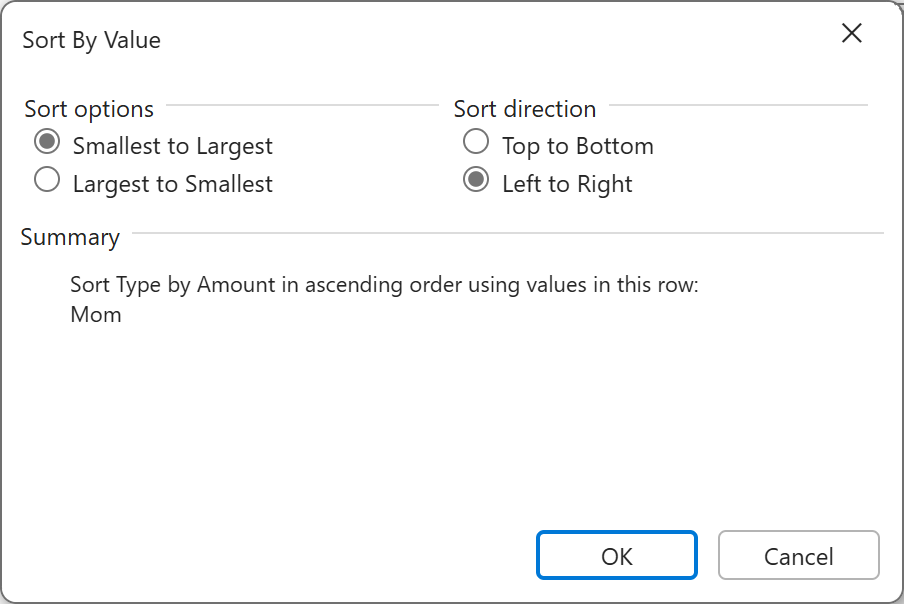

The following table describes how the More Sort Options… command behaves when accessed from different areas of a pivot table.

Clicking More Options... opens an additional Sort dialog that provides advanced sorting controls.

In the Sort dialog, you can sort items based on the Grand Total values (the default option) or sort according to values from a specific field or item.

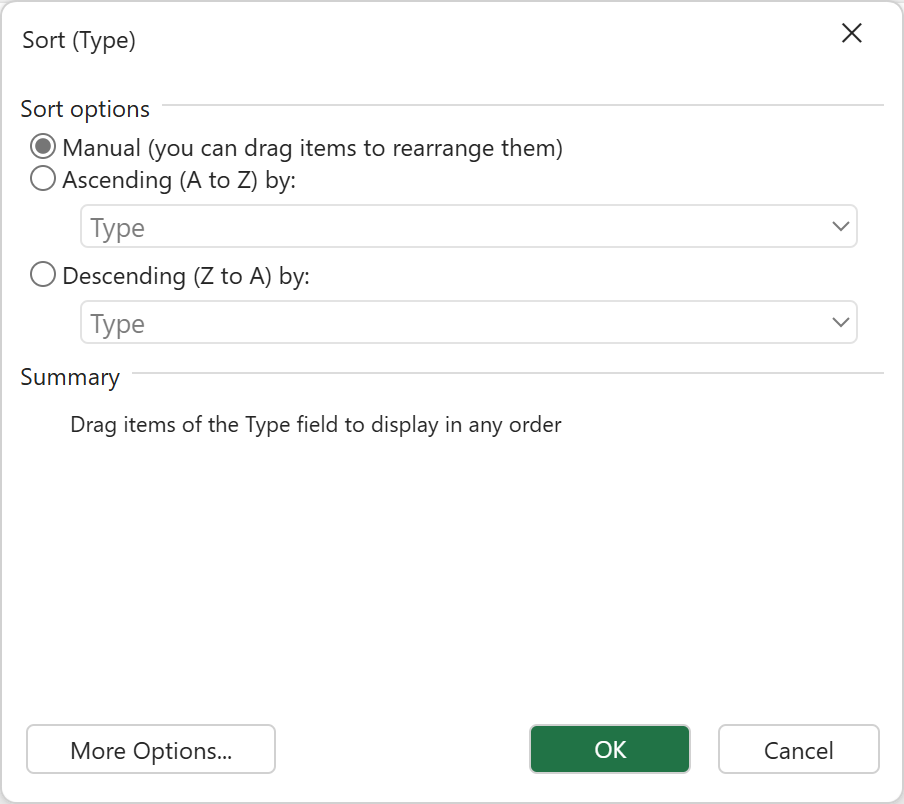

The following image shows an example of the Sort (Type) dialog as displayed in the Designer:

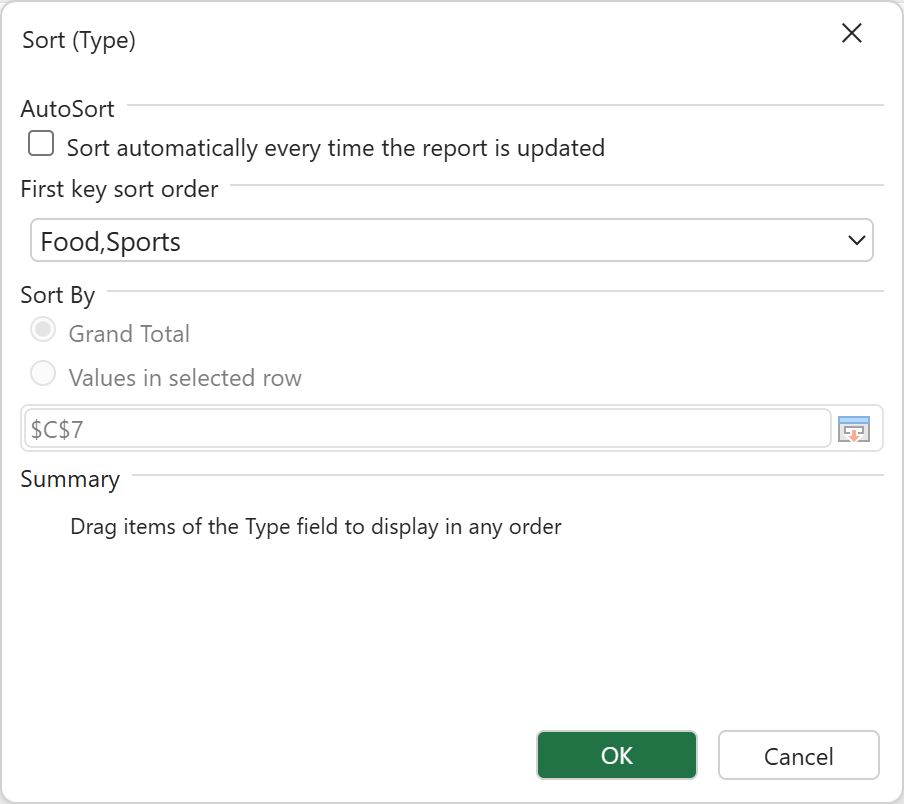

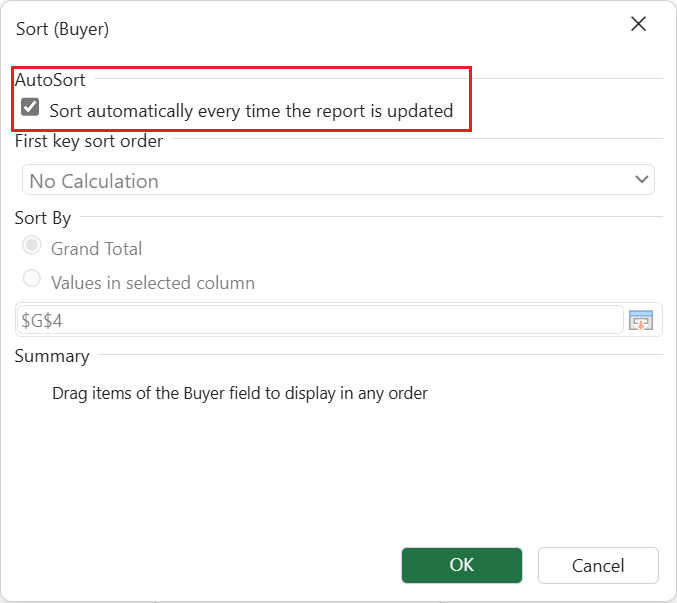

Fields without sort settings remain in AutoSort mode, and opening More Sort Options will show the Auto option selected by default.

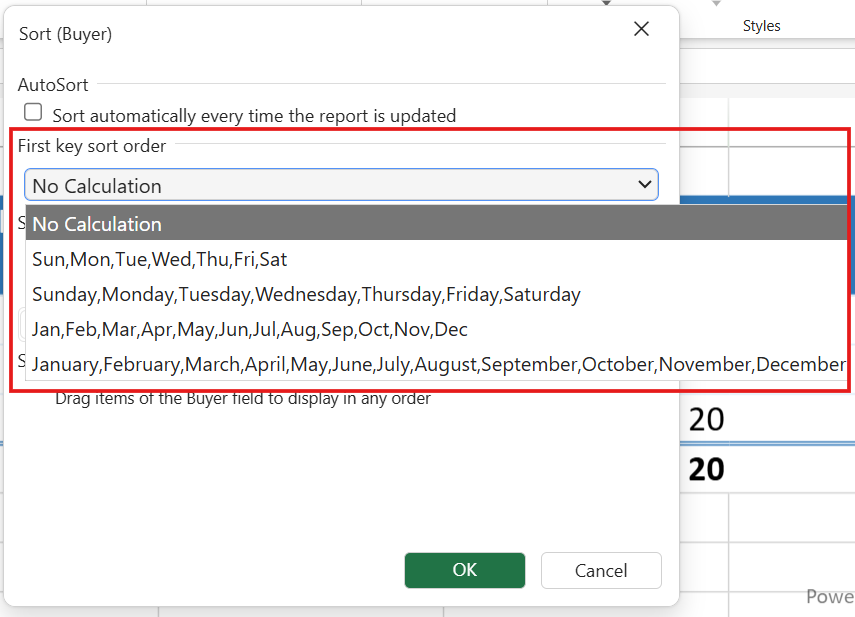

When you uncheck the AutoSort option, the Pivot Field enters Manual sort mode. You can then specify a First Key Sort Order, which defines how ascending and descending custom sorts are applied.

Drag-and-Drop

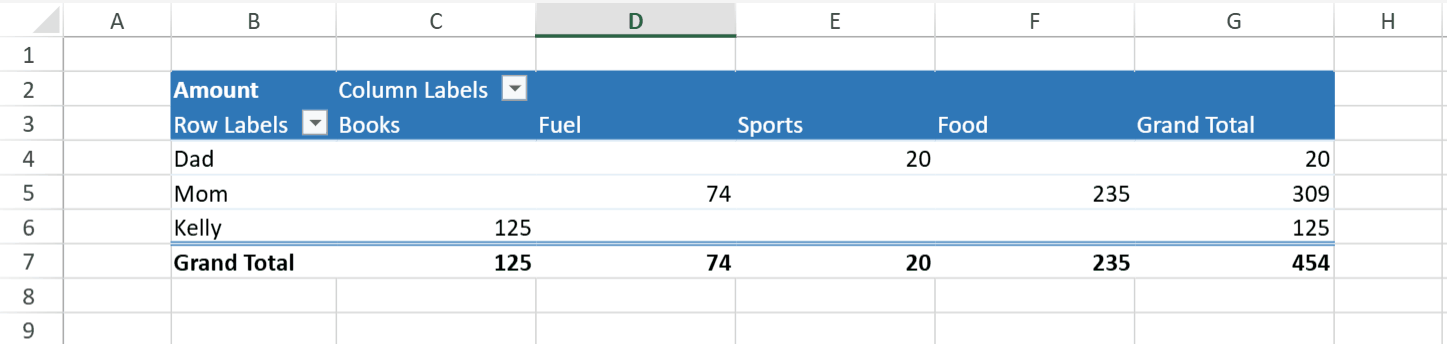

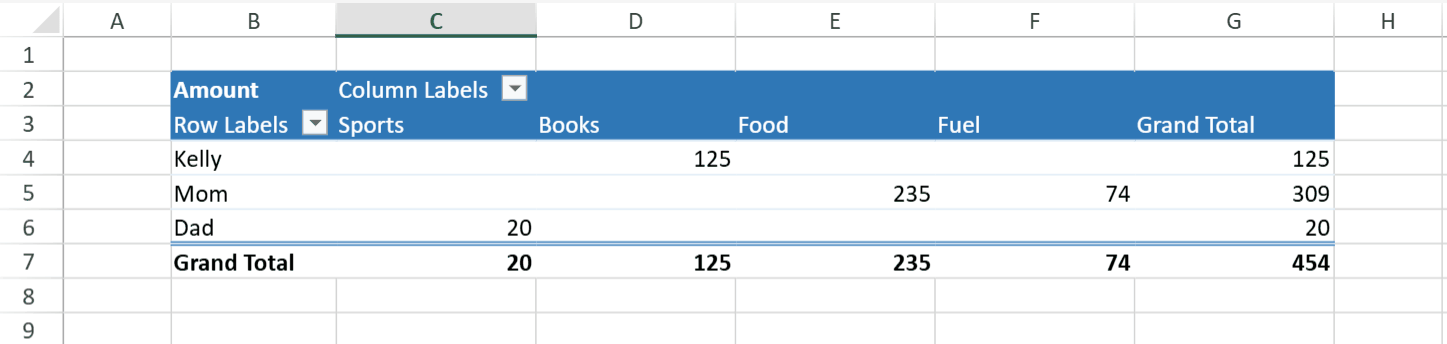

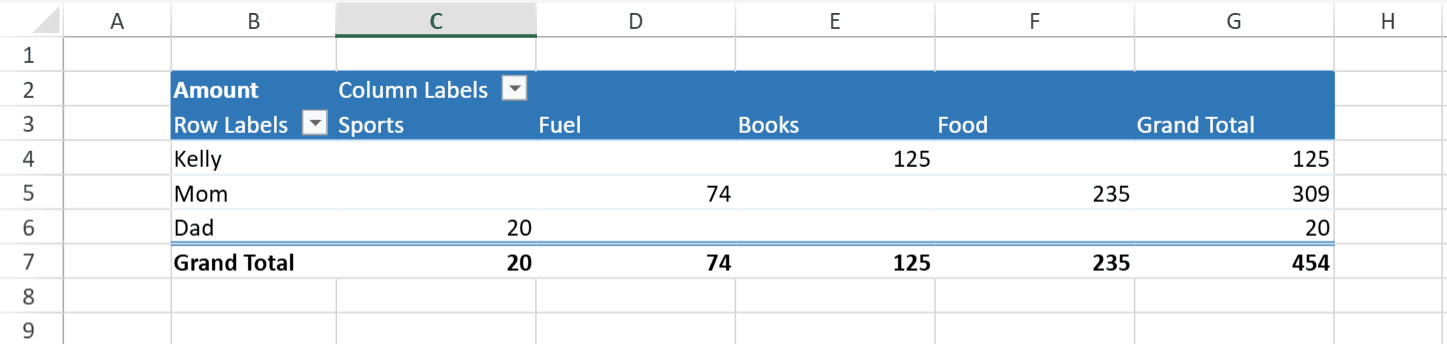

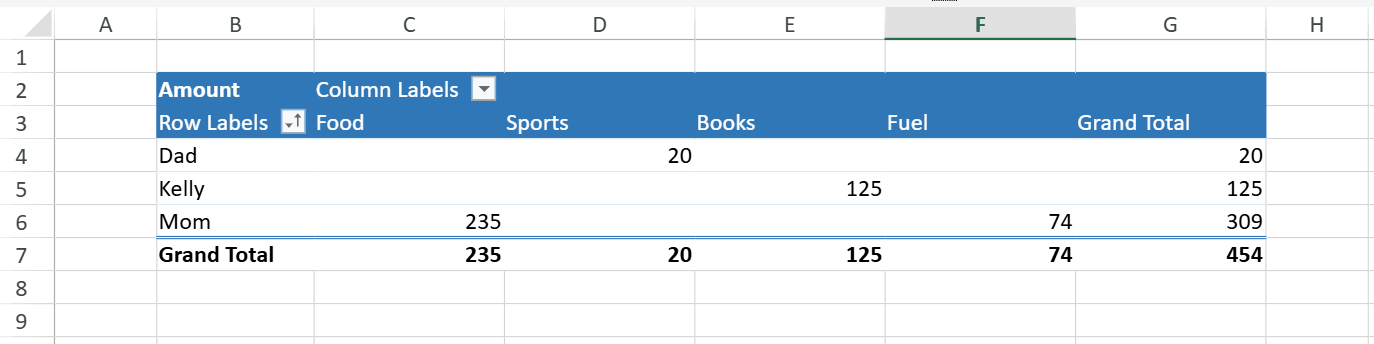

The Drag‑and‑Drop feature in the Designer allows you to rearrange PivotTable fields directly within the table by simply dragging and dropping them.

This functionality provides an intuitive and efficient way to customize the PivotTable layout without relying on dialogs or menus.

Supported Areas

Drag‑and‑drop is supported for both Column Pivot Fields and Row Pivot Fields, following the same basic interaction pattern.

Selection Modes

How to Drag and Drop

1. Start a drag operation

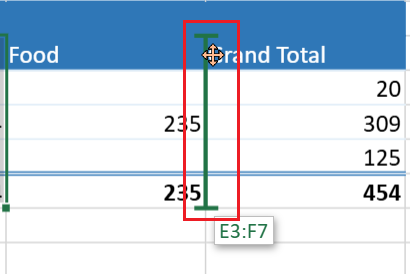

• Move the cursor to the border of a selected Pivot Field.

• When the cursor changes to a move icon, press and hold the mouse button to begin dragging.

• A drag indicator appears to show the potential insertion position.

2. Move and position the field

• Column Fields:

  If the cursor moves beyond half the width of the target column, the indicator shows insertion on the right; otherwise, on the left.

• Row Fields:

  If the cursor moves beyond half the height of the target row, the indicator shows insertion below; otherwise, above.

• Parent Fields:

  When dragging a parent Pivot Field, child fields are automatically skipped to maintain structural integrity.

3. Drop the field

• Release the mouse button to insert the selected Pivot Field(s) into the new position.

Unsupported Cases

Drag‑and‑drop is not supported in the following situations:

• Dragging after selecting an entire worksheet column or row.

• Attempting to drag multiple identical sub‑Pivot Fields under different parent fields.

Design Notes and Restrictions

Sorting Precedence and Interaction

Automatic sorting (autoSortState = true) has higher priority than the shared custom list, ensuring consistent order for dynamically changing datasets.

When auto‑sort is active, PivotTableManager.customList is ignored. The shared list takes effect only when autoSort is off and sortType is asc or desc.

Scope and Persistence

The worksheet‑shared customList does not propagate across workbooks. It is not automatically written to Workbook.options.customList, nor included during Excel import/export. This prevents unintended order carry‑over when multiple PivotTables coexist.

Behavior of Custom Sort Lists

customSortList uses case‑insensitive matching.

• If the list covers all field items → the list defines the complete order.

• If partial → listed elements appear first (for ascending) or last (for descending, reversed), and non‑listed items remain in original relative order.

  These lists affect only fields in ascending/descending modes, and only when auto‑sort is disabled.

Value‑Based Sorting Integration

When a field is sorted by value (sortValueFieldName specified), the label order in getItemsByField(sorted=true) reflects the internal label order determined by the latest label‑based sort. This keeps display order consistent across value‑driven updates.

Failure Recovery

If a customSortCallback throws an error or produces inconsistent comparisons, the pivot falls back to label order to maintain predictable sorting and UI stability.
