Selection Modes
By default, FlexGrid allows you to select a range of cells with the mouse or keyboard, similar to Excel. The SelectionMode property allows you to change that so that you can select a row, range of rows, multiple ranges, non-contiguous rows (like in a List-Box), single cell, range of cells or disable selection altogether.
To specify the selection behavior in FlexGrid, set the SelectionMode to:
- Cell: The SelectionMode when set to
Cell, lets a user select only a single cell at a time. - CellRange: The SelectionMode when set to
CellRange, lets a user select contiguous blocks of cells. - ListBox: The SelectionMode when set to
ListBox, lets a user select non-contiguous rows. - None: The SelectionMode when set to
None, doesn't allow user to select cells with the mouse or keyboard. - Row: The SelectionMode when set to
Row, lets a user select a single row at a time. - RowRange: The SelectionMode when set to
RowRange, lets a user select contiguous rows. - MultiRange: The SelectionMode when set to
MultiRange, lets a user select multiple ranges by dragging the mouse or pressing Ctrl key along with mouse click.

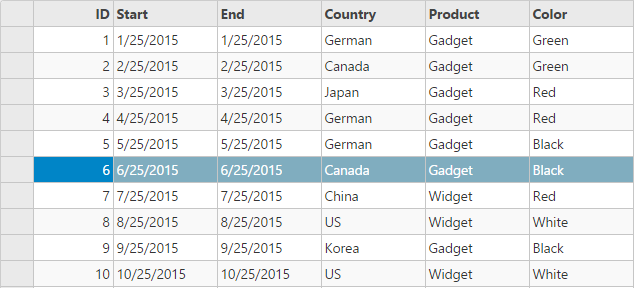

The following image shows how the FlexGrid appears on setting SelectionMode to Row. The example uses Sale.cs model added in the QuickStart section.
The following code examples demonstrate how to set the selection mode in FlexGrid.
In Code
SelectionMode.cshtml
.SelectionMode(C1.Web.Mvc.Grid.SelectionMode.Row)
