Detail Row

FlexGrid provides support for detail row functionality, which adds a templated, expandable row to the control. You can add details section to any row in FlexGrid, which enables you to group data in a template that will be visible optionally. This allows end users to view additional data related to a row by simply selecting the row.

Built-in expand/collapse buttons are also provided to control the visibility of data within the expandable row. You can add nested grid within a Detail Row to create a hierarchical grid interface.

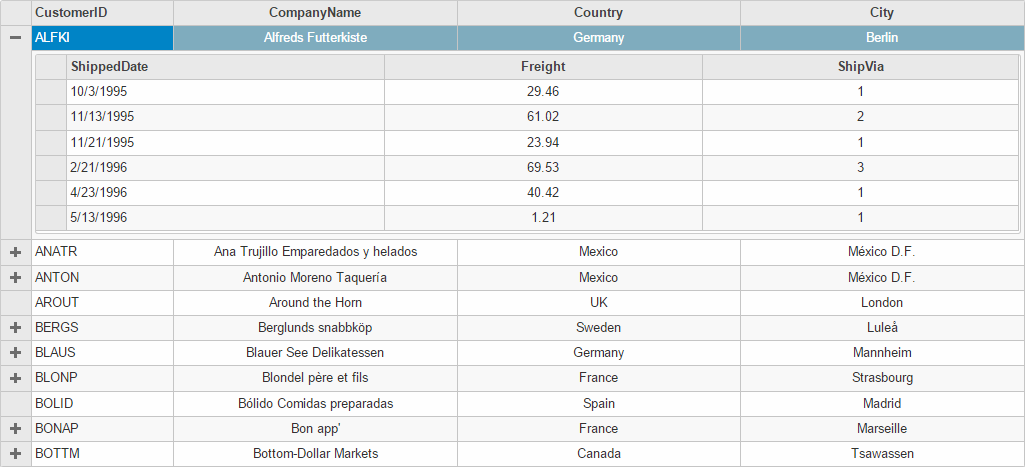

The following image shows how a FlexGrid with Detail Row appears. The example uses Customer data from local NorthWind database file C1NWind.mdf.

The following code examples demonstrate how to enable Detail Row in a FlexGrid:

DetailRowController.cs

public partial class FlexGridController : Controller
{
    public ActionResult DetailRow()
    {
        var customers = db.Customers.Take(10).ToList();
        var model = customers.Select(c => new CustomerWithOrders
        {
            CustomerID = c.CustomerID,
            CompanyName = c.CompanyName,
            Country = c.Country,
            City = c.City,
            Orders = (db.Orders.Where(o => o.CustomerID == c.CustomerID).ToList())
        });
        return View(model);
    }
}

DetailRow.cshtml

@model IEnumerable<CustomerWithOrders>
<script>
    function hasDetail(row) {
        return row.dataItem.Country.length > 5;
    }
</script>
<script id="detailTemplate" type="text/template">
    @(Html.C1().FlexGrid()
        .Height("200px")
        .AutoGenerateColumns(false)
        .IsReadOnly(true)
        .TemplateBind("ItemsSource", "Orders")
        .Columns(columns =>
        {
            columns.Add(column => column.Binding("ShippedDate").Width("*"));
            columns.Add(column => column.Binding("Freight").Width("*").Align("Center"));
            columns.Add(column => column.Binding("ShipVia").Width("*").Align("Center"));
        })
        .ToTemplate()
    )
</script>
@(Html.C1().FlexGrid()
    .ShowDetailRow(d => d.DetailRowTemplateId("detailTemplate").RowHasDetail("hasDetail").DetailVisibilityMode(C1.Web.Mvc.Grid.DetailVisibilityMode.ExpandMulti))
    .Id("detailRowFlexGrid")
    .AutoGenerateColumns(false)
    .IsReadOnly(true)
    .Bind(Model)
    .Columns(columns =>
    {
        columns.Add(column => column.Binding("CustomerID").Width("*"));
        columns.Add(column => column.Binding("CompanyName").Width("2*").Align("Center"));
        columns.Add(column => column.Binding("Country").Width("2*").Align("Center"));
        columns.Add(column => column.Binding("City").Width("2*").Align("Center"));
    })
)

Note that public class CustomerWithOrders inherits Customer class, and can be defined in the model named CustomerWithOrders, as shown below:

public class CustomerWithOrders : Customer
{
    public List<Order> Orders { get; set; }
}
