Annotation Editor

The Annotation editor in DsPdfViewer allows you to edit and review PDF documents. You can add or remove different types of annotations, comment or reply on comments and set or modify annotation properties like text, color, position, border, style etc. Along with the Annotation editor's toolbar, you can access all the annotations and various other options through the main toolbar. It provides editing tools which allow you to quickly perform edit operations without the need of switching into full editing mode.

The editing tools displayed in the below screenshots provide the annotation options along with 'Undo, Redo and Delete' and Redact options in the quick editing toolbars.

Text Tools

On clicking the Text tools button, the quick editing toolbar appears which displays various related text annotation tools like sticky note, free text, ink annotation etc.

Draw Tools

On clicking the Draw tools button, the quick editing toolbar appears which displays various draw annotation tools like square, circle, line annotation etc.

Attachments and Stamps

On clicking the Attachments and stamps button, the quick editing editor toolbar appears which displays various attachment and stamp tools like stamp annotation, file attachment , signature tool etc. Stamp annotation also supports rotation through Rotate property or the rotation handle attached to the annotation. For more information, see "Stamp Rotation".

Page Tools

On clicking the Page Tools button, the quick editing editor toolbar appears, which displays various page related options like adding a new blank document, inserting a blank page, deleting the current page, performing undo or redo operations, and reordering or reorganizing the pages. For more information about PDF Organizer, see PDF Organizer.

The Form tools button in the above toolbar provides various form field buttons. To know more, refer Form Editor.

!type=note

Note: The editing tools (explained above) are automatically enabled in the main toolbar when SupportApi is configured in the project (which allows editing operations in a PDF document).

You can also configure which tools should be displayed in the second toolbar by using the secondToolbarLayout property as shown below:

const secondToolbarLayout = viewer.secondToolbarLayout;
secondToolbarLayout["text-tools"] = ['edit-text', 'edit-free-text'];

The output of above code will look like below:

You can also customize the second toolbar by using the render handler for secondToolbar option:

var React = viewer.getType("React");
// Create custom toolbar controls:
var toolbarControls = [React.createElement("label", { style: { color: "white" } }, "Custom toolbar"),
React.createElement("button", { className: "gc-btn gc-btn--accent", onClick: () => { alert("Execute action."); }, title: "Action title" }, "Action")];
// Register custom second toolbar for key "custom-toolbar-key":
viewer.options.secondToolbar = {
    render: function (toolbarKey) {
        if (toolbarKey === "custom-toolbar-key")
            return toolbarControls;
        return null;
    }
};
// Show custom second toolbar:
viewer.showSecondToolbar("custom-toolbar-key");

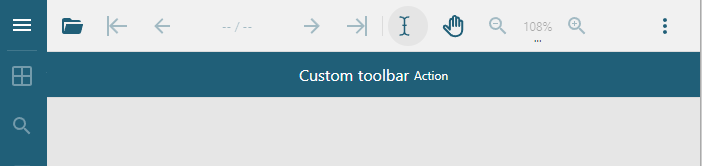

The output of above code will look like below:

Alternatively, you can access all the available annotations through the Annotation editor's toolbar which opens on clicking the Annotation editor button in the side panel. The below image shows Annotation editor and its toolbar in DsPdfViewer with a PDF document containing a Text annotation.

The different toolbar buttons are described as below. To know more about different annotations, refer Annotation Types.

!type=note

Note: All the above mentioned annotations are supported in DsPdfViewer. The below annotations are explained in detail in following topics:

• Redact Annotation

• Stamp Annotation

• Link Annotation

• RichMedia Annotation

Apart from the different types of annotations described above, DsPdfViewer also provides some general editing features while working with PDF documents. They are explained as below:

!type=note

Note: There is a difference in how the Highlight annotation looks in DsPdfViewer and in Adobe Acrobat reader.

You can also insert a blank page in a PDF document and set its size by using the newPage method. Alternatively, you can only set the size of an existing page using setPageSize method as shown below:

viewer.open("AcmeFinancialReport.pdf");
viewer.onAfterOpen.register(()=>
    {
      //Add new page at second position and set its size
      viewer.newPage({height:400, pageIndex:1, width:300});
      //Set page size for the first page
      viewer.setPageSize(0, { width: 300, height: 500 });
    });

Mark Text Menu

The Mark Text Menu appears as a sub-menu when clicking on the Mark Text option available in the viewer’s context menu. This menu allows you to distinguish selected text by applying the following annotations in six different colors by default:

When applying an annotation to the selected text using this menu, a comment corresponding to the annotation gets added to the Comment Panel, which activates the Comment Panel, focusing on the new comment in the list. This comment can then be used to provide additional information about the marked text. For more information, refer to Comment Panel.

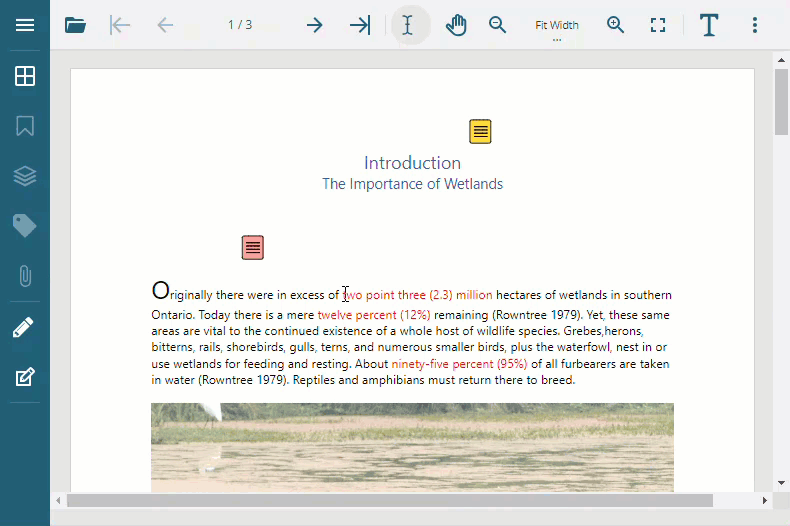

Refer to the following GIF image that depicts the described behavior:

You can also access these markup annotations through Text tool options on the quick editing toolbar of the PDF viewer as well as from Annotation Editor.

DsPdfViewer lets you disable the Mark Text Menu by setting the textMarkupContextMenu property to false. You can also change colors available for these annotations.

Refer to the following example code to disable the Mark Text Menu:

// Disable the Mark Text Menu.
var viewer = new DsPdfViewer(selector, {textMarkupContextMenu: false});

Refer to the following example code to change the default color options available to red and black:

// Change the default text markup colors to “Red” and “Black”.
var viewer = new DsPdfViewer(selector, {
textMarkupContextMenu: { colors: [{value: "#ff0000", displayName: "Red"}, {value: "#000000", displayName: "Black"}] } });

Refer to the following example code to change the default color options available for different text markup types in the Mark Text Menu:

// Customize available colors for different text markup types in Mark Text Menu.
var viewer = new DsPdfViewer(selector, {
    textMarkupContextMenu: {
      colors: {
          highlight: [
              {value: "#ff0000", displayName: "Red"},
              {value: "#000000", displayName: "Black"}
          ],
          underline: [
              {value: "#ff0000", displayName: "Red"}
          ]
      }
    }
  });

Limitation: Appearance of Highlight annotation in DsPdfViewer is slightly different from that in Adobe Acrobat Reader.

Property Panel of Annotation Editor

When you click the Annotation editor icon in the left vertical panel, the Property panel of the Annotation editor becomes visible. The Property panel displays the list of all the annotations page-wise in your document. It also allows you to set or modify properties of any annotation in the document like its text, color, border location etc.

The Property panel also provides the following three options, which are commonly available for all annotations:

• Delete: Deletes the annotation.

• Clone: Creates and adds a clone of the annotation to the document.

• Convert: Converts the annotation to PDF content, and a revert button starts appearing in the panel to revert it back to annotation. For more information, see Convert to Content.

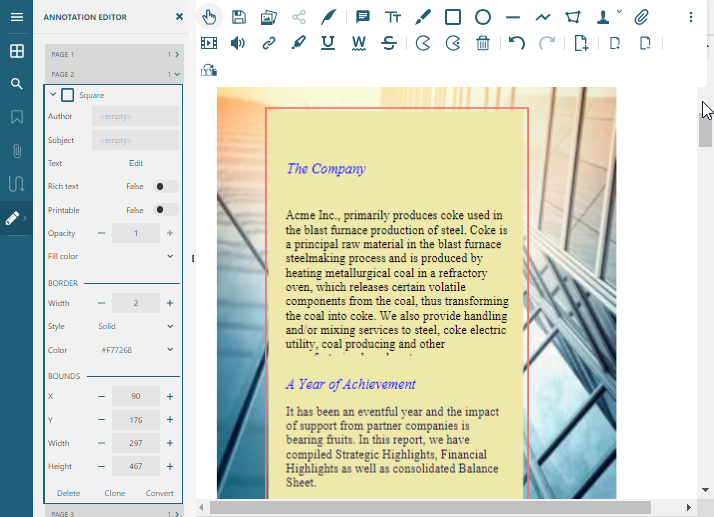

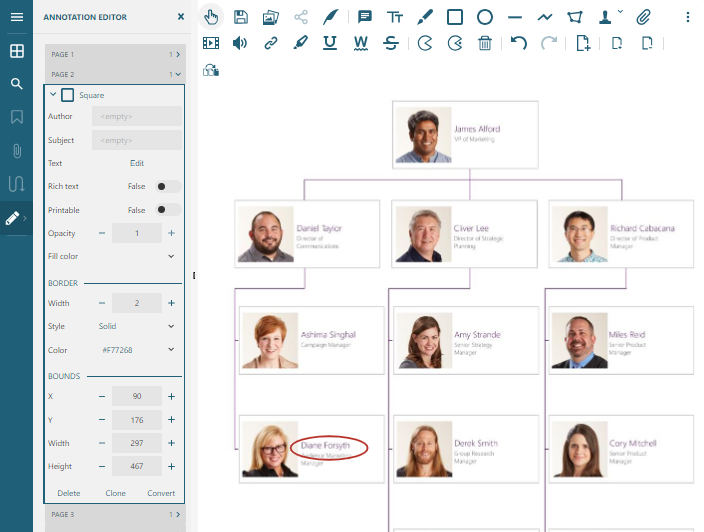

The image below shows the properties of a square annotation in the Property panel:

The following table lists common properties of the annotations:

Enable Annotation Editor in DsPdfViewer

The Annotation editor is displayed by default in DsPdfViewer, by enabling the AnnotationEditorPanel in the viewer using code:

<script>
    var viewer = new DsPdfViewer("#host", { supportApi: 'SupportApi/DsPdfViewer' });
    viewer.addDefaultPanels();
    viewer.addAnnotationEditorPanel();
    viewer.beforeUnloadConfirmation = true;
    viewer.open("Home/GetPdf");
</script>

To customize the annotation options in DsPdfViewer, add the following lines of code in the class file where you load the PDF in the Viewer:

public static DsPdfViewerSupportApiDemo.Models.PdfViewerOptions PdfViewerOptions
{
        get => new DsPdfViewerSupportApiDemo.Models.PdfViewerOptions(
        DsPdfViewerSupportApiDemo.Models.PdfViewerOptions.Options.AnnotationEditorPanel |
        DsPdfViewerSupportApiDemo.Models.PdfViewerOptions.Options.ActivateAnnotationEditor,
        annotationEditorTools: new string[] { "edit-select", "$split", "edit-text", "edit-free-text", "$split", "edit-erase", "$split", "edit-redact", "edit-redact-apply", "$split", "edit-undo", "edit-redo", "save" });
}

Review PDF document using Annotation editor

Follow the below steps to review a PDF document using the annotation editor in DsPdfViewer:

1. Configure the DsPdfViewer for editing PDF documents.

2. Run the application and open the PDF you want to review using the Open button.

3. Open the Annotation Editor using the second last icon on the left vertical toolbar.

4. Choose any annotation from the different annotations available in the toolbar at the top.

5. Use that annotation to mark a correction in your document.

6. Set annotation properties from the Property panel like color, border etc.

7. Add a Text annotation and type the final review text.

8. Close the Annotation editor and go back to View mode.

The annotations are successfully added annotations to the document. You can also view the list of all the annotations in the property panel of Annotation Editor.

For more information, refer Annotation Editor in DsPdfViewer demos.
