Filter

The Filter property ('F') allows you to set the type of filtering within the template. This property provides two types of filtering options: Conditional and Slice filters. You can use these filter options individually or in combination to filter data from the table. This property can filter data from single or multiple tables for report generation.

DsExcel supports Filter property only with regular data sources, such as System.Data.DataTable or ITableDataSource.

Conditional Filter

Conditional Filter filters the data using operators and keywords such as AND, OR, NOT, LIKE, REGEX, and NULL. LIKE and REGEX keywords, as well as comparison operators, have the highest precedence and are evaluated first. For the remaining keywords, the priority is: NOT > AND > OR. Furthermore, using paired parentheses allows customization of the order of operations for these operators and keyword evaluations.

Value: Expression

F/Filter = (field1 > 1 AND field2 = 2 OR field3 <> 3)

The following table lists the operators, keywords and functions that Conditional Filter supports:

Example 1: Filter using Operator

{{order.oid(F = (order.count > 10))}}

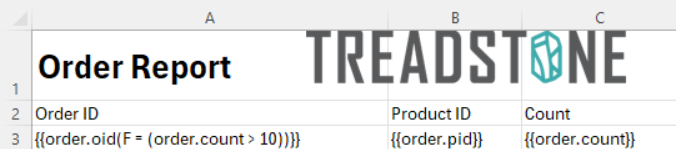

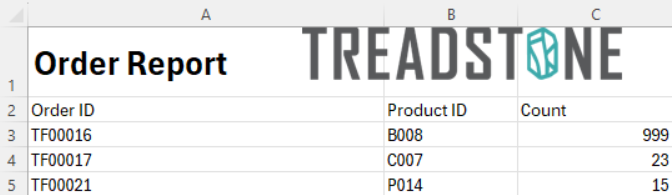

The below images show how the template generates a report by filtering orders whose sales count is greater than 10. You can also download the Excel template layout used in the below example.

You can also view the demo to learn more about Fitler using Operator.

Example 2: Filter using Keyword.

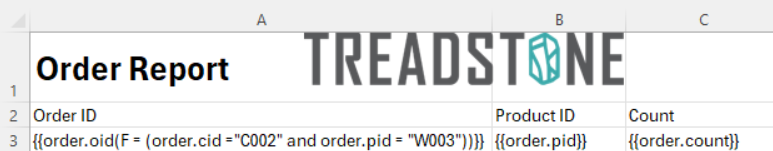

{{order.oid(F = (order.cid ="C002" and order.pid = "W003"))}}

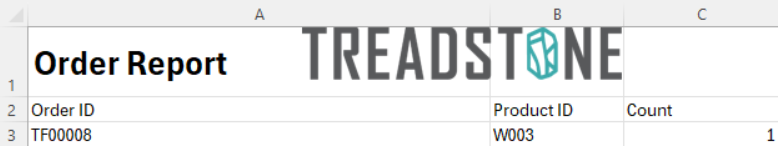

The below images show how the template generates a report by filtering orders where Customer ID is "C002" and Product ID is "W003." You can also download the Excel template layout used in the below example.

You can also view the demo to learn more about Fitler using AND Keyword.

Example 3: Simple Multi-Source Report

{{product.name(F=(product.pid = order.pid))}}

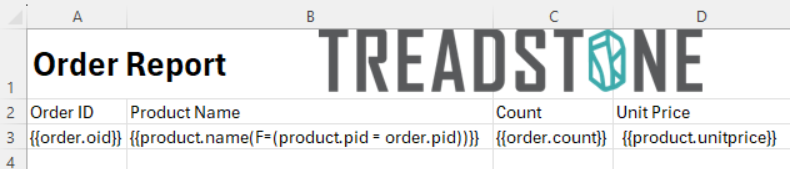

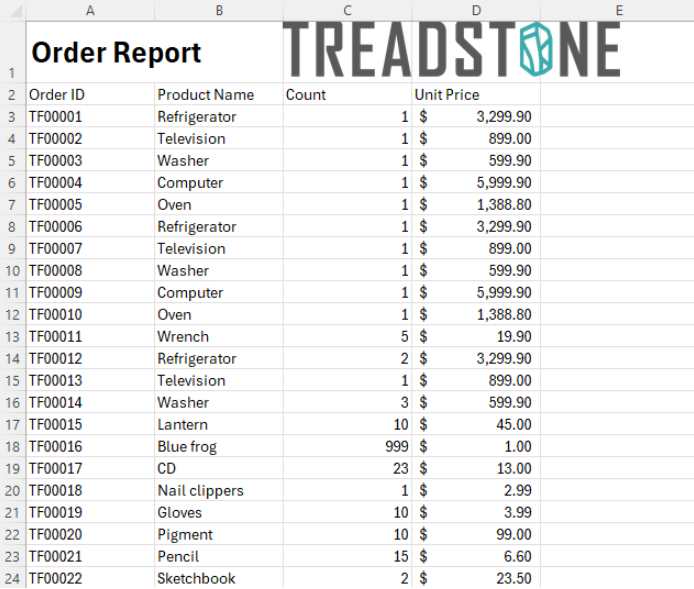

The below images show how the template generates a report by filtering Product Name using product IDs from different data tables. You can also download the Excel template layout used in the below example.

You can also view the demo to learn more about Simple Multi-Source Report.

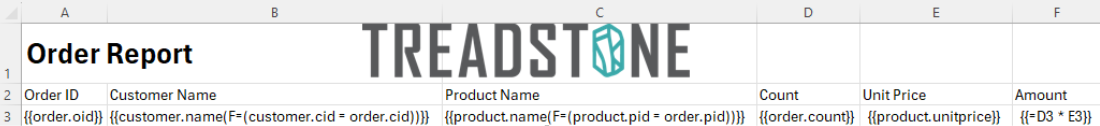

Example 4: Complex Multi-Source Report

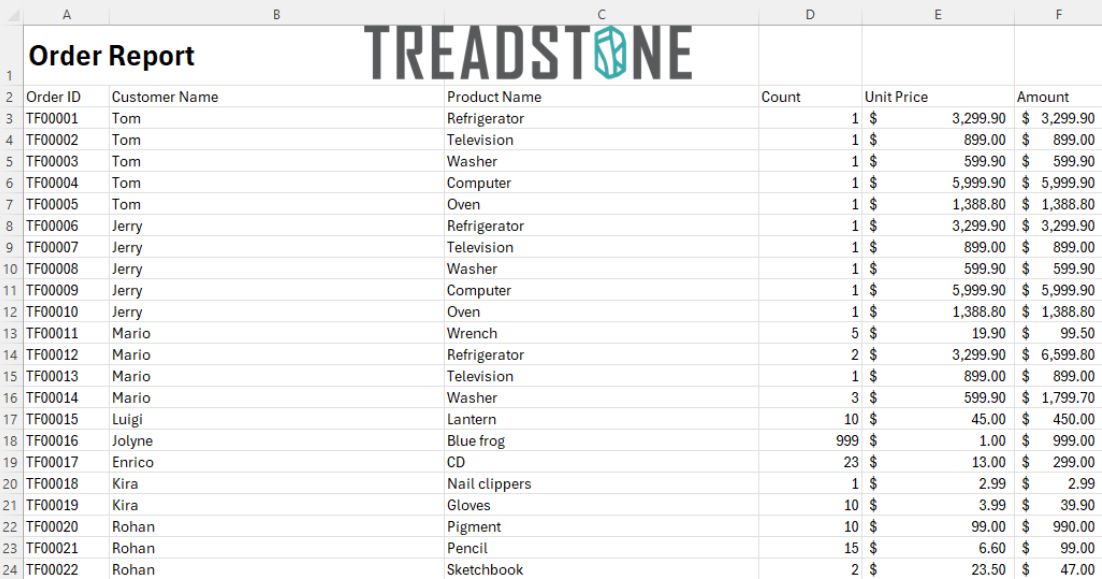

The below images show how the template generates a report by filtering Customer and Product names using customer and product IDs from different data tables. You can also download the Excel template layout used in the below example.

You can also view the demo to learn more about Complex Multi-Source Report.

Slice Filter

Slice Filter filters the data by taking data from one given index to another given index.

Value: Array

F/Filter = [start:stop:step]

The start refers to the index from which the filter will begin, whereas the stop refers to the end of the filter. You can also define a step that allows you to provide an interval between the indexes.

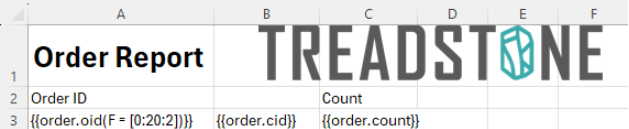

Example: Slice Filter

{{order.oid(F = [0:20:2])}}

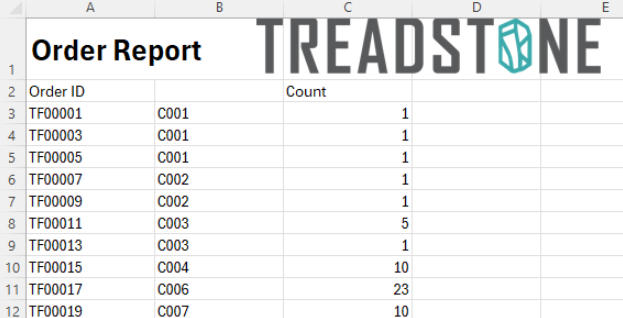

The below images show how the template generates a report by filtering first twenty odd orders. You can also download the Excel template layout used in the below example.

You can also view the demo to learn more about Slice Fitler.

Example: Slice Filter Reverse Operation

{{order.oid(F = [20:0:-2])}}

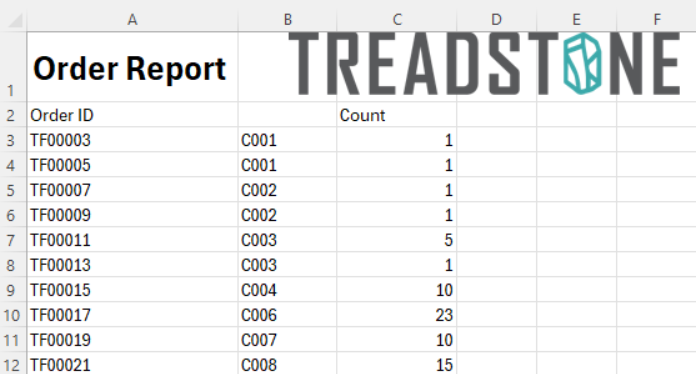

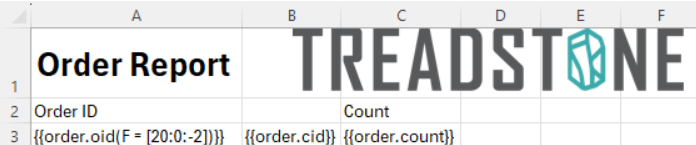

The below images show how the template generates a report by filtering the last twenty orders from index 20. You can also download the Excel template layout used in the below example.

Combined Filter

You can use both the Conditional and Slice filters in combination to generate a report.

Example: Combined Filter

{{order.oid(F = (order.oid like "*1?")[0:5])}}

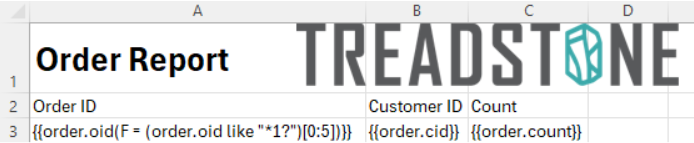

The below images show how the template generates a report by first filtering the order ID that matches the expression "*1?" and then selecting the first five records from the filtered results. You can also download the Excel template layout used in the below example.

You can also view the demo to learn more about Combined Filter.

Filter NULL Values

DsExcel .NET template filters support the NULL keyword to filter records based on whether a field value is NULL or non-null.

Syntax:

• Use = NULL to return records whose field value is NULL.

  {{employee.name(F=(employee.department = NULL))}}

• Use <> NULL to return records whose field value is not NULL.

  {{employee.name(F=(employee.department <> NULL))}}

NULL Matching Rules

The following table shows how DsExcel .NET evaluates NULL conditions in template filters:

When implementing a custom ITableDataSource, ensure the GetValue() method returns DBNull.Value  or native null  for missing data. Only these values are recognized as NULL by the template filter engine. Other sentinel values—such as empty strings(""), the string "null", or any custom placeholder object are not be matched by the = NULL filter. This behavior is consistent with SQL semantics.

Combining NULL Filters

You can combine NULL filters with other filter conditions using logical operators:

Using NOT(The following two expressions are equivalent):

• {{ds1.name(F=(NOT ds1.name = NULL))}}

• {{ds1.name(F=(ds1.name <> NULL))}}

Using AND / OR:

• {{ds1.name(F=(ds1.name <> NULL AND ds1.age > 18))}}

• {{ds1.name(F=(ds1.name = NULL OR ds1.salary < 50000))}}

Examples

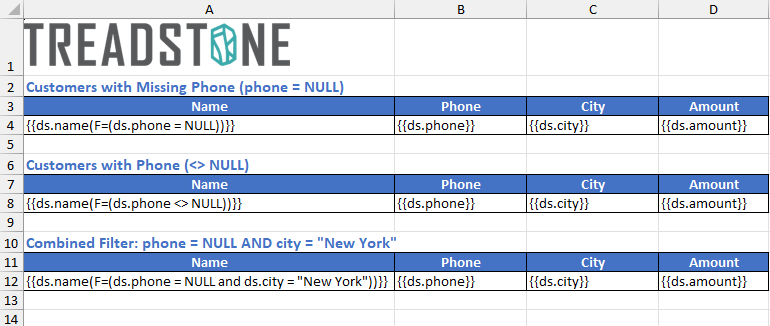

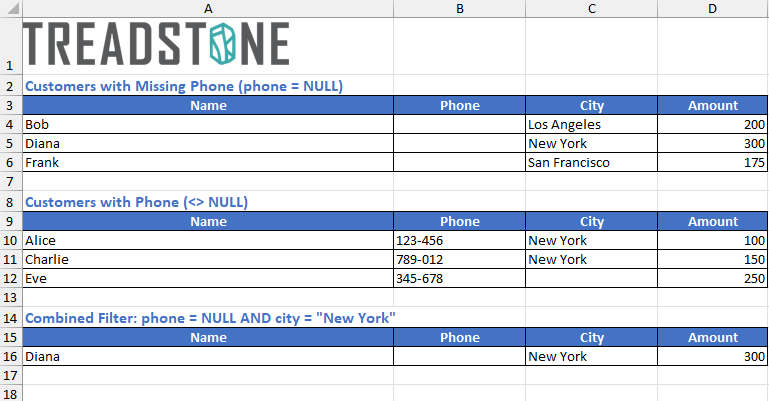

The below images show how to filter NULL values in the template. You can also download the FilterNullKeywordTemplate used in the below example.

You can also view the demo to learn more about filtering NULL values.

Filter Values with REGEX

The DsExcel .NET template filter supports the REGEX keyword for regular expression matching.

Syntax

{{ds1.name(F=(ds1.name REGEX "pattern"))}}

REGEX Matching Rules

• Invalid regex patterns will cause a template processing exception.

• Pattern matching uses the platform’s native regex engine (.NET System.Text.RegularExpressions). All regex behaviors, including case sensitivity, follow the platform’s default rules.

• It is recommended to use REGEX only with string types in the data source. Other types will be converted to strings using their toString method, which is generally not recommended. Use the appropriate operators or DATETIME functions for numbers or dates.

Combining REGEX Filters

REGEX can be combined with NOT, AND, OR, and parentheses. For example:

• {{ds1.name(F=(NOT ds1.name REGEX "pattern"))}}

• {{ds1.name(F=(ds1.name REGEX "^A" AND ds1.age > 18))}}

REGEX Pattern Syntax and Escaping

• The regex pattern itself should be written using standard regular expression syntax supported by the target platform's native regex engine.

• When using a template expression as a string literal in source code, follow the string escaping rules of your programming language. For example, the regex pattern for one or more digits is \d+.

  • When writing directly in a template expression: {{product.pid(F=(product.name REGEX "\d+"))}}.

  • When writing in source code, escape backslashes and quotes as required: "{{product.pid(F=(product.name REGEX \"\\d+\"))}}".

• To prevent ambiguity during lexical analysis, double quotes inside a regex string must be escaped as \". If the template expression is inside a programming language string literal, follow that language's escaping rules as well. For example, in C#, \" should be written as \\\".

Examples

• Filter products with names starting with "Laptop":

  {{product.pid(F=(product.name REGEX "^Laptop"))}}

• Filter products whose SKU matches a year pattern (2024):

  {{product.pid(F=(product.sku REGEX "2024-\d{3}"))}}

• Combine REGEX with other conditions:

  {{product.pid(F=(product.name REGEX "^(Laptop|Phone)" AND NOT product.sku REGEX "2023"))}}

• Full-string match using anchors:

  {{product.pid(F=(product.name REGEX "^Laptop Pro 15$"))}}

• Case-insensitive matching using inline flag:

  {{product.pid(F=(product.name REGEX "(?i)laptop"))}}

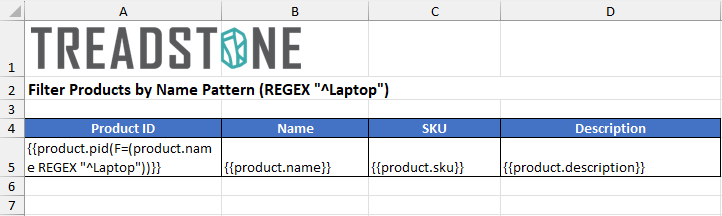

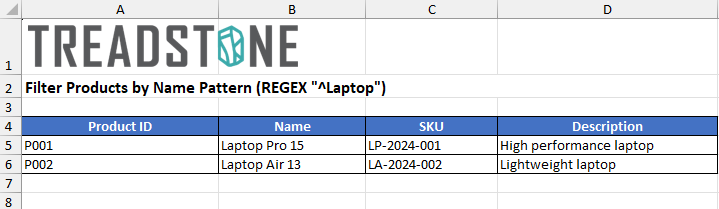

The below images show how the template generates a report by filtering products whose names begin with "Laptop". You can also download the FilterRegexTemplate.xlsx used in the below example.

You can also view the demo to learn more about Fitler using REGEX Keyword.

Filter Date and Time Values

Template filters support date and time comparison through the DATETIME function. You can use DATETIME function in a template conditional filter to write date-based conditions, without needing to preprocess data in your application code.

Syntax

DATETIME("dateTimeString")

Arguments

Comparison Rules

• The template engine performs literal value comparison. It compares the date/time component values (year, month, day, hour, minute, second, millisecond) directly, without any timezone conversion. Comparison is performed internally by the engine using a deterministic component-by-component comparison

• For timezone-aware data source types such as DateTimeOffset, ZonedDateTime, and OffsetDateTime, the timezone or offset information is ignored during comparison. Only the local date and time components are used.

• When using a time-only DATETIME function literal, such as DATETIME("09:15:00"), with a date+time data source value, only the time components are compared. For example, both 2024-06-15 09:15:00 and 2024-06-16 09:15:00 will match, as the time part is 09:15:00, while 2024-06-15 10:00:00 will not match.

• When using a date-only DATETIME function literal, such as DATETIME("2024-06-15"), with a date+time data source value, the time part of the literal defaults to 00:00:00.000. As a result, only a value like 2024-06-15 00:00:00 will match, while 2024-06-15 09:15:00  will not match.

Operator Behavior

All comparison operators perform standard value comparison. No implicit range matching is applied, as = means exact equality. For example, = DATETIME("2024-06-15") matches data source values that are exactly 2024-06-15 00:00:00.000. To match all records on a given day, use a range: >= DATETIME("2024-06-15") AND < DATETIME("2024-06-16").

Supported Data Types

The template engine provides built-in support for the following commonly used date and time types.

• System.DateTime

• System.DateTimeOffset

• System.DateOnly

• System.TimeOnly

• System.TimeSpan

Unsupported custom date/time types will result in a template processing exception.

NULL Interaction

The DATETIME function and datetime comparison do not interact with the NULL keyword. Applying a DATETIME comparison to a NULL field value does not match (returns false). To filter NULL date values, use = NULL or <> NULL directly.

Examples

• Exact date/time match:

  {{order.oid(F=(order.orderDate = DATETIME("2024-06-15 09:15:00")))}}

• Date range — all orders on June 15, 2024:

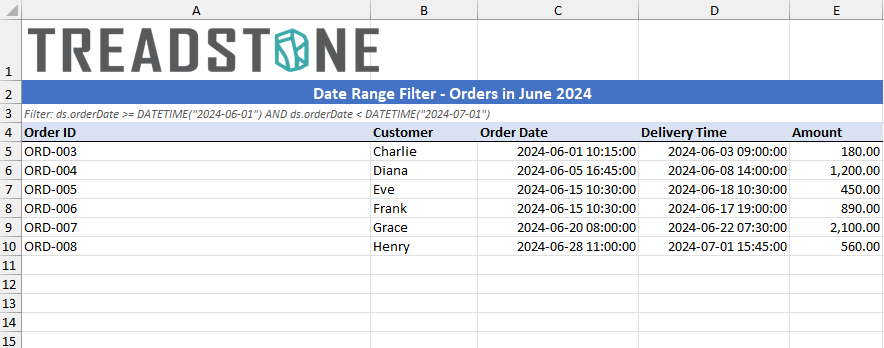

  {{order.oid(F=(order.orderDate >= DATETIME("2024-06-15") AND order.orderDate < DATETIME("2024-06-16")))}}

  {{order.oid(F=(order.orderDate >= DATETIME("2024-01-01") AND order.orderDate < DATETIME("2024-07-01")))}}

• ISO 8601 format:

  {{order.oid(F=(order.orderDate >= DATETIME("2024-06-15T00:00:00")))}}

• Excel-compatible formats:

  {{order.oid(F=(order.orderDate >= DATETIME("06/15/2024")))}}

  {{order.oid(F=(order.orderDate >= DATETIME("Jun 15, 2024")))}}

• Time only — orders at or after 8:00 AM:

  {{order.oid(F=(order.orderTime >= DATETIME("08:00")))}}

  {{order.oid(F=(order.orderTime >= DATETIME("09:00") AND order.orderTime < DATETIME("17:00")))}}

• Combined with other conditions:

  {{order.oid(F=(order.orderDate >= DATETIME("2024-01-01") AND order.amount > 500))}}

The below images show how to filter NULL values in the template. You can also download the DateTimeFilterTemplate used in the below example.

You can also view the demo to learn more about filtering date and time values.
