Hit Test

The HitTest method is used to determine X and Y coordinates, as well as the index of a point on the FlexChart where the user taps. This method is helpful in scenarios such as displaying tooltips that lies outside the series of the FlexChart.

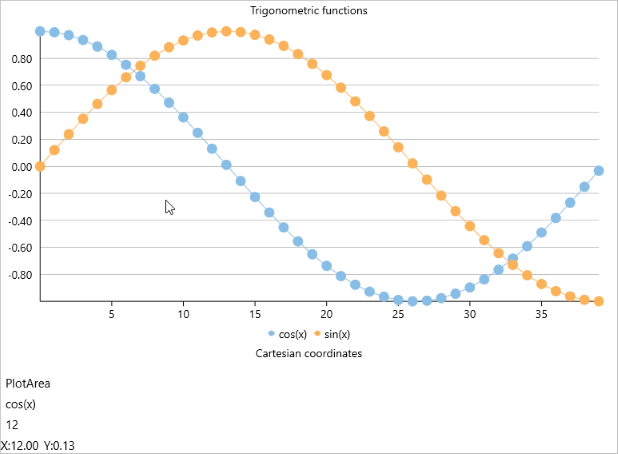

The following image shows a LineSymbol chart with the index of the tapped point on the chart.

The following code examples demonstrate how to define the chart_Tapped event. This event invokes the HitTest() method to retrieve the information of the tapped point in the FlexChart region and displays it in the chart footer.

1. Create a new Cross Platform App and open the MainPage.xaml page.

2. In the MainPage.xaml page, replace the existing code with following code.

   <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
                xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
                xmlns:c1="clr-namespace:C1.Xamarin.Forms.Chart;assembly=C1.Xamarin.Forms.Chart"
                xmlns:local="clr-namespace:Flexchart_HitTest"
                x:Class="Flexchart_HitTest.MainPage">
     <StackLayout>
       <Grid VerticalOptions="FillAndExpand">
         <c1:FlexChart x:Name="flexChart" Tapped="flexChart_Tapped"
                   Header="Trigonometric functions" Footer="Cartesian coordinates"
                   BindingX="X" ChartType="LineSymbols" LegendPosition="Bottom" >
           <c1:FlexChart.Series>
             <c1:ChartSeries x:Name="seriesCosX"  Binding="Y" SeriesName="cos(x)"  />
             <c1:ChartSeries x:Name="seriesSinX"  Binding="Y" SeriesName="sin(x)"  />
           </c1:FlexChart.Series>
         </c1:FlexChart>
       </Grid>
       <Grid>
         <Grid.RowDefinitions>
           <RowDefinition Height="Auto"/>
         </Grid.RowDefinitions>
         <StackLayout x:Name="stackHitTest" VerticalOptions="Fill">
           <StackLayout Orientation="Horizontal">
             <Label x:Name="lblChartElement" />
             <Label  Text="{Binding ChartElement}" />
           </StackLayout>
           <StackLayout x:Name="stackSeries">
             <StackLayout Orientation="Horizontal">
               <Label x:Name="lblSeriesName" />
               <Label  Text="{Binding Series.SeriesName}" />
             </StackLayout>
             <StackLayout x:Name="stackData">
               <StackLayout Orientation="Horizontal">
                 <Label x:Name="lblPointIdx" />
                 <Label  Text="{Binding PointIndex}" />
               </StackLayout>
               <StackLayout Orientation="Horizontal" >
                 <Label  Text="{Binding X, StringFormat='X:{0:F2}'}" />
                 <Label  Text="{Binding Y, StringFormat='Y:{0:F2}'}" />
               </StackLayout>
             </StackLayout>
           </StackLayout>
         </StackLayout>
       </Grid>
    </StackLayout>


3. Open the MainPage.xaml.cs page from the Solution Explorer and add the following code to implement HitTest functionality at runtime.

   public partial class HitTest : ContentPage
      {
          public HitTest()
          {
              InitializeComponent();
              int len = 40;
              List<Point> listCosTuple = new List<Point>();
              List<Point> listSinTuple = new List<Point>();
              for (int i = 0; i < len; i++)
              {
                  listCosTuple.Add(new Point(i, Math.Cos(0.12 * i)));
                  listSinTuple.Add(new Point(i, Math.Sin(0.12 * i)));
              }
              this.flexChart.AxisY.Format = "n2";
              this.seriesCosX.ItemsSource = listCosTuple;
              this.seriesSinX.ItemsSource = listSinTuple;
          }
          void flexChart_Tapped(object sender, C1.Xamarin.Forms.Core.C1TappedEventArgs e)
          {
              var hitTest = this.flexChart.HitTest(e.HitPoint);
              this.stackHitTest.BindingContext = hitTest;
              this.stackData.BindingContext = hitTest;
              this.stackSeries.IsVisible = hitTest != null && hitTest.Series != null;
              this.stackData.IsVisible = hitTest != null && hitTest.PointIndex != -1;
          }
      }
