Multiple Y Axes

You can add multiple axes to the FlexChart control and customize its properties. This feature allows you to add two series in a single FlexChart instance with same X axis but different Y axis. In order to further customize the appearance, users can choose to differentiate the two series by selecting different chart types.

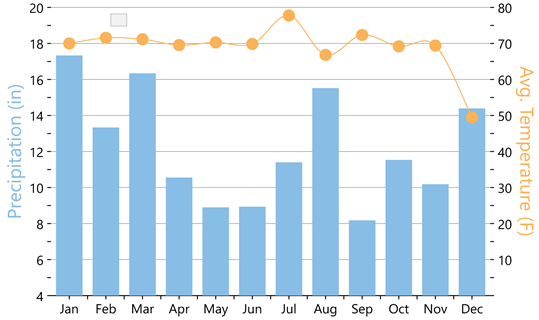

The image below shows a FlexChart control with a common X axis that displays months, and left and right Y axes that displays two different series for Temperature and Precipitation, respectively.

The following steps demonstrate how to add multiple Y axes in the FlexChart control.

1. Create a new Cross Platform App and open the MainPage.xaml page.

2. In the MainPage.xaml page, replace the existing code with the following to create a FlexChart control that displays two series elements, namely Precipitation and Temperature.

   <ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
                xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
                xmlns:c1="clr-namespace:C1.Xamarin.Forms.Chart;assembly=C1.Xamarin.Forms.Chart"
                x:Class="QuickstartChart.MultipleYAxes">
     <c1:FlexChart x:Name="flexChart" BindingX="MonthName">
       <c1:FlexChart.Series>
         <c1:ChartSeries Binding="Precipitation" SeriesName="Precip"/>
         <c1:ChartSeries Binding="Temp" ChartType="SplineSymbols" SeriesName="Avg. Temp">
           <c1:ChartSeries.AxisY>
             <c1:ChartAxis Position="Right" Min="0" Max="80" MajorUnit="10"
   Title="Avg.Temperature (F)" AxisLine="False" MajorGrid="False">
               <c1:ChartAxis.TitleStyle>
                 <c1:ChartStyle Stroke="#fbb258" FontSize="20"/>
               </c1:ChartAxis.TitleStyle>
             </c1:ChartAxis>
           </c1:ChartSeries.AxisY>
         </c1:ChartSeries>
       </c1:FlexChart.Series>
       <c1:FlexChart.AxisY>
         <c1:ChartAxis Min="4" Max="20" MajorUnit="2" MajorGrid="True"
   Title="Precipitation (in)" AxisLine="False">
           <c1:ChartAxis.TitleStyle>
             <c1:ChartStyle Stroke="#88bde6" FontSize="20"/>
           </c1:ChartAxis.TitleStyle>
         </c1:ChartAxis>
       </c1:FlexChart.AxisY>
     </c1:FlexChart>
   </ContentPage>


3. In the Solution Explorer, open MultipleYAxes.xaml.cs file. Add the following code to it that adds data to be displayed in the FlexChart control at run time.

   public partial class MultipleYAxes : ContentPage
      {
          public MultipleYAxes()
          {
              InitializeComponent();
              this.flexChart.ItemsSource = GetWeatherData();
              this.flexChart.LegendPosition = ChartPositionType.None;
          }
          public IEnumerable<WeatherData> GetWeatherData()
          {
              List<WeatherData> weatherData = new List<WeatherData>();
              string[] monthNames = new string[] { "Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec" };
              //double[] tempData = new double[] { 24, 30, 45, 58, 68, 75, 83, 80, 72, 62, 47, 32 };
               Random random = new Random();
              for (int i = 0; i < monthNames.Length; i++)
              {
                  WeatherData wd = new WeatherData();
                  wd.MonthName = monthNames[i];
                  wd.Precipitation = random.Next(8, 18) + random.NextDouble();
                  wd.Temp = Math.Tan(i * i) + 70;
                  weatherData.Add(wd);
              }
              return weatherData;
          }
      }
      public class WeatherData
      {
          public string MonthName { get; set; }
          public double Temp { get; set; }
          public double Precipitation { get; set; }
      }


4. Press F5 to run the project and view two Y axes against a common X axis.
