    Animation gives an edge to any application and enhances the user experience by bringing life to its otherwise static elements.

    FlexChart provides out of the box features to animate the charts. The AnimationSettings property of FlexChart class allows you to choose whether and where to show the animation. this property accepts the values from AnimationSettings enumeration and lets you set the animation to appear in case of chart load or update, axes load or update or in all situations. Variety of animation options help in making your charts dynamic and can be set using the AnimationLoad and AnimationUpdate properties. These properties are of AnimationLoadOptions and AnimationOptions type respectively and gives you access to the properties to set these options such as easing effects, duration, direction, type etc.

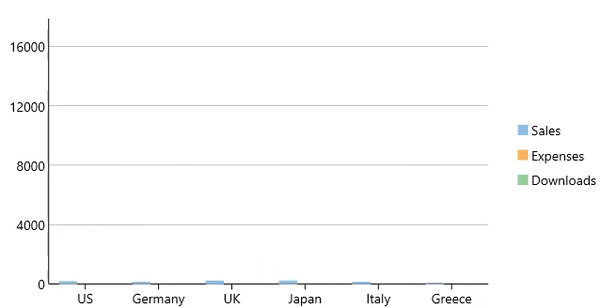

    Animated column charts

    // Apply animation to chart
    flexChart1.AnimationSettings = C1.Chart.AnimationSettings.Load;
    flexChart1.AnimationUpdate.Easing = C1.Chart.Easing.Linear;
    flexChart1.AnimationUpdate.Duration = 500;
    flexChart1.AnimationLoad.Type = C1.Chart.AnimationType.Series;
    ' Apply animation to chart
    flexChart1.AnimationSettings = C1.Chart.AnimationSettings.Load
    flexChart1.AnimationUpdate.Easing = C1.Chart.Easing.Linear
    flexChart1.AnimationUpdate.Duration = 500
    flexChart1.AnimationLoad.Type = C1.Chart.AnimationType.Series

    Animation in Pie Chart and Sunburst Chart

    In the case of a pie chart or sunburst chart, AnimationSettings property of the FlexPie class lets you set the animation on chart load, update or both. Just like FlexChart class, the FlexPie class also lets you set the AnimationLoad and AnimationUpdate properties to specify various animation options such as easing, duration, as well as the slice attributes through PieAnimationOptions class.

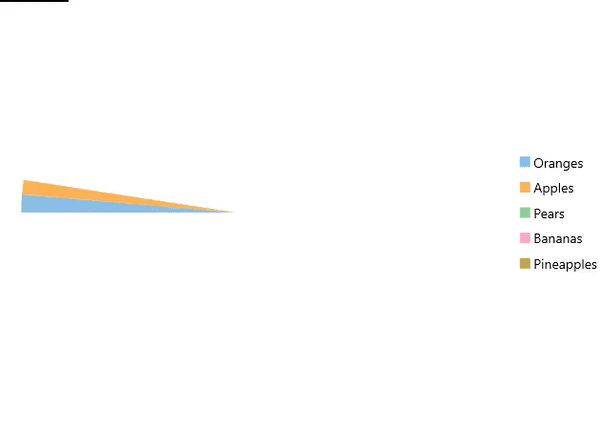

    Animated pie charts

    // Apply animation to pie chart
    flexPie1.AnimationSettings = C1.Chart.AnimationSettings.Load;
    flexPie1.AnimationUpdate.Easing = C1.Chart.Easing.Linear;
    flexPie1.AnimationUpdate.Duration = 500;
    flexPie1.AnimationLoad.Type = C1.Chart.AnimationType.Series;
    ' Apply animation to pie chart
    flexPie1.AnimationSettings = C1.Chart.AnimationSettings.Load
    flexPie1.AnimationUpdate.Easing = C1.Chart.Easing.Linear
    flexPie1.AnimationUpdate.Duration = 500
    flexPie1.AnimationLoad.Type = C1.Chart.AnimationType.Series
