Add ToolTips to Chart's Header and Footer

To add tooltips to the chart's header and footer, complete the following steps:

1. Add C1Chart to the Form.

2. Add the following directive to declare the C1.Win.C1Chart namepace:

   To write code in Visual Basic

   Imports C1.Win.C1Chart


   To write code in C#

   using C1.Win.C1Chart;


3. Add the following code in the Form_load procedure to add the tooltips to the header and footer:

   To write code in Visual Basic

   'Enable tooltip
   c1Chart1.ToolTip.Enabled = True
   c1Chart1.Header.TooltipText = "This is header tooltip." + ControlChars.Cr + ControlChars.Lf + "Second line."
   c1Chart1.Footer.TooltipText = "This is footer tooltip." + ControlChars.Cr + ControlChars.Lf + "Second line."


   To write code in C#

   //Enable tooltip
   c1Chart1.ToolTip.Enabled = true;
   c1Chart1.Header.TooltipText = "This is header tooltip.";
   c1Chart1.Footer.TooltipText = "This is first line of the footer ToolTip.\nThis is the second line of the footer ToolTip.";


This topic illustrates the following:

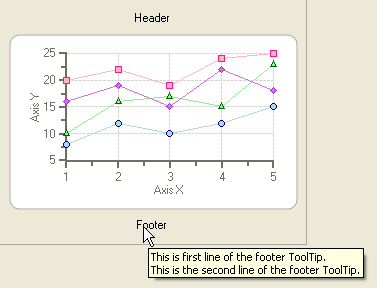

The ToolTips appear when you hover over Chart's Header or Footer at run-time, like the following:
