Pivot Table Style Options

A PivotTable style is composed of multiple table style elements, with each element defining the formatting for a specific part of the PivotTable. The supported element types are listed in the TableStyleElementType enumeration. The PivotTable object provides properties to configure style options according to the selected style.

Spread WinForms supports four key style options: Row Headers, Column Headers, Banded Rows, and Banded Columns. These settings control whether headers are displayed and whether alternating rows or columns are formatted with banded styles, based on the applied PivotTable style.

Apply Row Header Formatting

Spread WinForms provides the IPivotTable.ShowTableStyleRowHeaders property to apply the pivot table style to row headers. Enabling this option ensures that row headers are clearly highlighted according to the applied style.

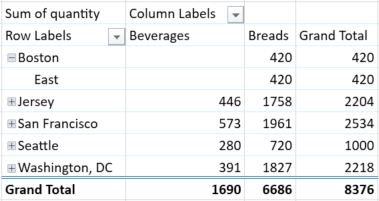

The following example demonstrates how to show row header formatting in the pivot table.

pvTable.ShowTableStyleRowHeaders = true;

pvTable.ShowTableStyleRowHeaders = True

Apply Column Header Formatting

You can use the IPivotTable.ShowTableStyleColumnHeaders property to apply the selected pivot table style to column headers. This enhances the visibility of column groupings and provides a more organized structure for the presented data.

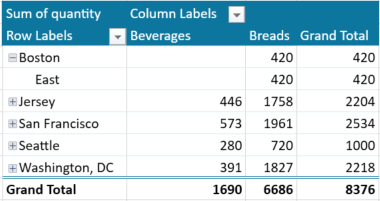

The following example demonstrates how to show column header formatting in the pivot table.

pvTable.ShowTableStyleColumnHeaders = true;

pvTable.ShowTableStyleColumnHeaders = True

Apply Banded Row Formatting

Banded rows use alternating background colors or styles to distinguish between adjacent rows. You can enable this option using the IPivotTable.ShowTableStyleRowStripes property.

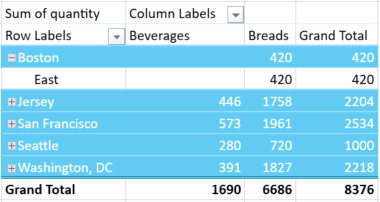

The following example demonstrates how to show banded row formatting in the pivot table.

pvTable.ShowTableStyleRowStripes = true;

pvTable.ShowTableStyleRowStripes = True

Apply Banded Column Formatting

Banded columns work similarly to banded rows, but apply alternating formatting to columns instead. Use the IPivotTable.ShowTableStyleColumnStripes property to enable this feature.

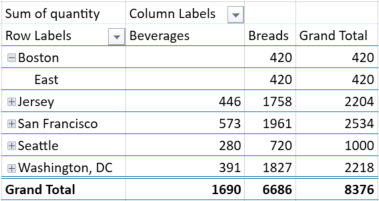

The following example demonstrates how to show banded column formatting in the pivot table.

pvTable.ShowTableStyleColumnStripes = true;

pvTable.ShowTableStyleColumnStripes = True
