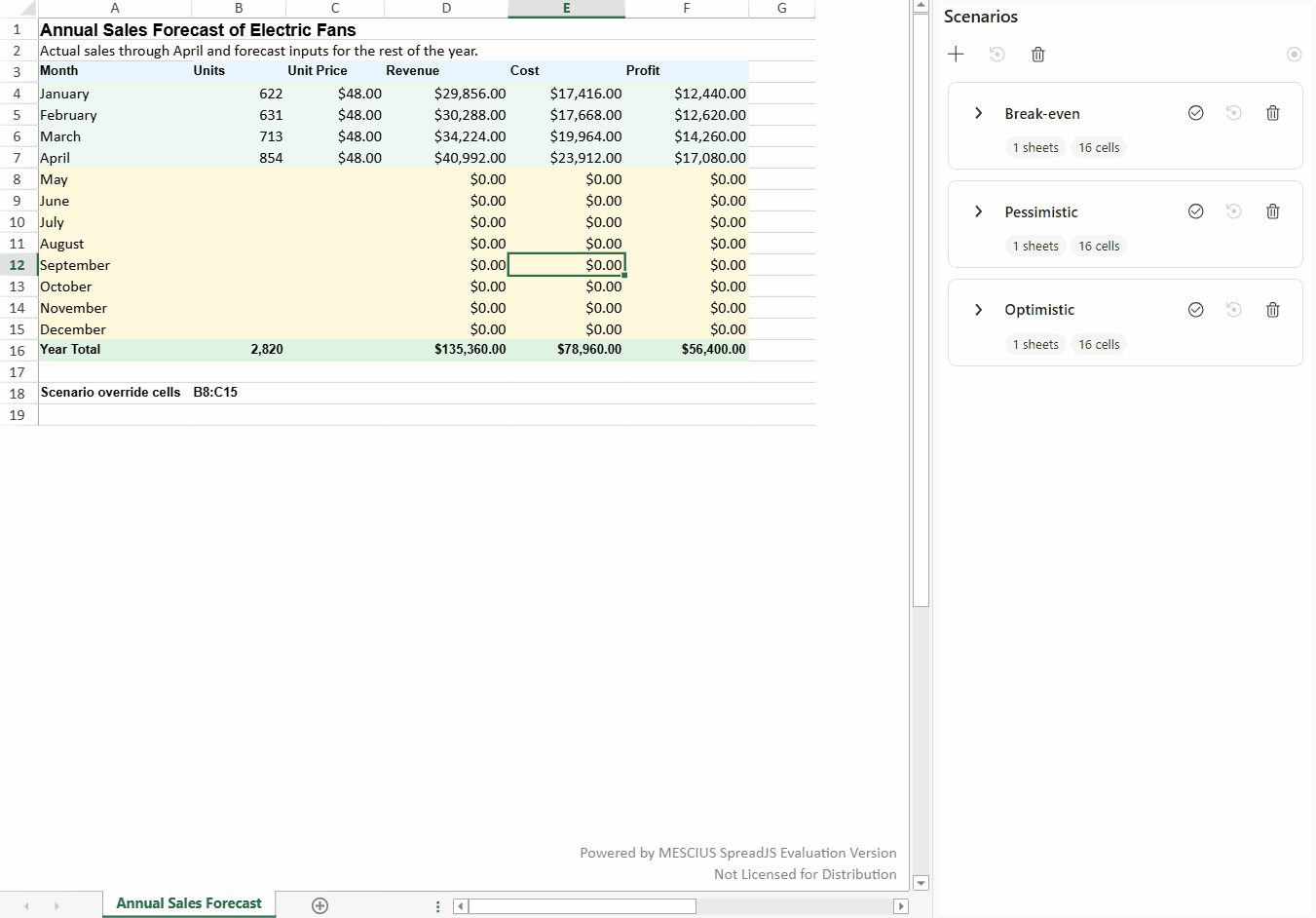

Scenario Manager

Scenario Analysis is a What-If Analysis feature that saves named sets of input values and applies them to a workbook to compare business outcomes.

A scenario contains values for one or more changing cells. When a scenario is applied, SpreadJS writes the stored values to the target cells and recalculates dependent formulas. This makes it easier to switch between assumptions such as optimistic, pessimistic, and break-even forecasts without manually editing each input cell.

Scenario Concepts

Scenario Analysis uses the following concepts:

Base values are captured automatically before scenario values overwrite target cells. They are used only for restoring affected cells and are not part of the user-authored scenario definition.

Programmatic Scenario Management

Use spread.scenarioManager to manage scenarios through code.

A typical scenario management workflow includes:

• Listing scenarios with all.

• Applying a scenario with apply.

• Restoring scenarios with restore.

• Activating scenario capture with setActiveScenario.

• Removing scenarios with remove.

Create and Update Scenarios

Use the workbook's scenarioManager to manage scenarios.

The recommended way to create or update a scenario is to activate scenario capture, edit cell values, and then deactivate scenario capture.

var spread = new GC.Spread.Sheets.Workbook(document.getElementById("ss"));
var sheet = spread.getActiveSheet();
var manager = spread.scenarioManager;

sheet.name("Forecast");
sheet.setValue(1, 1, 1000);           // B2
sheet.setValue(2, 1, 0.15);           // B3
sheet.setFormula(4, 1, "=B2*(1+B3)"); // B5

// Start recording edits into a scenario.
manager.setActiveScenario("Optimistic");

// These value changes are saved in the active scenario.
sheet.setValue(1, 1, 1200);
sheet.setValue(2, 1, 0.18);

// Stop recording edits.
manager.setActiveScenario(null);

After the scenario is created, it can be retrieved from the scenario manager.

var scenario = manager.get("Optimistic");
console.log(scenario);

To get all scenarios in the workbook, use all.

var scenarios = manager.all();

Apply and Restore Scenarios

Applying a scenario writes its stored values to the target changing cells.

manager.apply("Optimistic");

After a scenario is applied, dependent formulas are recalculated based on the applied values.

To restore the cells affected by a specific scenario to their base values, use restore with the scenario name.

manager.restore("Optimistic");

To restore all applied scenarios, call restore without a scenario name.

manager.restore();

You can use getAppliedScenarios to check which scenarios are currently applied.

var applied = manager.getAppliedScenarios();

Active Scenario Mode

Active Scenario mode records subsequent cell value edits into a target scenario.

Use active scenario mode when you want users to create or update a scenario by editing worksheet cells directly.

manager.setActiveScenario("Pessimistic");

// Cell value edits are captured into the active scenario.
sheet.setValue(1, 1, 800);
sheet.setValue(2, 1, 0.08);

// End scenario capture.
manager.setActiveScenario(null);

Active Scenario mode captures cell value changes. Formula recalculation results are not recorded as scenario values.

Only one scenario can be active in a workbook at a time. Deactivating a scenario stops further capture but does not restore worksheet values.

Rename an existing scenario

To rename an existing scenario, first create a new scenario and then replace the existing one.

// Assume "Plan A" exist.
scenarioManager.setActiveScenario("Plan B");
scenarioManager.setActiveScenario(null);
let scenario = scenarioManager.get("Plan A");
scenario.name = "Plan B";
scenarioManager.set(scenario);
scenarioManager.remove("Plan A");

Remove Scenarios

To remove one scenario, pass the scenario name to remove.

manager.remove("Optimistic");

To remove all scenarios from the workbook, call remove without a scenario name.

manager.remove();

Removing a scenario removes the scenario definition. It does not automatically restore worksheet values that were already changed by applying the scenario.

Multi-Worksheet Scenarios

A scenario can include changing cells from multiple worksheets. This allows one named scenario to represent a complete workbook-level assumption set.

var manager = spread.scenarioManager;

var incomeSheet = spread.getActiveSheet();
incomeSheet.name("Income");

var costSheet = new GC.Spread.Sheets.Worksheet("Cost");
spread.addSheet(1, costSheet);

incomeSheet.setValue(1, 1, 1000);
costSheet.setValue(1, 1, 600);

manager.setActiveScenario("Expansion");

incomeSheet.setValue(1, 1, 1300);
costSheet.setValue(1, 1, 780);

manager.setActiveScenario(null);

When this scenario is applied later, SpreadJS applies the stored values to the corresponding worksheets.

If a worksheet referenced by a scenario is renamed, the scenario reference is updated automatically. If a referenced worksheet is removed, the corresponding worksheet entries are removed from the scenario definition.

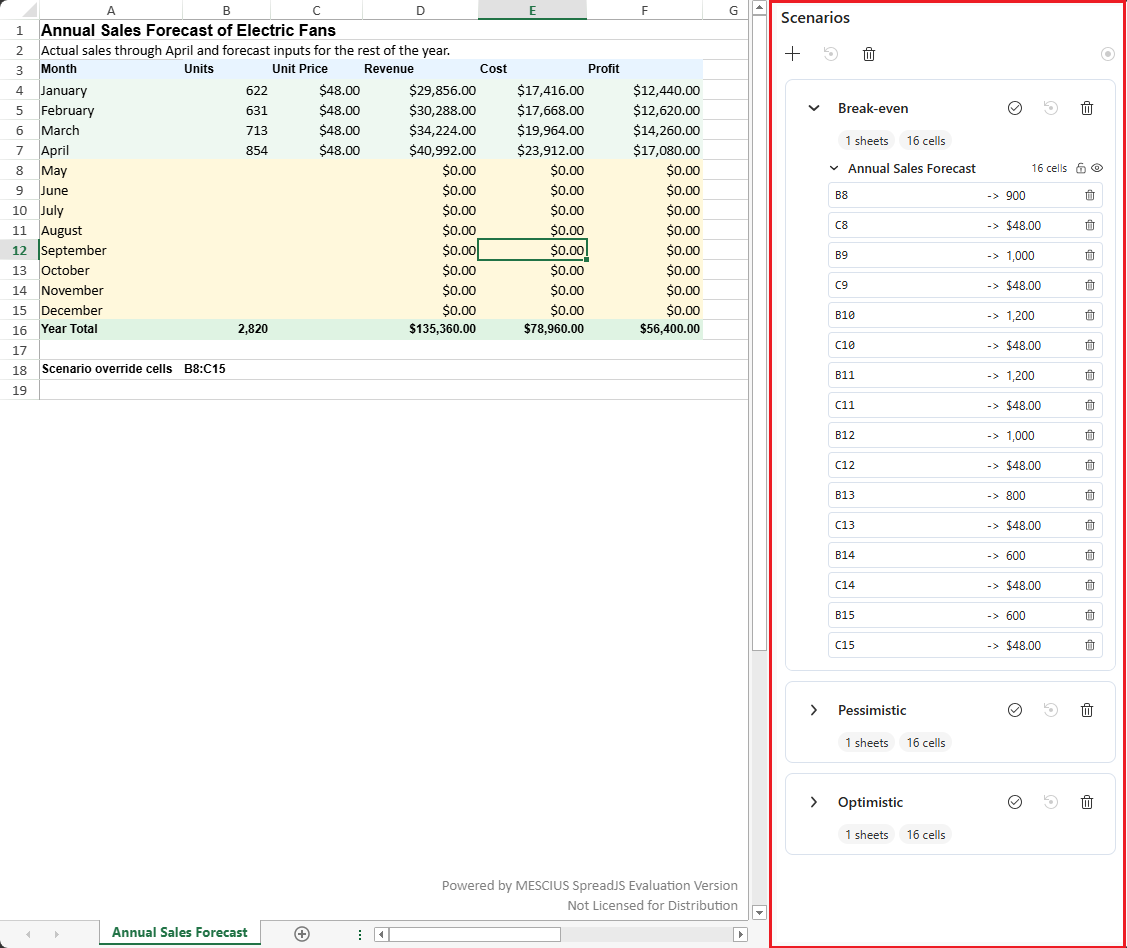

Scenario Panel

The Scenario Panel provides a runtime UI for viewing and managing workbook scenarios.

let workbook = new GC.Spread.Sheets.Workbook("spread-host");
let scenarioPanel = new GC.Spread.Sheets.Scenarios.ScenarioPanel("scenario-panel-host");

scenarioPanel.attach(workbook);

The panel works with the same workbook-level scenarios managed by spread.scenarioManager. Operations performed in the panel update the workbook in the same way as the corresponding ScenarioManager operations.

Manage Scenarios

The toolbar provides workbook-level commands for creating, restoring, removing, activating, and deactivating scenarios.

Each scenario card displays the worksheets and changing cells included in that scenario. Use the commands in the scenario header to:

• Apply the scenario and write its stored values to the workbook.

• Restore cells affected by the scenario to their captured base values.

• Remove the scenario from the workbook.

• Expand or collapse the scenario details.

The badges below the scenario name show the number of worksheets and changing cells it contains. An active badge identifies the scenario that is currently capturing cell value edits.

The Scenario Panel contains the following controls:

Active Scenario Capture

When a scenario is active, value edits made in the workbook are recorded in that scenario. Formula recalculation results are not recorded as scenario values.

Only one scenario can be active in a workbook at a time. Deactivating the active scenario stops further capture but does not restore worksheet values.

Worksheet and Changing-Cell Details

Expand a scenario and then a worksheet entry to inspect its changing cells.

Each changing-cell entry identifies the target cell and the value stored in the scenario. If the current worksheet value differs from the stored scenario value, the panel displays the values for comparison.

Changing cells can be removed individually from the scenario.

The lock and visibility controls configure protection-related behavior for a worksheet-level scenario entry. These settings take effect when worksheet protection is enabled. For more information, see Protection Behavior.

Events

SpreadJS provides scenario events that allow you to observe scenario operations or cancel them before they are committed.

Use ScenarioChanging to handle a scenario operation before it occurs.

spread.bind(GC.Spread.Sheets.Events.ScenarioChanging, function (e, info) {
    if (info.action === "remove" && info.scenario.name === "Base Plan") {
        info.cancel = true;
    }
});

Use ScenarioChanged to respond after a scenario operation has completed.

spread.bind(GC.Spread.Sheets.Events.ScenarioChanged, function (e, info) {
    console.log(info.action, info.scenario.name);
});

Scenario events are raised for operations such as adding, updating, removing, applying, restoring, activating, and deactivating scenarios.

Protection Behavior

Worksheet protection restricts scenario operations performed through the Scenario Panel and SpreadJS Designer. Protection-related behavior is evaluated across the worksheets referenced by a scenario.

Scenario definition editing includes updating or removing a scenario.

When a referenced worksheet is protected and allowEditScenarios is true, its scenario override remains editable and visible regardless of the locked and hidden settings.

When a referenced worksheet is protected and allowEditScenarios is not true:

• An override with locked set to true is read-only.

• An override with locked set to false remains editable.

• An override with hidden set to true is hidden from the Scenario Panel.

• An override with hidden set to false remains visible.

The lock and visibility icons in the Scenario Panel configure these settings for a worksheet-level scenario entry.

Compatibility

Scenarios are saved with the workbook and can be imported from or exported to Excel files.

SpreadJS scenarios are workbook-scoped, while Excel scenarios are worksheet-scoped. During import and export, SpreadJS converts scenario scope as needed.

For details, see Excel Compatibility.
