Export Barcodes

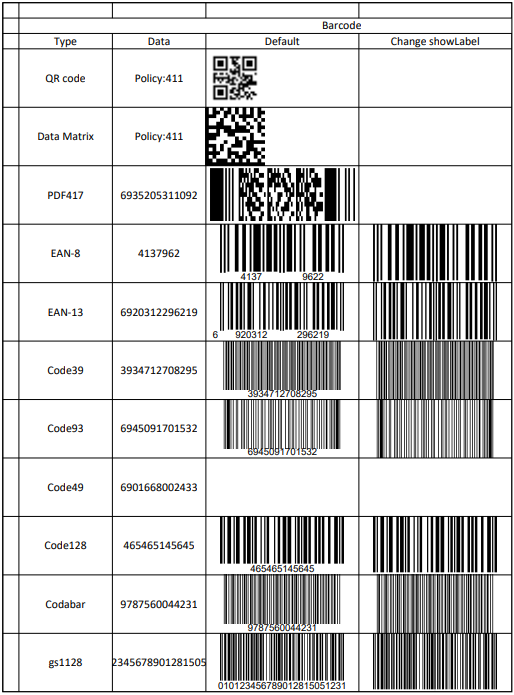

DsExcel provides support to export barcodes to PDF documents. For more information about supported barcodes and the sample code implementation to export them to PDF documents, refer:

Limitations

The following table lists the parameters which are common to all barcode types but are not supported while exporting to PDF documents:

Common Properties	PDF Export
color	Not Supported
backgroundColor	Not Supported

The following parameters in different barcode types have limited or no support while exporting to PDF documents, as is elaborated in the below table:

Barcode Type	Parameter	PDF Export
QRcode	charSet	default "UTF8"
	charCode connection	Not Supported
	model version mask	These parameters are calculated and set by the program.
DataMatrix	eccMode ecc200SymbolSize ecc200EndcodingMode	defult "ECC200"
DataMatrix	ecc00_140Symbole structureAppend structureNumber fileIdentifier	Not Supported
PDF417	compact	Not Supported
EAN-13	addOn addOnLabelPosition	Not Supported
codabar	checkDigit nwRatio	Not Supported
code39	labelWithStartAndStopCharacter checkDigit nwRatio fullASCII	Not Supported
code93	checkDigit fullASCII	Not Supported
code49	This barcode is not supported
code128	codeSet	Not Supported

Some barcode types support various font options like fontFamily, fontWeight, fontStyle etc. The following font options have limited support as mentioned:

Font Options	PDF Export
fontStyle	'normal' and 'italic'
fontTextDecoration	'normal' and 'underline'
