Box-and-Whisker
Box-and-Whisker series allows you to display groups of data into the range, quartiles, and median. The name itself suggests that the series depicts data through boxes and whiskers.
A box is the range showing the quartiles (lower and upper) and the median. Whiskers, on the other hand, are the lines extending vertically from the boxes. These lines indicate the data variability outside the lower and the upper quartiles. In addition, points that lie outside of these lines are known as outliers.
Box-and-Whisker series is ideal for visualizing statistical distribution or examining multiple sets of data graphically.
Box-and-Whisker series in FlexChart allows working with different features, as follows:
- Quartile: Specify whether you would like to calculate quartiles by including or excluding median. To specify quartile calculation, set the QuartileCalculation property from the QuartileCalculation enumeration.
- Inner points: Indicate whether to show or hide inner points by setting the ShowInnerPoints property.
- Outliers: Indicate whether to show outliers by setting the ShowOutliers property.
- Mean line: Display the mean line by setting the ShowMeanLine property.
- Mean marks: Show mean marks by setting the ShowMeanMarks property.

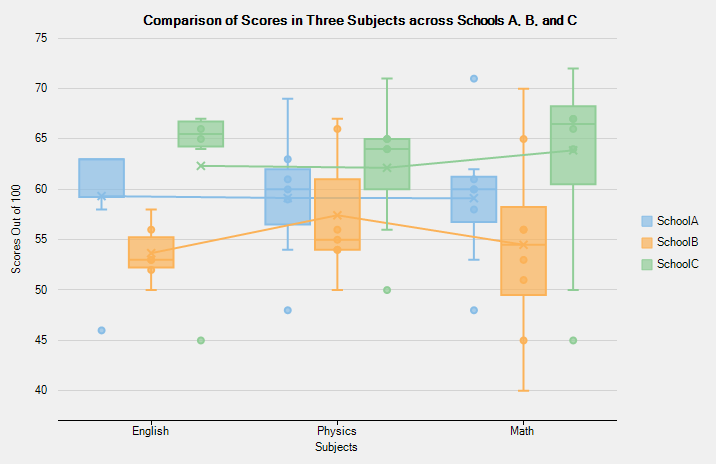

The following image displays quartiles, median, and whiskers for the data that compares scores of students in three subjects across different schools.
The following code uses data regarding scores obtained by students of schools A, B, and C in three subjects. The code illustrates how to implement Box-and-Whisker series in FlexChart.
DATACREATOR.vbnet
Class DataCreator
Public Shared Function CreateSchoolScoreData() As List(Of ClassScore)
Dim result = New List(Of ClassScore)()
result.Add(New ClassScore() With {
.ClassName = "English",
.SchoolA = 46,
.SchoolB = 53,
.SchoolC = 66
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 61,
.SchoolB = 55,
.SchoolC = 65
})
result.Add(New ClassScore() With {
.ClassName = "English",
.SchoolA = 58,
.SchoolB = 56,
.SchoolC = 67
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 58,
.SchoolB = 51,
.SchoolC = 64
})
result.Add(New ClassScore() With {
.ClassName = "English",
.SchoolA = 63,
.SchoolB = 53,
.SchoolC = 45
})
result.Add(New ClassScore() With {
.ClassName = "English",
.SchoolA = 63,
.SchoolB = 50,
.SchoolC = 65
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 60,
.SchoolB = 45,
.SchoolC = 67
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 62,
.SchoolB = 53,
.SchoolC = 66
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 63,
.SchoolB = 54,
.SchoolC = 64
})
result.Add(New ClassScore() With {
.ClassName = "English",
.SchoolA = 63,
.SchoolB = 52,
.SchoolC = 67
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 69,
.SchoolB = 66,
.SchoolC = 71
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 48,
.SchoolB = 67,
.SchoolC = 50
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 54,
.SchoolB = 50,
.SchoolC = 56
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 60,
.SchoolB = 56,
.SchoolC = 64
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 71,
.SchoolB = 65,
.SchoolC = 50
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 48,
.SchoolB = 70,
.SchoolC = 72
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 53,
.SchoolB = 40,
.SchoolC = 80
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 60,
.SchoolB = 56,
.SchoolC = 67
})
result.Add(New ClassScore() With {
.ClassName = "Math",
.SchoolA = 61,
.SchoolB = 56,
.SchoolC = 45
})
result.Add(New ClassScore() With {
.ClassName = "English",
.SchoolA = 63,
.SchoolB = 58,
.SchoolC = 64
})
result.Add(New ClassScore() With {
.ClassName = "Physics",
.SchoolA = 59,
.SchoolB = 54,
.SchoolC = 65
})
Return result
End Function
End Class
Public Class ClassScore
Public Property ClassName() As String
Get
Return m_ClassName
End Get
Set
m_ClassName = Value
End Set
End Property
Private m_ClassName As String
Public Property SchoolA() As Double
Get
Return m_SchoolA
End Get
Set
m_SchoolA = Value
End Set
End Property
Private m_SchoolA As Double
Public Property SchoolB() As Double
Get
Return m_SchoolB
End Get
Set
m_SchoolB = Value
End Set
End Property
Private m_SchoolB As Double
Public Property SchoolC() As Double
Get
Return m_SchoolC
End Get
Set
m_SchoolC = Value
End Set
End Property
Private m_SchoolC As Double
End Class
csharp
namespace BoxWhiskers
{
class DataCreator
{
public static List<ClassScore> CreateSchoolScoreData()
{
var result = new List<ClassScore>();
result.Add(new ClassScore() { ClassName = "English", SchoolA = 46, SchoolB = 53, SchoolC = 66 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 61, SchoolB = 55, SchoolC = 65 });
result.Add(new ClassScore() { ClassName = "English", SchoolA = 58, SchoolB = 56, SchoolC = 67 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 58, SchoolB = 51, SchoolC = 64 });
result.Add(new ClassScore() { ClassName = "English", SchoolA = 63, SchoolB = 53, SchoolC = 45 });
result.Add(new ClassScore() { ClassName = "English", SchoolA = 63, SchoolB = 50, SchoolC = 65 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 60, SchoolB = 45, SchoolC = 67 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 62, SchoolB = 53, SchoolC = 66 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 63, SchoolB = 54, SchoolC = 64 });
result.Add(new ClassScore() { ClassName = "English", SchoolA = 63, SchoolB = 52, SchoolC = 67 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 69, SchoolB = 66, SchoolC = 71 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 48, SchoolB = 67, SchoolC = 50 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 54, SchoolB = 50, SchoolC = 56 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 60, SchoolB = 56, SchoolC = 64 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 71, SchoolB = 65, SchoolC = 50 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 48, SchoolB = 70, SchoolC = 72 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 53, SchoolB = 40, SchoolC = 80 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 60, SchoolB = 56, SchoolC = 67 });
result.Add(new ClassScore() { ClassName = "Math", SchoolA = 61, SchoolB = 56, SchoolC = 45 });
result.Add(new ClassScore() { ClassName = "English", SchoolA = 63, SchoolB = 58, SchoolC = 64 });
result.Add(new ClassScore() { ClassName = "Physics", SchoolA = 59, SchoolB = 54, SchoolC = 65 });
return result;
}
}
public class ClassScore
{
public string ClassName { get; set; }
public double SchoolA { get; set; }
public double SchoolB { get; set; }
public double SchoolC { get; set; }
}
vbnet
Partial Public Class MainWindow
Private _data As List(Of ClassScore) = Nothing
Public Sub New()
InitializeComponent()
' show mean lines
boxWhiskerA.ShowMeanLine = True
boxWhiskerB.ShowMeanLine = True
boxWhiskerC.ShowMeanLine = True
' show inner points
boxWhiskerA.ShowInnerPoints = True
boxWhiskerB.ShowInnerPoints = True
boxWhiskerC.ShowInnerPoints = True
' show outliers
boxWhiskerA.ShowOutliers = True
boxWhiskerB.ShowOutliers = True
boxWhiskerC.ShowOutliers = True
' show mean marks
boxWhiskerA.ShowMeanMarks = True
boxWhiskerB.ShowMeanMarks = True
boxWhiskerC.ShowMeanMarks = True
' specify quartile calculation
boxWhiskerA.QuartileCalculation = QuartileCalculation.InclusiveMedian
boxWhiskerB.QuartileCalculation = QuartileCalculation.InclusiveMedian
boxWhiskerC.QuartileCalculation = QuartileCalculation.InclusiveMedian
End Sub
End Class
Public ReadOnly Property Data() As List(Of ClassScore)
Get
If _data Is Nothing Then
_data = DataCreator.CreateSchoolScoreData()
End If
Return _data
End Get
End Property
csharp
namespace BoxWhiskers
{
public partial class BoxWhisker : UserControl
{
private List<ClassScore> _data = null;
public BoxWhisker()
{
InitializeComponent();
// show mean lines
boxWhiskerA.ShowMeanLine = true;
boxWhiskerB.ShowMeanLine = true;
boxWhiskerC.ShowMeanLine = true;
// show inner points
boxWhiskerA.ShowInnerPoints = true;
boxWhiskerB.ShowInnerPoints = true;
boxWhiskerC.ShowInnerPoints = true;
// show outliers
boxWhiskerA.ShowOutliers = true;
boxWhiskerB.ShowOutliers = true;
boxWhiskerC.ShowOutliers = true;
// show mean marks
boxWhiskerA.ShowMeanMarks = true;
boxWhiskerB.ShowMeanMarks = true;
boxWhiskerC.ShowMeanMarks = true;
// specify quartile calculation
boxWhiskerA.QuartileCalculation = QuartileCalculation.InclusiveMedian;
boxWhiskerB.QuartileCalculation = QuartileCalculation.InclusiveMedian;
boxWhiskerC.QuartileCalculation = QuartileCalculation.InclusiveMedian;
}
public List<ClassScore> Data
{
get
{
if (_data == null)
{
_data = DataCreator.CreateSchoolScoreData();
}
return _data;
}
}
}
}
