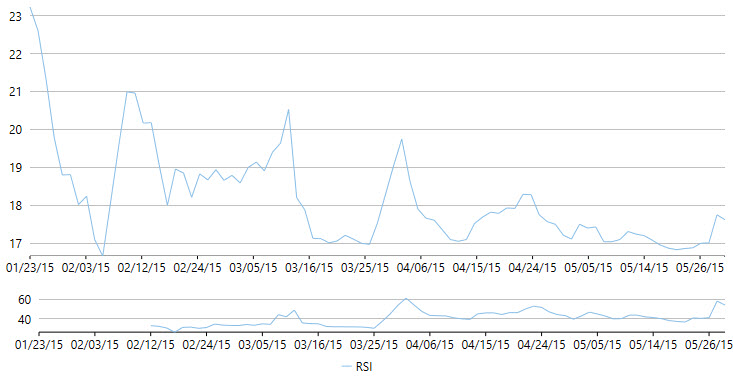

Relative Strength Index (RSI) indicator for FinancialChart is a momentum oscillator, which measures velocity and magnitude of price movements. It compares the upward movements in closing price of an asset to the downward movements over a trading period, and intends to determine strength or weakness of a stock. It fluctuates between 0 and 100. The stocks with strong positive changes have a higher RSI than the stocks with strong negative changes.
It finds application in comparing the magnitude of recent gains to recent losses, to determine the overbought and oversold conditions of an asset. Stocks are considered overbought when RSI is above 70, and oversold when below 30.
FinancialChart also enables you to fetch the calculated RSI values at run-time using GetValues() method. This can help in creating alerts in application or maintaining logs while working with dynamic data.
Notice that the given code snippet uses a class DataService.cs. To see the code, refer to Average True Range. In addition, the sample creates an instance of the RSI class to work with Relative Strength Index.
DATASERVICE.VBNET
Public Class DataService
Private _companies As New List(Of Company)()
Private _cache As New Dictionary(Of String, List(Of Quote))()
Private Sub New()
_companies.Add(New Company() With {
Key.Symbol = "box",
Key.Name = "Box Inc"
})
_companies.Add(New Company() With {
Key.Symbol = "fb",
Key.Name = "Facebook"
})
End Sub
Public Function GetCompanies() As List(Of Company)
Return _companies
End Function
Public Function GetSymbolData(symbol As String) As List(Of Quote)
If Not _cache.Keys.Contains(symbol) Then
Dim path As String = String.Format("FinancialChartExplorer.Resources.{0}.json", symbol)
Dim stream = Assembly.GetExecutingAssembly().GetManifestResourceStream(path)
Dim ser = New DataContractJsonSerializer(GetType(Quote()))
Dim data = DirectCast(ser.ReadObject(stream), Quote())
_cache.Add(symbol, data.ToList())
End If
Return _cache(symbol)
End Function
Shared _ds As DataService
Public Shared Function GetService() As DataService
If _ds Is Nothing Then
_ds = New DataService()
End If
Return _ds
End Function
End Class
DATASERVICE.CS
public class DataService
{
List<Company> _companies = new List<Company>();
Dictionary<string, List<Quote>> _cache = new Dictionary<string, List<Quote>>();
private DataService()
{
_companies.Add(new Company() { Symbol = "box", Name = "Box Inc" });
_companies.Add(new Company() { Symbol = "fb", Name = "Facebook" });
}
public List<Company> GetCompanies()
{
return _companies;
}
public List<Quote> GetSymbolData(string symbol)
{
if (!_cache.Keys.Contains(symbol))
{
string path = string.Format("FinancialChartExplorer.Resources.{0}.json", symbol);
var stream = Assembly.GetExecutingAssembly().GetManifestResourceStream(path);
var ser = new DataContractJsonSerializer(typeof(Quote[]));
var data = (Quote[])ser.ReadObject(stream);
_cache.Add(symbol, data.ToList());
}
return _cache[symbol];
}
static DataService _ds;
public static DataService GetService()
{
if (_ds == null)
_ds = new DataService();
return _ds;
}
}
Partial Public Class Indicators
Inherits UserControl
Private dataService As DataService = DataService.GetService()
Private rsi As New RSI() With {
Key.SeriesName = "RSI"
}
Public Sub New()
InitializeComponent()
End Sub
Public ReadOnly Property Data() As List(Of Quote)
Get
Return dataService.GetSymbolData("box")
End Get
End Property
Public ReadOnly Property IndicatorType() As List(Of String)
Get
Return New List(Of String)() From {
"Relative Strength Index"
}
End Get
End Property
Private Sub OnIndicatorTypeSelectionChanged(sender As Object, e As SelectionChangedEventArgs)
Dim ser As FinancialSeries = Nothing
If cbIndicatorType.SelectedIndex = 0 Then
ser = rsi
End If
If ser IsNot Nothing AndAlso Not indicatorChart.Series.Contains(ser) Then
indicatorChart.BeginUpdate()
indicatorChart.Series.Clear()
indicatorChart.Series.Add(ser)
indicatorChart.EndUpdate()
End If
End Sub
Private Sub OnFinancialChartRendered(sender As Object, e As C1.WPF.Chart.RenderEventArgs)
If indicatorChart IsNot Nothing Then
indicatorChart.AxisX.Min = DirectCast(financialChart.AxisX, IAxis).GetMin()
indicatorChart.AxisX.Max = DirectCast(financialChart.AxisX, IAxis).GetMax()
End If
End Sub
End Class
public partial class Indicators : UserControl
{
DataService dataService = DataService.GetService();
RSI rsi = new RSI() { SeriesName = "RSI" };
public Indicators()
{
InitializeComponent();
}
public List<Quote> Data
{
get
{
return dataService.GetSymbolData("box");
}
}
public List<string> IndicatorType
{
get
{
return new List<string>()
{
"Relative Strength Index",
};
}
}
void OnIndicatorTypeSelectionChanged(object sender, SelectionChangedEventArgs e)
{
FinancialSeries ser = null;
if (cbIndicatorType.SelectedIndex == 0)
ser = rsi;
if (ser != null && !indicatorChart.Series.Contains(ser))
{
indicatorChart.BeginUpdate();
indicatorChart.Series.Clear();
indicatorChart.Series.Add(ser);
indicatorChart.EndUpdate();
}
}
void OnFinancialChartRendered(object sender, C1.WPF.Chart.RenderEventArgs e)
{
if (indicatorChart != null)
{
indicatorChart.AxisX.Min = ((IAxis)financialChart.AxisX).GetMin();
indicatorChart.AxisX.Max = ((IAxis)financialChart.AxisX).GetMax();
}
}
}
