Special HiLoOpenClose Chart Properties
The developer can specify how the open and close tick marks are displayed on the chart.

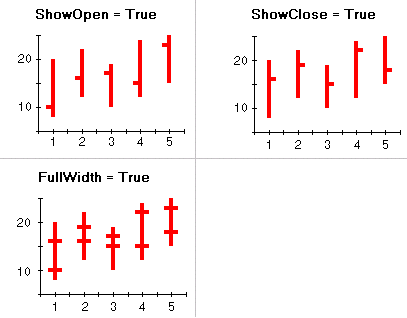

To Display Open and Close Ticks
- Use the ShowOpen, ShowClose and FullWidth properties to determine how the open and close tick marks are displayed.
- Enable ShowOpen to display the open tick marks and enable ShowClose to display the close tick marks.
- Enable FullWidth to draw the open and close tick marks on both sides of the vertical range.
To format the Lines and Ticks
- Look at the sample, HLCandle
