Custom TrendLine

To implement a custom trendline a class implementing ICustomTrendLine interface must be created. The instance of this class is assigned to CustomTrendLine property of a TrendLine object. In this case all points of trendline must be fully defined by the class and TrendLineType property setting is not relevant. The following sample code implements a custom TrendLine that corresponds to data limits.

To write code in Visual Basic

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) _   Handles Button1.Click
        ' create trend line
        Dim tl As C1.Win.C1Chart.TrendLine = _
           c1Chart1.ChartGroups(0).ChartData.TrendsList.AddNewTrendLine()
        ' setup line properties
        tl.LineStyle.Thickness = 3
        tl.LineStyle.Pattern = C1.Win.C1Chart.LinePatternEnum.Dash
        ' set custom trend line
        tl.CustomTrendLine = New CustomTrendLine()
End Sub
Public Class CustomTrendLine_  Implements C1.Win.C1Chart.ICustomTrendLine
  Private _x() As Double
  Private _y() As Double
        Public Sub Calculate(ByVal tl As C1.Win.C1Chart.TrendLine, ByVal x() As Double, _ ByVal y() As Double)Implements C1.Win.C1Chart.ICustomTrendLine.Calculate
            If x Is Nothing Or x.Length = 0 Or y Is Nothing Or y.Length = 0 Then
              _x = Nothing
              _y = Nothing
              Return
            End If
            ' find min and max
            Dim xmin As Double = x(0), xmax = x(0)
            Dim ymin As Double = y(0), ymax = y(0)
            Dim i As Integer
            For i = 1 To x.Length - 1
              If x(i) < xmin Then
                xmin = x(i)
              ElseIf x(i) > xmax Then
                xmax = x(i)
              End If
              If y(i) < ymin Then
                ymin = y(i)
              ElseIf y(i) > ymax Then
                ymax = y(i)
              End If
            Next
            ' rectangle around data points
            _x = New Double(4) {}
            _y = New Double(4) {}
            _x(0) = xmin
            _y(0) = ymin
            _x(4) = _x(0)
            _y(4) = _y(0)
            _x(2) = xmax
            _y(2) = ymax
            _x(1) = _x(0)
            _y(1) = _y(2)
            _x(3) = _x(2)
            _y(3) = _y(0)
    End Sub
  Public Function GetXValues() As Double() _    Implements C1.Win.C1Chart.ICustomTrendLine.GetXValues
    Return _x
  End Function
  Public Function GetYValues() As Double() _    Implements C1.Win.C1Chart.ICustomTrendLine.GetYValues
    Return _y
  End Function
  ' don't use it just return something
  Public Function GetY(ByVal x As Double) As Double _   Implements C1.Win.C1Chart.ICustomTrendLine.GetY
    Return 0
  End Function
  Public ReadOnly Property Text() As String _    Implements C1.Win.C1Chart.ICustomTrendLine.Text
    Get
      Return "Custom trend"
    End Get
End Property
End Class

To write code in C#

private void button1_Click(object sender, System.EventArgs e)
{
   // create trend line
  C1.Win.C1Chart.TrendLine tl = c1Chart1.ChartGroups[0].ChartData.TrendsList.AddNewTrendLine();
   // setup line properties
  tl.LineStyle.Color = Color.DarkRed;
  tl.LineStyle.Thickness = 3;
  tl.LineStyle.Pattern = C1.Win.C1Chart.LinePatternEnum.Dash;
   // set custom trend line
  tl.CustomTrendLine = new CustomTrendLine();
}
public class CustomTrendLine : C1.Win.C1Chart.ICustomTrendLine
{
  private double[] _x;
  private double[] _y;
  public void Calculate( C1.Win.C1Chart.TrendLine tl, double[] x, double [] y)
  {
    if( x==null || x.Length==0 || y==null || y.Length==0)
    {
      _x = null; _y = null;
      return;
    }
     // find min and max
    double xmin = x[0], xmax = x[0];
    double ymin = y[0], ymax = y[0];
    for( int i=1; i<x.Length; i++)
    {
      if( x[i] < xmin)
        xmin = x[i];
      else if( x[i] > xmax)
        xmax = x[i];
      if( y[i] < ymin)
        ymin = y[i];
      else if( y[i] > ymax)
        ymax = y[i];
    }
     // rectangle around data points
    _x = new double[5];
    _y = new double[5];
    _x[0] = xmin;  _y[0] = ymin;
    _x[4] = _x[0]; _y[4] = _y[0];
    _x[2] = xmax;  _y[2] = ymax;
    _x[1] = _x[0]; _y[1] = _y[2];
    _x[3] = _x[2]; _y[3] = _y[0];
  }
  public double[] GetXValues() { return _x;}
  public double[] GetYValues() { return _y;}
   // don't use it just return something
  public double GetY( double x) { return 0;}
  public string Text { get{ return "Custom trend";}}
}

This topic illustrates the following:

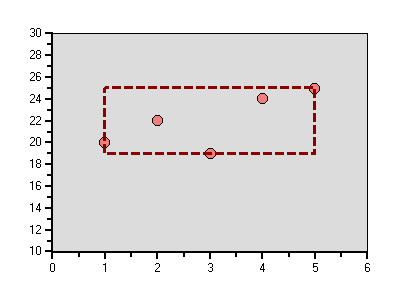

A custom red dashed trend line is created around the data points.
