Add Data Series to the Chart

To add data series to the chart using the C1Chart floating toolbar, complete the following steps:

1. Select the C1Chart control and click on the Open button to open the C1Chart floating toolbar if it is not already open.

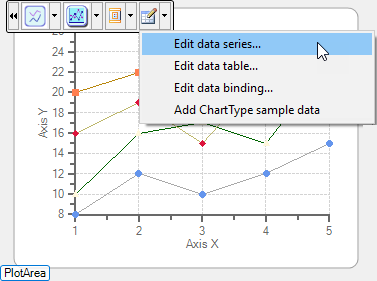

2. Select the Data drop-down arrow from the C1Chart floating toolbar and choose the Edit data series item.

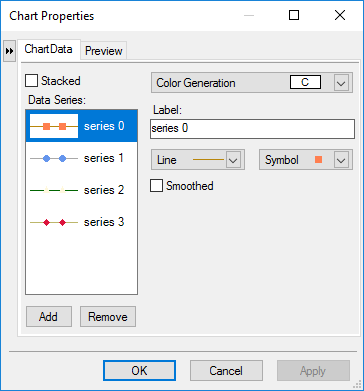

3. The Chart Properties designer appears for the ChartData series. Select the Add button to add a new series to the chart.

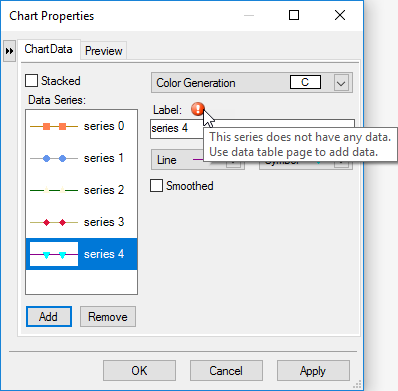

   A blinking exclamation point appears to warn you that the data needs added to the new series.


See Also

Add Data to the Data Series
