Customize Display Null and Empty Values

By default, when a data value is null, undefined, or an empty string (""), the cell appears blank in a TableSheet. This makes it difficult to distinguish between:

• A null value

• An empty string

• A missing value

To improve clarity, you can specify custom display text for these values at the column level.

Column Properties

interface GC.Data.IColumn {
  showNullAs?: string;   // Display text for null or undefined
  showEmptyAs?: string;  // Display text for empty string ("")
}

• showNullAs applies when the value is null or undefined.

• showEmptyAs applies when the value is an empty string ("").

Both properties can be used on the same column.

Configure in Code

This example demonstrates:

• Default blank behavior

• Configuration at the table schema level

• Additional configuration at the view level

Step 1: Prepare Sample Data

var sampleData = [
  { Id: 1, Name: "John Doe", Email: "john@example.com", Phone: "123-456-7890", Score: 85, Notes: "Regular" },
  { Id: 2, Name: null, Email: "", Phone: "234-567-8901", Score: null, Notes: null },
  { Id: 3, Name: "Jane Smith", Email: null, Phone: "", Score: 92, Notes: "" },
  { Id: 4, Name: "", Email: "jane@example.com", Phone: null, Score: 78, Notes: "VIP" },
  { Id: 5, Name: "Bob Wilson", Email: "", Phone: null, Score: null, Notes: "" }
];

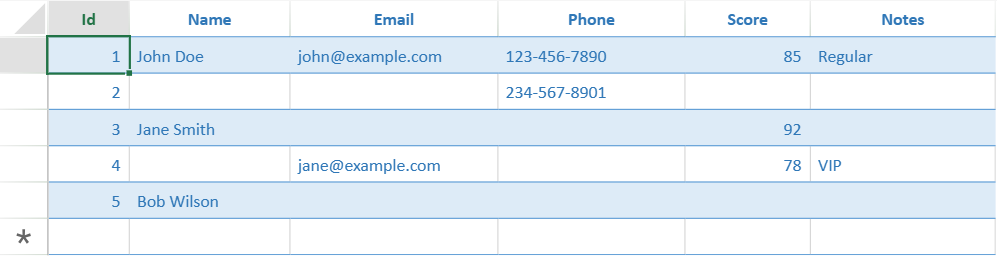

Without configuration, null and empty string values appear as blank cells.

Step 2: Configure at the Table Schema Level

var myTable = dataManager.addTable("myTable", {
    data: sampleData,
    schema: {
        columns: {
            Id: { dataType: "number" },
            Name: { showNullAs: "[NULL]", showEmptyAs: "[EMPTY]" },
            Email: { showNullAs: "[NULL]", showEmptyAs: "[EMPTY]" },
            Score: { showNullAs: "[N/A]", dataType: "number" }
        }
    }
});

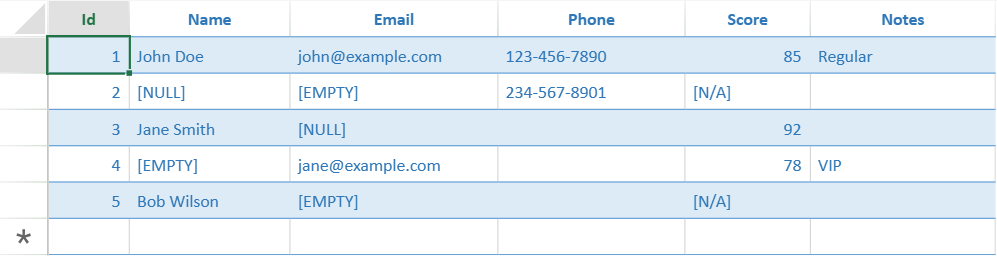

In this step:

• Name and Email display custom text for both null and empty string values.

• Score displays [N/A] when the value is null.

Step 3: Configure at the View Level

var myView = myTable.addView("myView", [
    { value: "Id", caption: "ID", width: 60 },
    { value: "Name", caption: "Name", width: 150 },
    { value: "Email", caption: "Email", width: 200 },
    // View-level configuration for Phone and Notes
    { value: "Phone", caption: "Phone", width: 130, showNullAs: "[NO PHONE]", showEmptyAs: "[BLANK]" },
    { value: "Score", caption: "Score", width: 80},
    { value: "Notes", caption: "Notes", width: 150, showNullAs: "[NULL]", showEmptyAs: "[NO NOTES]" }
]);

In this step:

• Phone and Notes are configured at the view level.

• View-level settings apply to that specific view.

Step 4: Render the View

myView.fetch().then(function() {
    tableSheet.setDataView(myView);
});

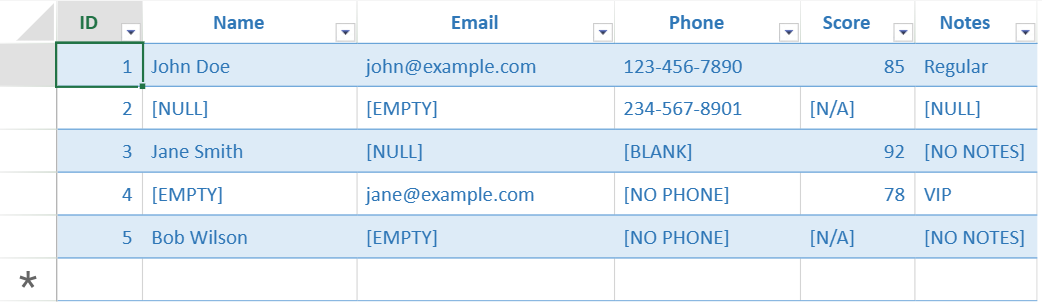

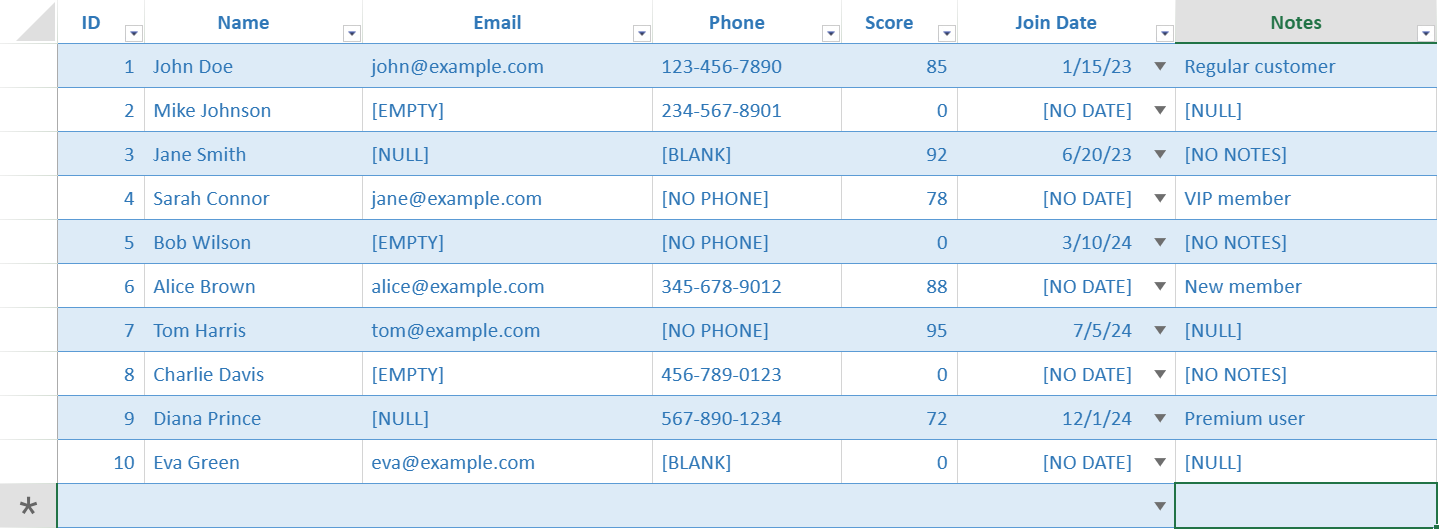

When rendered in the TableSheet, null and empty string values display the configured text.

Alignment Considerations

If hAlign is not explicitly defined in the column style, alignment follows the default rule based on the underlying data type.

When a custom display text is used:

• The alignment of normal values follows their data type.

• The custom display text follows text alignment.

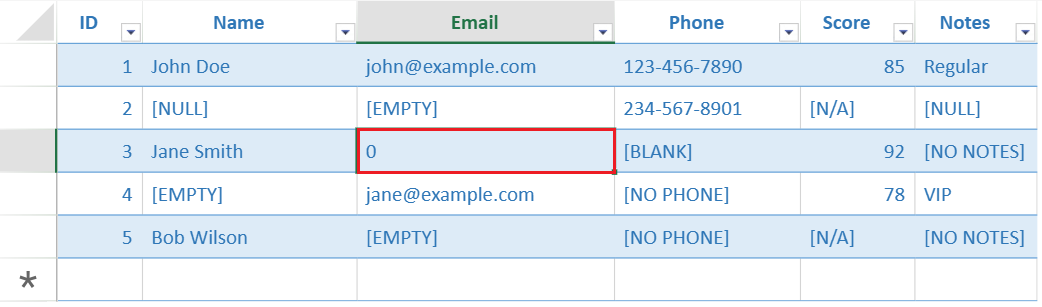

Example

Assume Email is a number column:

showNullAs: "0"

Then:

• Numeric values are right-aligned.

• The displayed "0" for null is left-aligned.

Configure in Designer

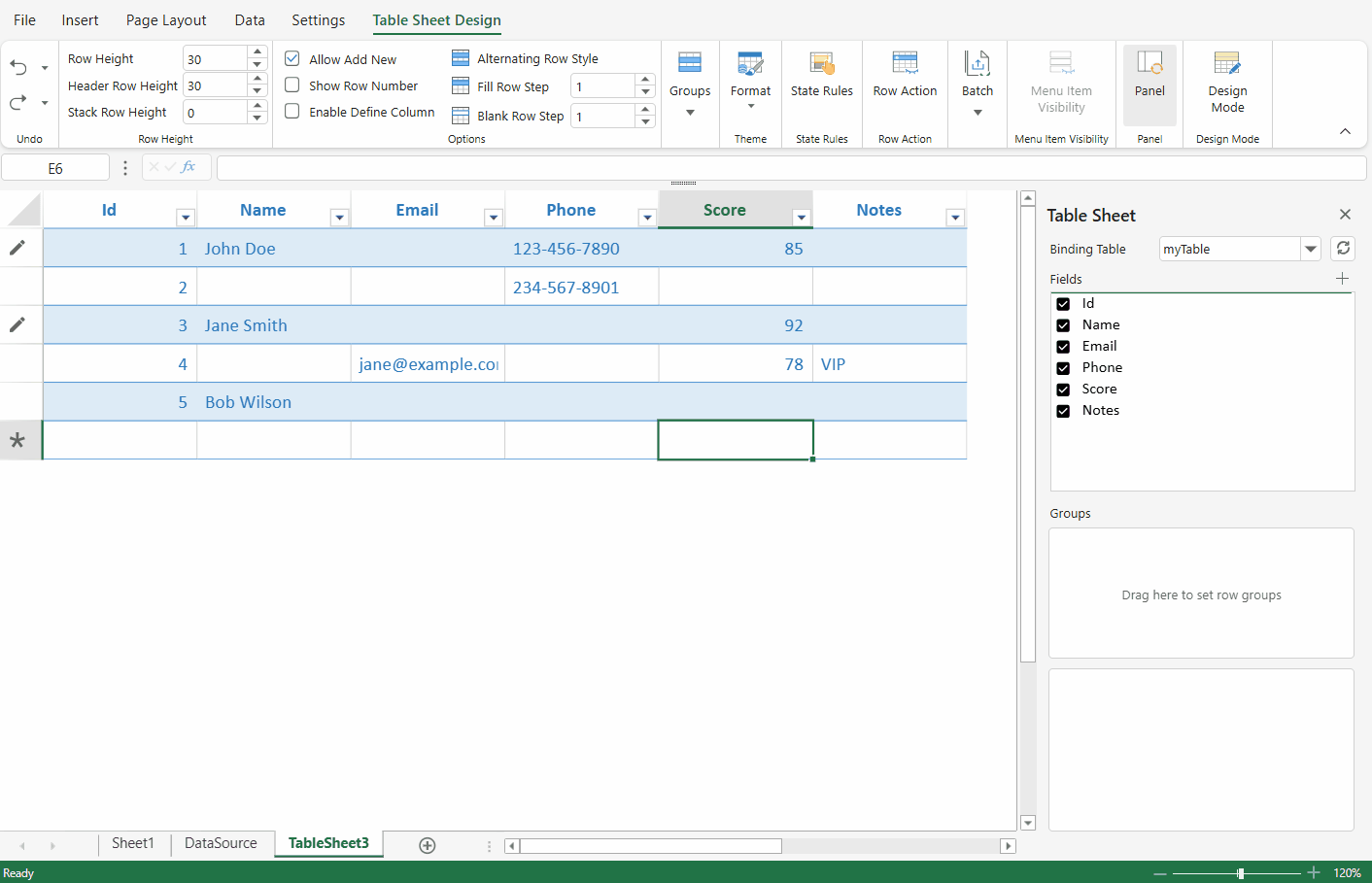

On the View

1. Select the TableSheet view.

2. Open the Column Setting ribbon tab.

3. In the Blank Display section, set display text for:

   • Null values

   • Empty values

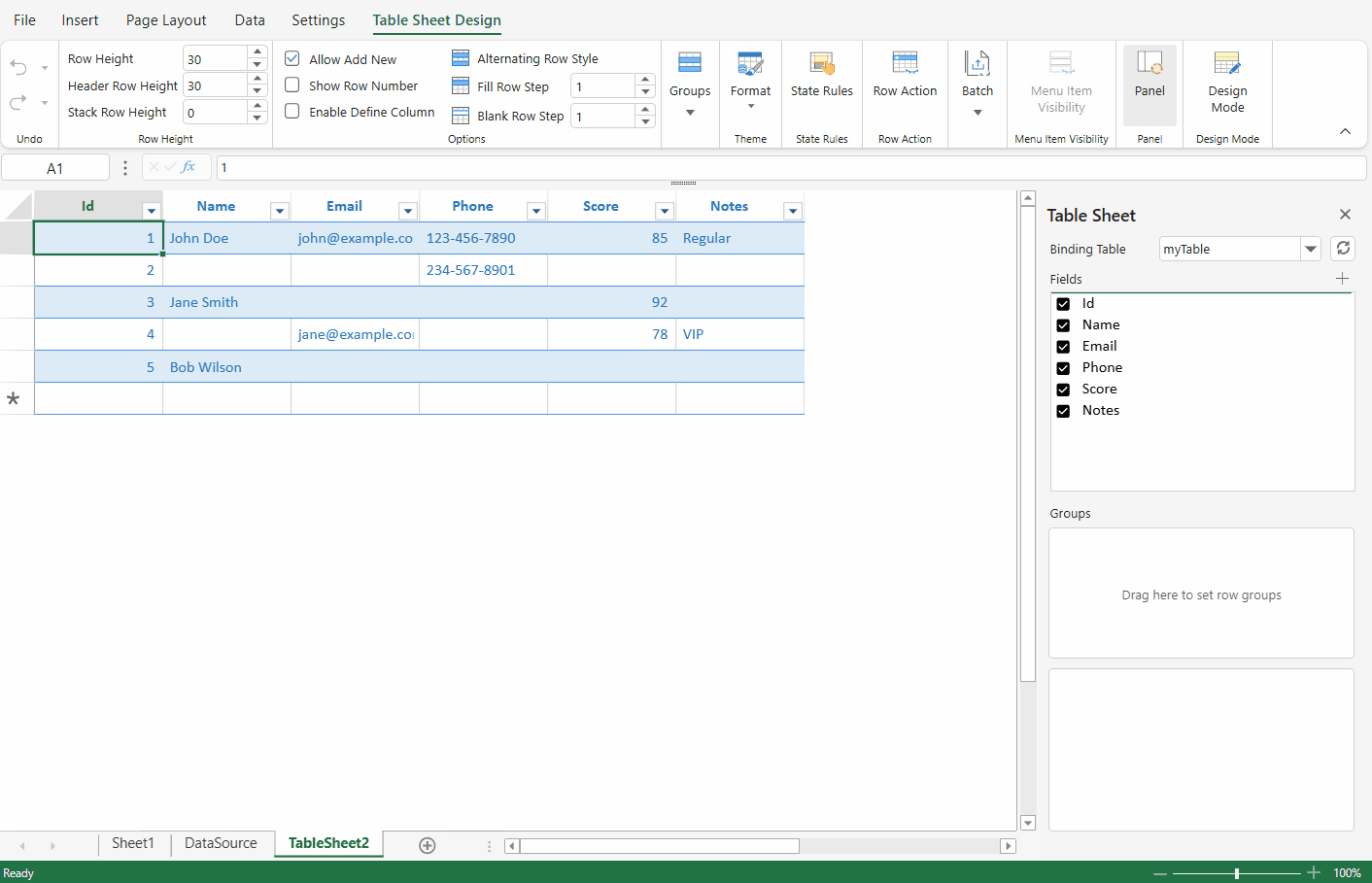

On the Table Schema

1. Open Data Source.

2. Select the table.

3. Go to Column Setting.

4. Configure blank display options for the column.

Export Behavior

When exporting to Excel, whether the custom display text is exported depends on the saveAsView in ExportOptions.

• saveAsView = true: The exported Excel file contains the displayed text defined by showNullAs and showEmptyAs.

• saveAsView = false (default): The exported file contains the original underlying values. Cells with null or empty string values appear blank in Excel.

Using saveAsView

spread.export(function (blob) {
    saveAs(blob, "export.xlsx");
}, function (e) {
    console.log(e);
}, {
    fileType: GC.Spread.Sheets.FileType.excel,
    saveAsView: true
});

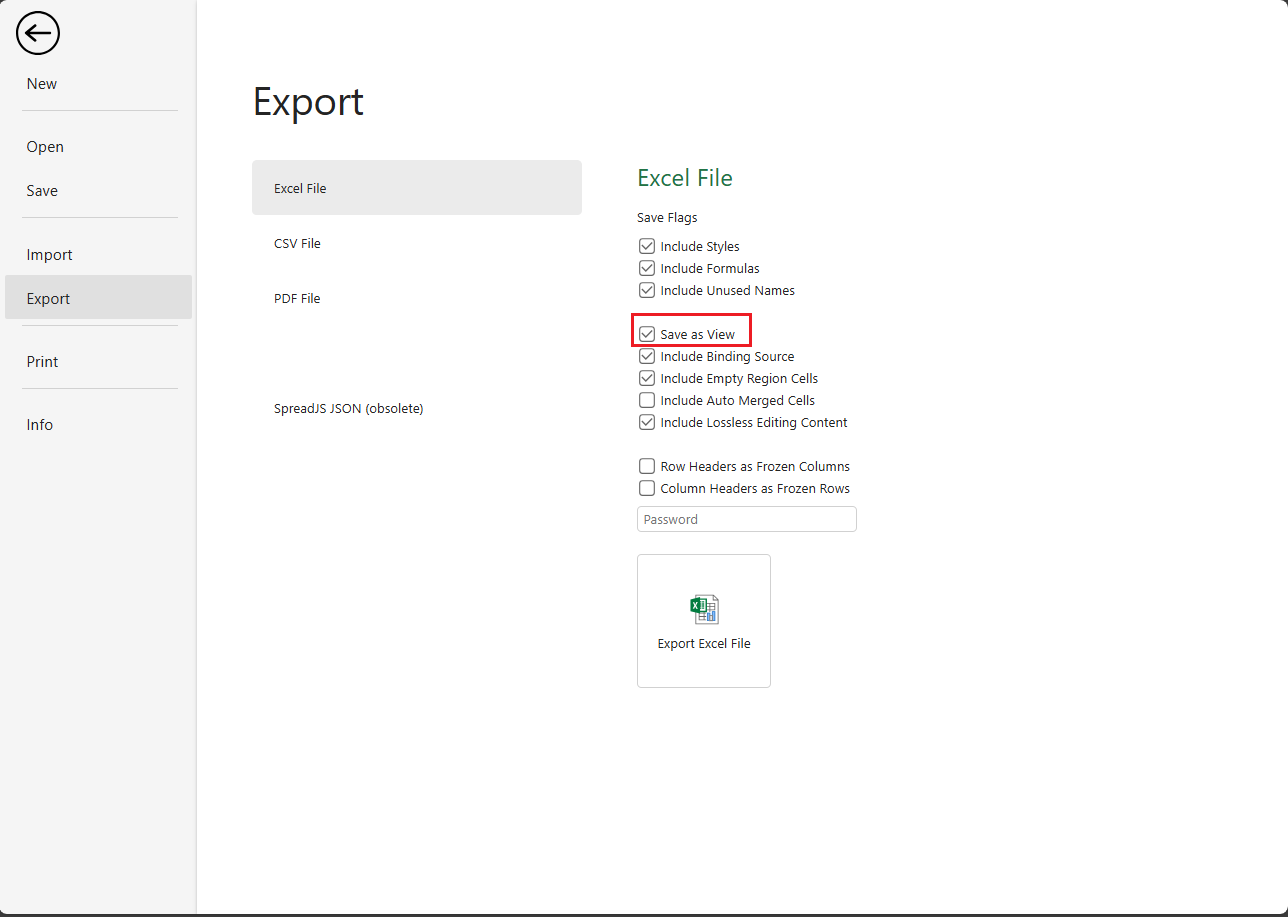

In the Designer, the corresponding export checkbox controls the same option.
