Funnel Charts

Funnel Chart is a visualization tool used to represent the stages of a process and quantify the number of users or items that progress through each stage. It typically illustrates a gradual decrease in data volume from the initial to the final stage, adopting a funnel-like shape—wide at the top and narrowing toward the bottom.

This capability allows you to visually track flows such as sales pipelines, website visitor conversions, or recruitment processes within your application, making it easier to identify patterns or drop-off points across stages.

With SpreadJS, you can add and customize funnel charts by modifying various properties, including funnel type, color palette, graph opacity, border style, canvas padding, top width, bottom width, neck height, orientation, reversal, and more. These adjustments can be made either programmatically through code or visually via the Inspector tab in the SpreadJS Designer, offering flexibility for both developers and designers.

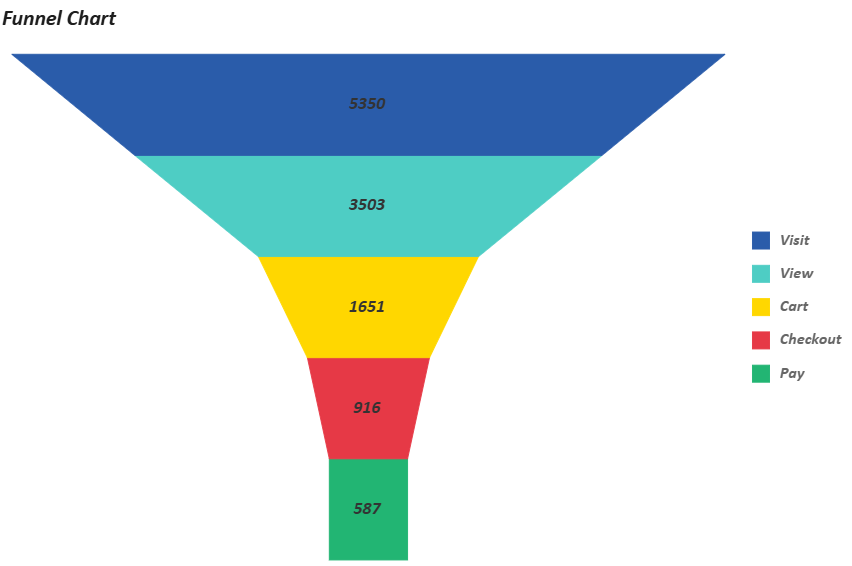

Below is an example of a funnel chart:

2.1

Example Foundation

All example codes in this document are built upon the foundational code provided below, which includes core configurations such as core variables and data sources.

You are welcome to customize these configurations according to your specific use-case requirements.

const sheet = spread.getActiveSheet();
sheet.name("Funnel Chart");
const dataManager = spread.dataManager();

function createConversionTable (dataManager) {
    const records = [
        ['Visit', 5350],
        ['View', 3503],
        ['Cart', 1651],
        ['Checkout', 916],
        ['Pay', 587],
    ];
    const columns = ['Stage', 'Count'];

    return dataManager.addTable('Conversion', {
        data: records.map(record => {
            const item = {};
            columns.forEach((column, index) => {
                item[column] = record[index];
            });
            return item;
        })
    });
}

const ConversionTable = createConversionTable(dataManager);
await ConversionTable.fetch();

const dataChart = sheet.dataCharts.add('data-chart', 10, 10, 600, 400);

Two Data Binding Modes

Funnel chart can be categorized into two types based on data binding configurations.

Category-Value Binding

This type maps categorical data (e.g., process stages) to funnel segments and numerical values to segment sizes. Segments represent data by their top width, resulting in non-smooth sides.

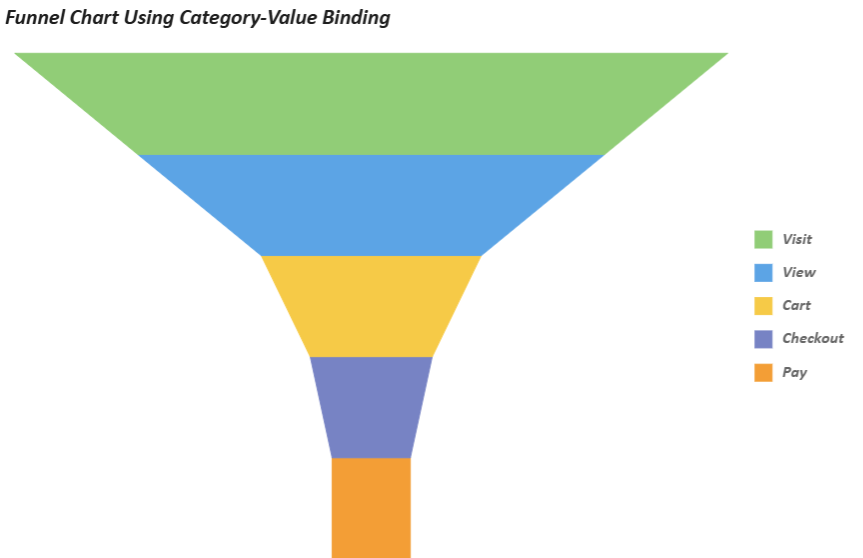

2.2

Refer to the following sample code to add a funnel chart using category-value binding.

// Funnel Chart Using Category-Value Binding
dataChart.setChartConfig({
    tableName: 'Conversion',
    plots: [
        {
            type: GC.Spread.Sheets.DataCharts.DataChartType.funnel,
            encodings: {
                values: [{ field: 'Count', aggregate: GC.Spread.Sheets.DataCharts.Aggregate.sum }],
                category: { field: 'Stage' },
            },
        }
    ],
    config: {
        header: {
            title: "Funnel Chart Using Category-Value Binding",
            padding: {
                left: 10,
                right: 10,
                top: 10,
                bottom: 10,
            },
            style: {
                fill: { type: 'CssColor', color: 'rgba(255,255,255,0.9)' },
                shadow: { blur: 4, color: 'rgba(0,0,0,0.05)' }
            },
            textStyle: {
                color: 'rgba(30,30,30,1)',
                fontSize: 24,
                fontFamily: 'Calibri',
                fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                fontWeight: 'Bold',
                alignment: GC.Spread.Sheets.DataCharts.HAlign.left,
            },
        },
        plotAreas: [{
            legends: [{
                type: GC.Spread.Sheets.DataCharts.LegendType.color,
                textStyle: {
                    fontFamily: 'Calibri',
                    fontSize: 18,
                    fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                    fontWeight: 'Bold',
                },
            }],
        }],
    },
});

Detail-Value Binding

This approach binds detailed data fields (e.g., sub-stage metrics) to segment attributes while retaining quantitative values for size representation. Segments represent data by their height, with the overall shape determined by specific width and height options, resulting in smooth sides.

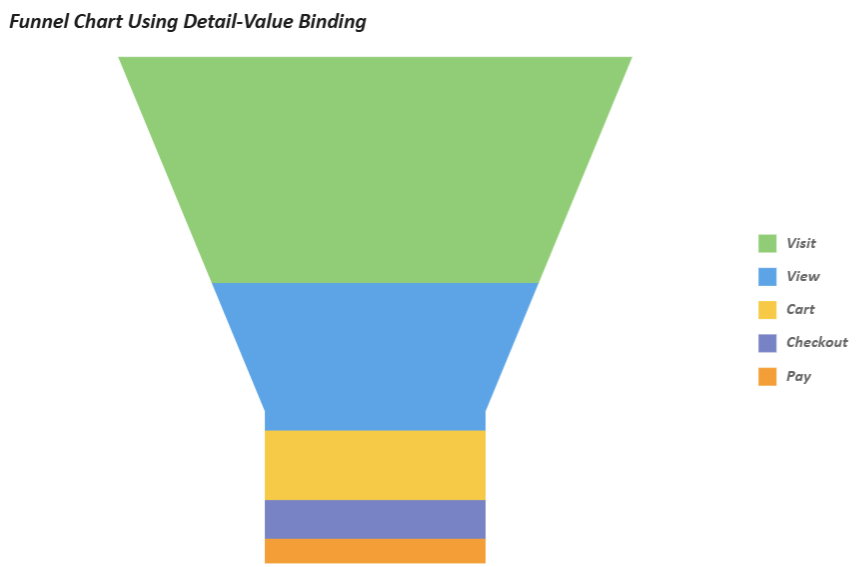

2.3

Refer to the following sample code to add a funnel chart using detail-value binding.

// Funnel Chart Using Detail-Value Binding
dataChart.setChartConfig({
    tableName: 'Conversion',
    plots: [
        {
            type: GC.Spread.Sheets.DataCharts.DataChartType.funnel,
            encodings: {
                values: [{ field: 'Count', aggregate: GC.Spread.Sheets.DataCharts.Aggregate.sum }],
                details: [{ field: 'Stage' }],
            },
        }
    ],
    config: {
        header: {
            title: "Funnel Chart Using Detail-Value Binding",
            padding: {
                left: 10,
                right: 10,
                top: 10,
                bottom: 10,
            },
            style: {
                fill: { type: 'CssColor', color: 'rgba(255,255,255,0.9)' },
                shadow: { blur: 4, color: 'rgba(0,0,0,0.05)' }
            },
            textStyle: {
                color: 'rgba(30,30,30,1)',
                fontSize: 24,
                fontFamily: 'Calibri',
                fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                fontWeight: 'Bold',
                alignment: GC.Spread.Sheets.DataCharts.HAlign.left,
            },
        },
        plotAreas: [{
            legends: [{
                type: GC.Spread.Sheets.DataCharts.LegendType.color,
                textStyle: {
                    fontFamily: 'Calibri',
                    fontSize: 18,
                    fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                    fontWeight: 'Bold',
                },
            }],
        }],
    },
});

type=note
Note:
If users configure category, detail and value data binding at the same time, only the category and value data binding take effect.

Unique Settings

Funnel charts utilize specialized configuration parameters under plots.config.funnel to tailor their visual structure and analytical focus.

Properties such as topWidth, bottomWidth, and neckHeight define the geometric progression of funnel segments, enabling precise control over the chart’s shape to emphasize conversion trends or resource distribution patterns.

Orientation settings (vertical/horizontal) and directional adjustments (reversed) further adapt the chart to diverse data narratives, while funnelType variants (e.g., trapezoid, rectangle, triangle) expand its applicability across use cases like sales pipelines or user drop-off analysis.

The following table outlines dedicated properties for customizing funnel charts:

Property	Description	Supported Modes

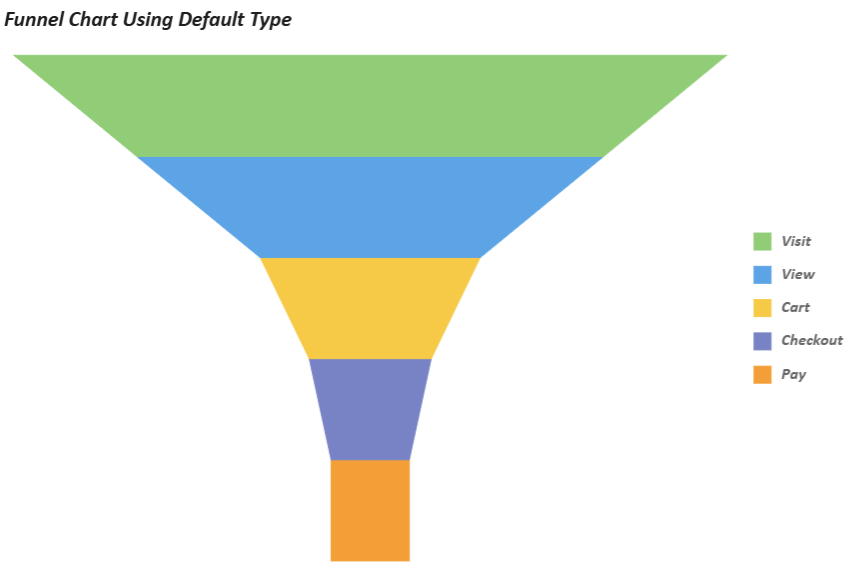

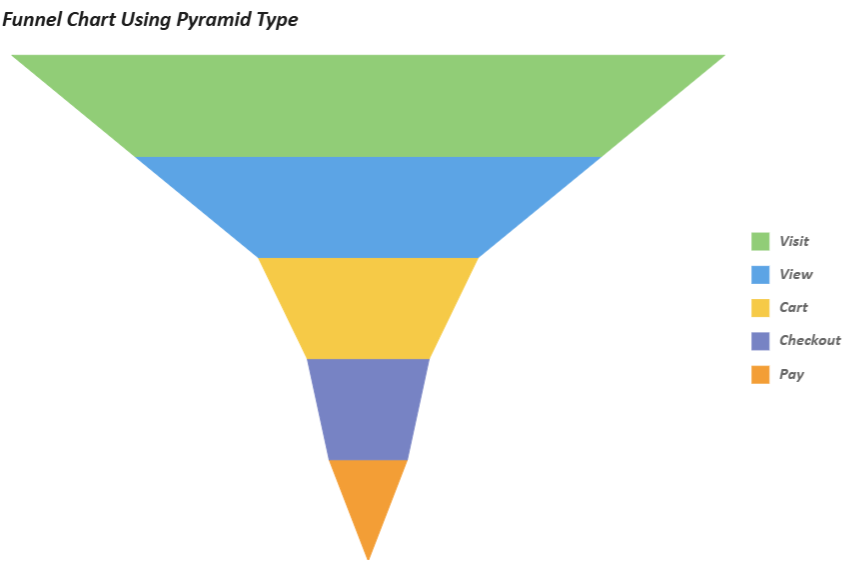

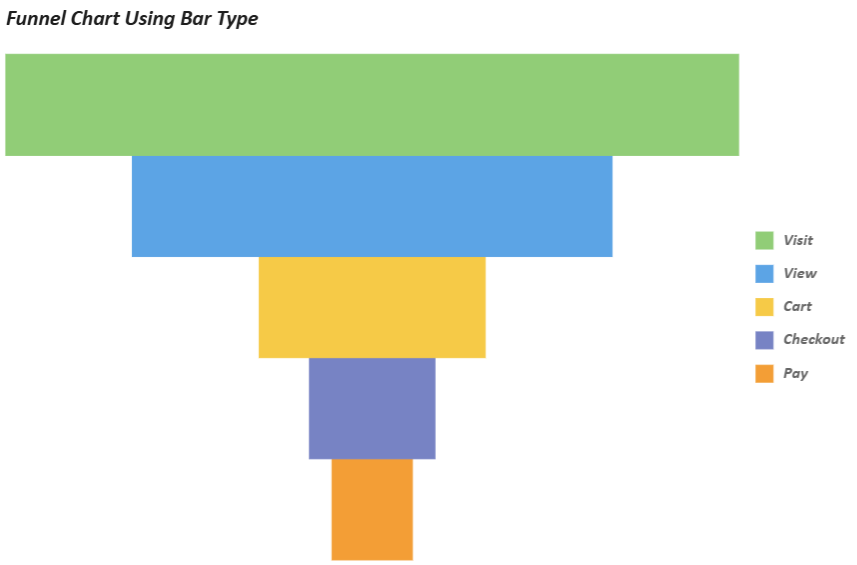

funnelType	Specifies the datachart funnel type: `default`: Use trapezoids for the upper segments and a rectangle for the bottom segment. `bar`: Use rectangles to render. `pyramid`: Use trapezoids for the upper segments and a triangle for the bottom segment.	Category-Value Binding

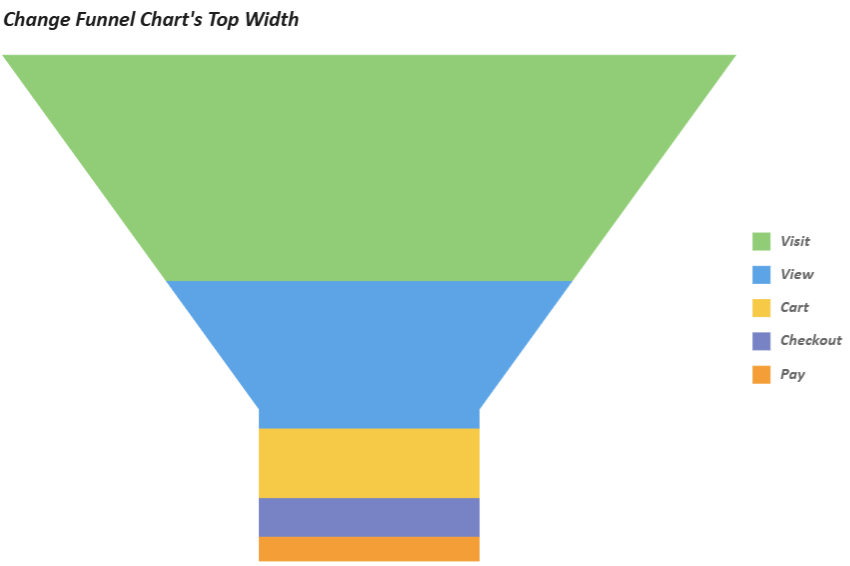

topWidth	Sets the relative width of the funnel’s top section.	Detail-Value Binding

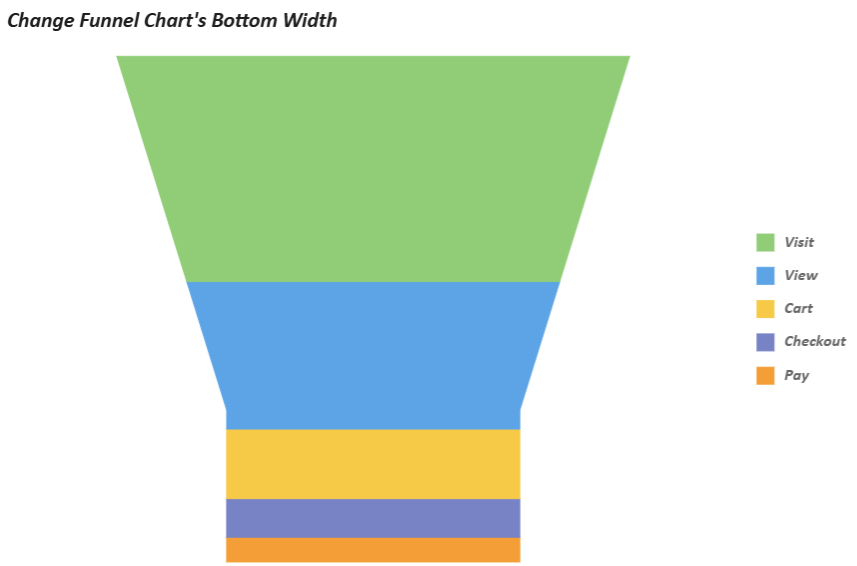

bottomWidth	Sets the relative width of the funnel’s bottom section.	Detail-Value Binding

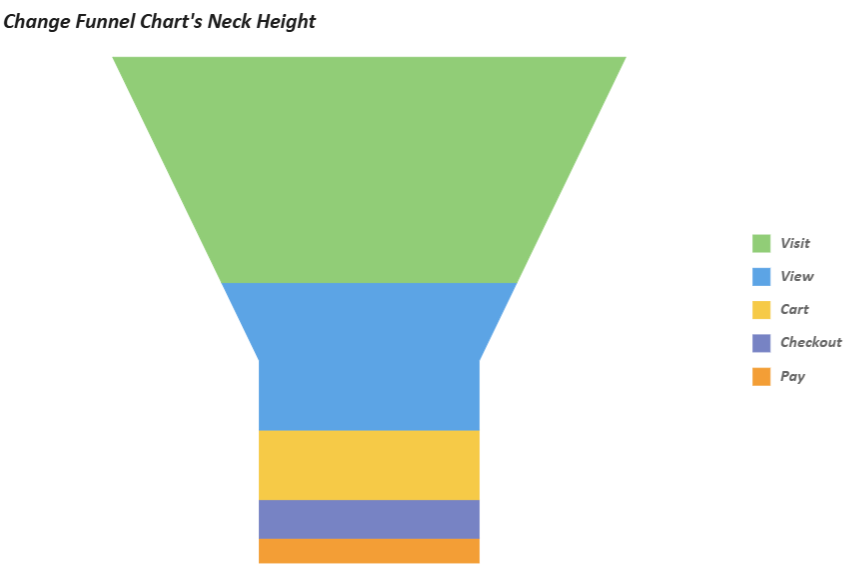

neckHeight	Sets the relative width of the funnel’s neck section.	Detail-Value Binding

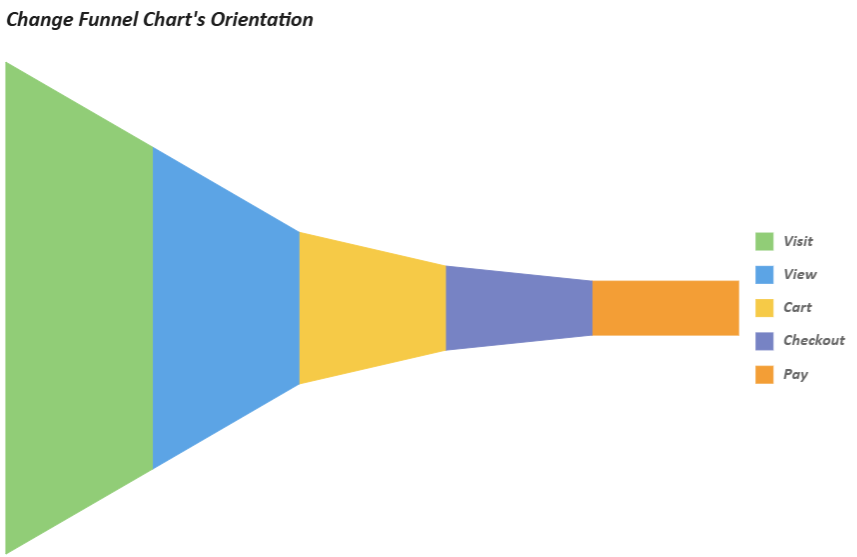

orientation	Specifies the funnel’s orientation. (`horizontal`/`vertical`)	Category-Value Binding, Detail-Value Binding

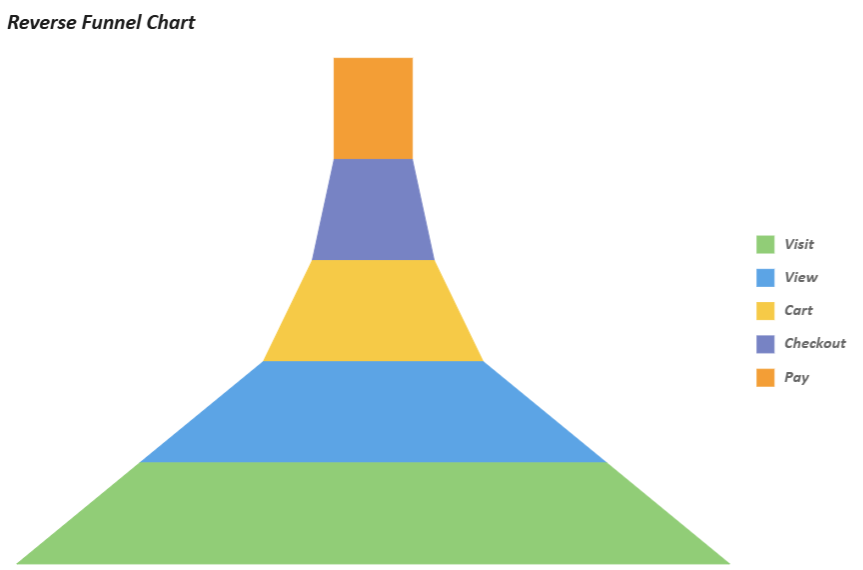

reversed	Reverses the funnel.	Category-Value Binding, Detail-Value Binding

Using Code

The following snippet integrates the properties above into two funnel chart configurations, extending the earlier Category-Value Binding and Detail-Value Binding setup with custom shape and orientation settings:

const dataChart1 = sheet.dataCharts.add('data-chart1', 10, 10, 600, 400);
const dataChart2 = sheet.dataCharts.add('data-chart2', 10, 10, 600, 400);

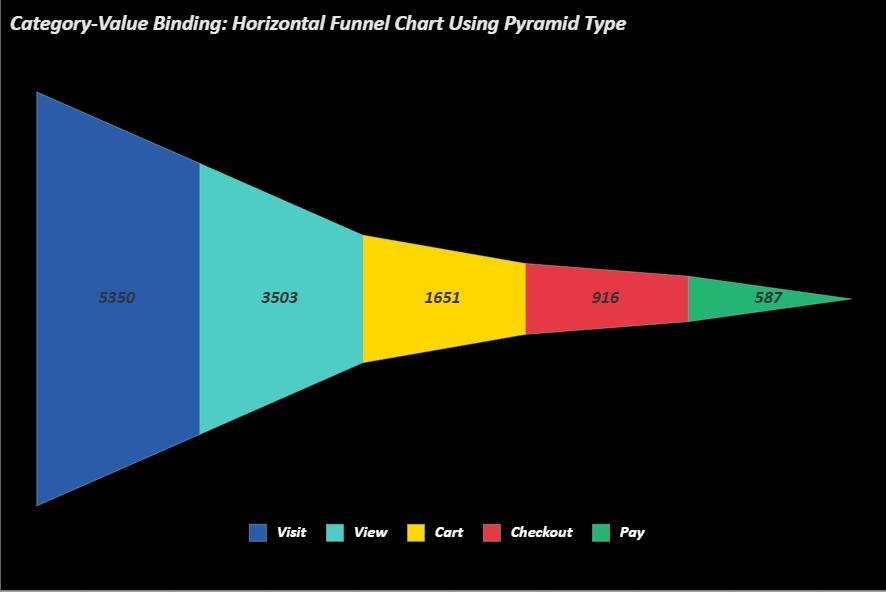

// Category-Value Binding: Horizontal Funnel Chart Using Pyramid Type
dataChart1.setChartConfig({
    tableName: 'Conversion',
    plots: [
        {
            type: GC.Spread.Sheets.DataCharts.DataChartType.funnel,
            encodings: {
                values: [{ field: 'Count', aggregate: GC.Spread.Sheets.DataCharts.Aggregate.sum }],
                category: { field: 'Stage' },
            },
            config: {
                funnel: {
                    funnelType: GC.Spread.Sheets.DataCharts.FunnelType.pyramid,
                    orientation: GC.Spread.Sheets.DataCharts.Orientation.horizontal,
                },
                palette: ['#2A5CAA', '#4ECDC4', '#FFD700', '#E63946', '#22B573'],
                style: {
                    stroke: { type: 'CssColor', color: '#96CEB4' },
                    strokeWidth: 1,
                    strokeOpacity: 0.5,
                },
                text: [{
                    template: '{valueField.value}',
                    position: GC.Spread.Sheets.DataCharts.TextPosition.center,
                    textStyle: {
                        fontFamily: 'Calibri',
                        fontSize: 20,
                        fontWeight: 'Bold',
                        fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                        color: 'rgba(51,51,51,1)',
                    },
                }],
            }
        }
    ],
    config: {
        header: {
            title: "Category-Value Binding: Horizontal Funnel Chart Using Pyramid Type",
            padding: {
                left: 10,
                right: 10,
                top: 10,
                bottom: 10,
            },
            textStyle: {
                color: 'rgba(255,255,255,0.9)',
                fontSize: 24,
                fontFamily: 'Calibri',
                fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                fontWeight: 'Bold',
                alignment: GC.Spread.Sheets.DataCharts.HAlign.left,
            },
        },
        plotAreas: [{
            padding: {
                left: 40,
                right: 40,
                top: 40,
                bottom: 40,
            },
            legends: [{
                type: GC.Spread.Sheets.DataCharts.LegendType.color,
                position: GC.Spread.Sheets.DataCharts.LegendPosition.bottom,
                hAlign: GC.Spread.Sheets.DataCharts.HAlign.center,
                textStyle: {
                    fontFamily: 'Calibri',
                    fontSize: 18,
                    fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                    fontWeight: 'Bold',
                    color: 'rgba(255,255,255,1)'
                },
            }],
        }],
        dvStyle: {
            fill: { type: 'CssColor', color: 'black' },
            stroke: { type: 'CssColor', color: 'grey' },
            strokeWidth: 2,
        },
    },
});

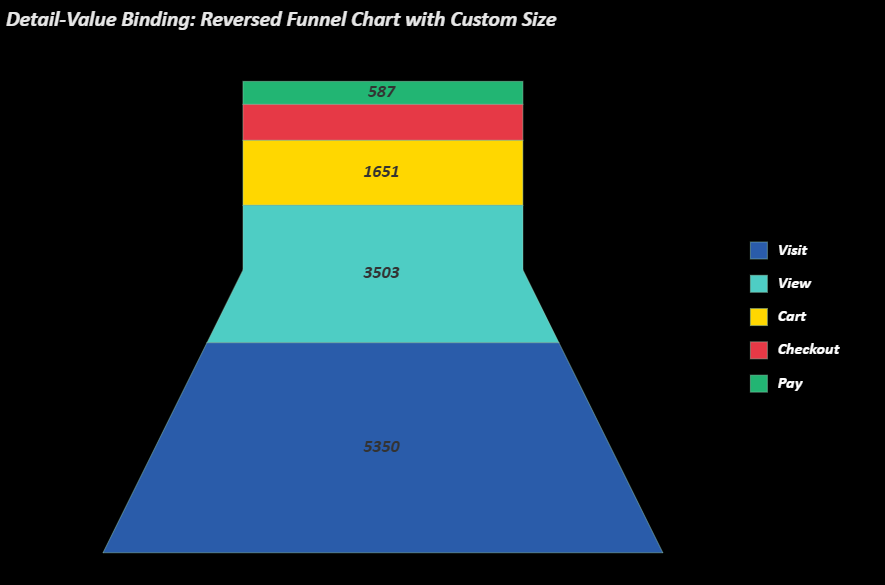

// Detail-Value Binding: Reversed Funnel Chart with Custom Size
dataChart2.setChartConfig({
    tableName: 'Conversion',
    plots: [
        {
            type: GC.Spread.Sheets.DataCharts.DataChartType.funnel,
            encodings: {
                values: [{ field: 'Count', aggregate: GC.Spread.Sheets.DataCharts.Aggregate.sum }],
                details: [{ field: 'Stage' }],
            },
            config: {
                funnel: {
                    bottomWidth: 0.4,
                    neckHeight: 0.4,
                    topWidth: 0.8,
                    reversed: true,
                },
                palette: ['#2A5CAA', '#4ECDC4', '#FFD700', '#E63946', '#22B573'],
                style: {
                    stroke: { type: 'CssColor', color: '#96CEB4' },
                    strokeWidth: 1,
                    strokeOpacity: 0.5,
                },
                text: [{
                    template: '{valueField.value}',
                    position: GC.Spread.Sheets.DataCharts.TextPosition.center,
                    textStyle: {
                        fontFamily: 'Calibri',
                        fontSize: 20,
                        fontWeight: 'Bold',
                        fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                        color: 'rgba(51,51,51,1)',
                    },
                }],
            }
        }
    ],
    config: {
        header: {
            title: "Detail-Value Binding: Reversed Funnel Chart with Custom Size",
            padding: {
                left: 10,
                right: 10,
                top: 10,
                bottom: 10,
            },
            textStyle: {
                color: 'rgba(255,255,255,0.9)',
                fontSize: 24,
                fontFamily: 'Calibri',
                fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                fontWeight: 'Bold',
                alignment: GC.Spread.Sheets.DataCharts.HAlign.left,
            },
        },
        plotAreas: [{
            padding: {
                left: 40,
                right: 40,
                top: 40,
                bottom: 40,
            },
            legends: [{
                type: GC.Spread.Sheets.DataCharts.LegendType.color,
                textStyle: {
                    fontFamily: 'Calibri',
                    fontSize: 18,
                    fontStyle: GC.Spread.Sheets.DataCharts.FontStyle.italic,
                    fontWeight: 'Bold',
                    color: 'rgba(255,255,255,1)'
                },
            }],
        }],
        dvStyle: {
            fill: { type: 'CssColor', color: 'black' },
        },
    },
});

2.12

2.13
