Moving Average Convergence Divergence
Moving Average Convergence Divergence (MACD) indicator for FinancialChart is a trend-following momentum indicator. It reveals changes in the strength, direction, duration and momentum of price of an asset. The indicator is efficient in helping users spot short-term price momentum.
MACD momentum oscillator displays a relationship between 26 day exponential moving average and 12 day exponential moving average. As the two moving averages converge, cross and diverge, they make the MACD oscillator to fluctuate above and below the zero line. A "signal line" is plotted on the top of the oscillator. It is a 9 day exponential moving average of MACD, which serves as a trigger for buy and sell signals. A sell signal is generated with the MACD going below the zero line.
MACD Histogram is an oscillator which measures the difference between the fast MACD line and the signal line. Just like MACD indicator, histogram also fluctuates above and below zero line. A positive histogram indicates that MACD is above its signal line, while MACD going below its signal line makes a negative histogram. A negative MACD Histograms generates sell signal. To use MACD indicator and MACD Histogram in FinancialChart, add a FinancialChart control to your application and bind it to an appropriate data source. The ItemsSource object enables data binding or populating data in FinancialChart. The MacdBase class exposes FastPeriod, SlowPeriod, and Smoothing period properties. Based on the values of these properties, data points for Macd indicator and Histogram are calculated and plotted on FinancialChart. The appearance of the series can be manipulated with MacdLineStyle and SignalLineStyle properties.
FinancialChart also enables users to fetch the calculated Macd values, Macd x values, Signal values, and Signal x values in the run time, for the purpose of creating alerts in application or maintaining logs while working with dynamic data.

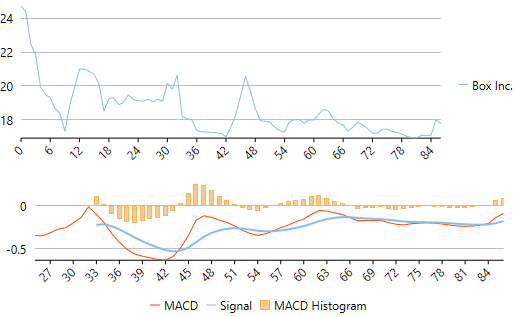

The following example considers stock data for a company Box Inc. over a period of time and plots its MACD Indicator and MACD Histogram apart from the volume chart, as shown in the image above. The example uses data from a json file, and DataService.cs class is created to access this json file.
Make sure that Build Action property of the json file is set to Embedded Resource.
Make sure to add the following references in DataService.cs:
System.Collections.Generic
System.Linq
System.Runtime.Serialization.Json
System.Reflection
Public Class DataService
Public Function GetData() As List(Of Quote)
Dim stream As New FileStream("..\..\Resources\box.json", FileMode.Open)
Dim ser = New DataContractJsonSerializer(GetType(Quote()))
Dim data = DirectCast(ser.ReadObject(stream), Quote())
stream.Close()
Return data.ToList()
End Function
Shared _ds As DataService
Public Shared Function GetService() As DataService
If _ds Is Nothing Then
_ds = New DataService()
End If
Return _ds
End Function
End Classclass DataService
{
public List<Quote> GetData()
{
string path = "IndicatorMACD.Resources.box.json";
//Replace IndicatorMACD by your application name
var stream = Assembly.GetExecutingAssembly().GetManifestResourceStream(path);
var ser = new DataContractJsonSerializer(typeof(Quote[]));
var data = (Quote[])ser.ReadObject(stream);
return data.ToList();
}
static DataService _ds;
public static DataService GetService()
{
if (_ds == null)
_ds = new DataService();
return _ds;
}
}
Json Data
[
{ "date": "01/23/15", "open": 20.2, "high": 24.73, "low": 20.16, "close": 23.23, "volume": 42593223 },
{ "date": "01/26/15", "open": 23.67, "high": 24.39, "low": 22.5, "close": 22.6, "volume": 8677164 },
{ "date": "01/27/15", "open": 22, "high": 22.47, "low": 21.17, "close": 21.3, "volume": 3272512 },
{ "date": "01/28/15", "open": 21.62, "high": 21.84, "low": 19.6, "close": 19.78, "volume": 5047364 },
{ "date": "01/29/15", "open": 19.9, "high": 19.95, "low": 18.51, "close": 18.8, "volume": 3419482 },
{ "date": "01/30/15", "open": 18.47, "high": 19.48, "low": 18.22, "close": 18.81, "volume": 2266439 },
{ "date": "02/02/15", "open": 19.18, "high": 19.3, "low": 18.01, "close": 18.02, "volume": 2071168 },
{ "date": "02/03/15", "open": 18.22, "high": 18.64, "low": 18.12, "close": 18.24, "volume": 1587435 },
{ "date": "02/04/15", "open": 18.2, "high": 18.35, "low": 17, "close": 17.1, "volume": 2912224 },
{ "date": "02/05/15", "open": 17.3, "high": 17.31, "low": 16.41, "close": 16.66, "volume": 2682187 },
{ "date": "02/06/15", "open": 17.39, "high": 18.88, "low": 17.21, "close": 18.12, "volume": 3929164 },
{ "date": "02/09/15", "open": 18.86, "high": 19.95, "low": 18.45, "close": 19.6, "volume": 3226650 },
{ "date": "02/10/15", "open": 20.5, "high": 21, "low": 19.63, "close": 20.99, "volume": 2804409 },
{ "date": "02/11/15", "open": 20.89, "high": 21, "low": 20.2, "close": 20.96, "volume": 1698365 },
{ "date": "02/12/15", "open": 20.66, "high": 20.85, "low": 19.75, "close": 20.17, "volume": 1370320 },
{ "date": "02/13/15", "open": 20.19, "high": 20.68, "low": 20, "close": 20.18, "volume": 711951 },
{ "date": "02/17/15", "open": 19.5, "high": 20.1, "low": 18.8, "close": 19.05, "volume": 2093602 },
{ "date": "02/18/15", "open": 18.31, "high": 18.5, "low": 17.96, "close": 18, "volume": 1849490 },
{ "date": "02/19/15", "open": 18.33, "high": 19.25, "low": 17.91, "close": 18.96, "volume": 1311518 },
{ "date": "02/20/15", "open": 18.68, "high": 19.3, "low": 18.65, "close": 18.85, "volume": 1001692 },
{ "date": "02/23/15", "open": 18.8, "high": 18.89, "low": 18.11, "close": 18.21, "volume": 670087 },
{ "date": "02/24/15", "open": 18.46, "high": 19, "low": 18.27, "close": 18.83, "volume": 759263 },
{ "date": "02/25/15", "open": 18.83, "high": 19.48, "low": 18.47, "close": 18.67, "volume": 915580 },
{ "date": "02/26/15", "open": 18.64, "high": 19.2, "low": 18.64, "close": 18.94, "volume": 461283 },
{ "date": "02/27/15", "open": 18.8, "high": 19.12, "low": 18.55, "close": 18.66, "volume": 617199 },
{ "date": "03/02/15", "open": 18.66, "high": 19.09, "low": 18.65, "close": 18.79, "volume": 519605 },
{ "date": "03/03/15", "open": 18.79, "high": 19.21, "low": 18.45, "close": 18.59, "volume": 832415 },
{ "date": "03/04/15", "open": 18.64, "high": 19.05, "low": 18.32, "close": 19, "volume": 539688 },
{ "date": "03/05/15", "open": 19.2, "high": 19.2, "low": 18.8, "close": 19.14, "volume": 486149 },
{ "date": "03/06/15", "open": 19.03, "high": 19.1, "low": 18.7, "close": 18.91, "volume": 685659 },
{ "date": "03/09/15", "open": 18.98, "high": 20.15, "low": 18.96, "close": 19.4, "volume": 1321363 },
{ "date": "03/10/15", "open": 19.3, "high": 19.8, "low": 18.85, "close": 19.64, "volume": 615743 },
{ "date": "03/11/15", "open": 20.08, "high": 20.65, "low": 19.24, "close": 20.53, "volume": 2167167 },
{ "date": "03/12/15", "open": 17.17, "high": 18.2, "low": 16.76, "close": 18.2, "volume": 6837638 },
{ "date": "03/13/15", "open": 18.05, "high": 18.05, "low": 17.3, "close": 17.88, "volume": 1715629 },
{ "date": "03/16/15", "open": 17.91, "high": 18, "low": 17.01, "close": 17.13, "volume": 1321313 },
{ "date": "03/17/15", "open": 17.28, "high": 17.37, "low": 16.6, "close": 17.12, "volume": 1272242 },
{ "date": "03/18/15", "open": 17.1, "high": 17.27, "low": 16.91, "close": 17.01, "volume": 530063 },
{ "date": "03/19/15", "open": 17, "high": 17.28, "low": 17, "close": 17.06, "volume": 536427 },
{ "date": "03/20/15", "open": 17.13, "high": 17.24, "low": 16.88, "close": 17.21, "volume": 1320237 },
{ "date": "03/23/15", "open": 17.21, "high": 17.23, "low": 17.01, "close": 17.11, "volume": 509798 },
{ "date": "03/24/15", "open": 17.02, "high": 17.18, "low": 16.82, "close": 17, "volume": 962149 },
{ "date": "03/25/15", "open": 16.92, "high": 16.99, "low": 16.82, "close": 16.97, "volume": 565673 },
{ "date": "03/26/15", "open": 16.83, "high": 17.56, "low": 16.83, "close": 17.54, "volume": 884523 },
{ "date": "03/27/15", "open": 17.58, "high": 18.3, "low": 17.11, "close": 18.3, "volume": 705626 },
{ "date": "03/30/15", "open": 18.5, "high": 19.4, "low": 18.4, "close": 19.05, "volume": 1151620 },
{ "date": "03/31/15", "open": 19.08, "high": 20.58, "low": 18.4, "close": 19.75, "volume": 2020679 },
{ "date": "04/01/15", "open": 19.69, "high": 19.69, "low": 18.55, "close": 18.65, "volume": 961078 },
{ "date": "04/02/15", "open": 18.56, "high": 18.66, "low": 17.85, "close": 17.9, "volume": 884233 },
{ "date": "04/06/15", "open": 17.78, "high": 17.94, "low": 17.51, "close": 17.66, "volume": 605252 },
{ "date": "04/07/15", "open": 17.62, "high": 17.9, "low": 17.53, "close": 17.61, "volume": 591988 },
{ "date": "04/08/15", "open": 17.64, "high": 17.85, "low": 17.32, "close": 17.36, "volume": 618855 },
{ "date": "04/09/15", "open": 17.33, "high": 17.54, "low": 17.1, "close": 17.1, "volume": 761855 },
{ "date": "04/10/15", "open": 17.08, "high": 17.36, "low": 17, "close": 17.05, "volume": 568373 },
{ "date": "04/13/15", "open": 17.24, "high": 17.26, "low": 16.81, "close": 17.1, "volume": 667142 },
{ "date": "04/14/15", "open": 17.1, "high": 17.89, "low": 17.02, "close": 17.52, "volume": 870138 },
{ "date": "04/15/15", "open": 17.6, "high": 17.99, "low": 17.5, "close": 17.69, "volume": 530456 },
{ "date": "04/16/15", "open": 17.95, "high": 18, "low": 17.6, "close": 17.82, "volume": 548730 },
{ "date": "04/17/15", "open": 17.75, "high": 17.79, "low": 17.5, "close": 17.79, "volume": 446373 },
{ "date": "04/20/15", "open": 17.63, "high": 17.98, "low": 17.52, "close": 17.93, "volume": 487017 },
{ "date": "04/21/15", "open": 17.96, "high": 17.98, "low": 17.71, "close": 17.92, "volume": 320302 },
{ "date": "04/22/15", "open": 17.88, "high": 18.33, "low": 17.57, "close": 18.29, "volume": 644812 },
{ "date": "04/23/15", "open": 18.29, "high": 18.61, "low": 18.18, "close": 18.28, "volume": 563879 },
{ "date": "04/24/15", "open": 18.5, "high": 18.5, "low": 17.61, "close": 17.75, "volume": 650762 },
{ "date": "04/27/15", "open": 17.97, "high": 18.05, "low": 17.45, "close": 17.57, "volume": 437294 },
{ "date": "04/28/15", "open": 17.65, "high": 17.79, "low": 17.39, "close": 17.5, "volume": 224519 },
{ "date": "04/29/15", "open": 17.68, "high": 17.68, "low": 17.1, "close": 17.21, "volume": 495706 },
{ "date": "04/30/15", "open": 17.22, "high": 17.3, "low": 17, "close": 17.11, "volume": 391040 },
{ "date": "05/01/15", "open": 17.11, "high": 17.55, "low": 16.85, "close": 17.5, "volume": 563075 },
{ "date": "05/04/15", "open": 17.56, "high": 17.85, "low": 17.3, "close": 17.4, "volume": 253138 },
{ "date": "05/05/15", "open": 17.68, "high": 17.68, "low": 17.09, "close": 17.43, "volume": 290935 },
{ "date": "05/06/15", "open": 17.48, "high": 17.48, "low": 17, "close": 17.04, "volume": 313662 },
{ "date": "05/07/15", "open": 17.05, "high": 17.19, "low": 16.92, "close": 17.04, "volume": 360284 },
{ "date": "05/08/15", "open": 17.13, "high": 17.21, "low": 16.91, "close": 17.1, "volume": 297653 },
{ "date": "05/11/15", "open": 17.16, "high": 17.44, "low": 17.13, "close": 17.31, "volume": 268504 },
{ "date": "05/12/15", "open": 17.28, "high": 17.44, "low": 16.99, "close": 17.24, "volume": 376961 },
{ "date": "05/13/15", "open": 17.24, "high": 17.3, "low": 17.06, "close": 17.2, "volume": 244617 },
{ "date": "05/14/15", "open": 17.24, "high": 17.25, "low": 17.02, "close": 17.08, "volume": 252526 },
{ "date": "05/15/15", "open": 17.06, "high": 17.16, "low": 16.95, "close": 16.95, "volume": 274783 },
{ "date": "05/18/15", "open": 16.95, "high": 17.01, "low": 16.76, "close": 16.87, "volume": 418513 },
{ "date": "05/19/15", "open": 16.93, "high": 16.94, "low": 16.6, "close": 16.83, "volume": 367660 },
{ "date": "05/20/15", "open": 16.8, "high": 16.9, "low": 16.65, "close": 16.86, "volume": 297914 },
{ "date": "05/21/15", "open": 16.9, "high": 17.08, "low": 16.79, "close": 16.88, "volume": 229346 },
{ "date": "05/22/15", "open": 16.9, "high": 17.05, "low": 16.85, "close": 17, "volume": 253279 },
{ "date": "05/26/15", "open": 17.03, "high": 17.08, "low": 16.86, "close": 17.01, "volume": 212640 },
{ "date": "05/27/15", "open": 17.01, "high": 17.99, "low": 16.87, "close": 17.75, "volume": 857109 },
{ "date": "05/28/15", "open": 17.77, "high": 17.77, "low": 17.44, "close": 17.62, "volume": 338482 }
]Make sure to add the following references in code view:
System.Collections.Generic
System.Windows
System.Runtime.Serialization
Partial Public Class Form1
Inherits Form
Private dataService As DataService = DataService.GetService()
Dim macd As New Macd() With {
.Name = "MACD, Signal"
}
Dim macdHistogram As New MacdHistogram() With {
.Name = "MACD Histogram"
}
Private fs As New FinancialSeries()
Public Sub New()
InitializeComponent()
End Sub
Private Sub FinancialChart1_Rendered(sender As Object, e As C1.Win.Chart.RenderEventArgs) Handles FinancialChart1.Rendered
FinancialChart2.AxisX.Min = FinancialChart1.AxisX.ActualMin
FinancialChart2.AxisX.Max = FinancialChart1.AxisX.ActualMax
End Sub
Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
FinancialChart1.BeginUpdate()
FinancialChart1.BindingX = "date"
FinancialChart1.Binding = "close"
FinancialChart1.Series.Add(New FinancialSeries())
'fs.Name = "Box Inc.";
FinancialChart1.Legend.Position = C1.Chart.Position.Right
fs.Visibility = C1.Chart.SeriesVisibility.Visible
FinancialChart1.ChartType = C1.Chart.Finance.FinancialChartType.Line
FinancialChart1.DataSource = dataService.GetData()
FinancialChart1.Legend.Orientation = C1.Chart.Orientation.Vertical
FinancialChart1.Legend.Title = "Box Inc."
FinancialChart1.EndUpdate()
FinancialChart2.BeginUpdate()
FinancialChart2.ChartType = C1.Chart.Finance.FinancialChartType.Line
FinancialChart2.BindingX = "date"
FinancialChart2.Binding = "high,low,close"
FinancialChart2.Series.Add(macd)
FinancialChart2.Series.Add(macdHistogram)
FinancialChart2.Legend.Position = C1.Chart.Position.Bottom
FinancialChart2.DataSource = dataService.GetData()
FinancialChart2.EndUpdate()
macd.FastPeriod = 12
macd.SlowPeriod = 26
macd.SmoothingPeriod = 9
macd.MacdLineStyle.Stroke = Brushes.Red
macd.SignalLineStyle.Stroke = Brushes.Orange
End Sub
End Class
Public Class Quote
Public Property [date](gcdocsite__documentlink?toc-item-id=e3fbc4fe-7817-48e7-b78d-3878662434eb) As String
Get
Return m_date
End Get
Set
m_date = Value
End Set
End Property
Private m_date As String
Public Property high() As Double
Get
Return m_high
End Get
Set
m_high = Value
End Set
End Property
Private m_high As Double
Public Property low() As Double
Get
Return m_low
End Get
Set
m_low = Value
End Set
End Property
Private m_low As Double
Public Property open() As Double
Get
Return m_open
End Get
Set
m_open = Value
End Set
End Property
Private m_open As Double
Public Property close() As Double
Get
Return m_close
End Get
Set
m_close = Value
End Set
End Property
Private m_close As Double
Public Property volume() As Double
Get
Return m_volume
End Get
Set
m_volume = Value
End Set
End Property
Private m_volume As Double
End Classpublic partial class Form1 : Form
{
DataService dataService = DataService.GetService();
Macd macd = new Macd() { Name = "MACD, Signal" };
MacdHistogram macdHistogram = new MacdHistogram() { Name = "MACD Histogram" };
FinancialSeries fs = new FinancialSeries();
public Form1()
{
InitializeComponent();
}
public List<Quote> Data
{
get
{
return dataService.GetData();
}
}
private void OnLoad(object sender, EventArgs e)
{
financialChart1.BeginUpdate();
financialChart1.BindingX = "date";
financialChart1.Binding = "close";
financialChart1.Series.Add(new FinancialSeries());
financialChart1.Legend.Position = C1.Chart.Position.Right;
fs.Visibility = C1.Chart.SeriesVisibility.Visible;
financialChart1.ChartType = C1.Chart.Finance.FinancialChartType.Line;
financialChart1.DataSource = dataService.GetData();
financialChart1.Legend.Orientation = C1.Chart.Orientation.Vertical;
financialChart1.Legend.Title = "Box Inc.";
financialChart1.Rendered += (s, a) =>
{
financialChart2.AxisX.Min = financialChart1.AxisX.ActualMin;
financialChart2.AxisX.Max = financialChart1.AxisX.ActualMax;
};
financialChart1.EndUpdate();
financialChart2.BeginUpdate();
financialChart2.ChartType = C1.Chart.Finance.FinancialChartType.Line;
financialChart2.BindingX = "date";
financialChart2.Binding = "high,low,close";
financialChart2.Series.Add(macd);
financialChart2.Series.Add(macdHistogram);
financialChart2.Legend.Position = C1.Chart.Position.Bottom;
financialChart2.DataSource = dataService.GetData();
financialChart2.EndUpdate();
macd.FastPeriod = 12;
macd.SlowPeriod = 26;
macd.SmoothingPeriod = 9;
macd.MacdLineStyle.Stroke = Brushes.OrangeRed;
macd.SignalLineStyle.Stroke = Brushes.Blue;
}
}
public class Quote
{
public string date { get; set; }
public double high { get; set; }
public double low { get; set; }
public double open { get; set; }
public double close { get; set; }
public double volume { get; set; }
}
