Fibonacci Fans
Fibonacci Fans are the rising and falling trend lines based on the Fibonacci retracement points. These technical indicators help in measuring the speed of a trend’s movement, and also to construct support and resistance trend lines. The rising fan lines are used to predict support levels, while the falling fan lines can help predict resistance levels. In uptrend, if prices move below a Fibonacci Fan trend line, then they are expected to further fall until the next Fibonacci Fan trend line. In such cases, the Fibonacci Fan lines serve as support. Whereas, in a downtrend, if prices rise to a Fibonacci Fan trend line then that trend line is expected to serve as resistance.
To create Fibonacci Fans a trend line is first drawn through two points, the high and the low, in a given period and vertical distance between the two points is divided by the key Fibonacci ratios 38.2%, 50% and 61.8%. A point within the vertical distance is obtained as a result of each of these divisions. Three 'fan' lines are then created by drawing a line from the leftmost point to each of the three points representing a Fibonacci ratio. These are the trend lines that are based on Fibonacci retracement points.
To use Fibonacci Fans tool in FinancialChart, add the control to your application, and bind it to an appropriate data source or populate data in it through Quote Collection. ItemsSource object enables data binding or populating data in FinancialChart.Fibonacci class exposes Uptrend property. Creating object of FibonacciFans class enables Fibonacci fans in a chart. Additionally, the FibonacciFans class exposes StartX, EndX, StartY, and EndY properties. Based on the values of these properties, Fibonacci Fan lines are plotted on FinancialChart.

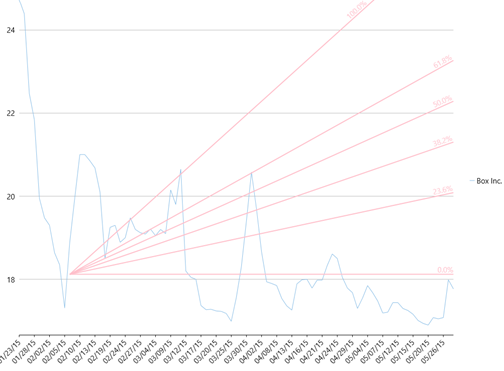

The following example considers stock data for a company Box Inc. over a period of time and plots fan lines on the same financial chart, as shown in the image above. The example uses data from a json file, and DataService.cs class is created to access this json file.
Make sure that Build Action property of the json file is set to Embedded Resource.
Make sure to add the following references in DataService.cs:
System.Collections.Generic
System.Linq
System.Runtime.Serialization.Json
System.Reflection
Public Class DataService
Public Function GetData() As List(Of Quote)
Dim stream As New FileStream("..\..\Resources\box.json", FileMode.Open)
Dim ser = New DataContractJsonSerializer(GetType(Quote()))
Dim data = DirectCast(ser.ReadObject(stream), Quote())
stream.Close()
Return data.ToList()
End Function
Shared _ds As DataService
Public Shared Function GetService() As DataService
If _ds Is Nothing Then
_ds = New DataService()
End If
Return _ds
End Function
End Classpublic class DataService
{
public List<Quote> GetData()
{
string path = "FibonacciWin.Resources.box.json";
//Replace FibonacciWin with your application name.
var stream = Assembly.GetExecutingAssembly().GetManifestResourceStream(path);
var ser = new DataContractJsonSerializer(typeof(Quote[]));
var data = (Quote[])ser.ReadObject(stream);
return data.ToList();
}
static DataService _ds;
public static DataService GetService()
{
if (_ds == null)
_ds = new DataService();
return _ds;
}
}
public class Quote
{
public string date { get; set; }
public double high { get; set; }
public double low { get; set; }
public double open { get; set; }
public double close { get; set; }
public double volume { get; set; }
}
Json Data
[
{ "date": "01/23/15", "open": 20.2, "high": 24.73, "low": 20.16, "close": 23.23, "volume": 42593223 },
{ "date": "01/26/15", "open": 23.67, "high": 24.39, "low": 22.5, "close": 22.6, "volume": 8677164 },
{ "date": "01/27/15", "open": 22, "high": 22.47, "low": 21.17, "close": 21.3, "volume": 3272512 },
{ "date": "01/28/15", "open": 21.62, "high": 21.84, "low": 19.6, "close": 19.78, "volume": 5047364 },
{ "date": "01/29/15", "open": 19.9, "high": 19.95, "low": 18.51, "close": 18.8, "volume": 3419482 },
{ "date": "01/30/15", "open": 18.47, "high": 19.48, "low": 18.22, "close": 18.81, "volume": 2266439 },
{ "date": "02/02/15", "open": 19.18, "high": 19.3, "low": 18.01, "close": 18.02, "volume": 2071168 },
{ "date": "02/03/15", "open": 18.22, "high": 18.64, "low": 18.12, "close": 18.24, "volume": 1587435 },
{ "date": "02/04/15", "open": 18.2, "high": 18.35, "low": 17, "close": 17.1, "volume": 2912224 },
{ "date": "02/05/15", "open": 17.3, "high": 17.31, "low": 16.41, "close": 16.66, "volume": 2682187 },
{ "date": "02/06/15", "open": 17.39, "high": 18.88, "low": 17.21, "close": 18.12, "volume": 3929164 },
{ "date": "02/09/15", "open": 18.86, "high": 19.95, "low": 18.45, "close": 19.6, "volume": 3226650 },
{ "date": "02/10/15", "open": 20.5, "high": 21, "low": 19.63, "close": 20.99, "volume": 2804409 },
{ "date": "02/11/15", "open": 20.89, "high": 21, "low": 20.2, "close": 20.96, "volume": 1698365 },
{ "date": "02/12/15", "open": 20.66, "high": 20.85, "low": 19.75, "close": 20.17, "volume": 1370320 },
{ "date": "02/13/15", "open": 20.19, "high": 20.68, "low": 20, "close": 20.18, "volume": 711951 },
{ "date": "02/17/15", "open": 19.5, "high": 20.1, "low": 18.8, "close": 19.05, "volume": 2093602 },
{ "date": "02/18/15", "open": 18.31, "high": 18.5, "low": 17.96, "close": 18, "volume": 1849490 },
{ "date": "02/19/15", "open": 18.33, "high": 19.25, "low": 17.91, "close": 18.96, "volume": 1311518 },
{ "date": "02/20/15", "open": 18.68, "high": 19.3, "low": 18.65, "close": 18.85, "volume": 1001692 },
{ "date": "02/23/15", "open": 18.8, "high": 18.89, "low": 18.11, "close": 18.21, "volume": 670087 },
{ "date": "02/24/15", "open": 18.46, "high": 19, "low": 18.27, "close": 18.83, "volume": 759263 },
{ "date": "02/25/15", "open": 18.83, "high": 19.48, "low": 18.47, "close": 18.67, "volume": 915580 },
{ "date": "02/26/15", "open": 18.64, "high": 19.2, "low": 18.64, "close": 18.94, "volume": 461283 },
{ "date": "02/27/15", "open": 18.8, "high": 19.12, "low": 18.55, "close": 18.66, "volume": 617199 },
{ "date": "03/02/15", "open": 18.66, "high": 19.09, "low": 18.65, "close": 18.79, "volume": 519605 },
{ "date": "03/03/15", "open": 18.79, "high": 19.21, "low": 18.45, "close": 18.59, "volume": 832415 },
{ "date": "03/04/15", "open": 18.64, "high": 19.05, "low": 18.32, "close": 19, "volume": 539688 },
{ "date": "03/05/15", "open": 19.2, "high": 19.2, "low": 18.8, "close": 19.14, "volume": 486149 },
{ "date": "03/06/15", "open": 19.03, "high": 19.1, "low": 18.7, "close": 18.91, "volume": 685659 },
{ "date": "03/09/15", "open": 18.98, "high": 20.15, "low": 18.96, "close": 19.4, "volume": 1321363 },
{ "date": "03/10/15", "open": 19.3, "high": 19.8, "low": 18.85, "close": 19.64, "volume": 615743 },
{ "date": "03/11/15", "open": 20.08, "high": 20.65, "low": 19.24, "close": 20.53, "volume": 2167167 },
{ "date": "03/12/15", "open": 17.17, "high": 18.2, "low": 16.76, "close": 18.2, "volume": 6837638 },
{ "date": "03/13/15", "open": 18.05, "high": 18.05, "low": 17.3, "close": 17.88, "volume": 1715629 },
{ "date": "03/16/15", "open": 17.91, "high": 18, "low": 17.01, "close": 17.13, "volume": 1321313 },
{ "date": "03/17/15", "open": 17.28, "high": 17.37, "low": 16.6, "close": 17.12, "volume": 1272242 },
{ "date": "03/18/15", "open": 17.1, "high": 17.27, "low": 16.91, "close": 17.01, "volume": 530063 },
{ "date": "03/19/15", "open": 17, "high": 17.28, "low": 17, "close": 17.06, "volume": 536427 },
{ "date": "03/20/15", "open": 17.13, "high": 17.24, "low": 16.88, "close": 17.21, "volume": 1320237 },
{ "date": "03/23/15", "open": 17.21, "high": 17.23, "low": 17.01, "close": 17.11, "volume": 509798 },
{ "date": "03/24/15", "open": 17.02, "high": 17.18, "low": 16.82, "close": 17, "volume": 962149 },
{ "date": "03/25/15", "open": 16.92, "high": 16.99, "low": 16.82, "close": 16.97, "volume": 565673 },
{ "date": "03/26/15", "open": 16.83, "high": 17.56, "low": 16.83, "close": 17.54, "volume": 884523 },
{ "date": "03/27/15", "open": 17.58, "high": 18.3, "low": 17.11, "close": 18.3, "volume": 705626 },
{ "date": "03/30/15", "open": 18.5, "high": 19.4, "low": 18.4, "close": 19.05, "volume": 1151620 },
{ "date": "03/31/15", "open": 19.08, "high": 20.58, "low": 18.4, "close": 19.75, "volume": 2020679 },
{ "date": "04/01/15", "open": 19.69, "high": 19.69, "low": 18.55, "close": 18.65, "volume": 961078 },
{ "date": "04/02/15", "open": 18.56, "high": 18.66, "low": 17.85, "close": 17.9, "volume": 884233 },
{ "date": "04/06/15", "open": 17.78, "high": 17.94, "low": 17.51, "close": 17.66, "volume": 605252 },
{ "date": "04/07/15", "open": 17.62, "high": 17.9, "low": 17.53, "close": 17.61, "volume": 591988 },
{ "date": "04/08/15", "open": 17.64, "high": 17.85, "low": 17.32, "close": 17.36, "volume": 618855 },
{ "date": "04/09/15", "open": 17.33, "high": 17.54, "low": 17.1, "close": 17.1, "volume": 761855 },
{ "date": "04/10/15", "open": 17.08, "high": 17.36, "low": 17, "close": 17.05, "volume": 568373 },
{ "date": "04/13/15", "open": 17.24, "high": 17.26, "low": 16.81, "close": 17.1, "volume": 667142 },
{ "date": "04/14/15", "open": 17.1, "high": 17.89, "low": 17.02, "close": 17.52, "volume": 870138 },
{ "date": "04/15/15", "open": 17.6, "high": 17.99, "low": 17.5, "close": 17.69, "volume": 530456 },
{ "date": "04/16/15", "open": 17.95, "high": 18, "low": 17.6, "close": 17.82, "volume": 548730 },
{ "date": "04/17/15", "open": 17.75, "high": 17.79, "low": 17.5, "close": 17.79, "volume": 446373 },
{ "date": "04/20/15", "open": 17.63, "high": 17.98, "low": 17.52, "close": 17.93, "volume": 487017 },
{ "date": "04/21/15", "open": 17.96, "high": 17.98, "low": 17.71, "close": 17.92, "volume": 320302 },
{ "date": "04/22/15", "open": 17.88, "high": 18.33, "low": 17.57, "close": 18.29, "volume": 644812 },
{ "date": "04/23/15", "open": 18.29, "high": 18.61, "low": 18.18, "close": 18.28, "volume": 563879 },
{ "date": "04/24/15", "open": 18.5, "high": 18.5, "low": 17.61, "close": 17.75, "volume": 650762 },
{ "date": "04/27/15", "open": 17.97, "high": 18.05, "low": 17.45, "close": 17.57, "volume": 437294 },
{ "date": "04/28/15", "open": 17.65, "high": 17.79, "low": 17.39, "close": 17.5, "volume": 224519 },
{ "date": "04/29/15", "open": 17.68, "high": 17.68, "low": 17.1, "close": 17.21, "volume": 495706 },
{ "date": "04/30/15", "open": 17.22, "high": 17.3, "low": 17, "close": 17.11, "volume": 391040 },
{ "date": "05/01/15", "open": 17.11, "high": 17.55, "low": 16.85, "close": 17.5, "volume": 563075 },
{ "date": "05/04/15", "open": 17.56, "high": 17.85, "low": 17.3, "close": 17.4, "volume": 253138 },
{ "date": "05/05/15", "open": 17.68, "high": 17.68, "low": 17.09, "close": 17.43, "volume": 290935 },
{ "date": "05/06/15", "open": 17.48, "high": 17.48, "low": 17, "close": 17.04, "volume": 313662 },
{ "date": "05/07/15", "open": 17.05, "high": 17.19, "low": 16.92, "close": 17.04, "volume": 360284 },
{ "date": "05/08/15", "open": 17.13, "high": 17.21, "low": 16.91, "close": 17.1, "volume": 297653 },
{ "date": "05/11/15", "open": 17.16, "high": 17.44, "low": 17.13, "close": 17.31, "volume": 268504 },
{ "date": "05/12/15", "open": 17.28, "high": 17.44, "low": 16.99, "close": 17.24, "volume": 376961 },
{ "date": "05/13/15", "open": 17.24, "high": 17.3, "low": 17.06, "close": 17.2, "volume": 244617 },
{ "date": "05/14/15", "open": 17.24, "high": 17.25, "low": 17.02, "close": 17.08, "volume": 252526 },
{ "date": "05/15/15", "open": 17.06, "high": 17.16, "low": 16.95, "close": 16.95, "volume": 274783 },
{ "date": "05/18/15", "open": 16.95, "high": 17.01, "low": 16.76, "close": 16.87, "volume": 418513 },
{ "date": "05/19/15", "open": 16.93, "high": 16.94, "low": 16.6, "close": 16.83, "volume": 367660 },
{ "date": "05/20/15", "open": 16.8, "high": 16.9, "low": 16.65, "close": 16.86, "volume": 297914 },
{ "date": "05/21/15", "open": 16.9, "high": 17.08, "low": 16.79, "close": 16.88, "volume": 229346 },
{ "date": "05/22/15", "open": 16.9, "high": 17.05, "low": 16.85, "close": 17, "volume": 253279 },
{ "date": "05/26/15", "open": 17.03, "high": 17.08, "low": 16.86, "close": 17.01, "volume": 212640 },
{ "date": "05/27/15", "open": 17.01, "high": 17.99, "low": 16.87, "close": 17.75, "volume": 857109 },
{ "date": "05/28/15", "open": 17.77, "high": 17.77, "low": 17.44, "close": 17.62, "volume": 338482 }
]Make sure to add the following references in code view:
System.Collections.Generic
System.Windows
System.Runtime.Serialization
Partial Public Class Form3
Inherits Form
Dim dataService As DataService = dataService.GetService()
Dim fs As New FinancialSeries() With
{
.Name = "Box Inc."
}
Dim fans As New FibonacciFans() With {
.Binding = "close",
.StartX = 10,
.StartY = 18.12,
.EndX = 32,
.EndY = 20.53
}
Public Sub New()
InitializeComponent()
End Sub
Private Sub Form3_Load(sender As Object, e As EventArgs) Handles MyBase.Load
FinancialChart1.BeginUpdate()
FinancialChart1.BindingX = "date"
FinancialChart1.Binding = "high,low,open,close"
FinancialChart1.Series.Add(fs)
FinancialChart1.Series.Add(fans)
FinancialChart1.Legend.Position = C1.Chart.Position.Right
fs.Visibility = C1.Chart.SeriesVisibility.Visible
FinancialChart1.ChartType = C1.Chart.Finance.FinancialChartType.Line
FinancialChart1.DataSource = dataService.GetData()
FinancialChart1.EndUpdate()
End Sub
End Class
Public Class Quote
Public Property [date](gcdocsite__documentlink?toc-item-id=a6a5c6d2-afe7-4d2a-a1d3-3aaeea8b3ea3) As String
Get
Return m_date
End Get
Set
m_date = Value
End Set
End Property
Private m_date As String
Public Property high() As Double
Get
Return m_high
End Get
Set
m_high = Value
End Set
End Property
Private m_high As Double
Public Property low() As Double
Get
Return m_low
End Get
Set
m_low = Value
End Set
End Property
Private m_low As Double
Public Property open() As Double
Get
Return m_open
End Get
Set
m_open = Value
End Set
End Property
Private m_open As Double
Public Property close() As Double
Get
Return m_close
End Get
Set
m_close = Value
End Set
End Property
Private m_close As Double
Public Property volume() As Double
Get
Return m_volume
End Get
Set
m_volume = Value
End Set
End Property
Private m_volume As Double
End Classpublic partial class FibFans : Form
{
DataService dataService = DataService.GetService();
FinancialSeries fs = new FinancialSeries() { Name = "Box Inc." };
FibonacciFans fans = new FibonacciFans() { Binding = "close", StartX = 10, StartY = 18.12, EndX = 32, EndY = 20.53 };
public FibFans()
{
InitializeComponent();
}
private void OnLoad(object sender, EventArgs e)
{
financialChart1.BeginUpdate();
financialChart1.BindingX = "date";
financialChart1.Binding = "high,low,open,close";
financialChart1.Series.Add(fs);
financialChart1.Series.Add(fans);
financialChart1.Legend.Position = C1.Chart.Position.Right;
fs.Visibility = C1.Chart.SeriesVisibility.Visible;
financialChart1.ChartType = C1.Chart.Finance.FinancialChartType.Line;
financialChart1.DataSource = dataService.GetData();
fans.Style.Stroke = Brushes.Pink;
financialChart1.EndUpdate();
}
}
