Fibonacci Arcs
Fibonacci Arcs are the technical analysis tools composed of a Base Line and three curved lines extending out from a trend line on FinancialChart. These arcs enable traders to predict resistance or reversal zones for counter trend bounce situations after decline. A small change in price over a short time period produces narrow arcs with a short Base Line; a big price move over a long time period produces wide arcs with a long Base Line.
To create Fibonacci Arcs a Base Line is drawn through two points, the high (peak) and the low (trough), in a given period. Arcs are drawn intersecting this base line at key Fibonacci levels 38.2%, 50%, and 61.8%. In contrast with Fibonacci Retracements, which are concerned only with change in price, Fibonacci Arcs consider time element too.
To use Fibonacci Arcs tool in FinancialChart, add the control to your application, and bind it to an appropriate data source or populate data in it through Quote Collection. ItemsSource object enables data binding or populating data in FinancialChart.
Fibonacci class exposes Uptrend property. Creating object of FibonacciArcs class enables fibonacci arcs in a chart. Additionally, the FibonacciExtension class exposes StartX, EndX, StartY, and EndY properties. Based on the values of these properties, curves are plotted on FinancialChart.

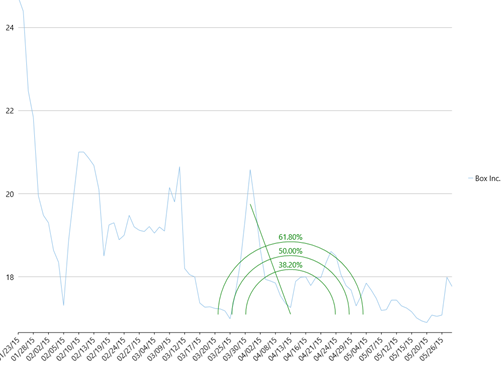

The following example considers stock data for a company Box Inc. over a period of time and plots curves on the same financial chart, as shown in the image above. The example uses data from a json file, and DataService.cs class is created to access this json file.
Make sure that Build Action property of the json file is set to Embedded Resource.
Make sure to add the following references in DataService.cs:
System.Collections.Generic
System.Linq
System.Runtime.Serialization.Json
System.Reflection
Public Class DataService
Public Function GetData() As List(Of Quote)
Dim stream As New FileStream("..\..\Resources\box.json", FileMode.Open)
Dim ser = New DataContractJsonSerializer(GetType(Quote()))
Dim data = DirectCast(ser.ReadObject(stream), Quote())
stream.Close()
Return data.ToList()
End Function
Shared _ds As DataService
Public Shared Function GetService() As DataService
If _ds Is Nothing Then
_ds = New DataService()
End If
Return _ds
End Function
End Classpublic class DataService
{
public List<Quote> GetData()
{
string path = "FibonacciWin.Resources.box.json";
//Replace FibonacciWin with your application name.
var stream = Assembly.GetExecutingAssembly().GetManifestResourceStream(path);
var ser = new DataContractJsonSerializer(typeof(Quote[]));
var data = (Quote[])ser.ReadObject(stream);
return data.ToList();
}
static DataService _ds;
public static DataService GetService()
{
if (_ds == null)
_ds = new DataService();
return _ds;
}
}
public class Quote
{
public string date { get; set; }
public double high { get; set; }
public double low { get; set; }
public double open { get; set; }
public double close { get; set; }
public double volume { get; set; }
}
Json Data
[
{ "date": "01/23/15", "open": 20.2, "high": 24.73, "low": 20.16, "close": 23.23, "volume": 42593223 },
{ "date": "01/26/15", "open": 23.67, "high": 24.39, "low": 22.5, "close": 22.6, "volume": 8677164 },
{ "date": "01/27/15", "open": 22, "high": 22.47, "low": 21.17, "close": 21.3, "volume": 3272512 },
{ "date": "01/28/15", "open": 21.62, "high": 21.84, "low": 19.6, "close": 19.78, "volume": 5047364 },
{ "date": "01/29/15", "open": 19.9, "high": 19.95, "low": 18.51, "close": 18.8, "volume": 3419482 },
{ "date": "01/30/15", "open": 18.47, "high": 19.48, "low": 18.22, "close": 18.81, "volume": 2266439 },
{ "date": "02/02/15", "open": 19.18, "high": 19.3, "low": 18.01, "close": 18.02, "volume": 2071168 },
{ "date": "02/03/15", "open": 18.22, "high": 18.64, "low": 18.12, "close": 18.24, "volume": 1587435 },
{ "date": "02/04/15", "open": 18.2, "high": 18.35, "low": 17, "close": 17.1, "volume": 2912224 },
{ "date": "02/05/15", "open": 17.3, "high": 17.31, "low": 16.41, "close": 16.66, "volume": 2682187 },
{ "date": "02/06/15", "open": 17.39, "high": 18.88, "low": 17.21, "close": 18.12, "volume": 3929164 },
{ "date": "02/09/15", "open": 18.86, "high": 19.95, "low": 18.45, "close": 19.6, "volume": 3226650 },
{ "date": "02/10/15", "open": 20.5, "high": 21, "low": 19.63, "close": 20.99, "volume": 2804409 },
{ "date": "02/11/15", "open": 20.89, "high": 21, "low": 20.2, "close": 20.96, "volume": 1698365 },
{ "date": "02/12/15", "open": 20.66, "high": 20.85, "low": 19.75, "close": 20.17, "volume": 1370320 },
{ "date": "02/13/15", "open": 20.19, "high": 20.68, "low": 20, "close": 20.18, "volume": 711951 },
{ "date": "02/17/15", "open": 19.5, "high": 20.1, "low": 18.8, "close": 19.05, "volume": 2093602 },
{ "date": "02/18/15", "open": 18.31, "high": 18.5, "low": 17.96, "close": 18, "volume": 1849490 },
{ "date": "02/19/15", "open": 18.33, "high": 19.25, "low": 17.91, "close": 18.96, "volume": 1311518 },
{ "date": "02/20/15", "open": 18.68, "high": 19.3, "low": 18.65, "close": 18.85, "volume": 1001692 },
{ "date": "02/23/15", "open": 18.8, "high": 18.89, "low": 18.11, "close": 18.21, "volume": 670087 },
{ "date": "02/24/15", "open": 18.46, "high": 19, "low": 18.27, "close": 18.83, "volume": 759263 },
{ "date": "02/25/15", "open": 18.83, "high": 19.48, "low": 18.47, "close": 18.67, "volume": 915580 },
{ "date": "02/26/15", "open": 18.64, "high": 19.2, "low": 18.64, "close": 18.94, "volume": 461283 },
{ "date": "02/27/15", "open": 18.8, "high": 19.12, "low": 18.55, "close": 18.66, "volume": 617199 },
{ "date": "03/02/15", "open": 18.66, "high": 19.09, "low": 18.65, "close": 18.79, "volume": 519605 },
{ "date": "03/03/15", "open": 18.79, "high": 19.21, "low": 18.45, "close": 18.59, "volume": 832415 },
{ "date": "03/04/15", "open": 18.64, "high": 19.05, "low": 18.32, "close": 19, "volume": 539688 },
{ "date": "03/05/15", "open": 19.2, "high": 19.2, "low": 18.8, "close": 19.14, "volume": 486149 },
{ "date": "03/06/15", "open": 19.03, "high": 19.1, "low": 18.7, "close": 18.91, "volume": 685659 },
{ "date": "03/09/15", "open": 18.98, "high": 20.15, "low": 18.96, "close": 19.4, "volume": 1321363 },
{ "date": "03/10/15", "open": 19.3, "high": 19.8, "low": 18.85, "close": 19.64, "volume": 615743 },
{ "date": "03/11/15", "open": 20.08, "high": 20.65, "low": 19.24, "close": 20.53, "volume": 2167167 },
{ "date": "03/12/15", "open": 17.17, "high": 18.2, "low": 16.76, "close": 18.2, "volume": 6837638 },
{ "date": "03/13/15", "open": 18.05, "high": 18.05, "low": 17.3, "close": 17.88, "volume": 1715629 },
{ "date": "03/16/15", "open": 17.91, "high": 18, "low": 17.01, "close": 17.13, "volume": 1321313 },
{ "date": "03/17/15", "open": 17.28, "high": 17.37, "low": 16.6, "close": 17.12, "volume": 1272242 },
{ "date": "03/18/15", "open": 17.1, "high": 17.27, "low": 16.91, "close": 17.01, "volume": 530063 },
{ "date": "03/19/15", "open": 17, "high": 17.28, "low": 17, "close": 17.06, "volume": 536427 },
{ "date": "03/20/15", "open": 17.13, "high": 17.24, "low": 16.88, "close": 17.21, "volume": 1320237 },
{ "date": "03/23/15", "open": 17.21, "high": 17.23, "low": 17.01, "close": 17.11, "volume": 509798 },
{ "date": "03/24/15", "open": 17.02, "high": 17.18, "low": 16.82, "close": 17, "volume": 962149 },
{ "date": "03/25/15", "open": 16.92, "high": 16.99, "low": 16.82, "close": 16.97, "volume": 565673 },
{ "date": "03/26/15", "open": 16.83, "high": 17.56, "low": 16.83, "close": 17.54, "volume": 884523 },
{ "date": "03/27/15", "open": 17.58, "high": 18.3, "low": 17.11, "close": 18.3, "volume": 705626 },
{ "date": "03/30/15", "open": 18.5, "high": 19.4, "low": 18.4, "close": 19.05, "volume": 1151620 },
{ "date": "03/31/15", "open": 19.08, "high": 20.58, "low": 18.4, "close": 19.75, "volume": 2020679 },
{ "date": "04/01/15", "open": 19.69, "high": 19.69, "low": 18.55, "close": 18.65, "volume": 961078 },
{ "date": "04/02/15", "open": 18.56, "high": 18.66, "low": 17.85, "close": 17.9, "volume": 884233 },
{ "date": "04/06/15", "open": 17.78, "high": 17.94, "low": 17.51, "close": 17.66, "volume": 605252 },
{ "date": "04/07/15", "open": 17.62, "high": 17.9, "low": 17.53, "close": 17.61, "volume": 591988 },
{ "date": "04/08/15", "open": 17.64, "high": 17.85, "low": 17.32, "close": 17.36, "volume": 618855 },
{ "date": "04/09/15", "open": 17.33, "high": 17.54, "low": 17.1, "close": 17.1, "volume": 761855 },
{ "date": "04/10/15", "open": 17.08, "high": 17.36, "low": 17, "close": 17.05, "volume": 568373 },
{ "date": "04/13/15", "open": 17.24, "high": 17.26, "low": 16.81, "close": 17.1, "volume": 667142 },
{ "date": "04/14/15", "open": 17.1, "high": 17.89, "low": 17.02, "close": 17.52, "volume": 870138 },
{ "date": "04/15/15", "open": 17.6, "high": 17.99, "low": 17.5, "close": 17.69, "volume": 530456 },
{ "date": "04/16/15", "open": 17.95, "high": 18, "low": 17.6, "close": 17.82, "volume": 548730 },
{ "date": "04/17/15", "open": 17.75, "high": 17.79, "low": 17.5, "close": 17.79, "volume": 446373 },
{ "date": "04/20/15", "open": 17.63, "high": 17.98, "low": 17.52, "close": 17.93, "volume": 487017 },
{ "date": "04/21/15", "open": 17.96, "high": 17.98, "low": 17.71, "close": 17.92, "volume": 320302 },
{ "date": "04/22/15", "open": 17.88, "high": 18.33, "low": 17.57, "close": 18.29, "volume": 644812 },
{ "date": "04/23/15", "open": 18.29, "high": 18.61, "low": 18.18, "close": 18.28, "volume": 563879 },
{ "date": "04/24/15", "open": 18.5, "high": 18.5, "low": 17.61, "close": 17.75, "volume": 650762 },
{ "date": "04/27/15", "open": 17.97, "high": 18.05, "low": 17.45, "close": 17.57, "volume": 437294 },
{ "date": "04/28/15", "open": 17.65, "high": 17.79, "low": 17.39, "close": 17.5, "volume": 224519 },
{ "date": "04/29/15", "open": 17.68, "high": 17.68, "low": 17.1, "close": 17.21, "volume": 495706 },
{ "date": "04/30/15", "open": 17.22, "high": 17.3, "low": 17, "close": 17.11, "volume": 391040 },
{ "date": "05/01/15", "open": 17.11, "high": 17.55, "low": 16.85, "close": 17.5, "volume": 563075 },
{ "date": "05/04/15", "open": 17.56, "high": 17.85, "low": 17.3, "close": 17.4, "volume": 253138 },
{ "date": "05/05/15", "open": 17.68, "high": 17.68, "low": 17.09, "close": 17.43, "volume": 290935 },
{ "date": "05/06/15", "open": 17.48, "high": 17.48, "low": 17, "close": 17.04, "volume": 313662 },
{ "date": "05/07/15", "open": 17.05, "high": 17.19, "low": 16.92, "close": 17.04, "volume": 360284 },
{ "date": "05/08/15", "open": 17.13, "high": 17.21, "low": 16.91, "close": 17.1, "volume": 297653 },
{ "date": "05/11/15", "open": 17.16, "high": 17.44, "low": 17.13, "close": 17.31, "volume": 268504 },
{ "date": "05/12/15", "open": 17.28, "high": 17.44, "low": 16.99, "close": 17.24, "volume": 376961 },
{ "date": "05/13/15", "open": 17.24, "high": 17.3, "low": 17.06, "close": 17.2, "volume": 244617 },
{ "date": "05/14/15", "open": 17.24, "high": 17.25, "low": 17.02, "close": 17.08, "volume": 252526 },
{ "date": "05/15/15", "open": 17.06, "high": 17.16, "low": 16.95, "close": 16.95, "volume": 274783 },
{ "date": "05/18/15", "open": 16.95, "high": 17.01, "low": 16.76, "close": 16.87, "volume": 418513 },
{ "date": "05/19/15", "open": 16.93, "high": 16.94, "low": 16.6, "close": 16.83, "volume": 367660 },
{ "date": "05/20/15", "open": 16.8, "high": 16.9, "low": 16.65, "close": 16.86, "volume": 297914 },
{ "date": "05/21/15", "open": 16.9, "high": 17.08, "low": 16.79, "close": 16.88, "volume": 229346 },
{ "date": "05/22/15", "open": 16.9, "high": 17.05, "low": 16.85, "close": 17, "volume": 253279 },
{ "date": "05/26/15", "open": 17.03, "high": 17.08, "low": 16.86, "close": 17.01, "volume": 212640 },
{ "date": "05/27/15", "open": 17.01, "high": 17.99, "low": 16.87, "close": 17.75, "volume": 857109 },
{ "date": "05/28/15", "open": 17.77, "high": 17.77, "low": 17.44, "close": 17.62, "volume": 338482 }
]Make sure to add the following references in code view:
System.Collections.Generic
System.Windows
System.Runtime.Serialization
Partial Public Class Form2
Inherits Form
Dim dataService As DataService = dataService.GetService()
Dim fs As New FinancialSeries() With
{
.Name = "Box Inc."
}
Dim arcs As New FibonacciArcs() With {
.Binding = "close",
.StartX = 46,
.StartY = 19.75,
.EndX = 54,
.EndY = 17.1
}
Public Sub New()
InitializeComponent()
End Sub
Private Sub Form2_Load(sender As Object, e As EventArgs) Handles MyBase.Load
FinancialChart1.BeginUpdate()
FinancialChart1.BindingX = "date"
FinancialChart1.Binding = "high,low,open,close"
FinancialChart1.Series.Add(fs)
FinancialChart1.Series.Add(arcs)
FinancialChart1.Legend.Position = C1.Chart.Position.Right
fs.Visibility = C1.Chart.SeriesVisibility.Visible
FinancialChart1.ChartType = C1.Chart.Finance.FinancialChartType.Line
FinancialChart1.DataSource = dataService.GetData()
FinancialChart1.EndUpdate()
End Sub
End Class
Public Class Quote
Public Property [date](gcdocsite__documentlink?toc-item-id=157ea9b4-9876-421e-9d93-d812419236a9) As String
Get
Return m_date
End Get
Set
m_date = Value
End Set
End Property
Private m_date As String
Public Property high() As Double
Get
Return m_high
End Get
Set
m_high = Value
End Set
End Property
Private m_high As Double
Public Property low() As Double
Get
Return m_low
End Get
Set
m_low = Value
End Set
End Property
Private m_low As Double
Public Property open() As Double
Get
Return m_open
End Get
Set
m_open = Value
End Set
End Property
Private m_open As Double
Public Property close() As Double
Get
Return m_close
End Get
Set
m_close = Value
End Set
End Property
Private m_close As Double
Public Property volume() As Double
Get
Return m_volume
End Get
Set
m_volume = Value
End Set
End Property
Private m_volume As Double
End Classpublic partial class FibArcs : Form
{
DataService dataService = DataService.GetService();
FinancialSeries fs = new FinancialSeries() { Name = "Box Inc." };
FibonacciArcs arcs = new FibonacciArcs() { Binding = "close", StartX = 46, StartY = 19.75, EndX = 54, EndY = 17.1 };
public FibArcs()
{
InitializeComponent();
}
private void OnLoad(object sender, EventArgs e)
{
financialChart1.BeginUpdate();
financialChart1.BindingX = "date";
financialChart1.Binding = "high,low,open,close";
financialChart1.Series.Add(fs);
financialChart1.Series.Add(arcs);
financialChart1.Legend.Position = C1.Chart.Position.Right;
fs.Visibility = C1.Chart.SeriesVisibility.Visible;
financialChart1.ChartType = C1.Chart.Finance.FinancialChartType.Line;
financialChart1.DataSource = dataService.GetData();
arcs.Style.Stroke = Brushes.Green;
financialChart1.EndUpdate();
}
}
