Header and Footer
You can add a title to the FlexChart control by setting its [Header](/componentone/api/mvc/online-mvc-core/dotnet-api/C1.AspNetCore.Mvc/C1.Web.Mvc.FlexChartBase-1.Header.html) property. Besides a title, you may also set a footer for the chart by setting the [Footer](/componentone/api/mvc/online-mvc-core/dotnet-api/C1.AspNetCore.Mvc/C1.Web.Mvc.FlexChartBase-1.Footer.html) property. You can also style the header and footer text with the help of [HeaderStyle](/componentone/api/mvc/online-mvc-core/dotnet-api/C1.AspNetCore.Mvc/C1.Web.Mvc.FlexChartBase-1.HeaderStyle.html) and [FooterStyle](/componentone/api/mvc/online-mvc-core/dotnet-api/C1.AspNetCore.Mvc/C1.Web.Mvc.FlexChartBase-1.FooterStyle.html) properties.

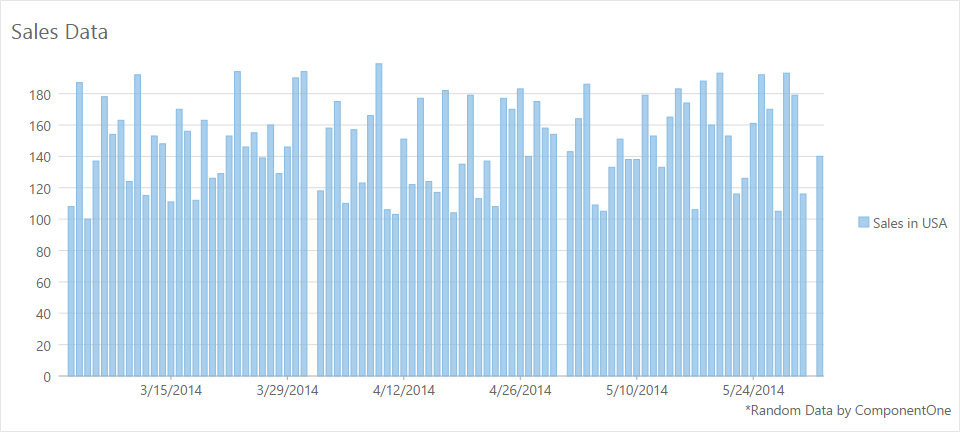

The image below shows how the FlexChart appears, after these properties have been set.
The following code examples demonstrate how to set these. This example uses the sample created in the Quick Start section.
<c1-flex-chart binding-x="Name" chart-type="ChartType.Column" header="Sales Data" footer="*Random Data by ComponentOne">
<c1-flex-chart-title-style c1-property="FooterStyle" halign="right"></c1-flex-chart-title-style>
<c1-flex-chart-title-style c1-property="HeaderStyle" halign="left"></c1-flex-chart-title-style>
<c1-items-source source-collection="Model"></c1-items-source>
<c1-flex-chart-series binding="SalesInUSA" name="Sales in USA">
</c1-flex-chart-series>
</c1-flex-chart>
